In industrial steam systems, steam is typically generated in boilers at high temperature and high pressure. However, in practical applications, most end-use equipment does not require such high steam parameters. Therefore, pressure reduction and desuperheating (PRDS) become essential processes in steam system regulation.
The core purpose of pressure reducing and desuperheating systems is to adjust high-temperature, high-pressure steam to stable conditions that meet downstream process requirements. This ensures safe operation, improved energy efficiency, and better equipment protection.
This article systematically explains why steam needs pressure reduction and desuperheating from the perspectives of steam characteristics, system requirements, equipment safety, and energy efficiency.
Steam is a typical thermal energy carrier, and its state is defined by temperature, pressure, and enthalpy. Steam generated in boilers is usually in a high-pressure or superheated state, such as 3.9 MPa and 450°C or even higher.
However, steam properties change significantly under different pressure conditions. When pressure decreases, the saturation temperature also decreases; when steam is superheated, it contains more sensible heat, which is not always suitable for every industrial process.
In actual industrial applications, many devices—such as heat exchangers, jacketed reactors, and drying systems—require stable saturated steam or low-pressure steam rather than high-parameter boiler steam. Therefore, steam conditioning becomes necessary.
In industrial systems, steam pressure requirements vary significantly depending on the application. For example:
Reactor heating: typically 0.3–0.8 MPa
Food processing: 0.1–0.3 MPa
Sterilization equipment: 0.2–0.4 MPa
However, boiler outlet pressure is usually much higher than these requirements. If high-pressure steam is used directly, it may exceed equipment design limits or cause control failure.
The function of pressure reduction is to adjust high-pressure steam to a safe and usable pressure range, ensuring system compatibility and stable operation.
Without pressure reduction, high-pressure steam entering low-pressure systems can cause sudden overpressure conditions, leading to:
Pipeline rupture
Valve damage
Heat exchanger deformation
Frequent safety valve activation
Therefore, pressure reduction is not only a process requirement but also a fundamental safety measure in industrial steam systems.
Steam produced by boilers is often superheated, meaning its temperature is higher than the saturation temperature at the corresponding pressure. However, many industrial processes require saturated steam at stable temperatures.
In heat exchange applications, excessive steam temperature may cause:
Local overheating
Uneven product quality
Thermal stress or fouling on heat transfer surfaces
Therefore, desuperheating is required to reduce steam temperature to the desired process range.
In industries such as food processing, pharmaceuticals, and fine chemicals, temperature control directly affects product quality. Large fluctuations in steam temperature may lead to:
Incomplete sterilization
Unstable reaction rates
Batch-to-batch inconsistencies
Through precise desuperheating control, steam temperature can be stabilized, ensuring consistent process performance.

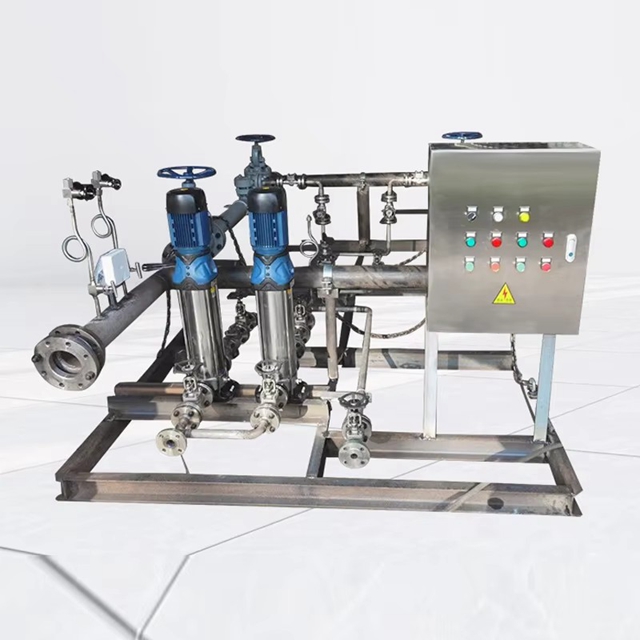

A typical PRDS system consists of a pressure reduction unit and a desuperheating unit, which work together to adjust steam parameters.
Pressure reduction is usually achieved through a control valve or pressure-reducing valve. When steam passes through the throttling device, pressure decreases while enthalpy remains approximately constant due to an adiabatic throttling process.
During this process, energy is redistributed within the steam, enabling controlled pressure output.
This is fundamentally an energy transformation process rather than a simple pressure drop.
Desuperheating is typically achieved by injecting atomized water into the steam flow. The cooling water rapidly evaporates in the high-temperature steam, absorbing large amounts of heat and reducing steam temperature.
Key control factors include:
Water injection rate
Atomization quality
Mixing uniformity
Excess water may increase steam moisture content and cause water hammer, while insufficient water results in poor cooling performance.
Modern PRDS systems use automatic control strategies based on real-time feedback from pressure and temperature sensors. This enables:
Closed-loop pressure control
Dynamic temperature regulation
Precise water injection adjustment
Such coordination ensures stable steam output under varying load conditions.
By reducing steam pressure and temperature, equipment load is significantly decreased, reducing the risk of system failure. This is especially important in continuous industrial operations.
Boilers typically generate high-parameter steam centrally, while PRDS systems enable multi-level distribution. Different processes can use steam at appropriate pressure levels, improving overall energy utilization efficiency.
Stable steam parameters are essential for industrial production quality. PRDS systems eliminate fluctuations from the boiler side, ensuring consistent downstream operation.
Proper steam conditioning reduces thermal shock and mechanical stress, extending the service life of heat exchangers, pipelines, and valves.
Pressure reducing and desuperheating systems are widely used across multiple industrial sectors, and their applications are highly diverse due to differences in steam demand.
In combined heat and power (CHP) systems and district heating networks, boilers or turbines generate high-pressure steam, while end users require low-pressure heating steam.
PRDS systems play a key role in steam distribution and cascade energy utilization. High-pressure steam is reduced to multiple pressure levels for different heating networks, while temperature control ensures suitable steam quality for heat exchange stations and terminal equipment.
In addition, these systems stabilize steam networks under fluctuating heat demand, improving safety and operational continuity.
In the petrochemical industry, steam is used for heating, cracking, distillation, reaction control, and tracing systems. Different process units require significantly different steam parameters.
PRDS systems ensure precise steam distribution across the plant. Pressure control prevents overpressure in sensitive equipment, while temperature regulation avoids overheating and catalyst degradation.
Given the continuous nature of petrochemical operations, these systems must provide high reliability and long-term stable performance.
In pharmaceutical and biotechnology industries, steam is primarily used for sterilization, disinfection, and clean-in-place (CIP/SIP) processes.
These applications require extremely stable steam quality. Any fluctuation in pressure or temperature may result in incomplete sterilization or inconsistent product quality.
PRDS systems convert high-pressure boiler steam into saturated steam suitable for sterilization while maintaining precise temperature control to protect sensitive biological materials.
Steam is widely used in food processing for heating, sterilization, cooking, and cleaning. Different production lines require different steam conditions.
PRDS systems enable flexible adjustment of steam parameters, allowing a single steam source to serve multiple processes.
Since steam stability directly affects product quality, these systems play a critical role in ensuring consistent heating and sterilization performance.
In pulp, paper, and textile manufacturing, steam is used for drying, shaping, and humidity control.
These processes are highly sensitive to steam pressure variations. Excess pressure may cause over-drying, while insufficient pressure reduces production efficiency.
PRDS systems provide stable low-pressure steam, ensuring uniform drying and improving product consistency while reducing energy consumption.
In industrial parks and centralized steam networks, multiple users with different requirements share a single steam source.
PRDS systems act as energy distribution hubs, converting high-pressure steam into multiple pressure levels for different users. This enables centralized generation with decentralized utilization.
They also stabilize system performance under fluctuating loads, improving overall network reliability and energy efficiency.
The fundamental reason steam requires pressure reduction and desuperheating can be summarized into three aspects: process compatibility, safety control, and energy optimization.
Boiler-generated steam is typically high-pressure and high-temperature, while industrial equipment requires different steam parameters. Pressure reduction ensures system safety and pressure matching, while desuperheating ensures temperature control and process stability. Together, they enable efficient, stable, and safe steam distribution across complex industrial systems.
With the continuous development of industrial automation and energy efficiency requirements, pressure reducing and desuperheating technology will play an increasingly important role in modern steam systems, becoming a core component of energy management and process control.
