CVW-40 Wafer Lift Steam Check Valve High Temperature Manual Hot Water Various Sizes 1-Year Warranty Meets Needs Different Medium

CVW-40 Wafer Lift Steam Check Valve High Temperature Manual Hot Water Various Sizes 1-Year Warranty Meets Needs Different Medium

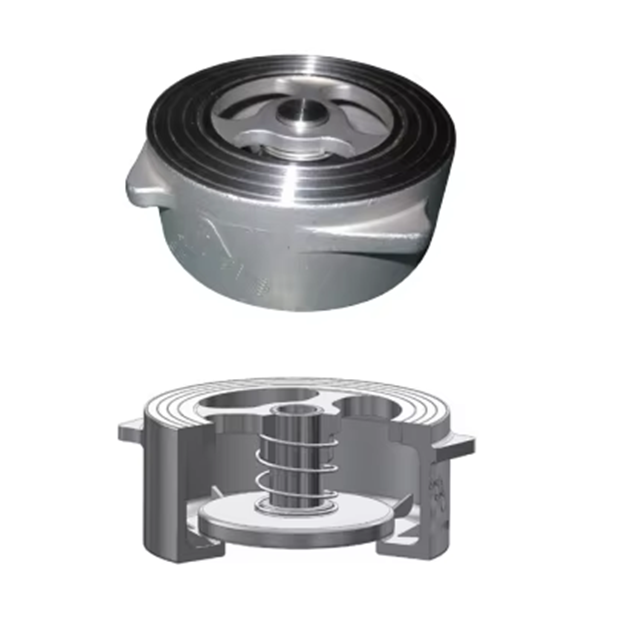

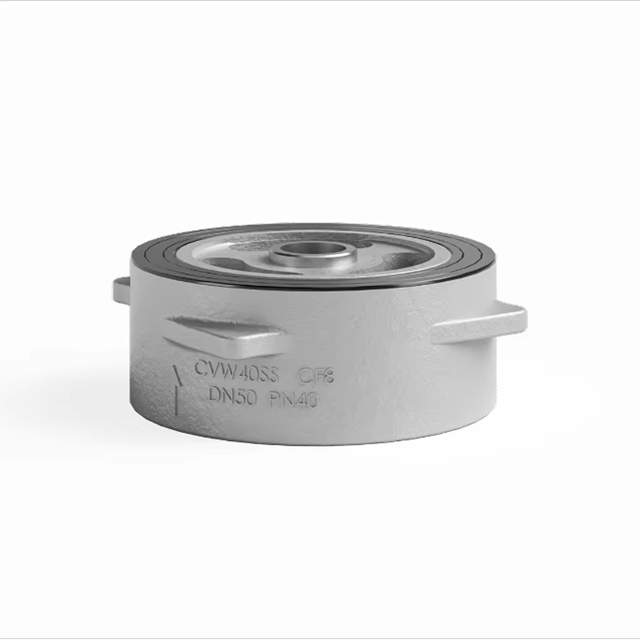

The CVW-40 Series wafer lift check valve is engineered for reliable performance with hot water, condensate, oil, and a wide range of other fluids. Offering multiple connection diameters, it easily adapts to varying medium flow demands. Its innovative cam-shaped design simplifies installation: by rotating the valve body so the cam engages with the flange bolts, the valve is perfectly aligned and securely positioned within the piping system.

Quantity:
Material:	Stainless steel
Size:	DN15-DN100
connection:	Flanged 4.0MPa RF Flange Wafer
Availability:





Inquire Add to Basket

Model:
CVW-40
Brand:
Steam

Product Description

Technical Parameters

Company Description

CVW40 check valve

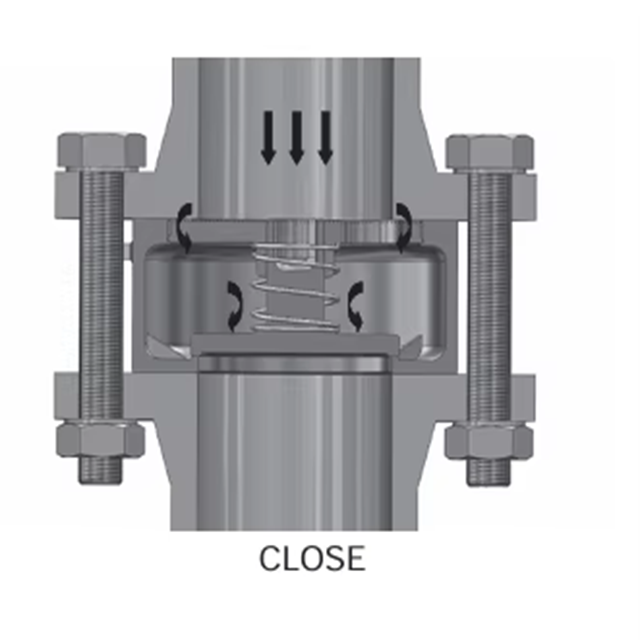

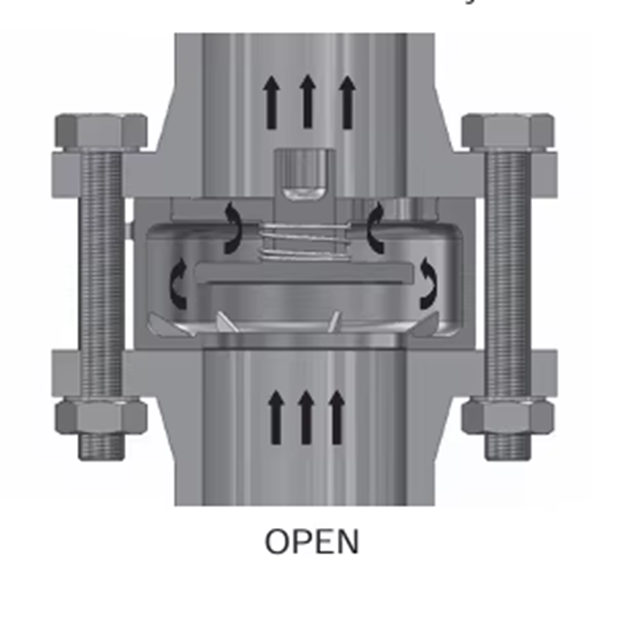

The check valve, also known as a one-way or non-return valve, is designed to prevent medium backflow in pipelines. It allows fluid to flow in only one direction, enhancing safety in single-direction flow systems. The CVW-40 Series wafer lift check valve is suitable for hot water, condensate, oil, and other fluids.

Available in various connection diameters, it accommodates different medium flow requirements. Its integrated cam design simplifies installation—by rotating the valve body so the cam contacts the flange bolts, the valve is precisely centered in the pipeline.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Globe Valve Configuration Diagram

globe valve

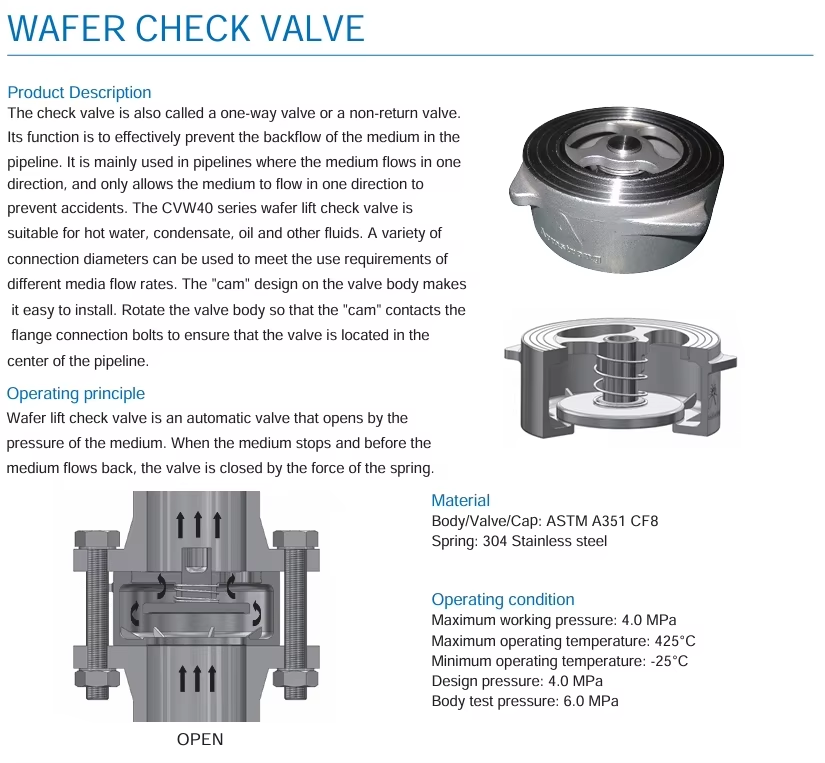

Wafer check valve

CVW40 check valve

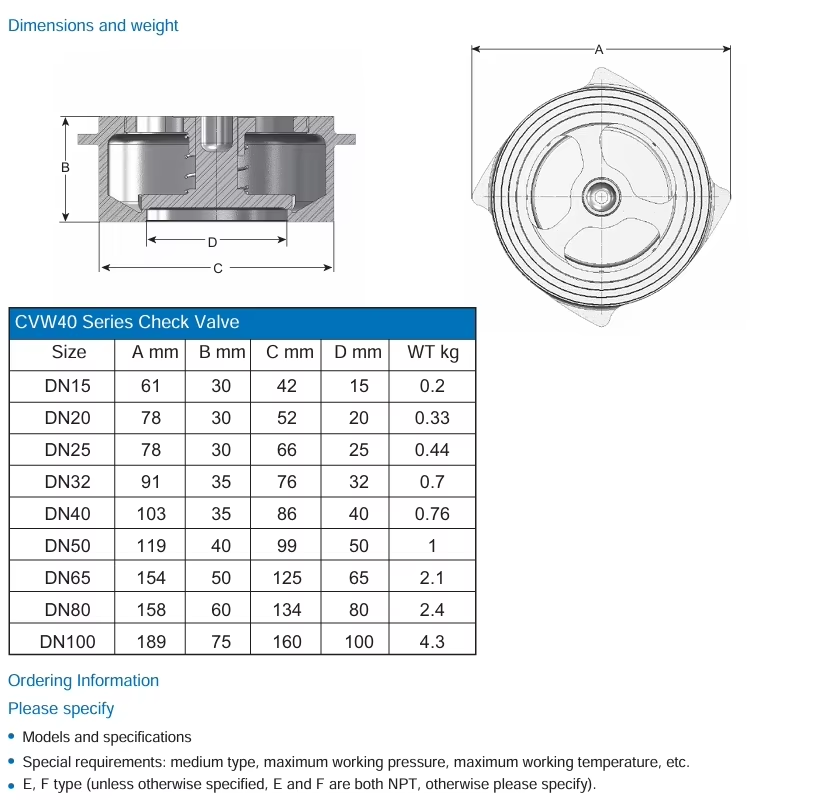

Product Specifications

Model	CVW40
Size	1/2″ (15 mm), 3/4″ (20 mm), 1″ (25 mm), 1-1/4″ (32 mm), 1-1/2″ (40 mm), 2″ (50 mm), 2-1/2″ (65 mm), 3″ (80 mm), 4″ (100 mm)
Connection Type	Flanged 4.0MPa RF Flange Wafer
Body Material	ASTM A351 CF8 Stainless Steel
Pressure Temperature Ratings: Steam Non-Shock	Max. Allow. Press. Max Oper. Temperature 4.0MPa @ 425℃
Pressure Temperature Ratings: Cold Non-Shock	Min. Oper. Temperature -25℃

Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.

Factory Showcase

With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.

Factory Equipment
