Flange connections are one of the most common detachable joint methods in industrial piping systems. They are widely used in petroleum and chemical industries, power generation, natural gas transmission, water supply and drainage, pharmaceuticals, and food processing industries. Their primary function is to connect pipes, valves, and equipment while allowing easy disassembly for maintenance and replacement.
Although flange connections are mature in design, they require strict installation procedures and bolt tightening control. Improper installation may lead to leakage, gasket damage, uneven stress distribution, or even system failure. Therefore, standardized installation and tightening procedures are essential for ensuring long-term safe operation.

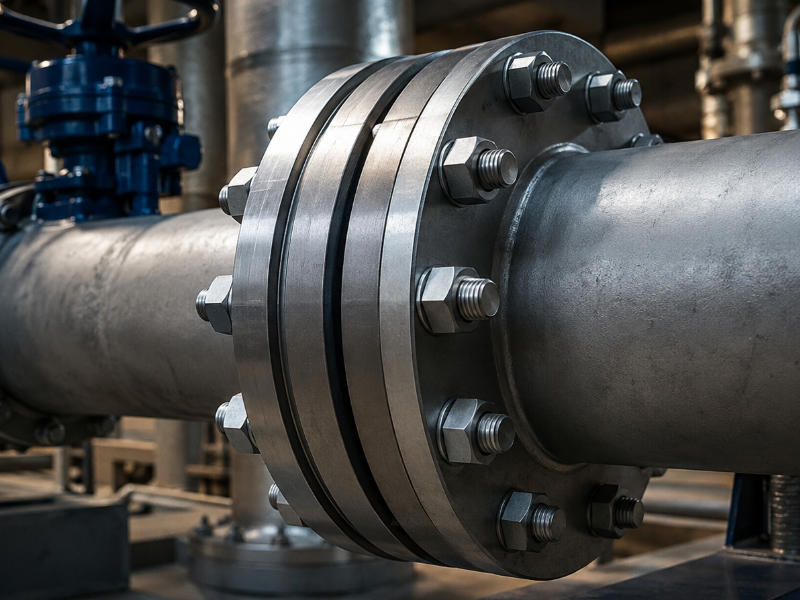

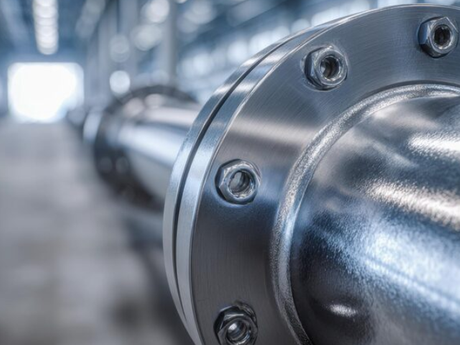

A flange connection consists of three main components: flange faces, sealing gaskets, and fastening bolts.
The bolts compress the two flange faces together, causing the gasket to deform elastically and fill microscopic surface irregularities, thereby achieving sealing. The sealing performance depends not only on material selection but also on installation accuracy, tightening force, and uniform stress distribution.
In high-temperature, high-pressure, or corrosive conditions, flange reliability becomes even more critical, requiring strict adherence to standardized installation procedures.
Before installation, the flange sealing surfaces must be carefully inspected for scratches, corrosion, deformation, or machining defects. Even minor imperfections may cause sealing failure, especially in gas or high-pressure applications.
It is also necessary to ensure that flange rating, size, and standards (PN or Class rating) match the design requirements.
The gasket is the core sealing element of the flange connection. Material selection must match the properties of the process medium:
Metal wound gaskets for high-temperature applications
PTFE or reinforced composite gaskets for corrosive media
Rubber gaskets for general water systems
Gasket thickness and compressibility directly affect sealing performance and must comply with design specifications.
Before installation, bolts must be free of corrosion and deformation. Threads should be clean and coated with appropriate lubricant (such as graphite grease) to reduce friction variability and ensure accurate preload.
Ensure that both flanges are properly aligned and coaxial. Any misalignment may introduce additional stress after tightening, leading to deformation or uneven load distribution.
Temporary supports or pipe supports can be used to achieve accurate alignment.
The gasket must be placed precisely at the center of the sealing surface without displacement, folding, or contamination. Any foreign particles may lead to uneven compression and leakage.
Sharp tools should not be used to adjust gasket position to avoid damage.
Bolts should be inserted in a cross-pattern sequence to ensure uniform load distribution. At this stage, bolts should remain loose to allow free alignment.
Bolts must be tightened using a diagonal cross-pattern method rather than sequential tightening. This ensures even gasket compression and prevents localized stress concentration.
A typical tightening procedure includes three steps:
First pass: 30% of target torque
Second pass: 70% of target torque
Third pass: 100% of final torque
Bolt tightening must be performed using a torque wrench or hydraulic tensioning system to ensure accurate preload. Under-tightening may cause leakage, while over-tightening may lead to bolt yielding or flange deformation.
Torque calculation can be referenced using the following relationship:
T=KFd
Where:
T = tightening torque
F = preload force
d = bolt diameter
K = friction coefficient
After initial tightening, retightening is required during system operation, especially after pressure or temperature changes. Gaskets may experience relaxation (creep), leading to reduced preload over time.
At elevated temperatures, thermal expansion may reduce bolt preload. Therefore, high-strength alloy bolts are typically used, and hot tightening or post-heating retightening may be required.
High-pressure systems require higher preload accuracy and stricter torque control to prevent flange distortion or gasket failure.
For corrosive environments, corrosion-resistant bolt materials should be selected, and anti-seizing compounds should be applied to prevent thread seizure and facilitate future disassembly.
Leakage is often caused by insufficient bolt preload, gasket damage, or uneven sealing surface contact. Even minor defects can lead to serious leakage in gas systems.
This is usually caused by excessive tightening or material fatigue, especially when torque control tools are not used.
Uneven loading or poor alignment during installation may lead to flange distortion, resulting in long-term sealing failure.
Check whether flange gaps are uniform, bolts are symmetrically arranged, and gaskets are properly positioned.
Randomly verify bolt torque values using calibrated torque tools to ensure deviations remain within acceptable limits.
Hydrostatic or pneumatic testing must be conducted before system commissioning to ensure there is no leakage.
Flange installation and bolt tightening are seemingly simple but highly critical engineering operations. Their quality directly determines the sealing reliability and safety of pipeline systems.
Strict control of alignment, gasket installation, stepwise tightening, and torque management is essential. Only through standardized procedures and proper engineering practices can long-term stability, safety, and leakage prevention be ensured in flange connections.
