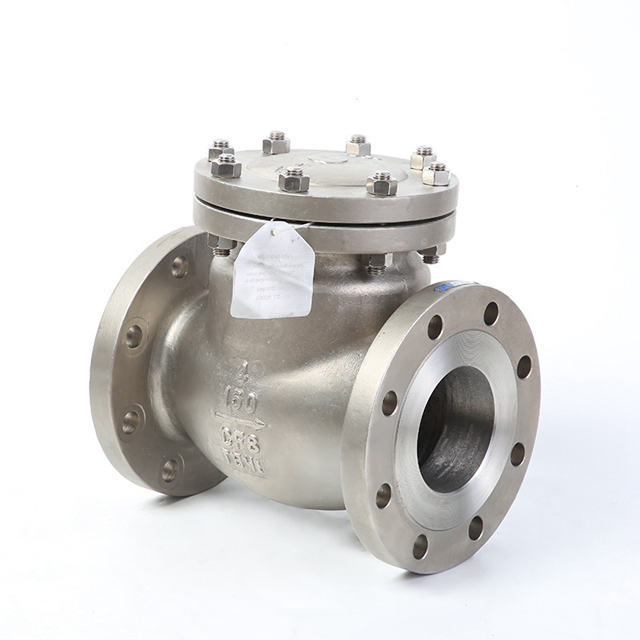

Industrial Stainless Steel Swing Check Valve And Carbon Steel Non-Return Valve, H44Y-150LB

Industrial Stainless Steel Swing Check Valve And Carbon Steel Non-Return Valve

Industrial Check Valve is designed to provide reliable one-way flow control in a wide range of applications. It is available in two robust materials: high-quality stainless steel for excellent corrosion resistance, and carbon steel for superior strength and durability. The swing check mechanism ensures smooth operation and minimal pressure loss, while the non-return function effectively prevents backflow, protecting equipment and pipelines from damage.

Quantity:
Material:	stainless steel carbon steel
Size:	DN50-DN200
connection:	flanged
Availability:





Inquire Add to Basket

Brand:
Steam

Product Description

Technical Parameters

Company Description

swing check valve

1. Available in high-grade stainless steel for excellent corrosion resistance in aggressive media, and carbon steel for high strength and cost-effective performance in less corrosive environments.

2.The swinging disc design provides low resistance to fluid flow, reducing pressure drop and energy consumption in the system.

3. Prevents reverse flow effectively, protecting pumps, compressors, and other critical equipment from potential damage caused by backflow.

4. Complies with ANSI flange standards, allowing quick and secure installation, as well as easy disassembly for maintenance.

5. Precision casting and robust body design ensure long service life even under harsh operating conditions.

6. Ideal for use in oil & gas, petrochemical, water treatment, power plants, marine, and HVAC systems.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Globe Valve Configuration Diagram

globe valve

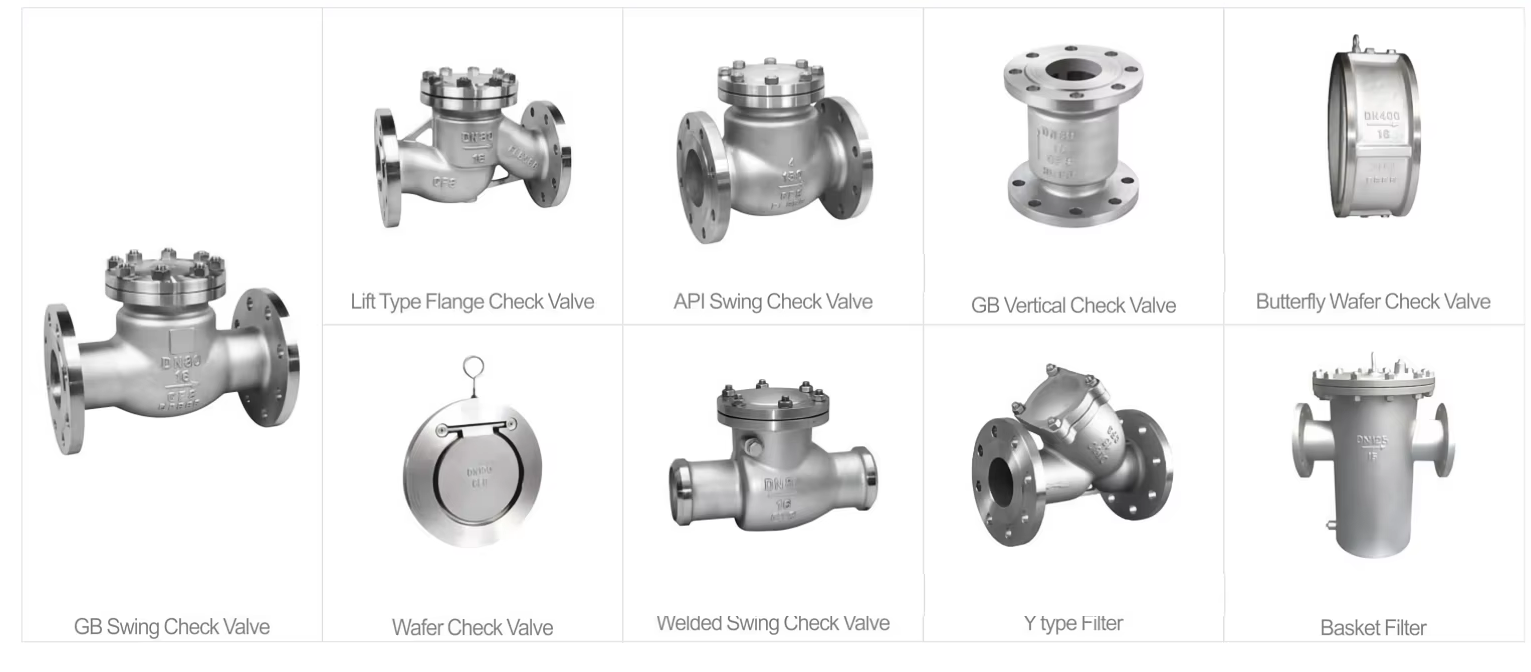

check valve

Manufacturer's standard	GB, DIN, API, ANSI, JIS, BS
Nominal Diameter	10mm-4000mm; 1/2''-160''
working pressures	0.25MPa-76.0MPa/150LB-4500LB/10K-320K
Operation temperature	-196-816

Nominal pressure	in	d	L	D	C
	1/2''	15	108	89	60.5
	3/4''	20	117	98	70
	1''	25	127	108	79.5
	1-1/4''	32	140	117	89
	1-1/2''	40	165	127	98.5
	2''	50	203	152	120.5
	2-1/2''	65	216	178	139.5
	3''	80	241	190	152.5
	4''	100	292	229	190.5
	5''	125	330	254	216
	6''	150	356	279	241.5
	8''	200	495	343	298.5
	10''	250	622	406	362
	12''	300	698	486	432
	14''	350	787	533	476
	16''	400	864	597	540
	18''	450	978	635	578
	20''	500	978	698	635
	24''	600	1295	813	749.5
	26''	650	1295	786	744.5
	28''	700	1448	837	795.5
	30''	750	1524	887	846

Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.

Factory Showcase

With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.

Factory Equipment

FAQs

Who we are?

Fuchen Intelligent Equipment (Hangzhou) Co., Ltd is a trusted provider of high-quality valves and freeze-dryers. With a commitment to excellence, we cater to diverse industries, offering a comprehensive range of products that meet the highest industry standards.
Are you trading company or factory?

We are factory with trading company.
Why should we choose your company over others?

1. Our team of experts carefully evaluates and tests each product to guarantee its quality, functionality, and longevity.
2. With years of experience in the valves and freeze dryer industry, our team possesses in-depth knowledge and expertise. We understand the unique challenges and requirements of various sectors, and we leverage our industry insights to provide tailored solutions.
3.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
4.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
Do you provide samples? Is it free?

Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Can you provide customized services？

We can customize different colors, LOGO and so on according to customer's requirements.
What’s the MOQ for each item?

If we have enough stock for the items,we can accept the quantity as customer’s request,if not,different items have different MOQ.
Do you test all your goods before delivery?

Yes,we have test equipment and team,and we test all products before shipment.
