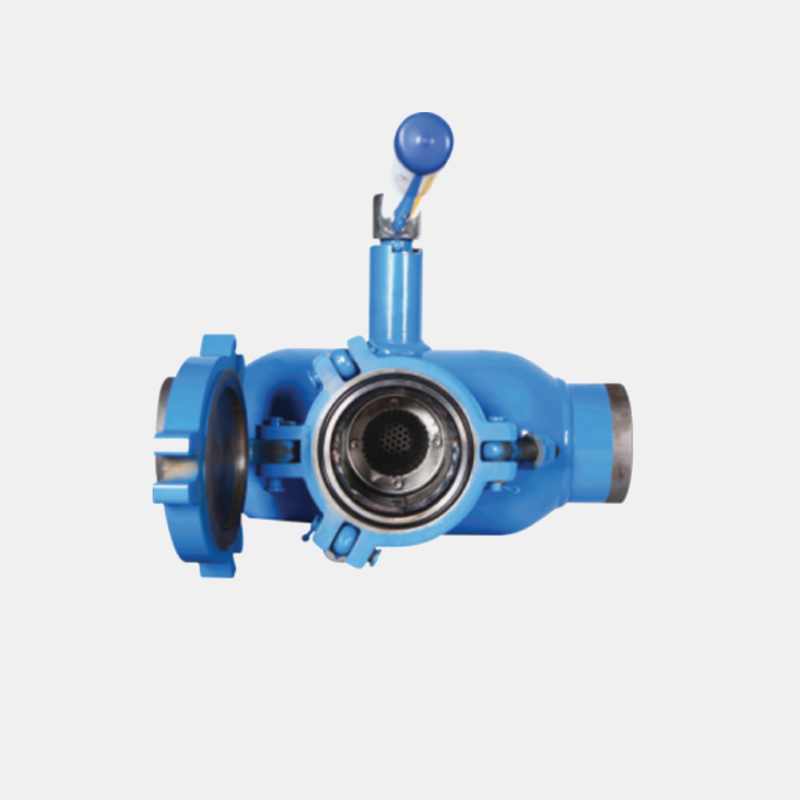

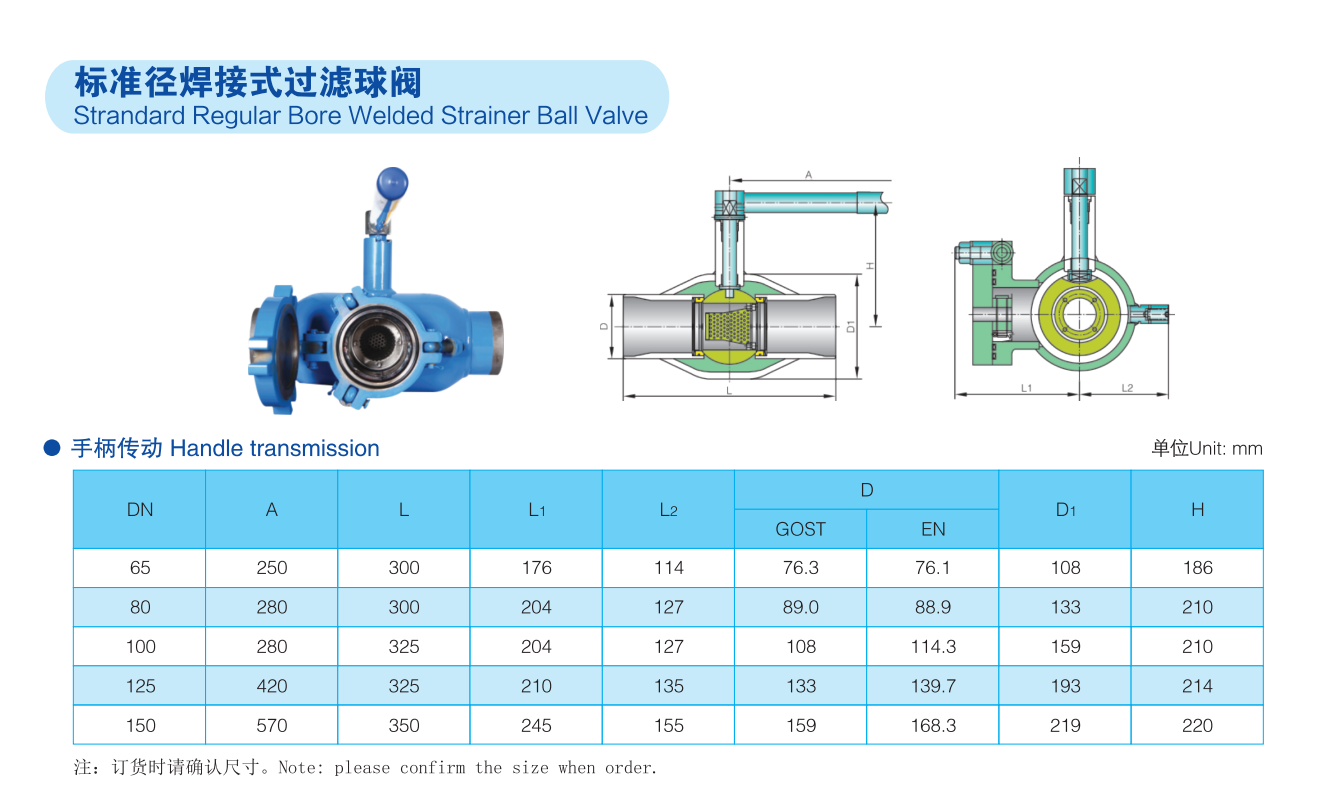

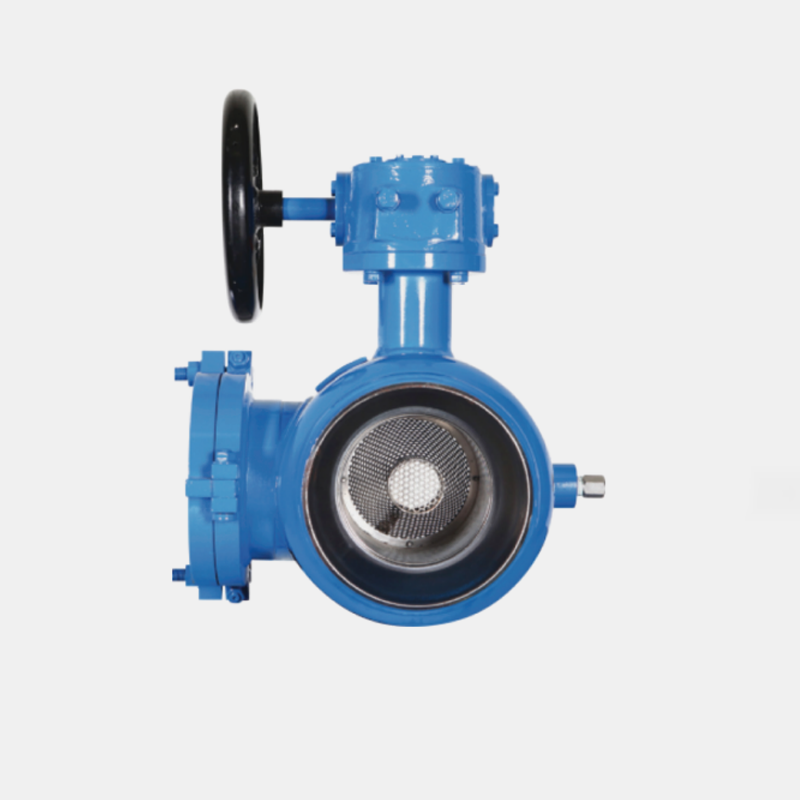

Strandard Regular Bore Welded Strainer Ball Valve for Gas Equipment And Urban Heating Systems
In the transmission pipeline of fluid media, the ball valve is an effective and necessary cutoff device. In order to remove the impurities and dirt from the fluid media and keep the transmission pipeline clean and unblocked, a filter set in the transmission pipeline is an essential and important equipment to improve the fluid quality. At the moment, filters and ball valves installed in the transmission pipeline take a large space and are often restricted by application conditions and it's difficult to remove and wash the filter.
1.With the integrated welding ball valve, there will be no extaernal leakage phenomenon.
2.The valve seat is constituted by carbonized Teflon seal ring and spring with strong ability to adapt pressure and temperature changes.Within the standard pressure and temperature range.there will be no leakage.
3.The manufacturing process of the ball is traced and tested by the advanced computer detector. The ball has a high manufacturing density.
4.The seal ring adopts C-PTFE material with 20% Carbon to guarantee no leakage at all.
5.Compared with similar products or products of the same specification, the valve body is small and light with a beautiful appearance and long service life.
6.The valve body, ball and side valve body all adopt seamed steel pipes molded by pressing, At the valve rod, use the double "O-ring" for seal with the blow-off resistant fimction.

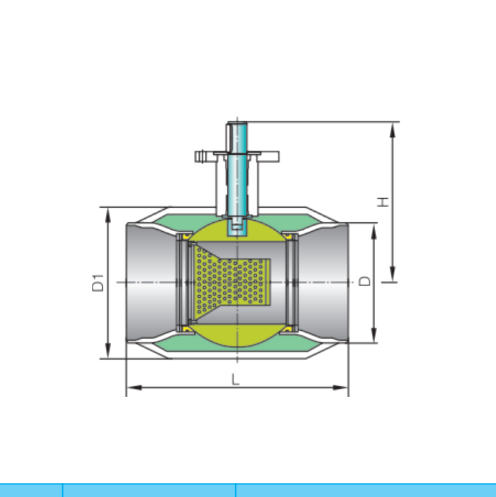

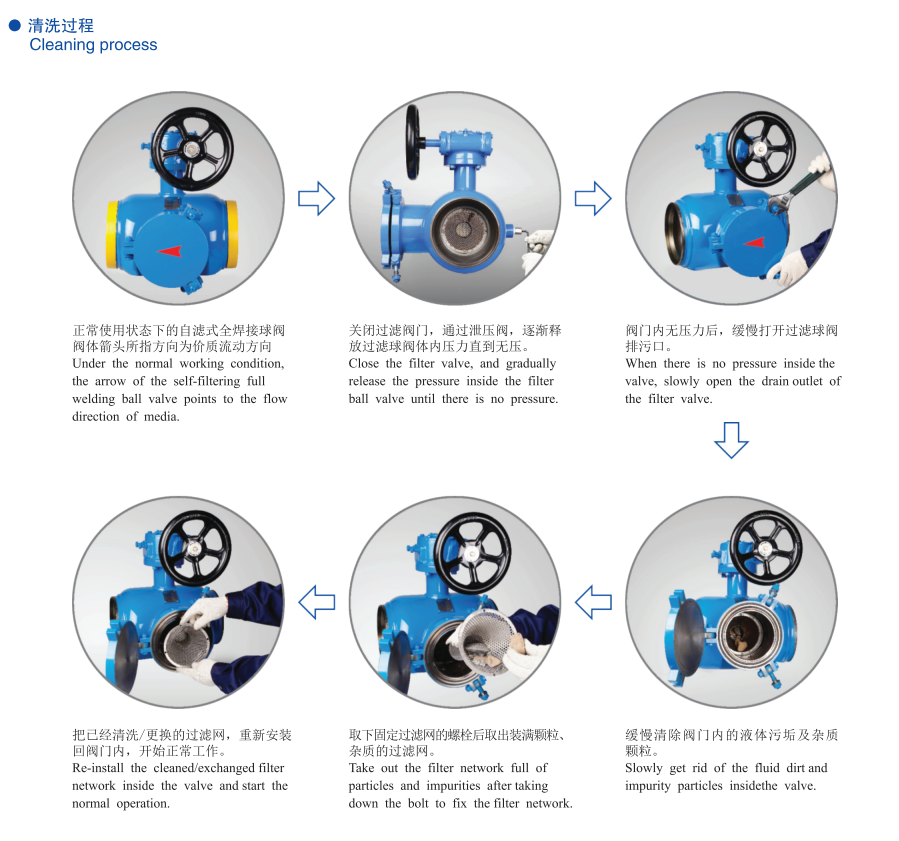

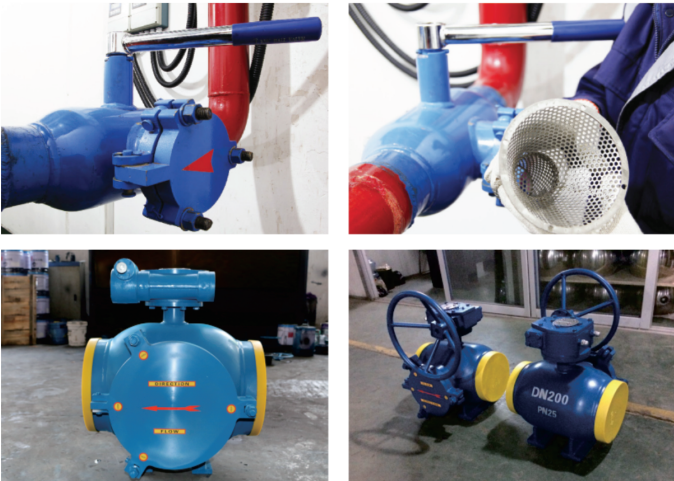

7.The filter network and the ball combine as one. The link of the ball of filter network itself plays a role of filtering inthe pipeline and can replace the filter, achieving the effect of one valve with multiple funetions. Therefore, it's able to save the installation space of pipeline and the business cost and stop impurities with a diameter of greater than 4.5mm.
8.The filter network adopts the V-mouth to guarantee the nomnal pass of media in the case of blocking impurity particles while the valve and work normally. It adopts the pressure relief valve design which can adjust the internal and external pressure difference of the valve and improve its security performance, Meanwhile, it's able to replace the pressure relief valve with a threaded ball valve to make the operation time-saving, convenient and flexible.
The company is integrated fully welded ball valve products for the trunk. Using the most advanced techniques and technologies.adopting international quality to assure and control procedures.
Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.
With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.
