A Desuperheating and Pressure Reducing Station (PRDS) is a critical component in industrial steam systems. Its primary function is to reduce high-pressure, high-temperature steam from boilers or main steam headers to the precise pressure and temperature required by downstream processes. PRDS units are widely used in power generation, petrochemical plants, pharmaceutical manufacturing, food processing, paper mills, textile factories, and district heating systems.
Because the equipment operates continuously under extreme conditions involving high temperature, high pressure, frequent throttling, and repeated start-stop cycles, key components such as pressure reducing valves, desuperheating nozzles, actuators, and control systems are subjected to significant mechanical and thermal stress. Without proper maintenance, problems such as valve leakage, unstable outlet pressure, poor temperature control, excessive vibration, and unexpected shutdowns can occur.
Establishing a systematic maintenance program is therefore essential for ensuring operational reliability, extending equipment life, reducing repair costs, and maximizing steam system efficiency.
Before implementing maintenance procedures, it is important to understand the major components of a PRDS and the parts most susceptible to wear.
The pressure reducing valve is the core component responsible for controlling outlet steam pressure. It typically consists of the valve body, plug, seat, guide sleeve, and actuator. Due to high-velocity steam flow, the valve plug and seat are particularly vulnerable to erosion and are among the most critical inspection points.
The desuperheater controls steam temperature by injecting finely atomized cooling water into the steam flow. Nozzle blockage, poor atomization, or low-quality spray water can significantly reduce cooling efficiency and may even cause water hammer.
Pneumatic, electric, or hydraulic actuators drive the control valves. Over time, diaphragms, seals, and feedback mechanisms may age or wear, resulting in sluggish response and reduced control accuracy.
Pressure transmitters, temperature sensors, PLCs, and control valves form the automatic control system. Sensor drift or signal errors can directly affect the stability and performance of the PRDS.
Safety valves, check valves, strainers, and steam traps are auxiliary components that play a vital role in ensuring safe operation and maintaining desuperheating performance.
Operators should record inlet and outlet steam pressure and temperature regularly. Significant deviations from setpoints often indicate problems with the control system or valve internals.
Check valve position feedback and observe actuator movement to ensure smooth and stable operation. Frequent oscillation or delayed response may suggest positioner issues or excessive stem friction.
A properly functioning PRDS should operate with relatively steady sound levels. Whistling, metallic impacts, or severe pipe vibration may indicate internal erosion, nozzle problems, or incorrect operating conditions.
Inspect flanges, packing glands, bonnet connections, and instrument fittings for steam, water, or condensate leaks. Even minor leakage can accelerate wear and increase energy losses.
Spray water strainers should be cleaned regularly to prevent nozzle blockage. Steam traps should also be checked to ensure proper condensate removal and prevent thermal shock.
Pneumatic actuators require clean, stable compressed air, while electric actuators require secure wiring and proper insulation.
Compare transmitter outputs with local instrument readings to detect sensor drift or wiring issues before they impact process control.

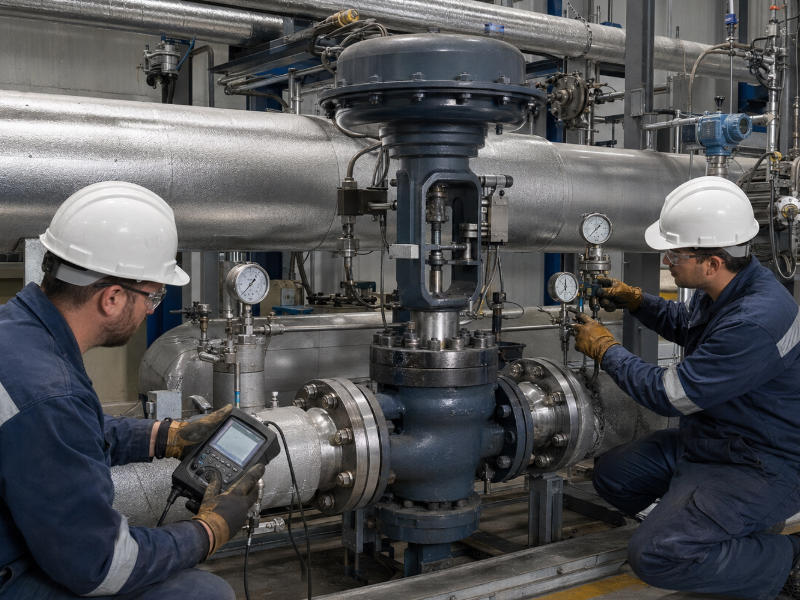

During scheduled shutdowns, disassemble the valve and inspect sealing surfaces for scratches, grooves, deformation, or erosion. Minor wear may be repaired by lapping, while severe damage requires replacement.
Nozzles should be checked for scaling, corrosion, and enlarged orifices. Proper atomization is critical for efficient and safe temperature control.
Apply appropriate lubricants to valve stems, bearings, linkages, and gear assemblies to minimize friction and mechanical wear.
Safety valves should be tested periodically to verify that they open at the designated pressure and provide reliable overpressure protection.
Use ultrasonic, magnetic particle, or dye penetrant inspection to detect cracks, corrosion, and wall thinning in pressure-retaining components.
Damaged insulation increases heat loss, while loose supports may lead to stress concentration and excessive vibration.
Temperature sensors, pressure transmitters, flow meters, and controllers should be calibrated to restore optimal control performance.
Spray water should be demineralized and free of suspended solids to prevent nozzle scaling and internal corrosion.
Before maintenance, ensure that steam is completely isolated and pressure and temperature are reduced to safe levels.
Document all inspections, faults, repairs, and spare parts replacements to support trend analysis and long-term maintenance planning.
Often caused by valve wear, faulty positioners, or inaccurate pressure signals. A systematic inspection of the control loop is recommended.
May result from clogged nozzles, insufficient spray water flow, or a malfunctioning water control valve.
Typically caused by damaged sealing surfaces and requires repair or replacement of valve internals.
Usually associated with excessive steam velocity, incorrect sizing, or worn internal components.
A Desuperheating and Pressure Reducing Station is an indispensable part of industrial steam systems, directly affecting operational safety, process stability, and energy efficiency. By combining daily inspections, weekly maintenance, monthly preventive servicing, and annual overhauls, plant operators can effectively prevent valve wear, nozzle blockage, and control system failures.
A well-structured maintenance program not only extends the service life of the PRDS but also reduces unplanned downtime and maintenance costs, ensuring long-term safe, stable, and efficient steam system performance.
