Manual Bellowed Shutoff Globe Valve Flange Connection High Temperature Steam Water Use 1/2-1 1/2" 1 Year

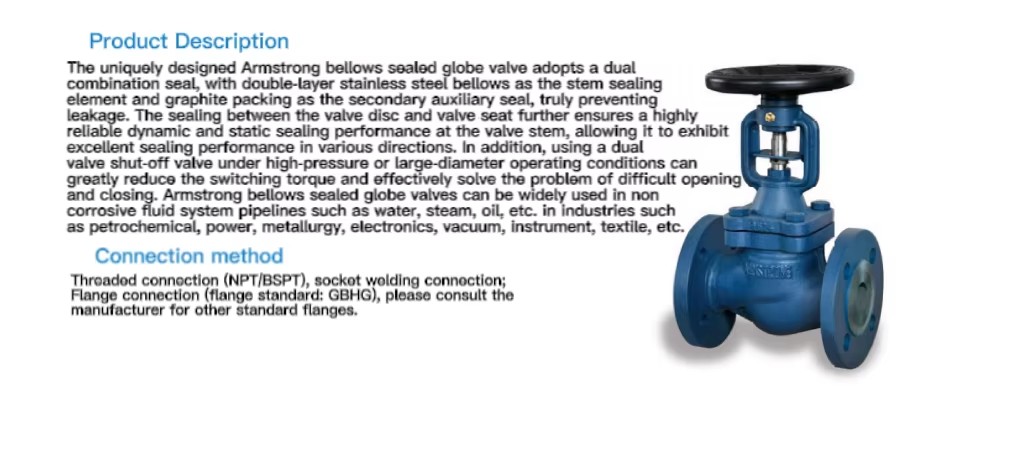

The bellowed sealed globe valve features a double-walled stainless steel corrugated bellows at the valve stem seal, combined with graphite packing for auxiliary sealing to prevent leakage. The valve incorporates a precision-ground flat sealing surface between the valve body and valve seat, ensuring long-term reliable operation—even during valve stem movement.
1.Dual Combination Sealing System – Combines primary and secondary sealing methods for enhanced leak-tight performance.
2.Double-Layer Stainless Steel Corrugated Bellows & Graphite Packing – The bellows act as the main stem seal, while graphite packing provides secondary auxiliary sealing, effectively preventing any medium leakage.
3.Precision Disc-to-Seat Sealing – Ensures highly reliable dynamic and static sealing at the valve stem, maintaining excellent sealing performance in all directions, regardless of stem movement.
4.Dual Disc Design for High-Pressure & Large-Diameter Applications – Significantly reduces switching torque, overcoming difficulties in opening and closing under high pressure or large bore conditions.
Application Scenarios
Hotels& Buildings
Electric Power & Heating Station
Petroleum and Chemical
Bio-Tech & Pharmaceuticals
Food and Beverages
Medical & Health

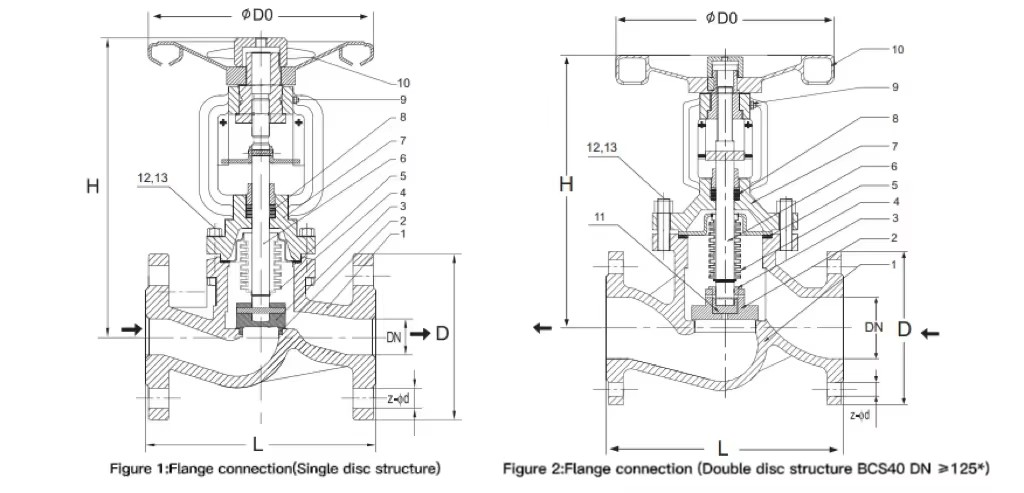

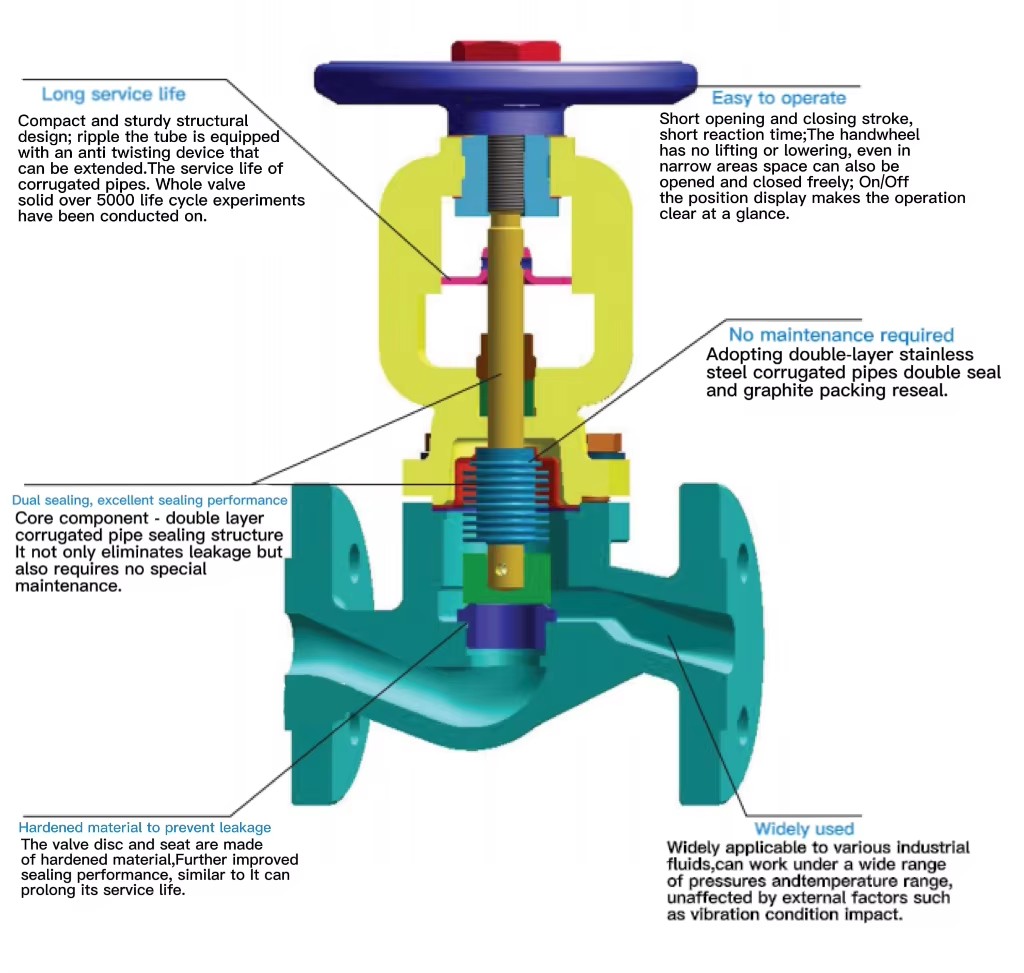

Globe Valve Configuration Diagram
Bottom of valve
Valve top
Valve front
Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.
With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.
Factory Equipment
Plate Rolling Machine
Welding
Paint Room
Touch-up Painting
Shot Blasting Machine
Lathe
CNC lathe
Drilling
Radial Drill
FAQs
Who we are?
Fuchen Intelligent Equipment (Hangzhou) Co., Ltd is a trusted provider of high-quality valves and freeze-dryers. With a commitment to excellence, we cater to diverse industries, offering a comprehensive range of products that meet the highest industry standards.
Are you trading company or factory?
We are factory with trading company.
Why should we choose your company over others?
1. Our team of experts carefully evaluates and tests each product to guarantee its quality, functionality, and longevity. 2. With years of experience in the valves and freeze dryer industry, our team possesses in-depth knowledge and expertise. We understand the unique challenges and requirements of various sectors, and we leverage our industry insights to provide tailored solutions. 3.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted. 4.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
Do you provide samples? Is it free?
Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Can you provide customized services？
We can customize different colors, LOGO and so on according to customer's requirements.
What’s the MOQ for each item?
If we have enough stock for the items,we can accept the quantity as customer’s request,if not,different items have different MOQ.
Do you test all your goods before delivery?
Yes,we have test equipment and team,and we test all products before shipment.
