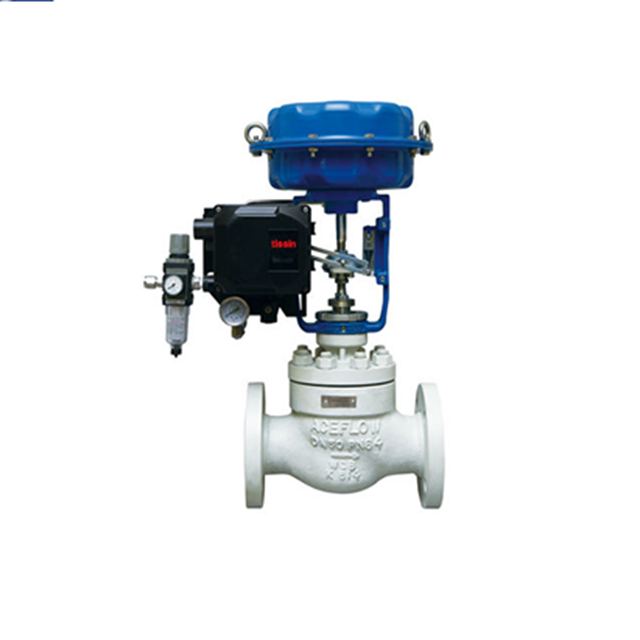

Pneumatic Diaphragm Actuated Globe Control Valve Precised Flow Regulation for Industrial Processes

Pneumatic Diaphragm Actuated Globe Control Valve Precised Flow Regulation for Industrial Processes

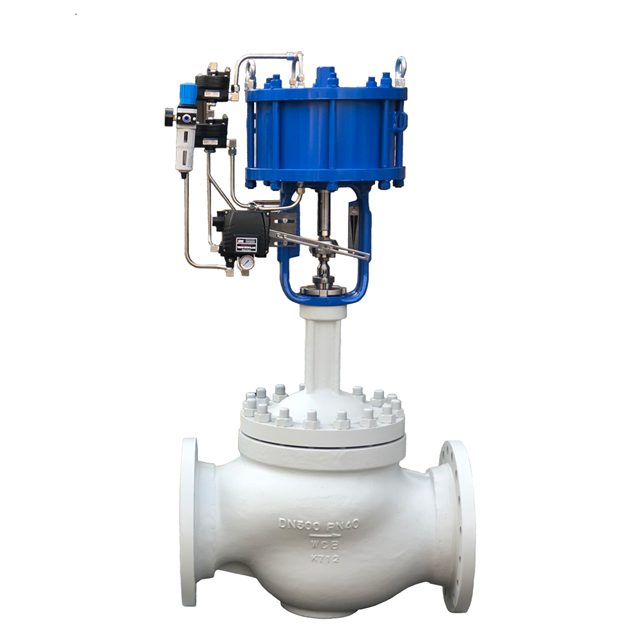

Diaphragm Actuator Operated Globe Pneumatic Control Valve is a high-precision, pneumatically driven control valve designed for accurate flow regulation in industrial fluid systems. Combining the superior throttling capability of a globe valve with the responsive, fail-safe operation of a diaphragm actuator, this valve delivers exceptional control, reliability, and durability in demanding environments.
Ideal for applications involving steam, water, oil, air, and non-corrosive gases, this valve is widely used in chemical, power generation, food & beverage, pharmaceutical, and HVAC industries. Its compact, robust design ensures minimal leakage and precise modulation, even under fluctuating pressures and temperatures.

Quantity:
Material:	wcb，WCB, WC6, WC9, CF8, CF8M, Alloy Steel,etc.
Size:	1/2"-12"
connection:	Flanged Welded
Availability:





Inquire Add to Basket

Brand:
Steam

Product Description

Technical Parameters

Company Description

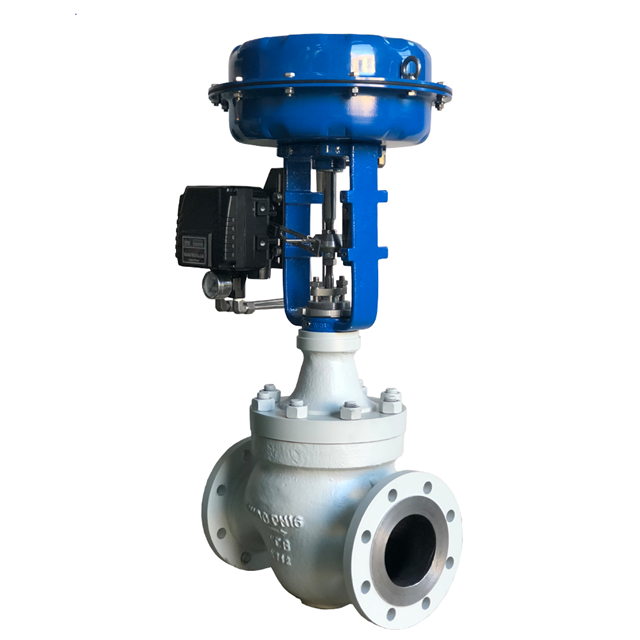

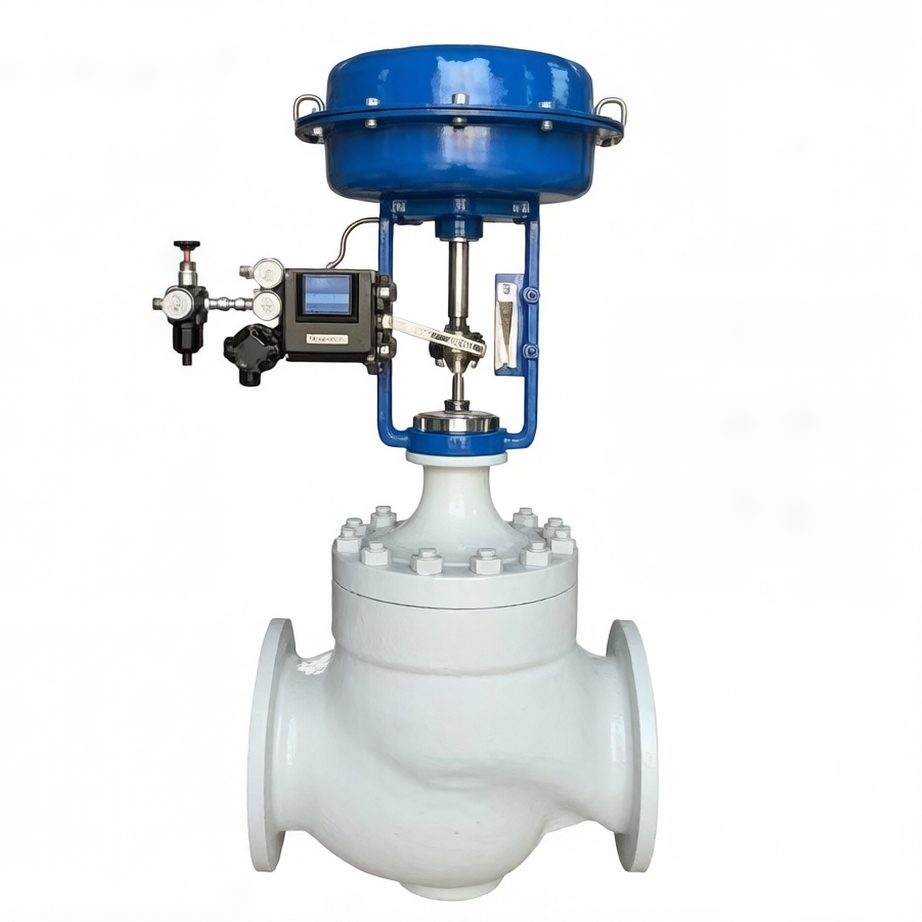

control valve

1.Pneumatic Diaphragm Actuation – Uses a high-performance diaphragm actuator for smooth, fast, and energy-efficient operation, with optional spring-return for fail-safe action.

2.Globe Valve Design – Ensures excellent throttling control and tight shut-off, making it ideal for precise flow regulation in process systems.

3.Wide Media Compatibility – Suitable for steam, water, oil, air, and non-corrosive gases; material options include WCB, SS304, SS316, and special alloys.

4.High Pressure & Temperature Capability – Available in PN10, PN16, Class 150/300 ratings, with temperature range from -29°C to 425°C depending on material and seal.

5.Reliable Sealing Performance – Precision-machined plug and seat provide low leakage and long-term sealing stability under varying conditions.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

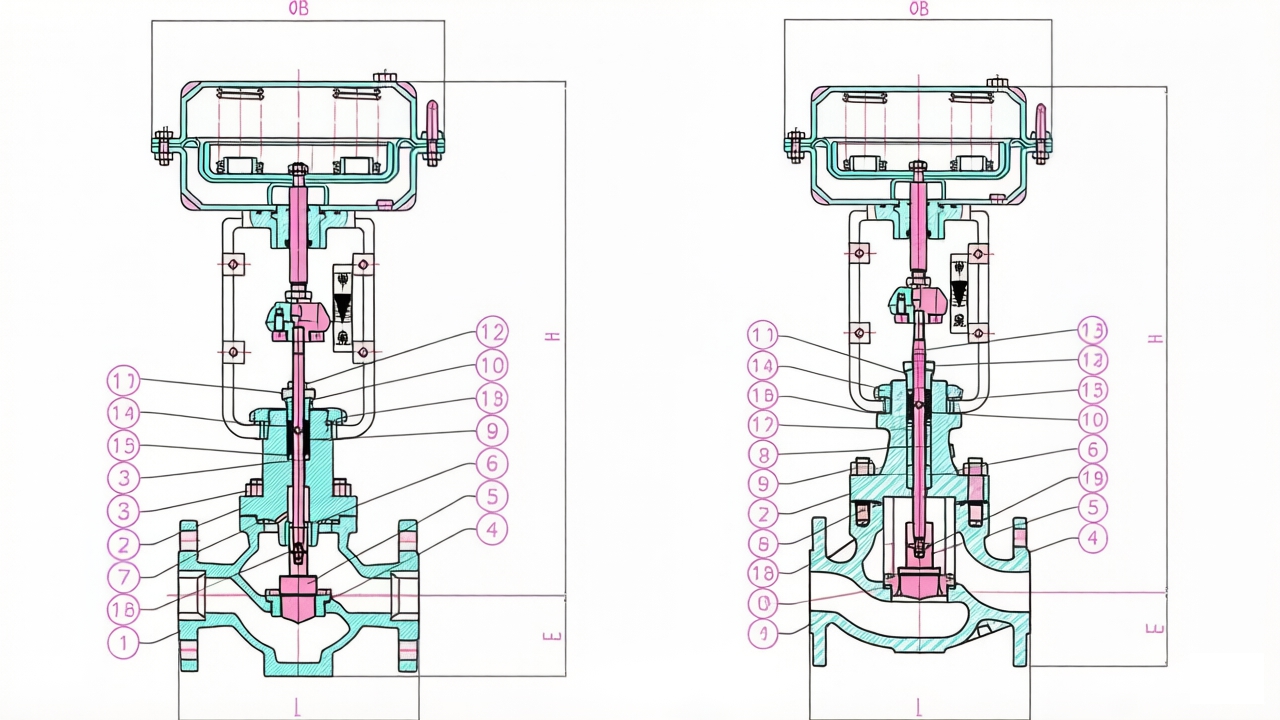

Globe Valve Configuration Diagram

globe valve

product name	Single Seated Globe Pneumatic Control Valve
material	WCB, WC6, WC9, CF8, CF8M, Alloy Steel,etc.
Connection	Flanged, Welded
standard	Class 150, 300, 600, PN10, 16, 25, 40, 64, JIS 10K, 16K, 20K, 40K
size	1/2"-12"
Action	Direct action, Reverse action
Air Supply Pressure	0.14, 0.16, 0.28, 0.4MPa
logo	Spring Range
Valve Action	Air to Close, Air to Open

Top Guide Single Seated type

Cage Guide Balanced type

Multi Hole, Multi Stage type

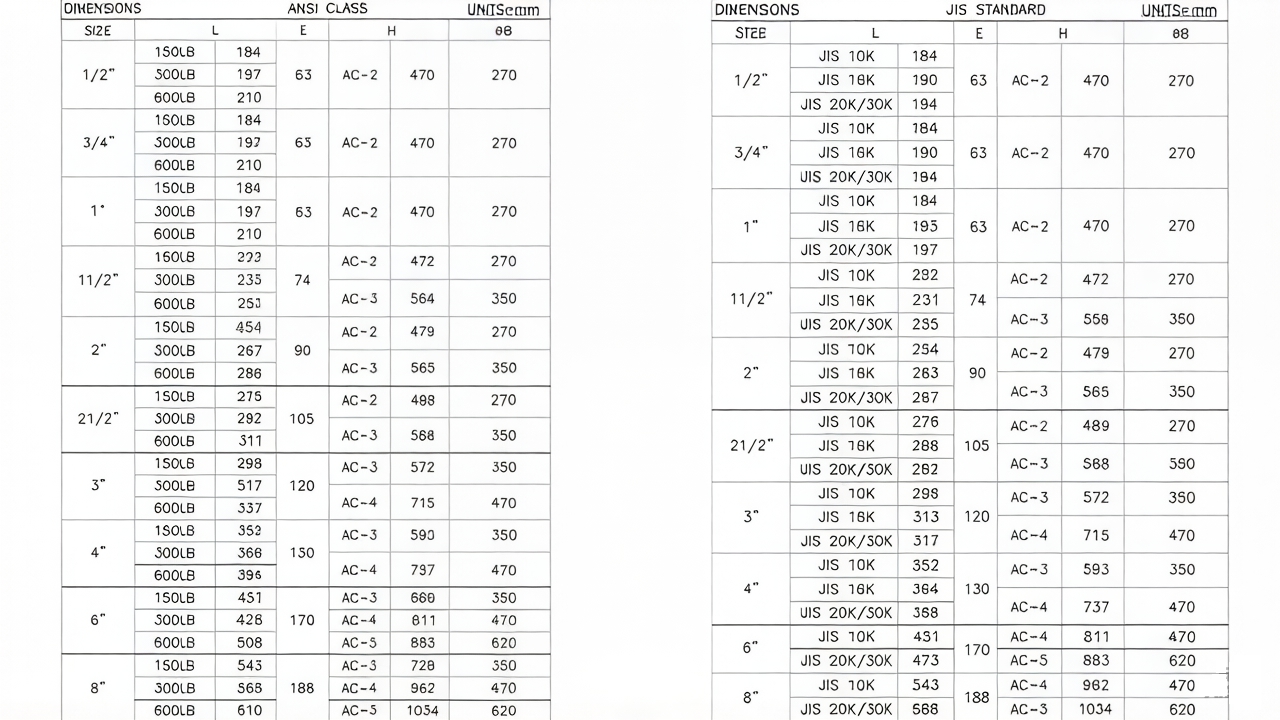

Product Drawing

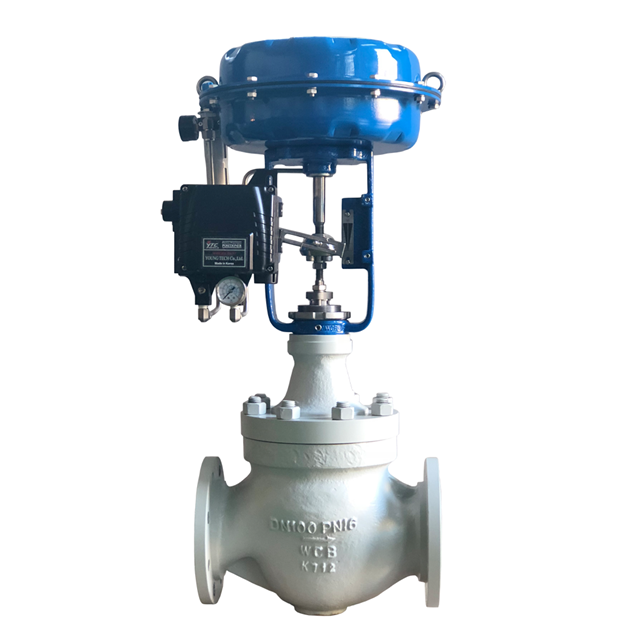

control valve

Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.

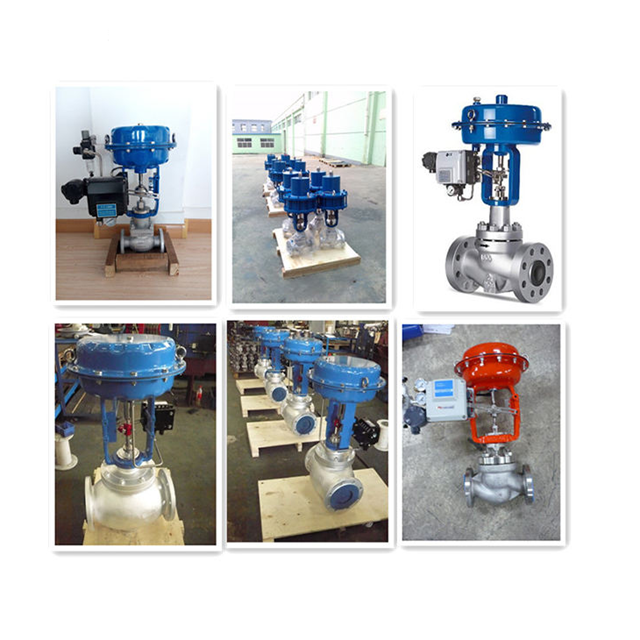

Factory Showcase

With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.

Factory Equipment

FAQs

Who we are?

Fuchen Intelligent Equipment (Hangzhou) Co., Ltd is a trusted provider of high-quality valves and freeze-dryers. With a commitment to excellence, we cater to diverse industries, offering a comprehensive range of products that meet the highest industry standards.
Are you trading company or factory?

We are factory with trading company.
Why should we choose your company over others?

1. Our team of experts carefully evaluates and tests each product to guarantee its quality, functionality, and longevity.
2. With years of experience in the valves and freeze dryer industry, our team possesses in-depth knowledge and expertise. We understand the unique challenges and requirements of various sectors, and we leverage our industry insights to provide tailored solutions.
3.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
4.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
Do you provide samples? Is it free?

Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Can you provide customized services？

We can customize different colors, LOGO and so on according to customer's requirements.
What’s the MOQ for each item?

If we have enough stock for the items,we can accept the quantity as customer’s request,if not,different items have different MOQ.
Do you test all your goods before delivery?

Yes,we have test equipment and team,and we test all products before shipment.
