Steam Direct Pressure Reducing Valve – Durable Brass/Stainless Steel Construction for Safe Steam Flow Regulation

Steam Direct Pressure Reducing Valve – Durable Brass/Stainless Steel Construction for Safe Steam Flow Regulation

The compact and ultra-lightweight GD-30 Series Direct-Acting Pressure Reducing Valve offers excellent performance in a small form factor. Designed with a focus on light weight, low cost, and multi-functionality, it is ideal for a wide range of applications.
The valve features a stainless steel valve disc and seat, along with an external corrugated pressure sensing tube that ensures accurate and stable pressure regulation. This construction not only improves durability but also extends the service life, even under continuous operation.

Quantity:
Material:	Stainless Steel Cast Bronze
Size:	DN15 DN20 DN25
connection:	BSPT NPT
Availability:





Inquire Add to Basket

Model:
GD30/GD30S
Brand:
Steam

Product Description

Technical Parameters

Company Description

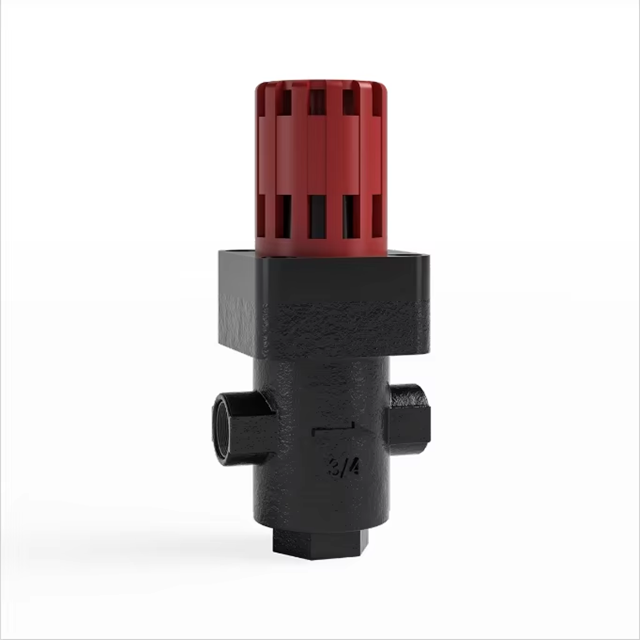

direct pressure reducing valve

1.Simple Structure & Lightweight Design – Compact build reduces space requirements and makes handling easier during installation or transport.

2.Durable & Easy Maintenance – The straightforward design enhances longevity and allows quick disassembly for inspection or repairs.

3.Threaded Connection – Ensures fast and secure installation without the need for complex tools or procedures.

4.Tool-Free Pressure Adjustment – Simply turn the handle to set the desired outlet pressure, offering convenient operation and precise control.

5.Stainless Steel Valve Disc & Seat – Made from corrosion-resistant stainless steel for excellent wear resistance and extended service life.

6.Built-in 60-Mesh Filter Screen – Protects the valve body and seat from debris and contaminants, ensuring consistent performance and reducing downtime.

7.External Corrugated Pressure Sensing Tube – Delivers reliable pressure detection with superior durability, even under demanding working conditions.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

GD30 Pressure ducing valve System Configuration Diagram

GD30 actual use in steam system

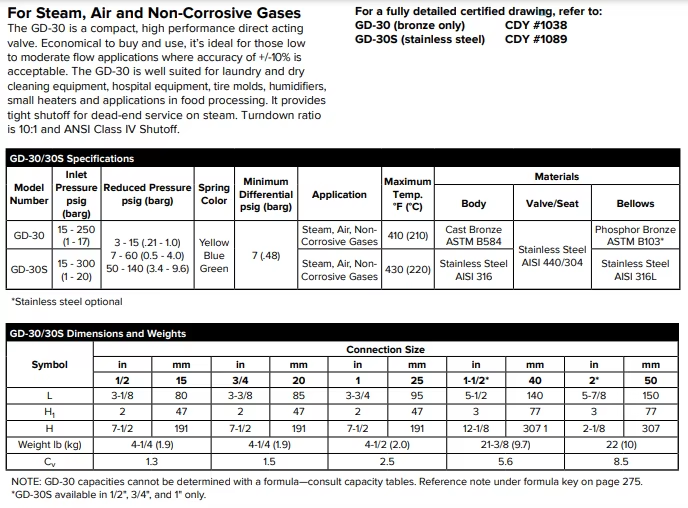

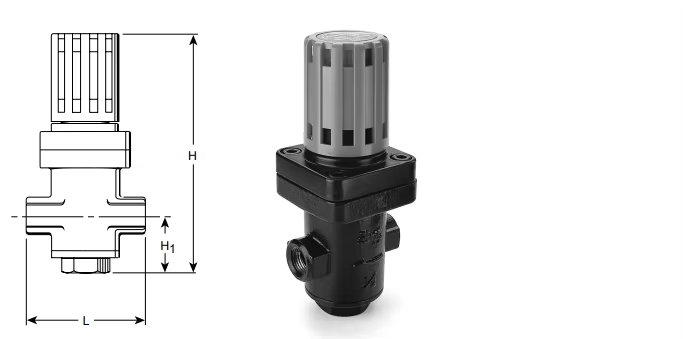

direct pressure reducing valve data

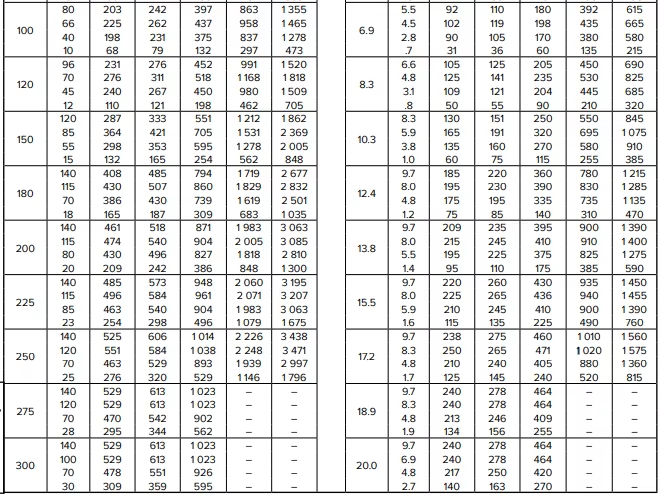

GD30 pressure reducing valve

Brass

Stainless

nodular cast iron

Product Specifications

Model	GD-30	GD-30S
Fluid	Steam, Air, Non-Corrosive Gases
Connection Type	NPT, BSPT
Maximum Allowable Pressure	250 psig (17 bar)	300 psig (20 bar)
Maximum Allowable Temperature	410°F (210°C)	430°F (220°C)
Body Material	Cast Bronze ASTM B584	Stainless Steel AISI 316
Maximum Operating Pressure	250 psig (17 bar)	300 psig (20 bar)
Connection Size	1/2″ (15 mm), 3/4″ (20 mm), 1″ (25 mm), 1-1/2″ (40 mm), 2″ (50 mm)	1/2″ (15 mm), 3/4″ (20 mm), 1″ (40 mm)
