GD30/30S Stainless Manual Power Direct Compatible Steam Media Pressure Reducing Valve Steam Brand 1 Year Warranty ODM/OEM

Home » Products » Steam Valves » Pressure Reducing Valve » GD30/30S Stainless Manual Power Direct Compatible Steam Media Pressure Reducing Valve Steam Brand 1 Year Warranty ODM/OEM

GD30/30S Stainless Manual Power Direct Compatible Steam Media Pressure Reducing Valve Steam Brand 1 Year Warranty ODM/OEM

The compact and ultra-light GD-30 Series Direct-Acting Pressure Reducing Valve combines multiple functions with a minimal weight and cost-effective design. Featuring a stainless steel valve disc and seat, along with an external corrugated pressure sensing tube, it delivers reliable operation and long service life.
This versatile valve is ideal for a wide range of applications, including kitchen plumbing systems and various types of small-scale equipment such as cleaning machines, disinfection units, and food processing devices. It is also suitable for indoor demolition tools and similar operational environments.

Quantity:
Material:	Stainless Steel Cast Bronze
Size:	DN15 DN20 DN25
connection:	BSPT NPT
Availability:





Inquire Add to Basket

Model:
GD30/GD30S
Brand:
Steam

Product Description

Technical Parameters

Company Description

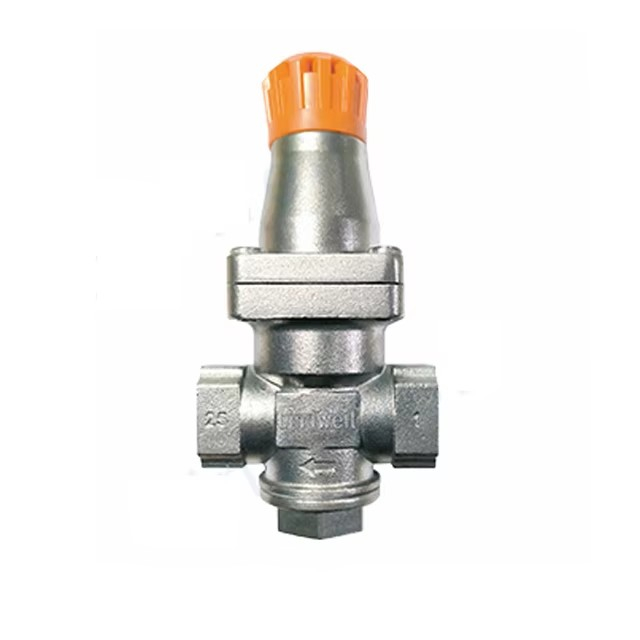

GD30 pressure reducing valve

1.Simple structure and lightweight design for easy handling and space-saving installation.

2.Durable, straightforward construction ensures low maintenance and simplified repairs.

3.Threaded connections allow quick and secure installation.

4.Adjustable outlet pressure via the handwheel—no special tools required.

5.Stainless steel valve disc and seat offer excellent wear resistance and long service life.

6.Built-in 60-mesh filter screen protects the valve body and seat from debris and contamination.

7.External corrugated pressure sensing tube provides reliable performance and enhanced durability.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

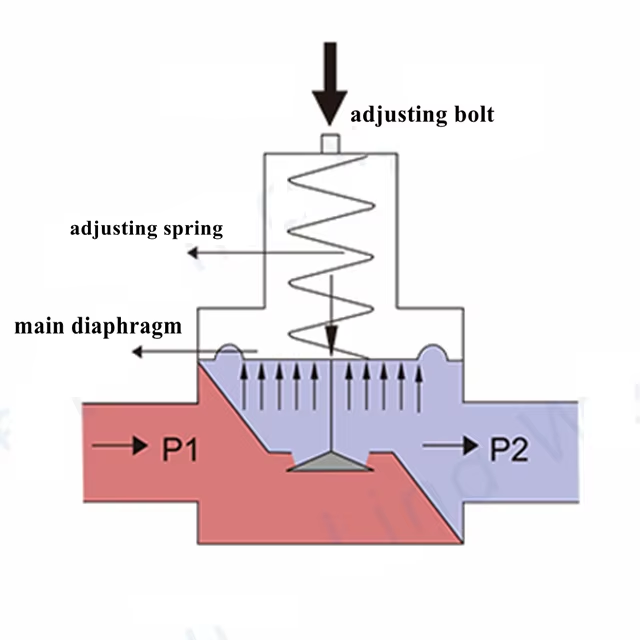

GD30 Pressure ducing valve System Configuration Diagram

GD30 actual use in steam system

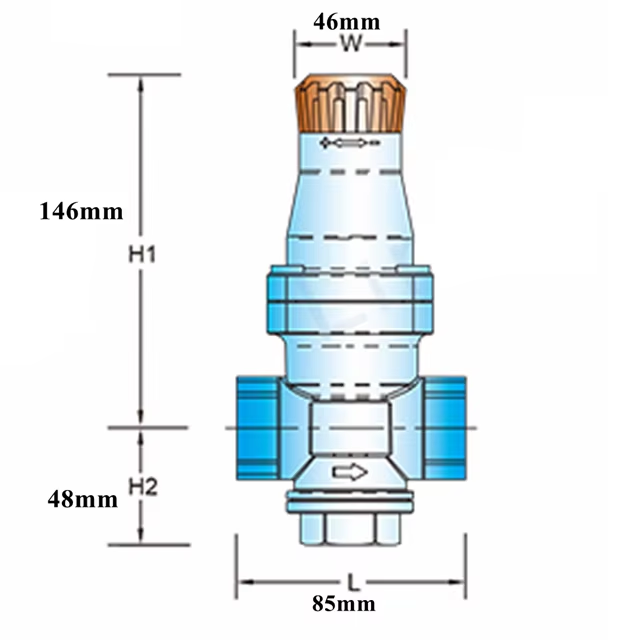

GD30 pressure reducing valve GD30 size

pressure reducing valve

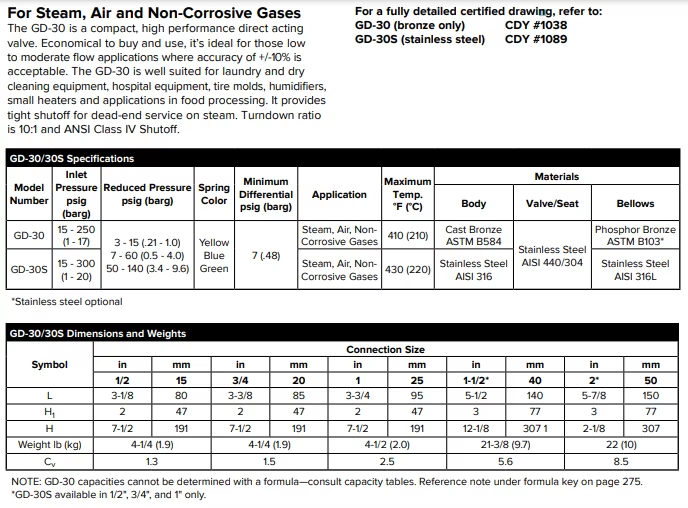

Product Specifications

Model	GD-30	GD-30S
Fluid	Steam, Air, Non-Corrosive Gases
Connection Type	NPT, BSPT
Maximum Allowable Pressure	250 psig (17 bar)	300 psig (20 bar)
Maximum Allowable Temperature	410°F (210°C)	430°F (220°C)
Body Material	Cast Bronze ASTM B584	Stainless Steel AISI 316
Maximum Operating Pressure	250 psig (17 bar)	300 psig (20 bar)
Connection Size	1/2″ (15 mm), 3/4″ (20 mm), 1″ (25 mm), 1-1/2″ (40 mm), 2″ (50 mm)	1/2″ (15 mm), 3/4″ (20 mm), 1″ (40 mm)

Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.

Factory Showcase

With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.

Factory Equipment

FAQs

Who we are?

Fuchen Intelligent Equipment (Hangzhou) Co., Ltd is a trusted provider of high-quality valves and freeze-dryers. With a commitment to excellence, we cater to diverse industries, offering a comprehensive range of products that meet the highest industry standards.
Are you trading company or factory?

We are factory with trading company.
Why should we choose your company over others?

1. Our team of experts carefully evaluates and tests each product to guarantee its quality, functionality, and longevity.
2. With years of experience in the valves and freeze dryer industry, our team possesses in-depth knowledge and expertise. We understand the unique challenges and requirements of various sectors, and we leverage our industry insights to provide tailored solutions.
3.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
4.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
Do you provide samples? Is it free?

Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Can you provide customized services？

We can customize different colors, LOGO and so on according to customer's requirements.
What’s the MOQ for each item?

If we have enough stock for the items,we can accept the quantity as customer’s request,if not,different items have different MOQ.
Do you test all your goods before delivery?

Yes,we have test equipment and team,and we test all products before shipment.
