Direct Acting Steam Cast Bronze Pressure Reducing Valve GD-24 Manual Operated for Water Applications General Use Medium

Direct Acting Steam Cast Bronze Pressure Reducing Valve GD-24 Manual Operated for Water Applications General Use Medium

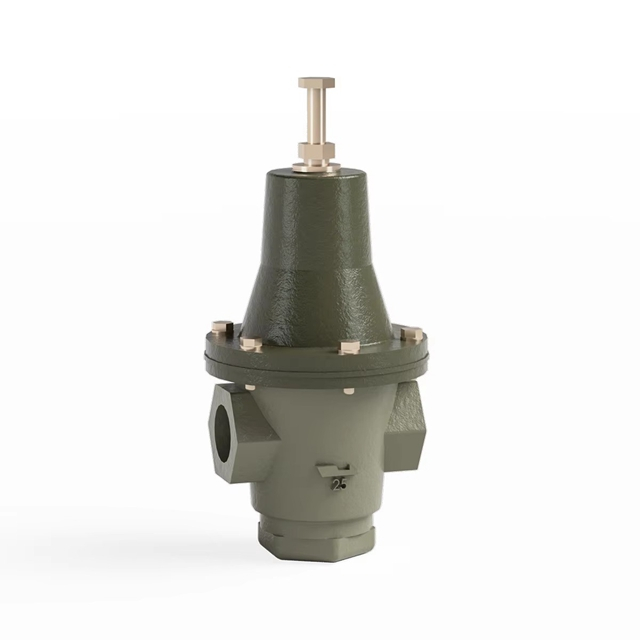

The GD-24 is an industrial-grade cast bronze pressure reducing valve designed for water supply systems. With its lightweight construction, compact structure, and cost-effective performance, it is ideal for a wide range of general use and medium-pressure applications. Featuring threaded connections for quick installation, the GD-24 can be mounted in any orientation, making it a flexible solution for industrial water valves and pipeline pressure control.

Quantity:
Material:	Cast bronze
Size:	DN15-DN50
connection:	NPT
Availability:





Inquire Add to Basket

Model:
GD24
Brand:
Steam

Product Description

Technical Parameters

Company Description

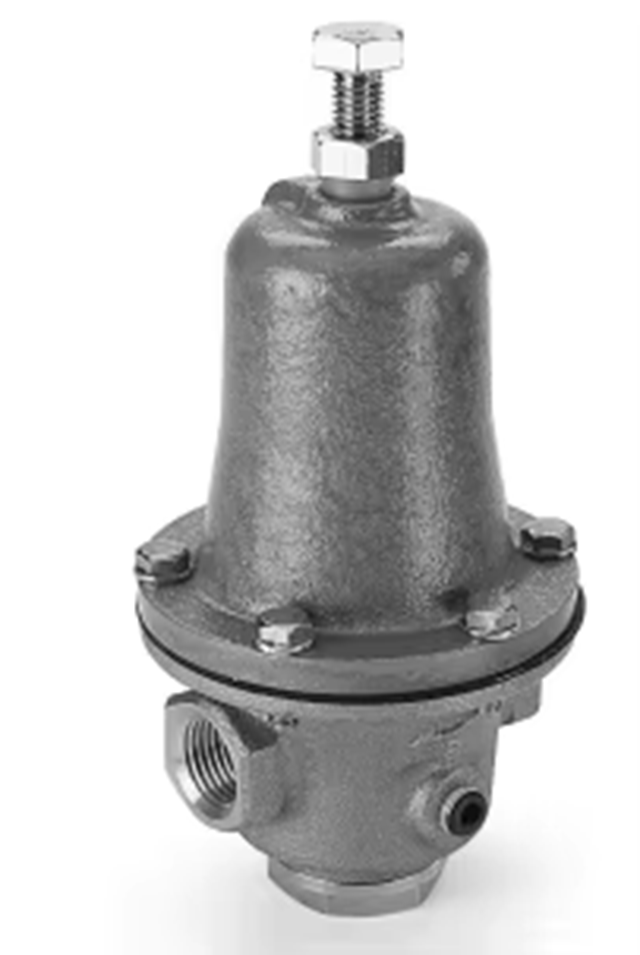

GD24 pressure reducing valve

1.Lightweight, Compact & Cost-Effective – The GD-24 pressure reducing valve features a small footprint and reduced weight, making it an economical choice for industrial water supply systems and general-purpose applications.

2.Threaded Connections & Flexible Installation – Equipped with screw connections, the GD-24 can be installed in any position or orientation, simplifying setup in diverse pipeline configurations.

3.No External Sensing Tube Required – The bronze valve body combined with a high-temperature diaphragm allows the GD-24 to perform reliably in both hot and cold water services. The valve disc, valve seat, and diaphragm are designed for online replacement, reducing downtime and maintenance costs.

4.External Adjustable Screw with Locking – The pressure setting is easily adjusted via an external screw with locking function.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

GD30 Pressure ducing valve System Configuration Diagram

GD30 actual use in steam system

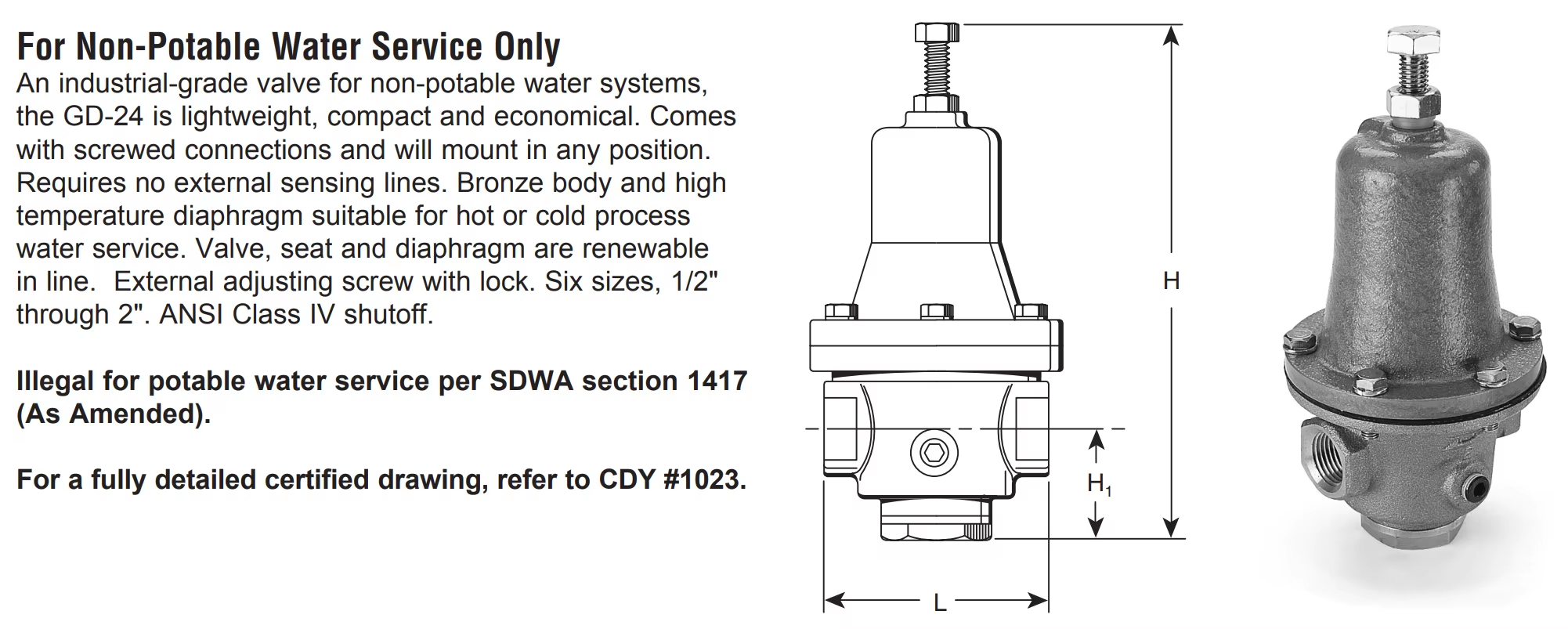

GD24 pressure reducing valve

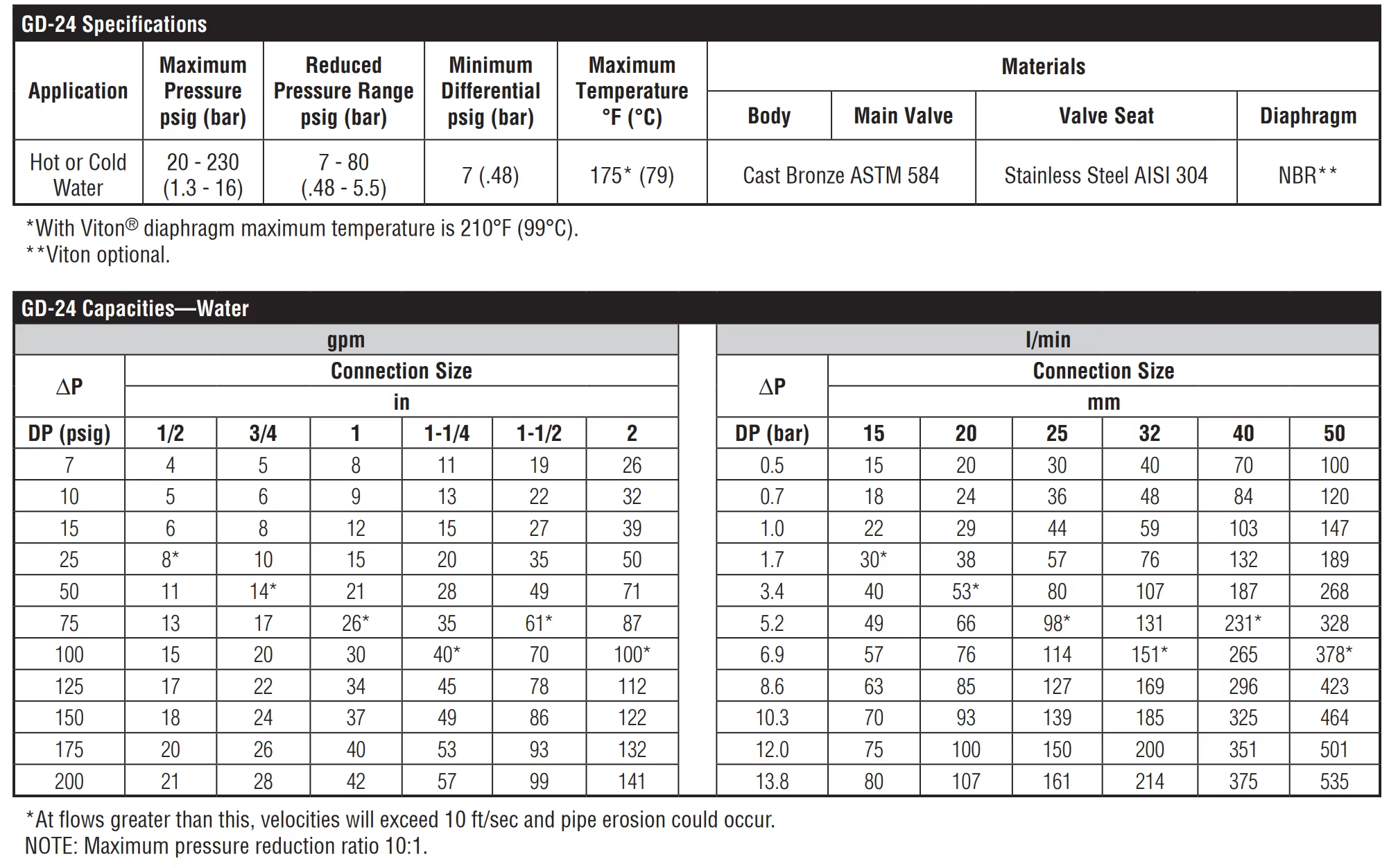

Model	GD-24
Fluid	Water
Connection Type	NPT
Maximum Allowable Pressure	230 psig (16 bar)
Maximum Allowable Temperature	175°F (79°C) 210°F (99°C)-Viton
Body Material	Cast Bronze ASTM B584
Maximum Operating Pressure	230 psig (16 bar)

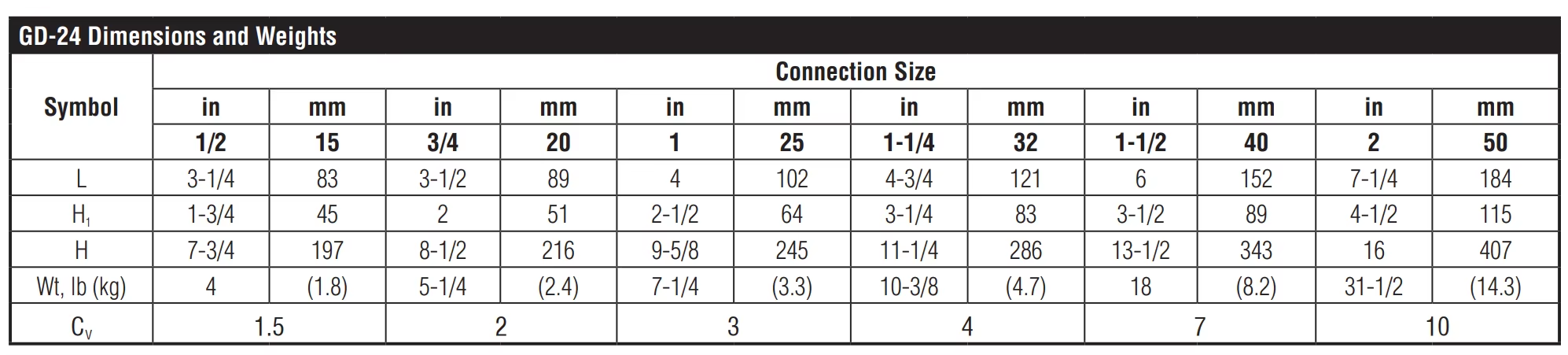

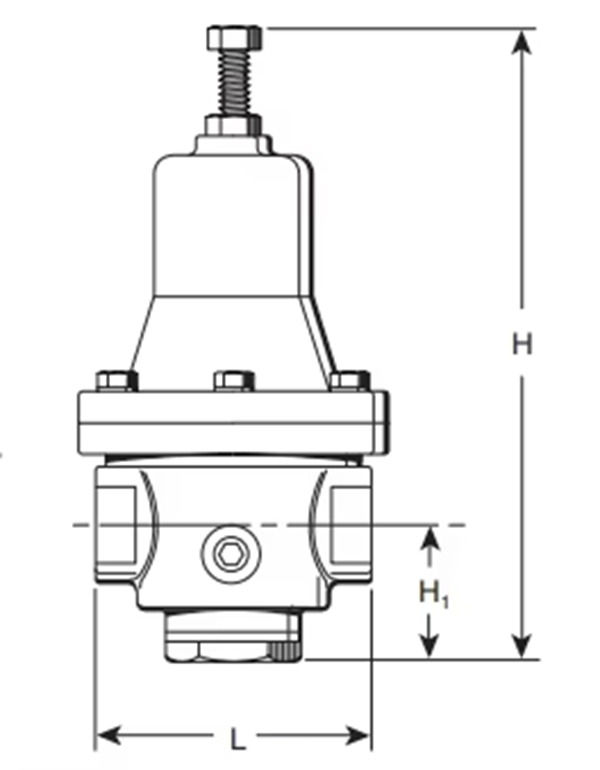

Connection Size	1/2″ (15 mm), 3/4″ (20 mm), 1″ (25 mm), 1-1/4″ (32 mm), 1-1/2″ (40 mm), 2″ (50 mm)

Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.

Factory Showcase

With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.

Factory Equipment
