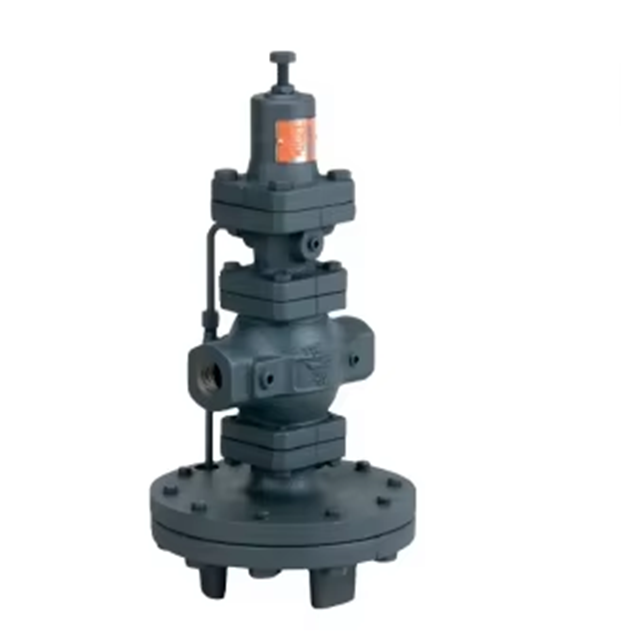

Pilot Operated Pressure Reducing Valve,ductile Iron, High Durability for Steam, Water

The GP-2000 pressure reducing valve replaces the Huosai model in its core operating section by incorporating a diaphragm and a pilot diaphragm, which together increase the Cv value. This design also delivers superior control performance, maintaining stable output even with fluctuations in primary-side pressure and varying secondary loads

Quantity:
Material:	Ductile iron
Size:	DN15-DN150
connection:	NPT, BSPT Flanged ANSI 150# Flanged ANSI 300#
Availability:





Inquire Add to Basket

Model:
GP2000
Brand:
Steam

Product Description

Technical Parameters

Company Description

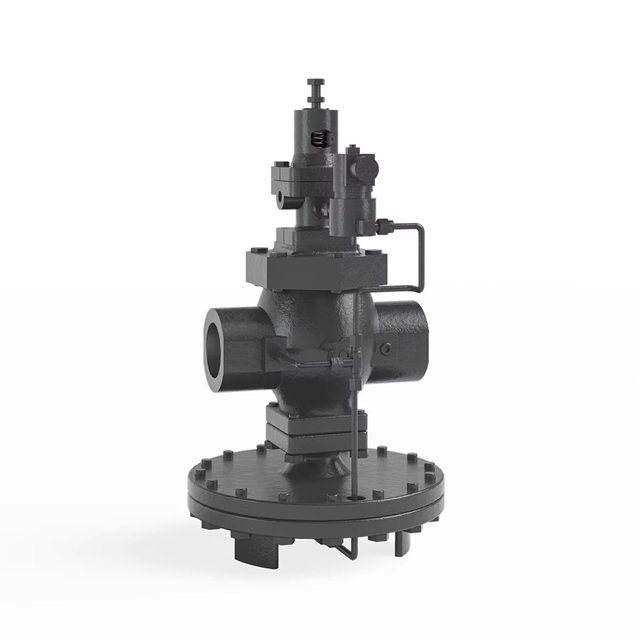

GP2000 pressure reducing valve

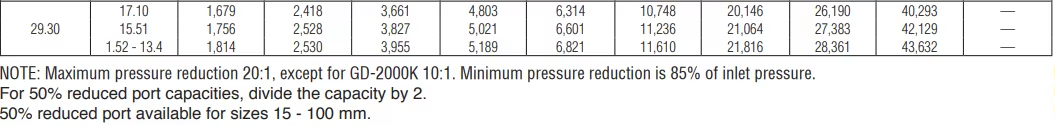

1.High pressure reduction ratio of up to 20:1—enabling what previously required two-stage reduction to be achieved in a single stage.

2.Large diaphragm and external sensing structure ensure stable secondary-side pressure control even under varying conditions.

3.Single-sphere valve design enhances sealing performance and minimizes leakage.

4.Capable of regulating very low pressures down to 0.02 MPa.

5.Optional micro manual shut-off valve allows convenient, fast, and safe opening and closing of the steam system without altering the valve’s preset pressure.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

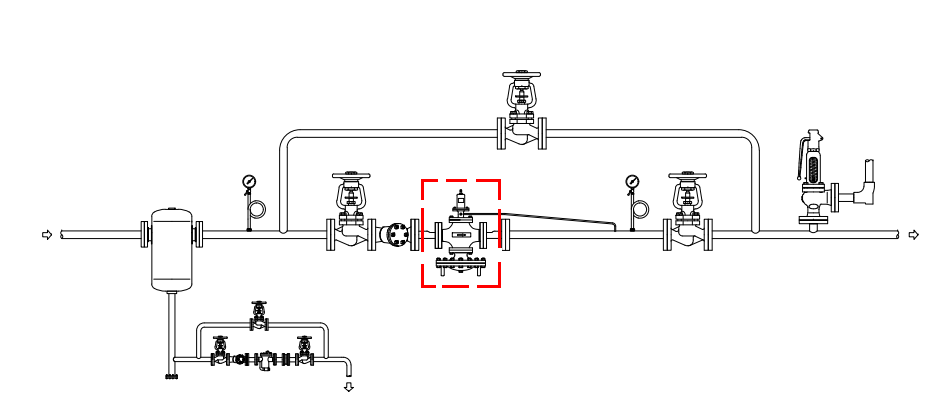

GP2000 Pressure ducing valve System Configuration Diagram

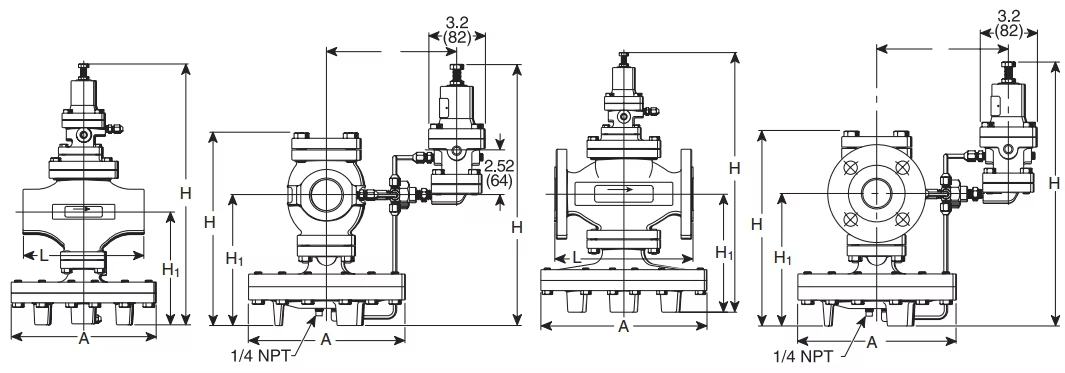

GP2000 pressure reducing valve

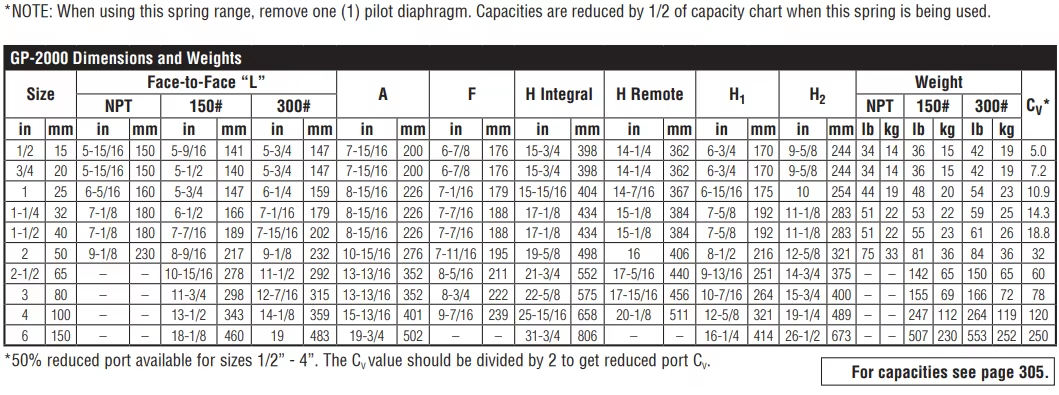

specific size

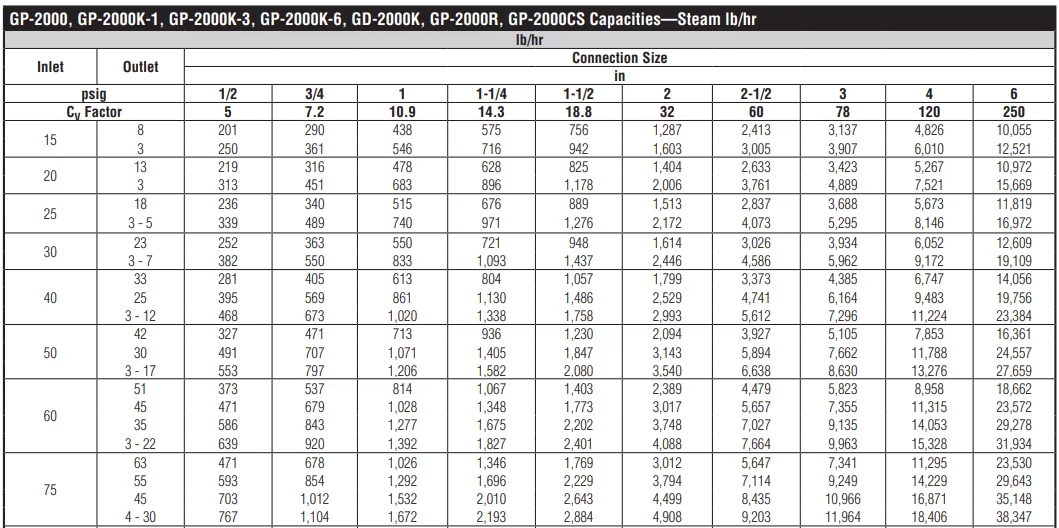

GP2000 pressure reducing valve

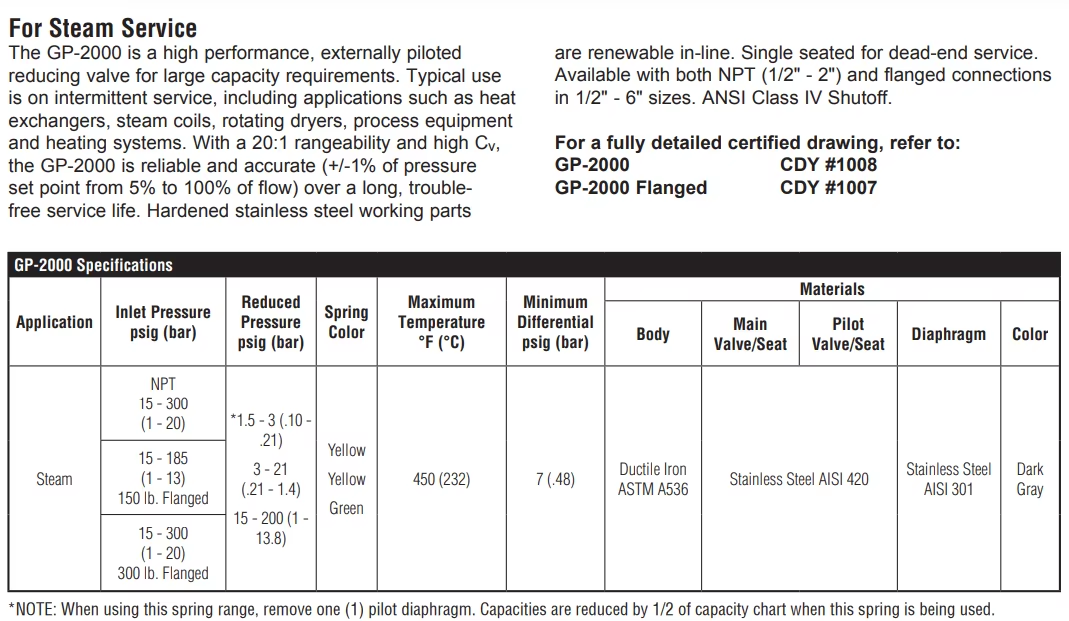

Product Specifications

Model	GP-2000 Integral or Remote Pilot
Fluid	Steam
Connection Type	NPT, BSPT, Flanged ANSI 150#, Flanged ANSI 300#
Maximum Allowable Pressure	300 psig (20 bar)
Maximum Allowable Temperature	428°F (220°C)
Body Material	428°F (220°C)
Maximum Operating Pressure	300 psig (20 bar)
Connection Size	1/2″ (15 mm), 3/4″ (20 mm), 1″ (25 mm), 1-1/4″ (32 mm), 1-1/2″ (40 mm), 2″ (50 mm) 2-1/2″ (65 mm), 3″ (80 mm), 4″ (100 mm), 6″ (150 mm)
