Steam-Water Separator for Compressed Air & Steam Lines Reducing Condensate Entrainment, Optimizes Heat Exchange Performance

Steam-Water Separator for Compressed Air & Steam Lines Reducing Condensate Entrainment, Optimizes Heat Exchange Performance

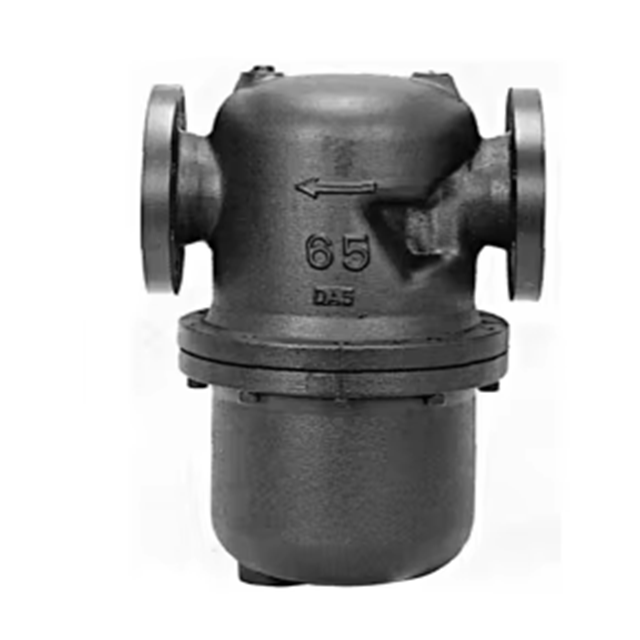

The DS Series In-line Drain Separators efficiently remove condensate from steam or air lines by utilizing the centrifugal force generated when the medium flows through a specially designed internal path. Thanks to their simple yet robust structure, these separators minimize pressure loss, ensuring that clean, dry steam or compressed air is delivered directly to your equipment for optimal performance.

Quantity:
Material:	Stainless material Carbon steel Ductile iron
Size:	DN15-DN300
connection:	Screwed Flange
Availability:





Inquire Add to Basket

Model:
SD/SD-H/SCS/SSS series
Brand:
Steam

Product Description

Technical Parameters

Company Description

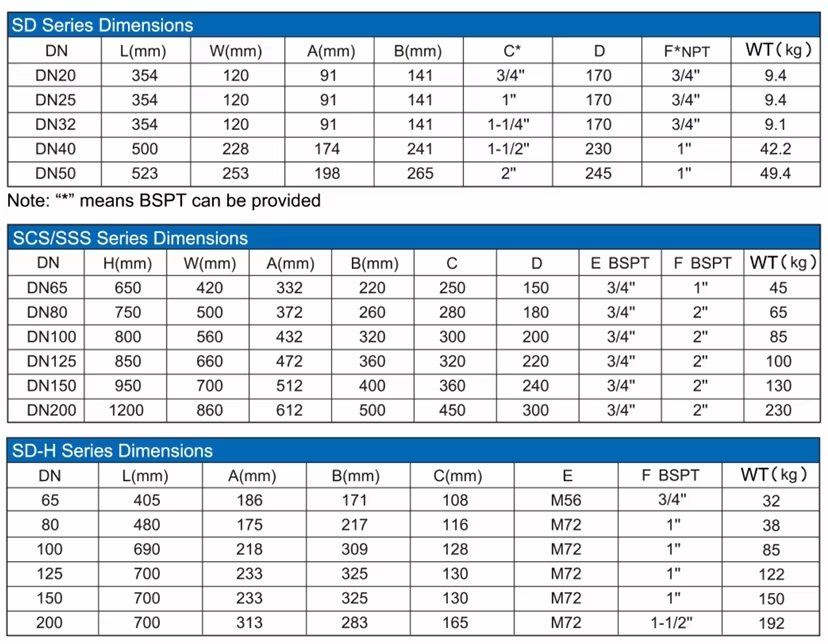

steam water seperator

The S Series Steam-Water Separator utilizes a baffle design to effectively remove liquid droplets from steam, compressed air, and other gaseous media. This structure ensures reliable separation of entrained moisture, delivering cleaner and drier air or steam for downstream equipment.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

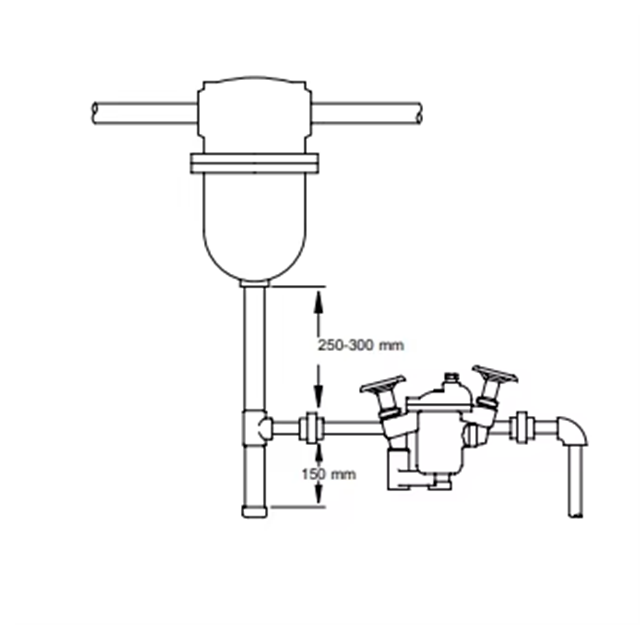

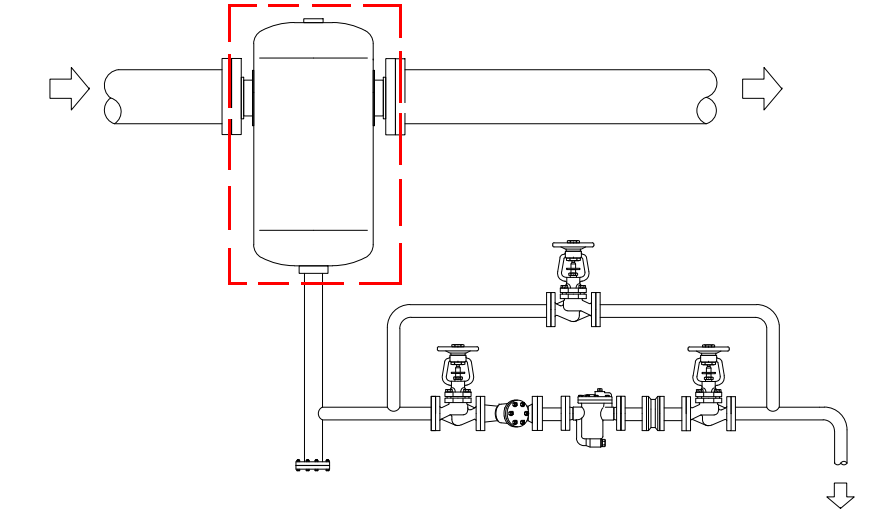

Steam Water Seperator Configuration Diagram

steam water seperator system

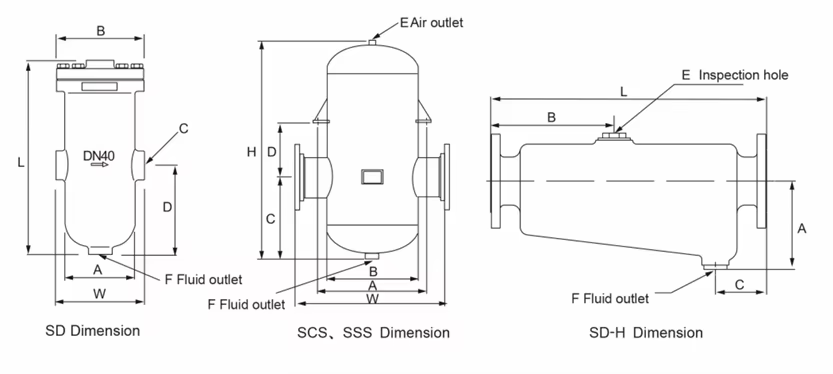

drain seperator

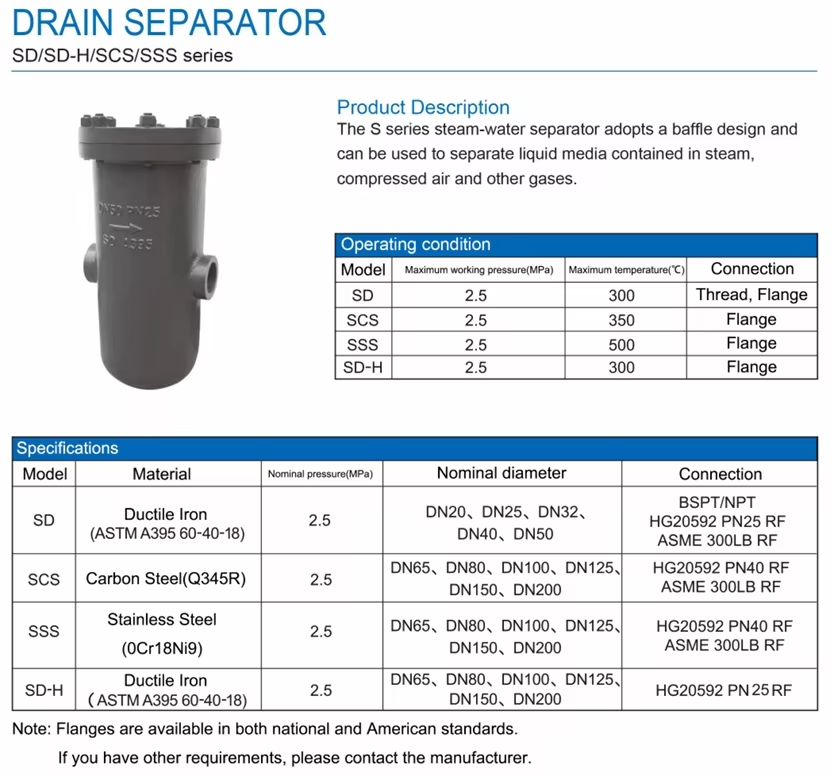

steam water seperator

Model	DS-1	DS-2	DS-3	DS-4
Connection Size	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm)	2-1/2″ (65 mm) 3″ (80 mm) 4″ (100 mm)	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 2-1/2″ (65 mm) 3″ (80 mm) 4″ (100 mm) 6″ (150 mm) 8″ (200 mm) 10″ (250 mm) 12″ (300 mm)	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 2-1/2″ (65 mm) 3″ (80 mm) 4″ (100 mm) 6″ (150 mm) 8″ (200 mm) 10″ (250 mm) 12″ (300 mm)
Connection Type	Screwed	Flanged	Screwed, Flanged	Screwed, Flanged
Body Material	Ductile Iron ASTM A536	Ductile Iron ASTM A536	Stainless Steel 304	Carbon Steel
