In industrial thermal management systems, the Steam Heat Exchanger carries the core responsibility of converting the latent heat of steam into the kinetic or thermal energy of a process fluid. However, as operating hours accumulate, issues such as scaling, corrosion, and the accumulation of non-condensable gases can cause heat transfer efficiency to plummet, potentially leading to pipe vibration and catastrophic equipment failure.
This article provides a deep dive into the daily maintenance logic, fouling mechanisms, and scientific cleaning techniques for steam heat exchangers, serving as a high-standard technical manual for plant engineers.
Maintaining the long-term performance of a steam heat exchanger requires moving beyond "reactive repairs" toward a robust system of Preventive Maintenance (PM).
Impurities in steam are the primary culprits behind fouling on heat transfer surfaces. If boiler feedwater is improperly treated, steam can carry silica, calcium/magnesium ions, and chemical residues into the exchanger.
Professional Insight: Regularly monitor steam superheat and dryness. Low-quality "wet steam" not only offers poor heat transfer but also causes erosion of the tube bundles due to high-velocity water droplets, significantly shortening equipment life.
"Water Hammer" is the number one killer of steam heat exchangers. When condensate is not discharged promptly, high-temperature steam meeting cold condensate creates high-velocity "water slugs" that violently impact the tube sheets.
Key Maintenance Point: Monitor the selection and health of Steam Traps. A trap failed in the "Open" position leads to massive energy loss; a "Closed" failure causes condensate backing up (flooding), leading to vibration and loss of effective heat transfer area.
Non-condensable gases, such as air and $CO_2$, tend to accumulate on tube surfaces, forming a thin "gas film." The thermal resistance of this film is far higher than that of the metal wall, acting as a powerful insulator that stunts heat exchange.
Optimization Strategy: Install automatic Air Vents at the highest points of the exchanger shell to ensure continuous removal of air during startup and steady-state operation.
Understanding how "scale" forms is the prerequisite for scientific removal. In steam-to-water or steam-to-oil applications, fouling generally falls into these categories:
When the secondary fluid (e.g., cooling tower water) is heated, salts whose solubility decreases with temperature (such as calcium carbonate) precipitate and adhere to the tube walls.
In low-temperature heat recovery systems, microbial growth can create a viscous biofilm. This not only degrades thermal efficiency but also induces severe localized Pitting Corrosion.
The following table illustrates how typical scale thickness directly increases fuel/gas consumption (estimated values):
Scale Thickness (mm) | Extra Energy Increase (%) | Efficiency Drop (%) | Potential Failure Risk |
0.15 | 2% - 5% | 10% | Localized thermal stress |
0.30 | 8% - 12% | 25% | Stress corrosion cracking |
0.60 | 18% - 25% | 45% | System overpressure alarms |
1.00+ | >40% | 65% | Total tube blockage |
Cleaning a heat exchanger is not a "brute force" task; a balance must be struck between the Descaling Rate and the Metal Corrosion Rate.

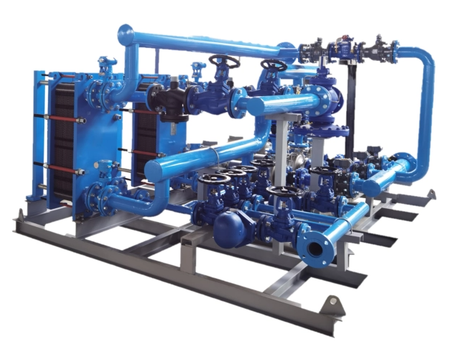

Chemical cleaning is the most effective method for complex tube bundles and Plate Heat Exchangers (PHE).
Acid Cleaning Process: For calcium/magnesium scales, organic acids (like citric or sulfamic acid) are typically used in conjunction with corrosion inhibitors. Never use unformulated strong mineral acids, as they can destroy the passive layer of stainless steel.
Neutralization and Passivation: This is the most overlooked step. After acid cleaning, the system must be neutralized with an alkaline solution and treated with a passivating agent to reform a protective film, preventing "flash rust."
For severe blockages in the tube side of Shell and Tube exchangers, high-pressure water jets (500 bar to 1000 bar) can physically shatter hard scale.
Precaution: Attention must be paid to the nozzle angle. Avoid prolonged spraying at a fixed point to prevent fatigue damage to the tube material.
For large-scale systems, consider Sponge Ball Cleaning systems. By circulating elastic sponges through the tubes, the system uses friction to remove incipient fouling in real-time without shutting down, keeping the heat transfer coefficient constant.
A professional maintenance checklist should include the following periodic actions:
Daily Inspection: Check the Pressure Drop across the inlet and outlet. A significant increase usually indicates severe scaling or blockage.
Weekly Testing: Monitor the condensate quality. If process media (oil, chemicals) appear in the condensate, it indicates internal tube leakage or corrosion perforation, requiring an immediate shutdown.
Quarterly Analysis: Use Infrared Thermography to scan the exchanger shell. Thermal distribution maps can help identify internal bypasses or "dead zones" caused by scale accumulation.
Annual Overhaul: For Plate Heat Exchangers, it is recommended to disassemble and inspect gaskets annually to prevent sudden internal leaks due to elastomer aging.
Maintenance of a steam heat exchanger is not merely about "cleaning"; it is the fine-tuned management of Boundary Layer Thermal Resistance. By improving steam dryness, optimizing drainage systems, performing scientific cleaning, and maintaining lifecycle logs, enterprises can eliminate 15% to 30% of energy waste.
In today's era of Green Manufacturing and Carbon Neutrality, keeping a heat exchanger "running clean" is not just a technical requirement—it is a strategic cornerstone for industrial cost reduction and energy efficiency.
