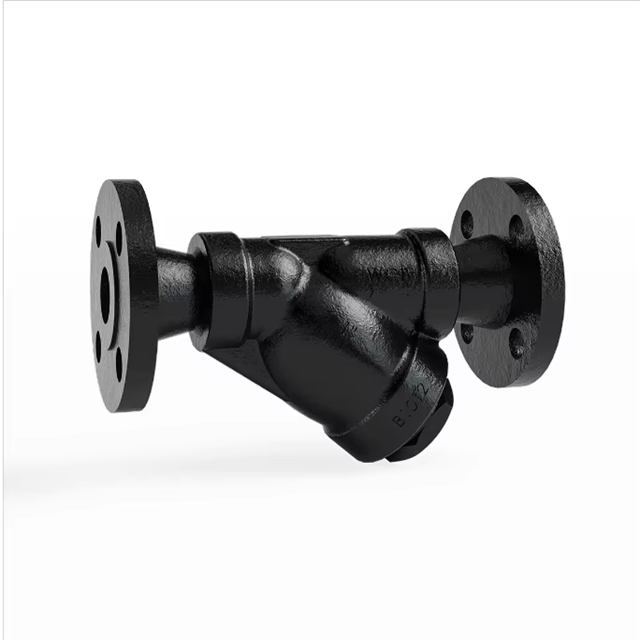

CB Series PN40 Flange Valve & Y-Type Strainer Assembly – Screwed Precision Screen Chambers for Steam Equipment & Water Pipelines

CB Series PN40 Flange Valve & Y-Type Strainer Assembly – Screwed Precision Screen Chambers for Steam Equipment & Water Pipelines

Engineered for reliability, the CB Series Y-Type Strainers are available in both PN40 flanged and Class 300 configurations. Their robust screen chambers are designed to prevent leaks and resist crushing, even under high pressure and temperature conditions.
Both ends of each chamber are precisely machined, creating perfectly round and smooth seating surfaces along with a consistent chamber length. This precision ensures that the screen seats tightly against the machined surface, eliminating any gaps where oversized particles could bypass filtration. As a result, only particles smaller than the screen opening pass through, delivering clean media and protecting downstream valves and equipment from contamination and damage.

Quantity:
Material:	WCB
Size:	DN15-DN100
connection:	Flanged
Availability:





Inquire Add to Basket

Model:
CB
Brand:
Steam

Product Description

Technical Parameters

Company Description

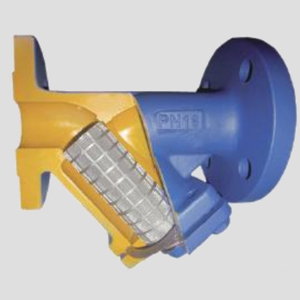

CB strainer

The CB Series Y-Type Strainers are built for dependable performance in demanding applications, available in both PN40 flanged and Class 300 versions. Their screen chambers are engineered to resist leaks and withstand crushing forces, ensuring long-term integrity under high pressure and temperature.

Each chamber is precision-machined at both ends, resulting in perfectly round, smooth seating surfaces and a consistent chamber length. This exact fit allows the filter screen to seat tightly against the machined surface, preventing any particles larger than the screen opening from bypassing the filtration area.

The result is a highly effective straining solution that protects downstream valves, fittings, and equipment from debris, reduces maintenance, and extends system life.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Strainer Application Configuration Diagram

Pipeline water conveyance drawing

CB strainer

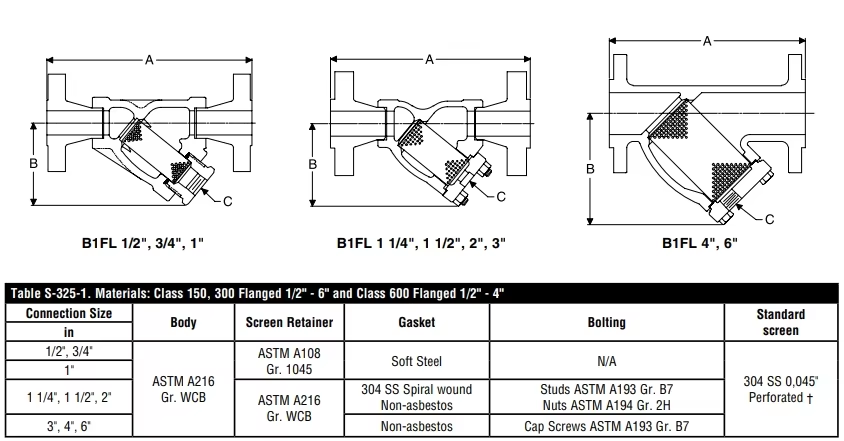

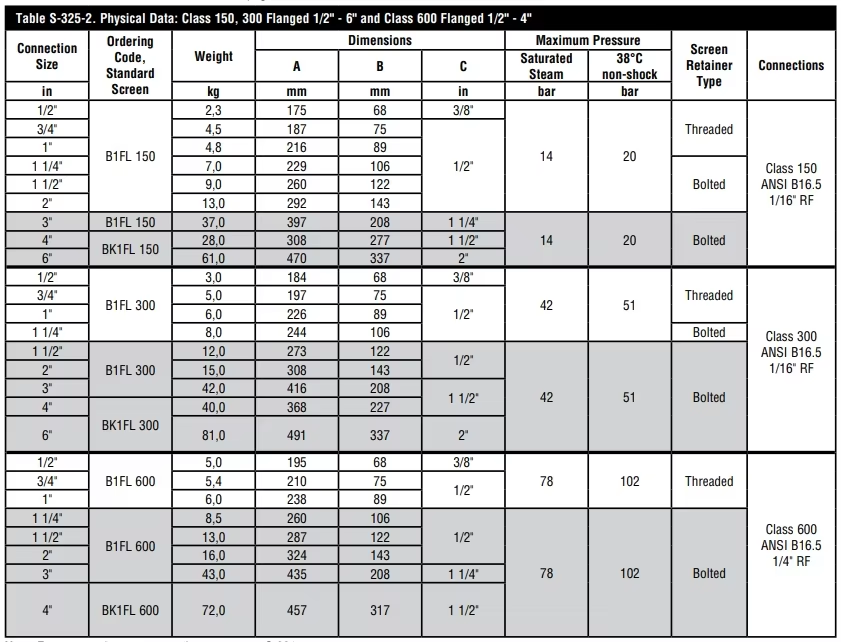

PRODUCT SPECIFICATIONS

Model	CB-Screwed PN40 Flange Class 300	CB-Integral PN40 Flange Class 300	CB-Integral PN25 Flange Class 150
Connection Sizes	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm)	2-1/2″ (65 mm) 3″ (80 mm) 4″ (100 mm)	5″ (125 mm) 6″ (150 mm) 8″ (200 mm)
Connection Type	Flange	Integral Flange	Integral Flange
Body Material	ASTM A216 Gr.WCB Cast Steel	ASTM A216 Gr.WCB Cast Steel	ASTM A216 Gr.WCB Cast Steel
Pressure Temperature Rating
Steam Non-Shock	355 psig @ 752°F (24 bar @ 400℃)	320 psig @ 752°F (22 bar @ 400℃)	200 psig @ 752°F (14 bar @ 400℃)
Cold Non-shock	200 psig @ 752°F (14 bar @ 400℃)	580 psig @ 100°F (40 bar @ 38℃)	360 psig @ 100 °F (25 bar @ 38℃)
