G Series Y-Type Strainer PN16 Flanged, Steam Equipment Filter with Durable Hydraulic Power Screen Chambers, No Leak Crush

G Series Y-Type Strainer PN16 Flanged, Steam Equipment Filter with Durable Hydraulic Power Screen Chambers, No Leak Crush

The Y-shaped filter screen chamber is designed to be leak-proof and resistant to deformation, ensuring reliable performance under pressure. Both ends of the chamber are precision-machined, resulting in a perfectly round and smooth valve seat surface, as well as a consistent chamber length.
This precise construction allows the filter screen to sit tightly against the machined surface, preventing any particles larger than the screen opening from bypassing the filtration area through the ends of the filter. As a result, only media within the specified particle size range passes through, protecting downstream valves and equipment from contamination and damage.

Quantity:
Material:	Ductile iron
Size:	DN15-DN200
connection:	Flanged
Availability:





Inquire Add to Basket

Model:
G series
Brand:
Steam

Product Description

Technical Parameters

Company Description

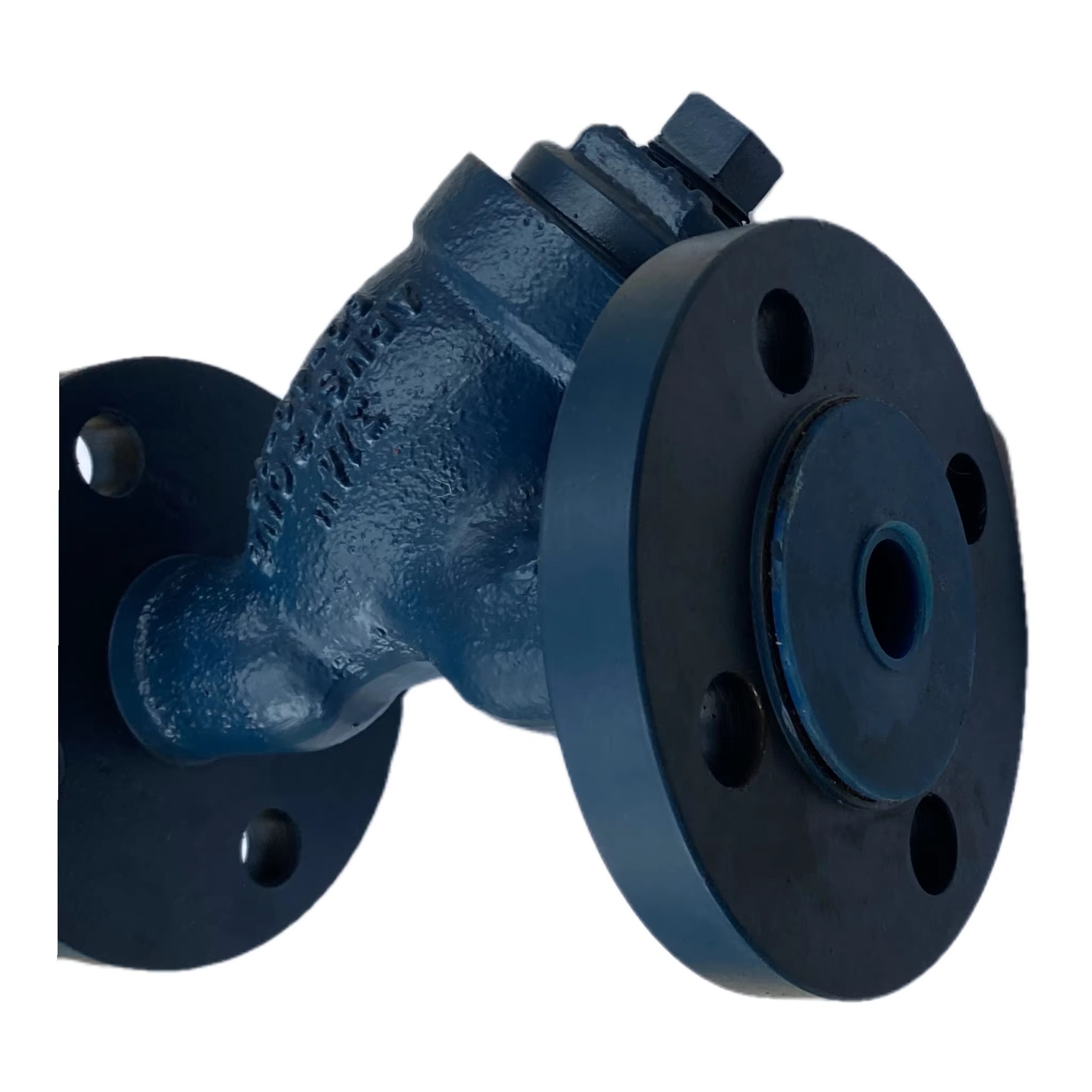

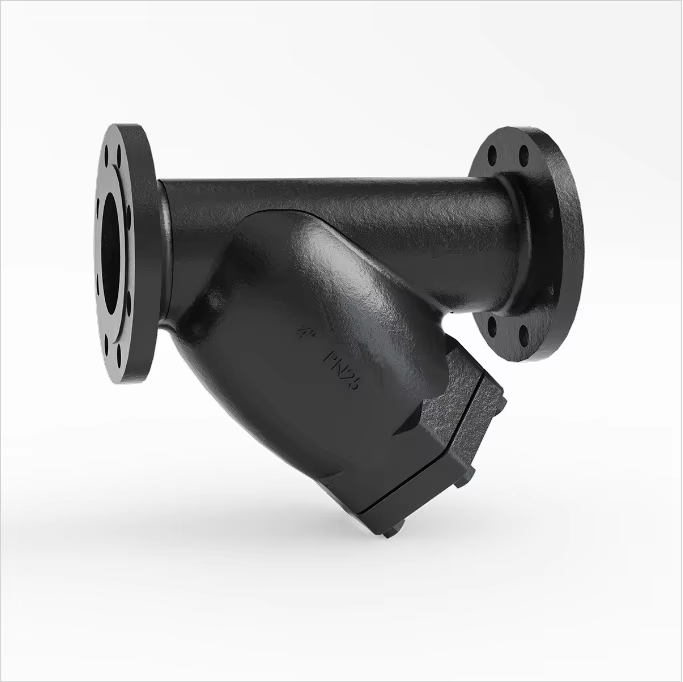

G strainer

1. The valve seat surface is precision-machined to be perfectly round and smooth, with a consistently fixed length for the filter chamber.

2. Because the filter screen fits tightly against the machined surface, no particles larger than the screen opening can bypass filtration through the ends of the filter.

3. Designed for quick and hassle-free installation and disassembly, simplifying maintenance and reducing downtime.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Strainer Application Configuration Diagram

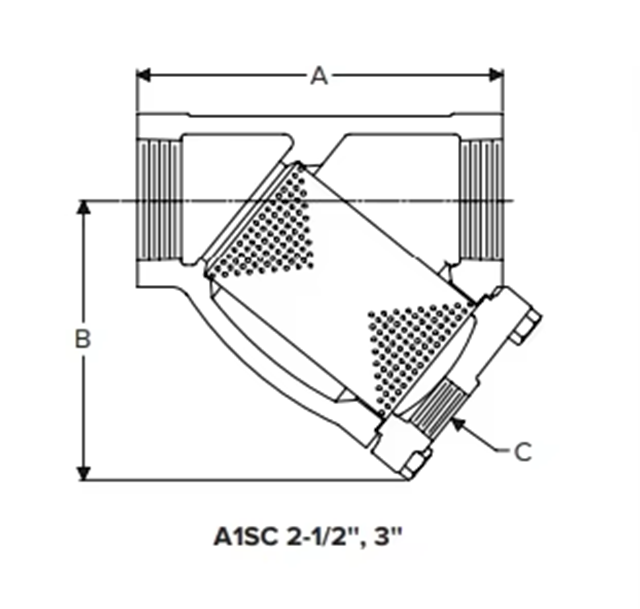

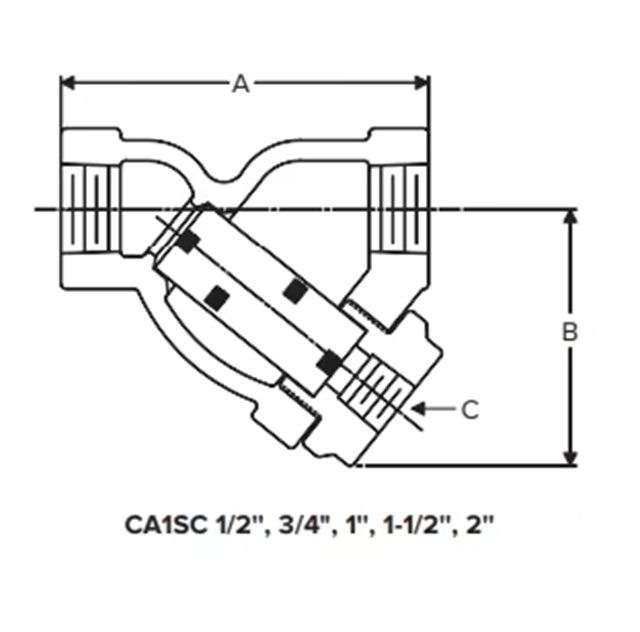

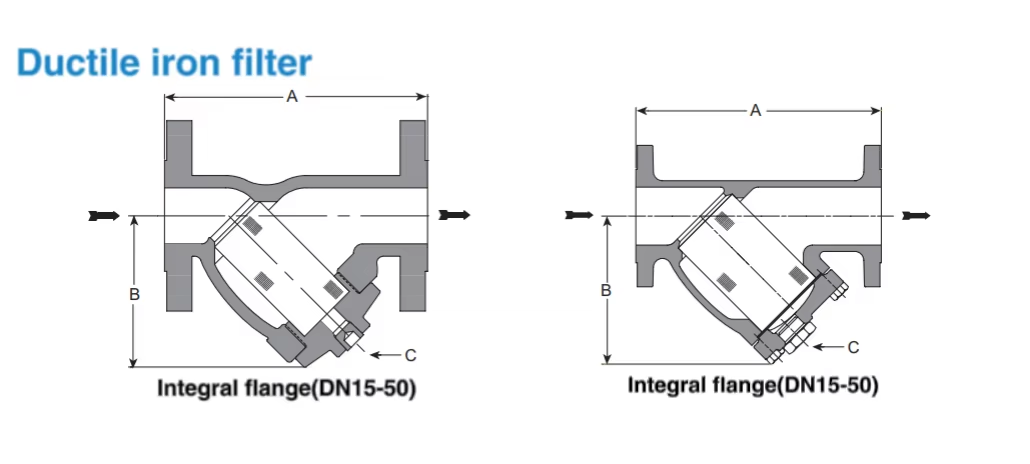

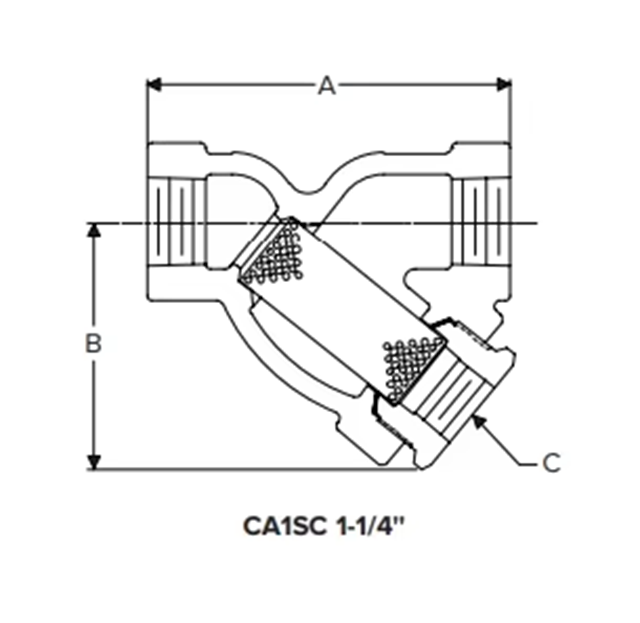

Pipeline water conveyance drawing

Right side

Left side

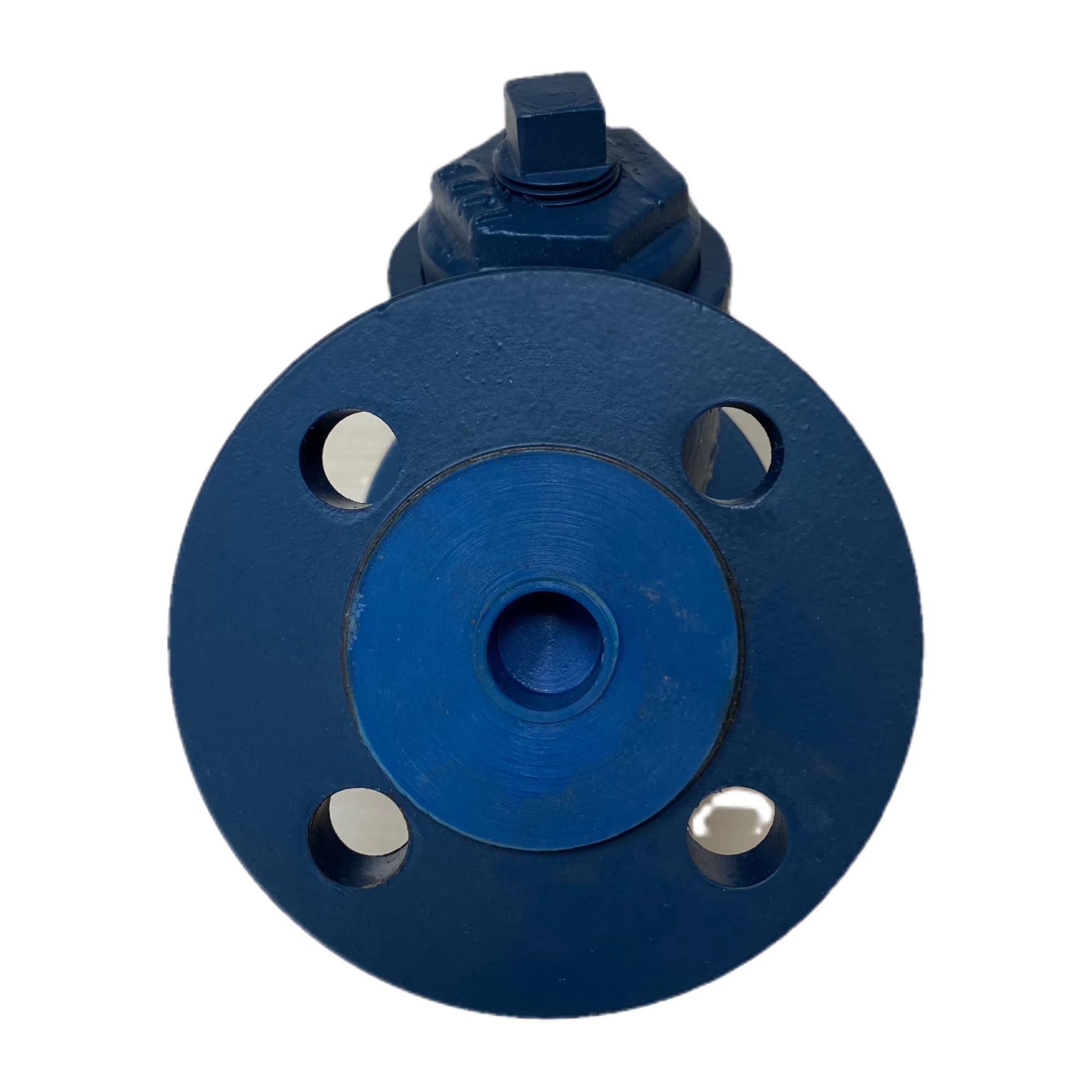

Front side

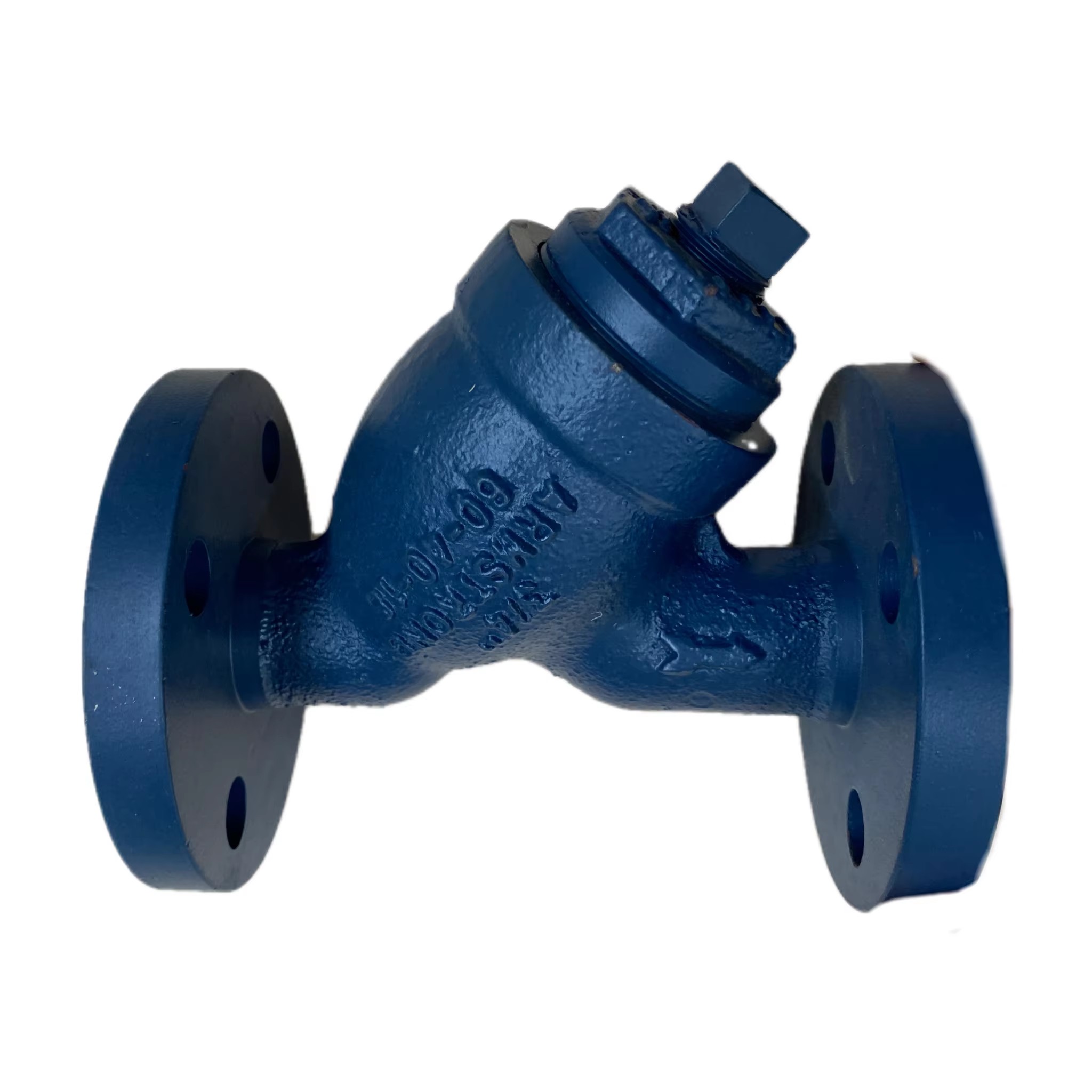

G strainer

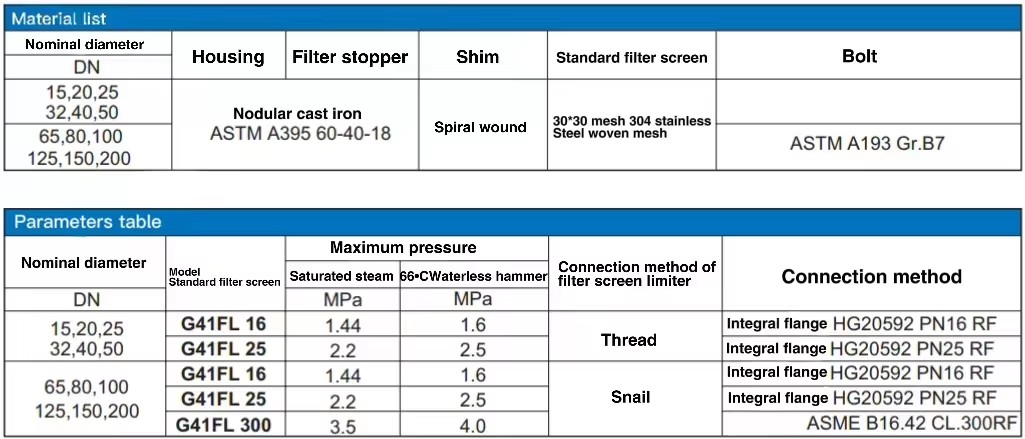

PRODUCT SPECIFICATIONS

Model	G	G-Flanged PN16	G-Flanged PN25	G-Flanged 250
Connection Sizes	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm)	2-1/2″ (65 mm) 3″ (80 mm) 4″ (100 mm) 5″ (125 mm) 6″ (150 mm) 8″ (200 mm)	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm) 2-1/2″ (65 mm) 3″ (80 mm) 4″ (100 mm) 5″ (125 mm) 6″ (150 mm) 8″ (200 mm)	2-1/2″ (65 mm) 3″ (80 mm) 4″ (100 mm) 5″ (125 mm) 6″ (150 mm) 8″ (200 mm)
Connection Type	Integral Flanged	Integral Flange	Integral Flange	Integral Flanged
Body Material	Ductile Iron ASTM A395 60-40-18	Ductile Iron ASTM A395 60-40-18	Ductile Iron ASTM A395 60-40-18	Ductile Iron ASTM A395 60-40-18

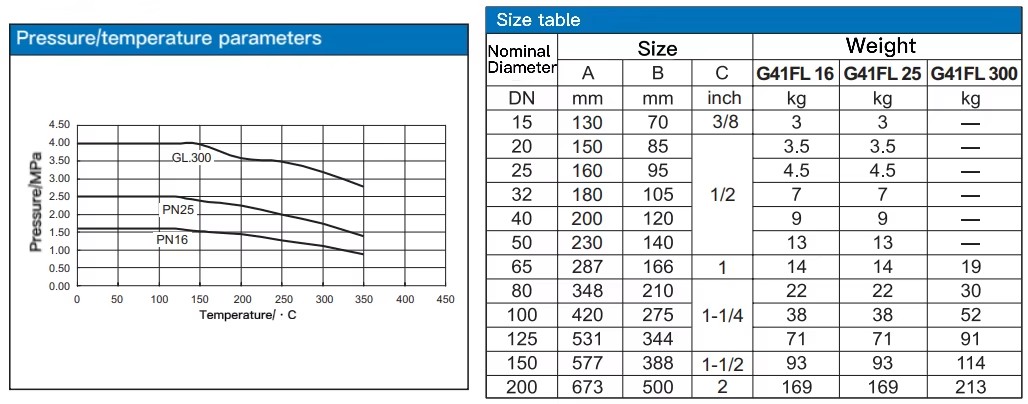

Pressure Temperature Rating
Steam Non-Shock	210 psig@392°F (14 bar@200℃)	210 psig@392°F (14 bar@200℃)	320 psig@419°F (22 bar@215℃)	510 psig@470°F (35 bar@243℃)
Cold Non-shock	230 psig@151°F (16 bar@66℃)	230 psig@151°F (16 bar@66℃)	360 psig@151°F (25 bar@66℃)	580 psig@151°F (40 bar@66℃)
