CE Series Y Type Stainless Steel Filter for High Water Steam Equipment 100X100/30X30 Mesh General Application

CE Series Y Type Stainless Steel Filter for High Water Steam Equipment 100X100/30X30 Mesh General Application

Designed for durability and precision, the CE Series Y-Type Strainers are available in both PN40 flanged and Class 300 configurations with screwed connections. Their rugged screen chambers are engineered to resist leaks and crushing, ensuring reliable performance even under high pressure and temperature conditions.
Both ends of each chamber undergo precision machining, producing perfectly round and smooth seating surfaces along with a consistent chamber length. This precise construction guarantees that the filter screen sits securely against the machined surface, eliminating gaps where oversized particles could bypass filtration.

Quantity:
Material:	Stainless steel
Size:	DN15-DN200
connection:	Flanged
Availability:





Inquire Add to Basket

Model:
CE
Brand:
Steam

Product Description

Technical Parameters

Company Description

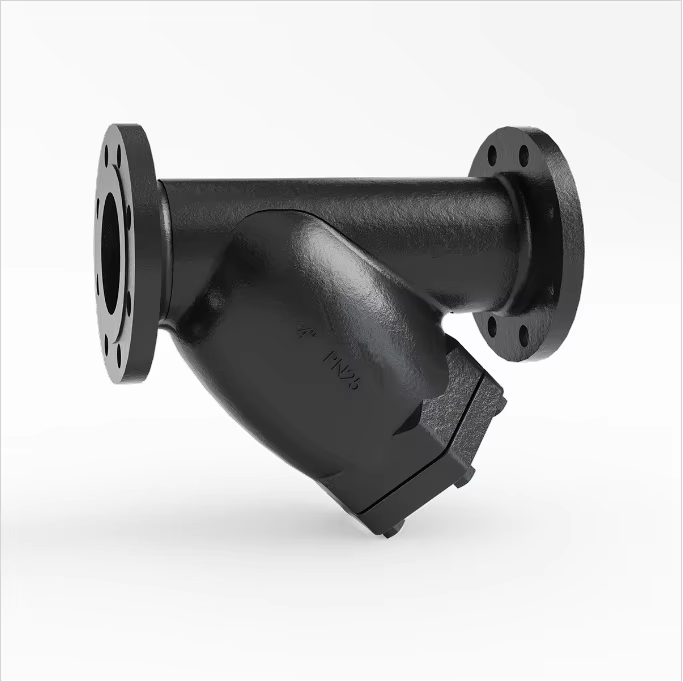

CE series filter

Product Features – CE Series Screwed PN40 Flanged & Class 300 Y-Type Strainers

1.Leak-Proof & Crush-Resistant Chambers

Engineered screen chambers prevent leakage and withstand crushing forces, ensuring long-term reliability in high-pressure and high-temperature environments.

2.Precision-Machined Chamber Ends

Both ends are accurately machined to create perfectly round and smooth seating surfaces, along with a consistent chamber length for optimal sealing.

3.Secure Screen Seating

The filter screen fits snugly against the machined surface, eliminating gaps where contaminants could bypass the filtration area.

4.Effective Particle Retention

No particle larger than the screen opening can escape around the screen ends, ensuring only clean media passes through to protect downstream equipment.

5.Versatile Configurations

Available in both PN40 flanged and Class 300 designs with screwed connections, suitable for a wide range of industrial steam and water systems.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Strainer Application Configuration Diagram

Pipeline water conveyance drawing

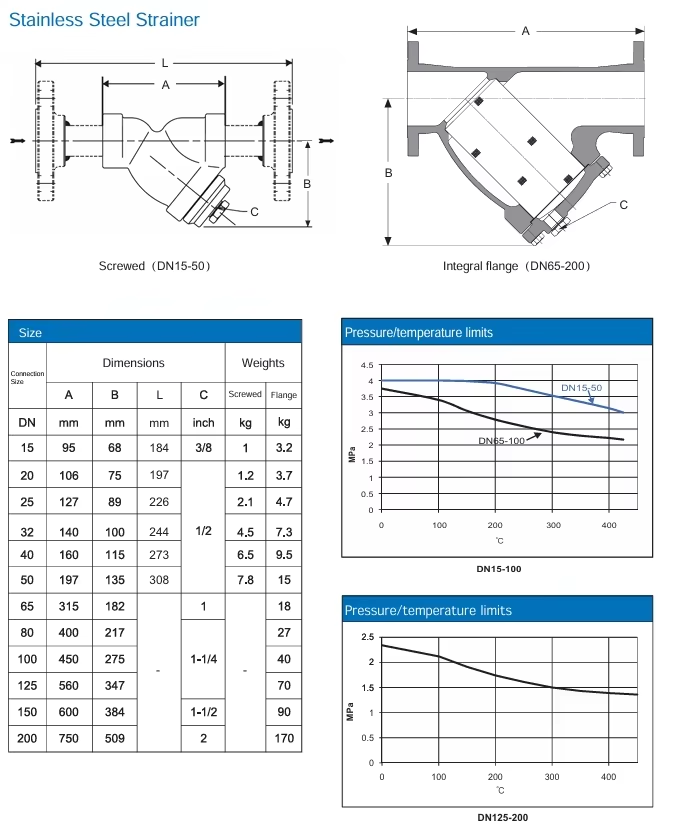

CE series filter

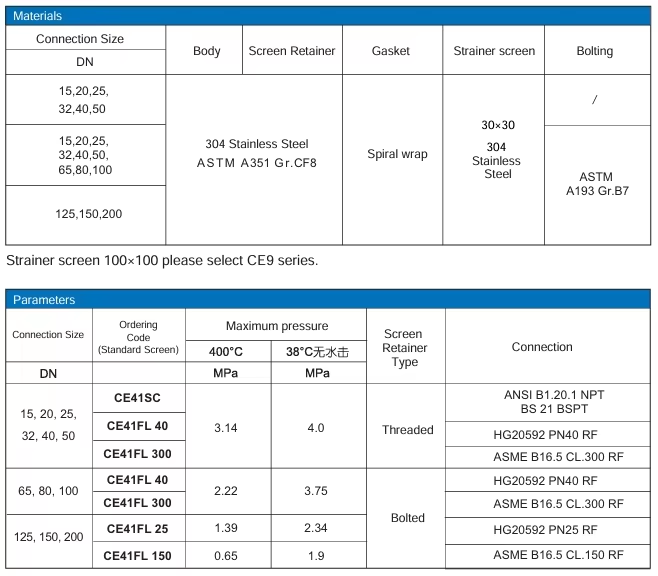

PRODUCT SPECIFICATIONS

Model	CE-Screwed PN40 Flange Class 300	CE-Integral PN40 Flange Class 300	CE-Integral PN25 Flange Class 150
Connection Sizes	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/4″ (32 mm) 1-1/2″ (40 mm) 2″ (50 mm)	2-1/2″ (65 mm) 3″ (80 mm) 4″ (100 mm)	5″ (125 mm) 6″ (150 mm) 8″ (200 mm)
Connection Type	Flange	Integral Flange	Integral Flange
Body Material	304 Stainless Steel ASTM A315 Gr.CFB	304 Stainless Steel ASTM A315 Gr.CFB	304 Stainless Steel ASTM A315 Gr.CFB
Pressure Temperature Rating
Steam Non-Shock	455 psig @ 752°F (31 bar @ 400℃)	320 psig @ 752°F (22 bar @ 400℃)	200 psig @ 752°F (14 bar @ 400℃)
Cold Non-shock	580 psig @ 100°F (40 bar @ 38℃)	540 psig @ 100°F (38 bar @ 38℃)	340 psig @ 100 °F (23 bar @ 38℃)
