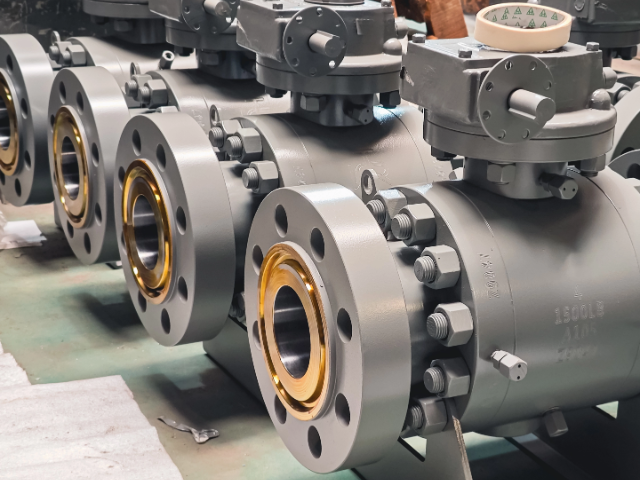

Natural gas valves are one of the most critical control components in gas transmission and distribution systems. They are widely used in urban gas pipelines, industrial combustion systems, boilers, and energy equipment. Because natural gas is highly flammable and explosive, any valve failure may not only disrupt system stability but also create serious safety hazards.
Therefore, understanding common valve failures and mastering systematic troubleshooting methods is essential for engineers and maintenance personnel.
In pneumatic or electric control valves, the actuator is the core component responsible for driving valve movement. After long-term operation or insufficient lubrication, internal mechanical parts may experience jamming or wear, resulting in slow response or complete failure to operate.
In real engineering scenarios, this often appears as: control signals are issued, but the valve position does not change, or the movement is incomplete. This is usually related to aging lubrication, gear wear, or cylinder seal failure.
Although natural gas is pre-treated, trace impurities or condensates may still exist. Over time, these substances can accumulate around the valve stem, forming deposits that obstruct movement.
This issue is especially common in low-temperature or high-humidity environments where condensation is more likely to occur, leading to difficulty in valve operation.
The sealing performance of a natural gas valve depends mainly on the tight contact between the valve seat and valve core. With frequent operation or particle erosion, sealing surfaces gradually wear out, leading to leakage.
Internal leakage typically occurs when the valve is closed but a small amount of gas still passes through downstream, posing a typical safety risk in gas systems.
If gas filtration is insufficient, fine particles may become embedded in the sealing surfaces, causing point leakage. This type of leakage is often difficult to detect in the early stage but gradually worsens over time.
Natural gas valves are typically connected to pipelines via flanges or threaded joints. If installation torque is not properly controlled or long-term vibration causes bolts to loosen, leakage may occur at the connection points.
This type of leakage is often detected through slight odor or alarm signals and is one of the most common external leakage issues.
Rubber or polymer sealing rings may harden, crack, or degrade under long-term exposure to temperature variations, resulting in loss of sealing performance. This is especially common in valves that have been in service for many years.
In automated systems, valve operation is controlled by PLC or DCS systems. If signal transmission experiences delay, interference, or incorrect input, the valve may not respond correctly, resulting in delayed opening, incomplete closing, or unstable positioning.
Such issues are often related to electrical or control system faults rather than mechanical failure. Therefore, system logs and signal pathways should be checked first during troubleshooting.
Pneumatic actuators rely on stable air supply pressure. If pressure fluctuates or the filtration and pressure-reducing system fails, actuator response may become slow or insufficient, affecting valve control accuracy.
Failure Type | Main Symptoms | Possible Causes | Risk Level | Common Troubleshooting Methods |
Failure to open/close | No movement or slow response | Actuator jamming, stem deposits | High | Check air supply, power, lubrication |
Internal leakage | Gas passes through when closed | Seal wear, particle embedding | High | Differential pressure test, leak detector |
External leakage | Leakage at body or joints | Loose flanges, aging seals | Very High | Soap solution test, gas detector |
Unstable operation | Fluctuating or delayed response | Control system fault, actuator issues | Medium | Check control signals and feedback system |
The first step is to inspect the valve for visible leakage, corrosion, or mechanical damage. At the same time, check whether flange connections are loose. This step can quickly eliminate simple external faults.
Pressure testing or gas detection instruments can be used to determine whether internal or external leakage exists. In industrial systems, differential pressure monitoring is often applied for more precise diagnosis.
Check whether power supply, air supply, and control signals are normal, and manually test whether the actuator responds correctly. This helps distinguish between mechanical and control system failures.
If external checks cannot locate the issue, the valve must be disassembled. Key inspection points include sealing surface wear, stem condition, and internal contamination or deposits.
Regular lubrication and inspection of actuators can significantly extend service life and reduce the risk of jamming. Maintenance records also support predictive maintenance strategies.
Installing high-efficiency filtration equipment upstream of the valve helps reduce impurities entering the system, minimizing damage to sealing surfaces.
Avoid unnecessary frequent opening and closing operations to reduce wear on sealing components and improve long-term stability.
As a key control element in gas systems, the operating condition of natural gas valves directly affects overall safety and system stability. Although failure types vary, most issues can be effectively identified and resolved through systematic troubleshooting methods.
For engineers and maintenance personnel, adopting a strategy of prevention-first, inspection-based diagnosis, and graded maintenance is essential to ensure the long-term safe operation of natural gas systems.
