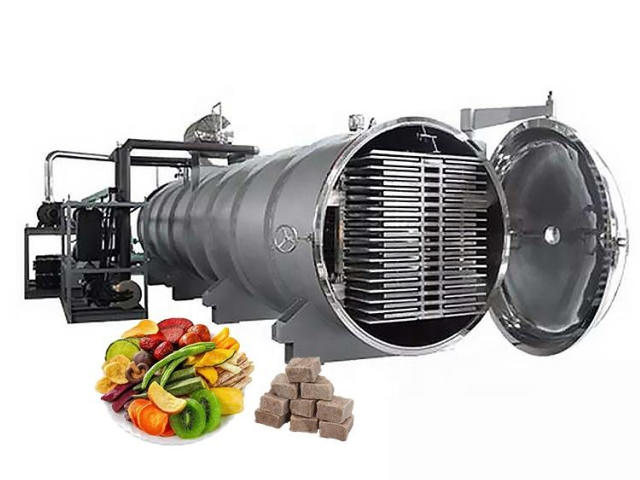

A freeze dryer (also known as a lyophilizer) removes moisture from materials through three stages: pre-freezing, vacuum sublimation, and secondary drying. It is widely used in pharmaceuticals, biotechnology, food processing, and scientific research. Because the system integrates multiple subsystems—including refrigeration, vacuum, heating, and automatic control—it is prone to complex operational failures during long-term use.
This article provides a systematic engineering analysis of common freeze dryer faults and practical solutions to improve equipment stability and production efficiency.
The vacuum system is the core of a freeze dryer. If the required vacuum level cannot be achieved, sublimation cannot proceed normally, resulting in extended drying time or complete process failure.
During long-term operation, the vacuum pump continuously handles water vapor and trace organic compounds. These substances can cause pump oil emulsification, degradation, or sludge formation, reducing ultimate vacuum performance. In addition, internal wear of pump components such as vanes can further decrease pumping efficiency.
Typical symptoms include significantly longer evacuation time, failure to reach target vacuum levels, and increased operating noise.
The solution requires a multi-step approach. First, replace or filter the vacuum pump oil to restore basic pumping performance. Second, inspect internal components such as vanes and seals for wear and repair or replace them if necessary. For high moisture-load applications, a pre-cooling trap can be added to reduce water vapor entering the vacuum pump.
System leakage often occurs due to aging seals, loose flange connections, or faulty valve sealing. Because leaks are usually very small, they are difficult to detect visually but continuously affect vacuum stability.
Typical signs include unstable vacuum levels and rapid pressure rebound during pressure holding tests.
The recommended solution is a step-by-step isolation test. First perform an overall pressure-holding test, then isolate sections of the chamber, pipelines, and valves to locate the leakage area. Key inspection points include door seals, silicone gasket aging, and vacuum valve sealing surfaces. Any aged or damaged seals should be replaced immediately, and installation pressure must be recalibrated.
The refrigeration system is responsible for rapid freezing and cold trap operation, directly affecting drying efficiency and product quality.
Refrigerant leakage leads to abnormal system pressure, increased evaporation temperature, and failure of the cold trap to reach the required temperature. Long-term operation may also cause compressor overheating and damage.
Common symptoms include abnormal frost formation, slow cooling, and frequent high/low-pressure alarms.
The solution involves pressure testing to locate leaks, particularly at welded joints, valve connections, and heat exchangers. After repair, the system must be evacuated and recharged according to standard procedures. System pressure curves should be monitored to ensure stable recovery.
The compressor is the core power component of the refrigeration system. Long-term high-load operation may lead to lubricant degradation, reduced motor insulation, or mechanical wear.
When efficiency declines, symptoms include abnormal current, increased noise, or intermittent shutdown protection.
Solutions include checking and replacing compressor oil, ensuring proper condenser heat dissipation, and testing motor insulation resistance. In severe cases, compressor replacement may be required to restore system performance.
Reduced drying efficiency is usually caused by multiple interacting system factors rather than a single fault.
If the material layer is too thick, heat transfer becomes inefficient, preventing internal moisture from sublimating effectively. Uneven distribution also leads to inconsistent drying, where some areas over-dry while others remain wet.
This results in extended cycle time or incomplete drying.
The solution is to strictly control loading thickness according to equipment specifications and adjust the freeze-drying curve accordingly. Tray arrangement should also be optimized to ensure uniform heat transfer and improve drying consistency.
If the cold trap temperature is not low enough, water vapor cannot condense effectively, reducing vacuum stability and sublimation efficiency.
Common causes include declining refrigeration performance or excessive frost buildup on heat exchange surfaces.
The solution is to inspect the refrigeration system and perform regular defrost cycles. Keeping the cold trap surface clean ensures high condensation efficiency.
Fluctuations in heating plate temperature can lead to uneven sublimation rates, affecting product quality and moisture consistency.
Possible causes include aging heating elements, sensor deviation, or improper PID control settings.
The solution is to recalibrate temperature sensors, check heating element uniformity, and optimize PID parameters to achieve stable temperature control.
Long-term operation may cause vane wear or bearing failure in the vacuum pump, resulting in unstable airflow and increased noise.
The solution is to disassemble and inspect the pump, replace worn components, and restore proper lubrication.
Rotor imbalance in compressors or fans can generate periodic vibration, which may damage the equipment structure over time.
The solution is dynamic balancing correction and tightening of mounting bolts to ensure stable operation.
Long-term use of temperature or vacuum sensors may lead to calibration drift, resulting in incorrect system readings.
Sensors should be periodically calibrated or replaced to ensure accurate process control data.
Power interruptions or electromagnetic interference may cause PLC program corruption, affecting freeze-drying cycle execution.
Solutions include restoring backup programs, reloading process parameters, and performing validation tests before restarting operation.
Freeze dryers are complex multi-system integrated equipment, and their failures often exhibit a “chain reaction” effect. A single subsystem malfunction can significantly impact overall performance. Therefore, systematic maintenance strategies—including vacuum system servicing, refrigeration inspection, sensor calibration, and process optimization—are essential.
Through proper operation and regular maintenance, equipment stability can be significantly improved, failure rates reduced, and consistent product quality ensured.For more information about industrial system solutions, please visit our website: www.fuchen-steam.com. And you can contact us at Fuchen@fuchensteam.com or +86-19357103769 if you need.
