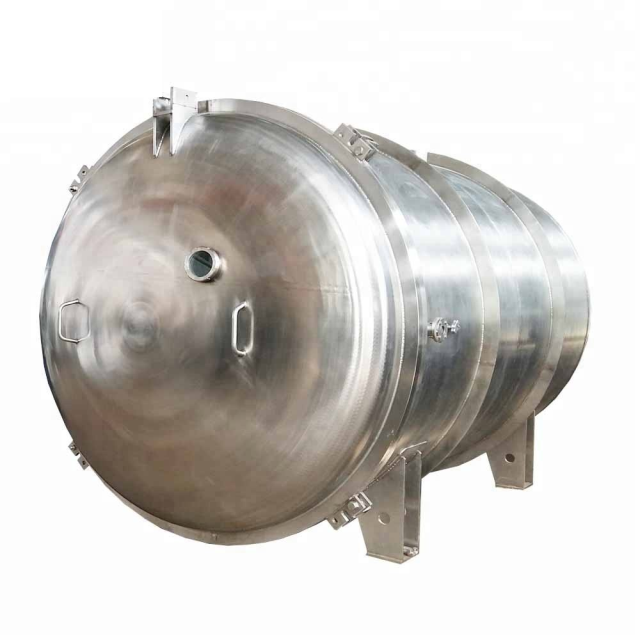

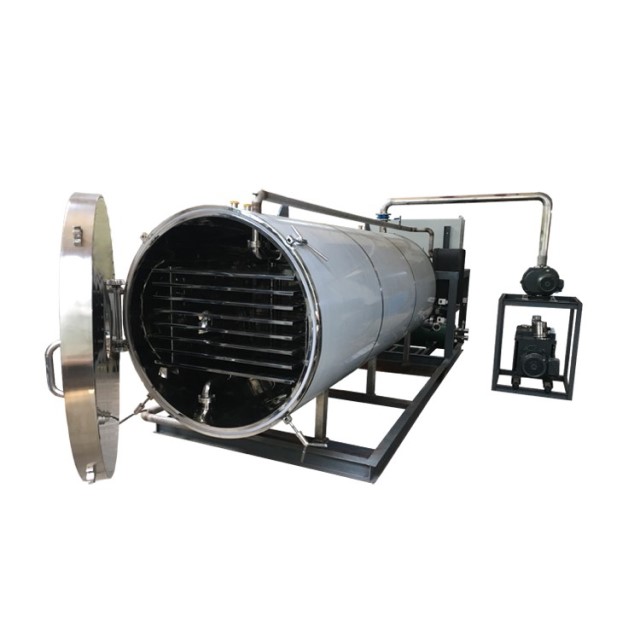

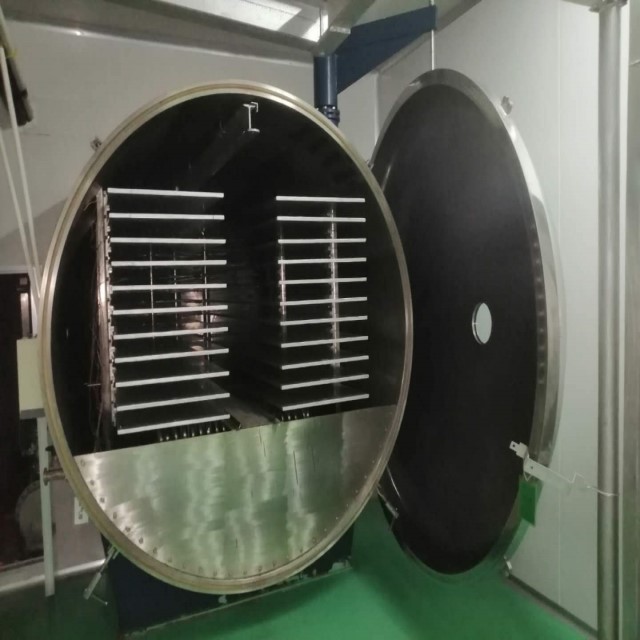

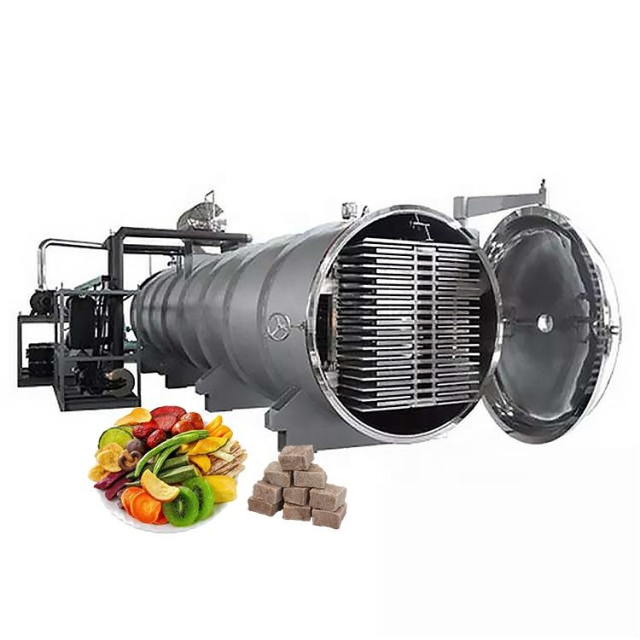

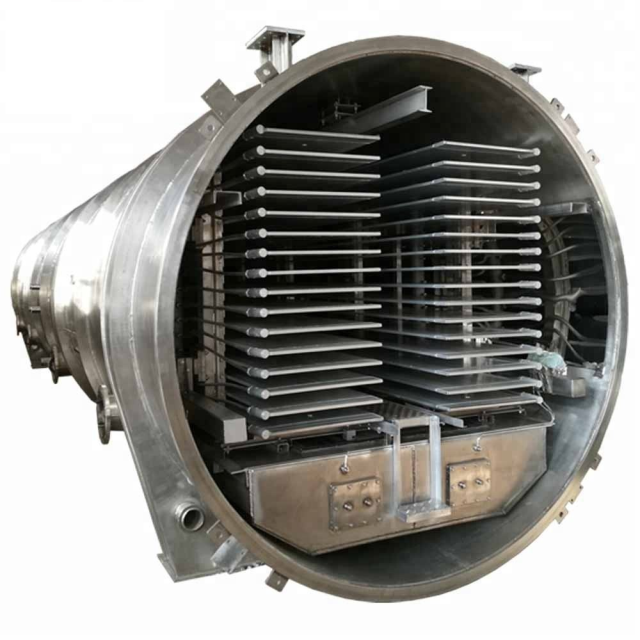

FCV
What is freeze drying processing ?
Freeze-drying—technically known as lyophilisation, lyophilization, or cryodesiccation—is a dehydration process typically used to preserve a perishable material or make the material more convenient for transport. Freeze-drying works by freezing the material and then reducing the surrounding pressure to allow the frozen water in the material to sublime directly from the solid phase to the gas phase.
How many properties of freeze-dried products?
If a freeze-dried substance is sealed to prevent the reabsorption of moisture, the substance may be stored at room temperature without refrigeration, and be protected against spoilage for many years. Preservation is possible because the greatly reduced water content inhibits the action of microorganisms and enzymes that would normally spoil or degrade the substance.
Freeze-drying also causes less damage to the substance than other dehydration methods using higher temperatures. Freeze-drying does not usually cause shrinkage or toughening of the material being dried. In addition, flavours, smells and nutritional content generally remain unchanged, making the process popular for preserving food. However, water is not the only chemical capable of sublimation, and the loss of other volatile compounds such as acetic acid (vinegar) and alcohols can yield undesirable results.


Features


It drys at low temperature in order to make protein degeneration, micro-organisms loss biologicalactivity.
The material in the volatile components and nutrients heated degeneration of and aromatic ingredientsloss a little because of the low-temperature drying.
lt is almost impossible for microorganisms and the role to grow so that the material can maintain the original character in the low-temperature drying process.
The volume and shape essentially doesn't change and has a strong water uptake after drying.
Because it has little oxygen under the vacuum drying, the vulnerable materials have been protected.
It can remove 95-99.5 percent of water, and the retention period lasts longer.
Parameters
| Basic processing capacity of FCV series freeze dryer | ||||||||||
| Basic processing capacity / specification | FCV- | FCV- | FCV- | |||||||
| 3 | 10 | 20 | 30 | 50 | 100 | 125 | 200 | 300 | ||
| Pallet area (m²) | 0.28 | 10.3 | 20.7 | 31 | 51.7 | 101.5 | 135.3 | 203 | 304.5 | |
| Processing capacity (cold trap dewatering) | 0.6kg/h | 150kg/batch | 300kg/batch | 450kg/batch | 750kg/batch | 200kg/h | 250kg/h | 400kg/h | 600kg/h | |
| Typical feed capacity1 | Twin mushroomskg/24h | 5.66 | 200 | 400 | 600 | 1000 | 2000 | 2500 | 4000 | 6000 |
| Discharging capacity | 0.45 | 16 | 32 | 48 | 80 | 160 | 200 | 320 | 480 | |
| Typical feed capacity2 | Dried duriankg/24h | 8.49 | 300 | 600 | 900 | 1500 | 3000 | 3750 | 6000 | 9000 |
| Discharging capacity | 2.97 | 105 | 210 | 315 | 525 | 1050 | 1312 | 2100 | 3150 | |
| Typical feed capacity3 | White fungus soupkg/24h | 8.49 | 300 | 600 | 900 | 1500 | 3000 | 3750 | 6000 | 9000 |
| Discharging capacity | 1.1 | 39 | 78 | 117 | 195 | 390 | 488 | 780 | 1170 | |
