Steam SH1500FG Bimetal High Temperature Superheat Steam Trap Chromemoly Steel DN20/DN25 Manual

Steam SH1500FG Bimetal High Temperature Superheat Steam Trap Chromemoly Steel DN20/DN25 Manual

SH-1500 Series Bimetallic Steam Traps are specifically designed for superheated steam and low-load conditions, where conventional traps often experience reduced service life. Engineered to withstand the high initial inrush loads typical of superheat applications, the SH-1500 Series delivers reliable operation and extended durability, even in demanding environments.

Quantity:
Material:	Stainless Steel
Size:	DN20 DN25
connection:	Butt weld Socket welding Flanged
Availability:





Inquire Add to Basket

Model:
SH‑1500/SH-1500FG
Brand:
Steam

Product Description

Technical Parameters

Company Description

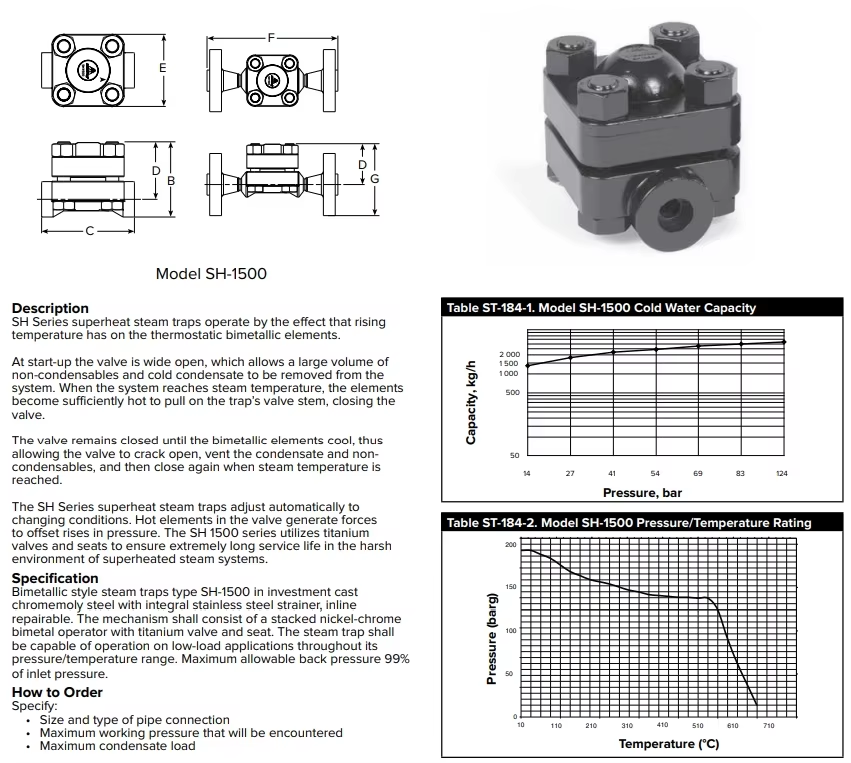

SH-1500 steam trap DATA

SH Series Superheat Steam Traps use thermostatic bimetallic elements that respond to temperature changes. At startup, the valve opens fully to discharge cold condensate and non-condensable gases. Once steam temperature is reached, the heated elements pull the valve stem closed. The valve stays shut until the elements cool enough to reopen, allowing condensate and gases to vent before closing again.

The SH Series adjusts automatically to changing conditions—hot elements counteract pressure increases. The SH-1500 model features titanium valves and seats for exceptional durability in harsh superheated steam environments.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Inverted Bucket Steam Trap System Configuration Diagram

industrial system

SH-1500 steam trap DATA

PRODUCT DESCRIPTIONS

Model	SH-1500	SH-1500FG
Capacities	2950 kg/hr (6500 lb/hr)	2950 kg/hr (6500 lb/hr)

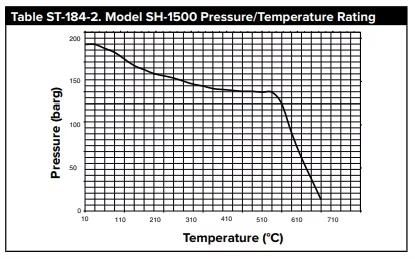

Maximum Allowable Pressure	124 barg @ 565°C (1800 psig @ 1050°F)	124 barg @ 565°C (1800 psig @ 1050°F)
Maximum Allowable Temperature	1050°F (565°C)	1050°F (565°C)
Body Material	ASTM 217 Gr.C12A Stainless steel	ASTM 217 Gr.C12A Stainless steel
Maximum Operating Pressure	124 barg (1800 psig)	124 barg (1800 psig)
Connection Type	Socket weld, Flange, Butt weld	Socket weld, Flange, Butt weld

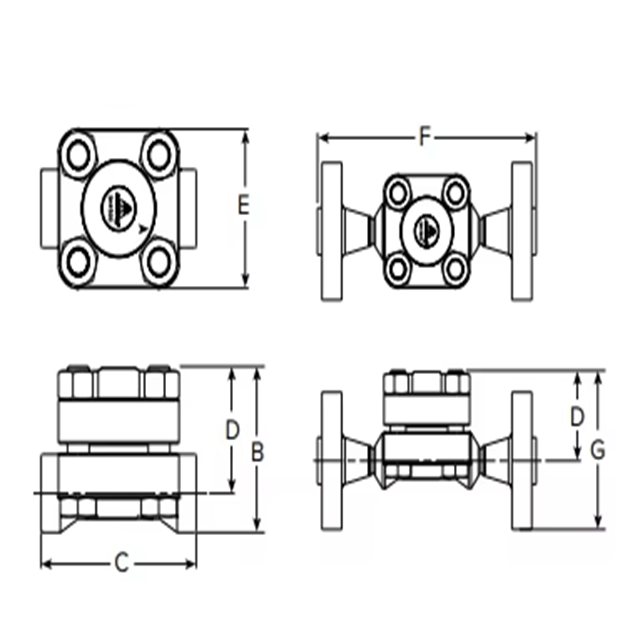

Connection Size	20 mm (3/4″) 25 mm (1″)	20 mm (3/4″) 25 mm (1″)
