Thermostatic Steam Trap Manual Power High Temperature Water Media Bimetal Structure DN15/DN20/DN25 Ports SH-300/SH-300F Model

Thermostatic Steam Trap Manual Power High Temperature Water Media Bimetal Structure DN15/DN20/DN25 Ports SH-300/SH-300F Model

The SH-300 Series Bimetallic Steam Trap is engineered for reliable performance in both superheated steam and low-load conditions—applications where many other trap types experience shortened service life. It is the ideal solution when long-term, stable operation is required under challenging operating conditions.

Quantity:
Material:	Stainless Steel Cast Steel
Size:	DN15 DN20 DN25
connection:	Screwed Socket welding Flanged
Availability:





Inquire Add to Basket

Model:
SH‑300/SH‑300F
Brand:
Steam

Product Description

Technical Parameters

Company Description

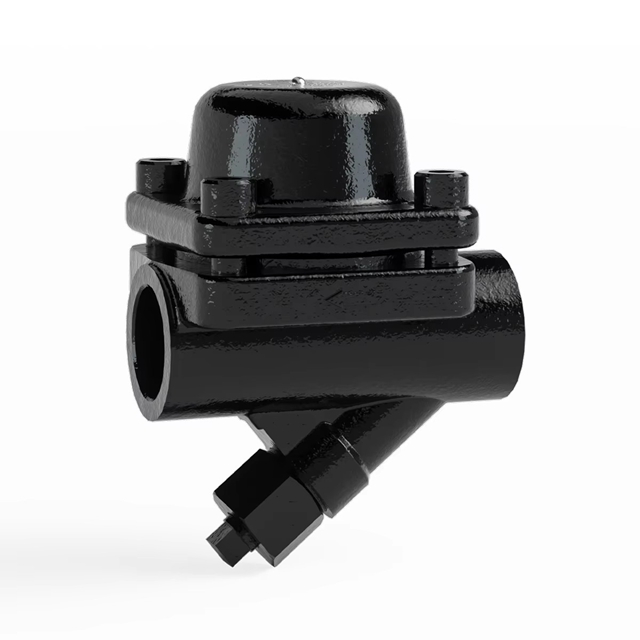

SH-300 steam trap

1.The SH-300 Series Bimetallic Steam Trap is capable of handling large initial condensate loads commonly found in superheated steam applications.

2.Its unique bimetallic element closes the trap before excessive temperatures occur, effectively preventing steam loss.

3.Designed for both superheated steam and low-load conditions—where many other trap types have limited service life—the SH-300 Series offers a reliable, long-lasting solution.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Inverted Bucket Steam Trap System Configuration Diagram

industrial system

SH-300 steam trap

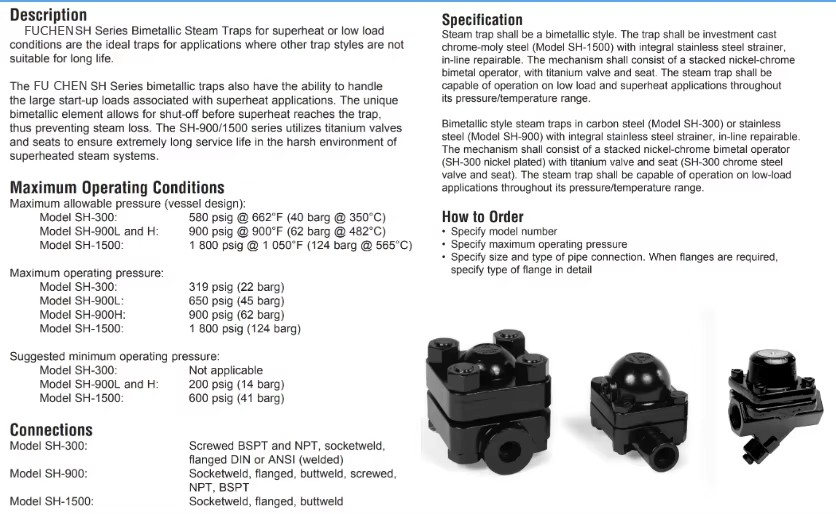

PRODUCT DESCRIPTIONS

Model	SH-300	SH-300F
Capacities	6500 lb/hr (2950 kg/hr)	6500 lb/hr (2950 kg/hr)
Maximum Allowable Pressure	580 psig (40 bar)	580 psig (40 bar)
Maximum Allowable Temperature	662°F (350°C)	662°F (350°C)
Body Material	ASTM A-105 Carbon Steel	WCB Cast Steel
Maximum Operating Pressure	319 psig (22 bar)	319 psig (22 bar)
Connection Type	Screwed, Socketweld, Flanged	Integrated Flanged
Connection Size	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm)	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm)
