Sight Glass In-Line Control Valves Steam Traps Other Equipment-Equipment Condition Confirmation Problem Identification Tool

Home » Products » Steam Valves » Valve Accessories » Sight Glass In-Line Control Valves Steam Traps Other Equipment-Equipment Condition Confirmation Problem Identification Tool

Sight Glass In-Line Control Valves Steam Traps Other Equipment-Equipment Condition Confirmation Problem Identification Tool

Sight Glass In-Line Control Valves Steam Traps Other Equipment-Equipment Condition Confirmation Problem Identification Tool

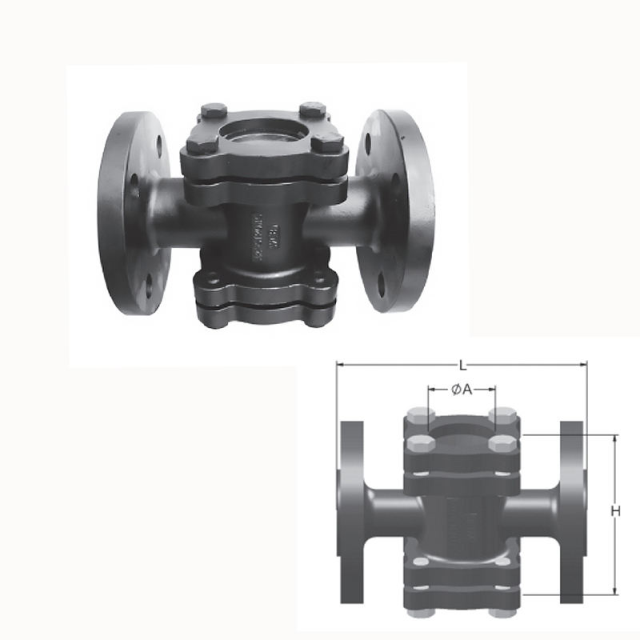

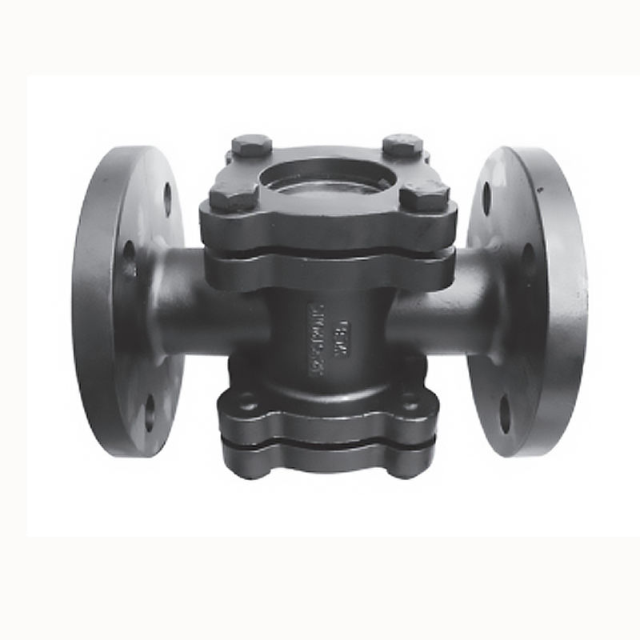

The SG series sight glass is a robust pipeline observation device designed for real-time fluid flow monitoring in industrial systems.it features a tempered borosilicate glass window with double-sided transparency, enabling direct visual inspection of flow direction, rate, and presence.Widely used in petroleum, chemical, pharmaceutical, and food processing industries, it aids in system performance analysis and troubleshooting by verifying the operation of valves, filters, and steam traps.

Quantity:
Size:	DN15-150
Material:	WCB Stainless Steel Carbon Steel
Availability:





Inquire Add to Basket

Model:
SG series

Product Description

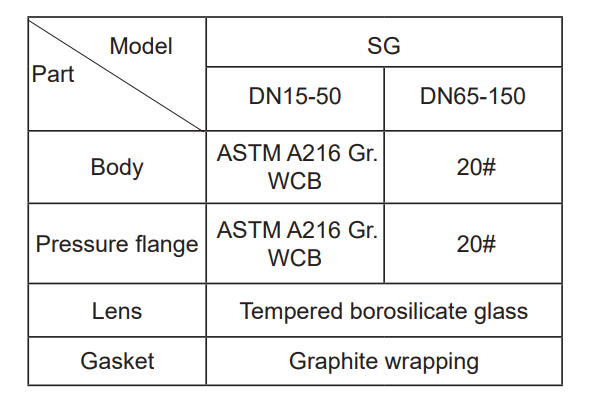

Technical Parameters

Company Description

Product Description

A pressure pipe inspection window, as a fluid pipeline observation and monitoring device, is widely used in pipeline systems in industries such as petroleum, chemical, pharmaceutical, and food processing.Installed in the fluid pipeline, the inspection window allows for direct visual observation of the fluid flow. By observing whether there is flow, the direction of flow, and the flow rate, users can determine if control valves, filters, steam traps and other pipeline equipments are operating normally, thus aiding in system performance analysis and troubleshooting.

1.The tempered glass used in the inspection window complieswith the manufacturing and acceptance standards of HG/T21620

2.Double-sided glass window with high transparency for easy viewing.

3.Quick and easy inspection, no special training required.

4.No moving parts, no maintenance required.

Installation and Maintenance

Shut-off valves should be installed before and after the sightglass for easy maintenance. This sight glass can be installed horizontally or vertically.

Warning

Some fluids contain corrosive alkaline or acidic substancesthat may damage the sight glass window. Therefore, it isrecommended to inspect the window regularly.

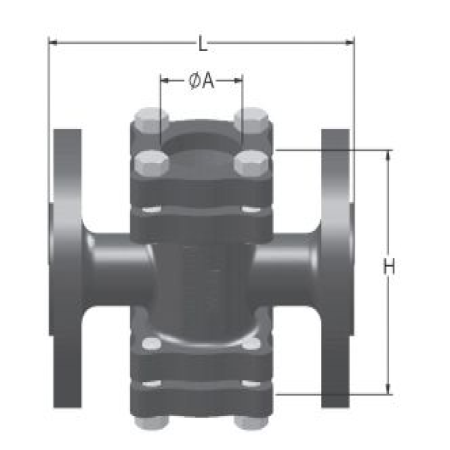

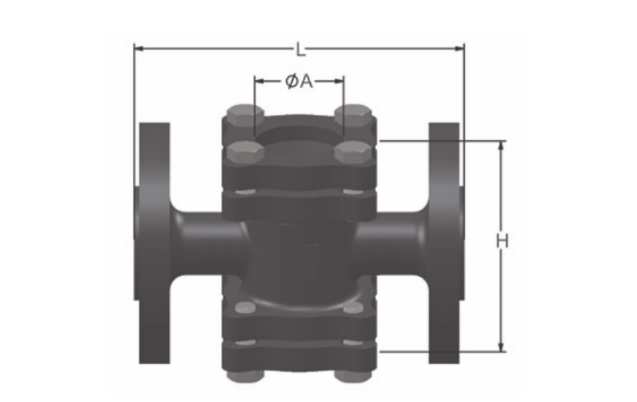

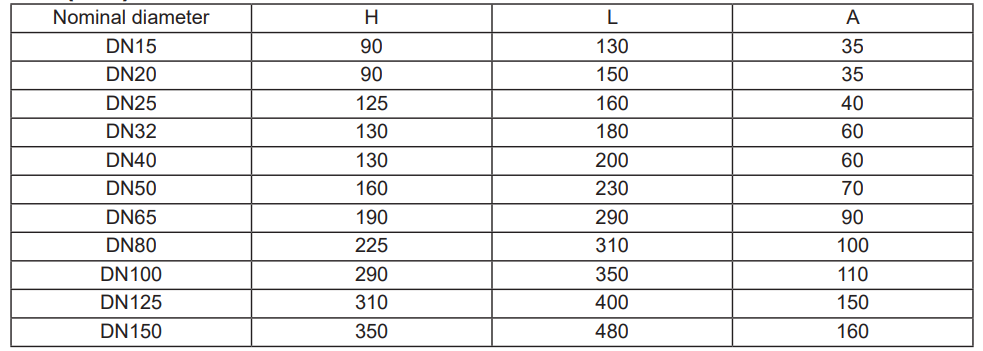

Dimensions
