Anti-static And Explosion-proof 2-Piece Manual Ball Valve, Featuring Precision-cast Valve Body And Double Disc-type Spring Washers.

Home » Products » Steam Valves » Ball Valve » Anti-static And Explosion-proof 2-Piece Manual Ball Valve, Featuring Precision-cast Valve Body And Double Disc-type Spring Washers.

Anti-static And Explosion-proof 2-Piece Manual Ball Valve, Featuring Precision-cast Valve Body And Double Disc-type Spring Washers.

Anti-static And Explosion-proof 2-Piece Manual Ball Valve, Featuring Precision-cast Valve Body And Double Disc-type Spring Washers.

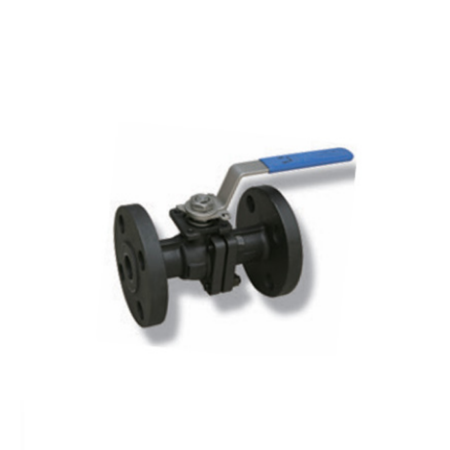

The BV series 2-piece manual ball valve is a precision-cast industrial valve designed for reliable fluid control in pipelines. Featuring a pressure balance hole, anti-static device, and stem explosion-proof structure, it ensures safe operation under various working conditions.The double butterfly-shaped shrapnel design ensures stable sealing, making it ideal for water, steam, oil, and gas systems in petrochemical, power, and industrial processing applications.

Quantity:
Size:	DN15-DN200
Material:	WCB SS304 CF8
Pressure:	PN16 PN25 PN40
Availability:





Inquire Add to Basket

Model:
BV-2P

Product Description

Technical Parameters

Company Description

Description

The valve body is made of precision casting, which ensures the safety of the use process and meets the requirements of better appearance.The ball valve also has a pressure balance hole, double butterfly shaped shrapnel, anti-static device, stem explosion-proof device and other special designs, to give the user a safer, more convenient and more effective use of the feeling.

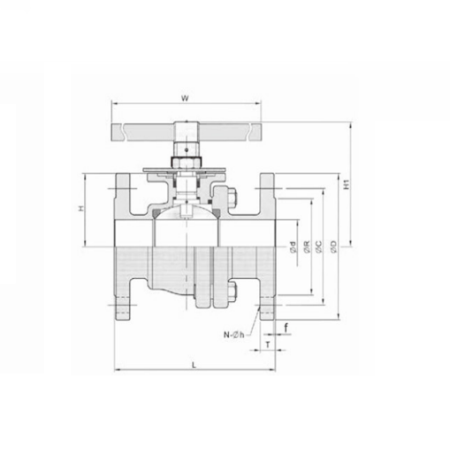

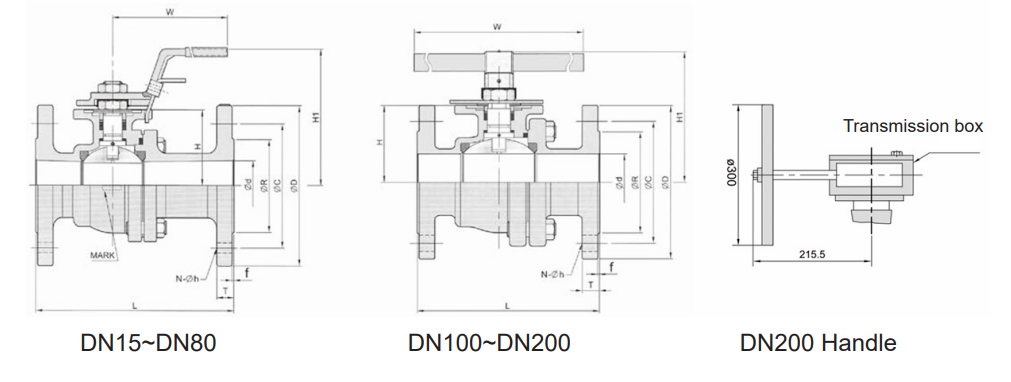

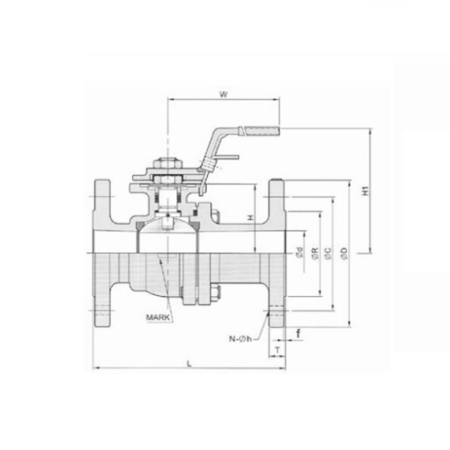

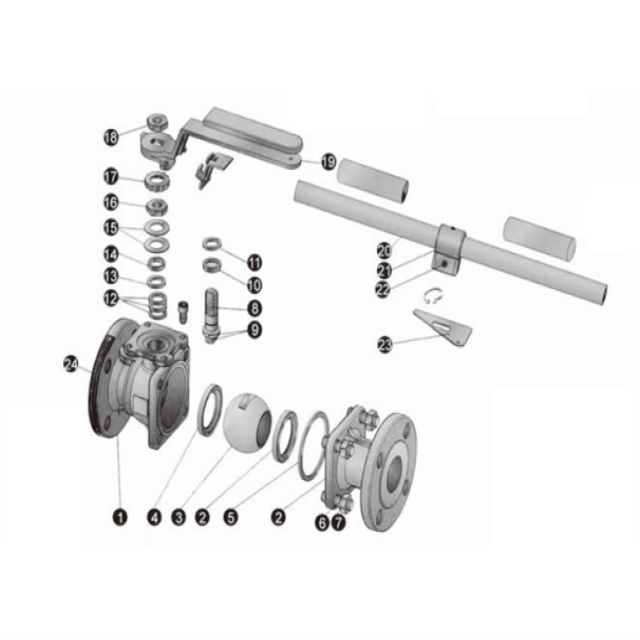

Assembly Drawing

BV-2 pieces ball valve

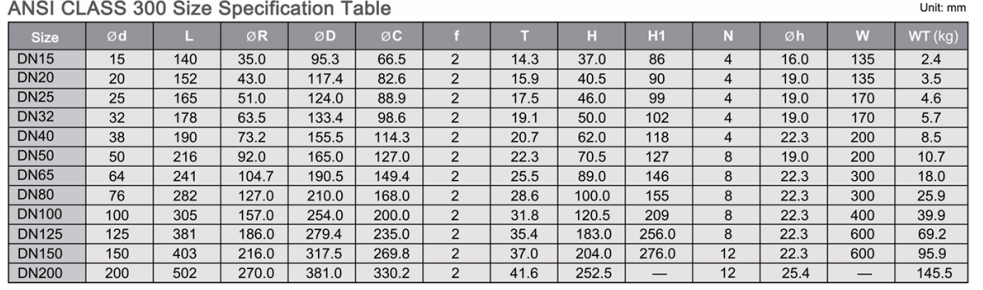

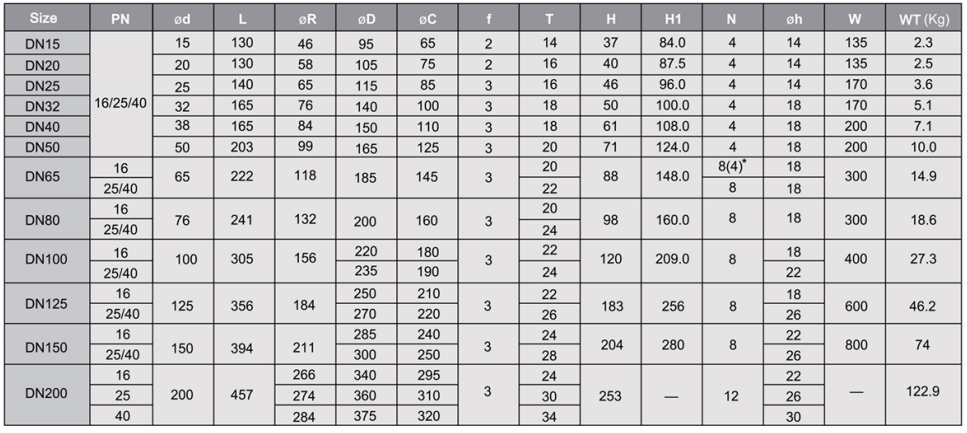

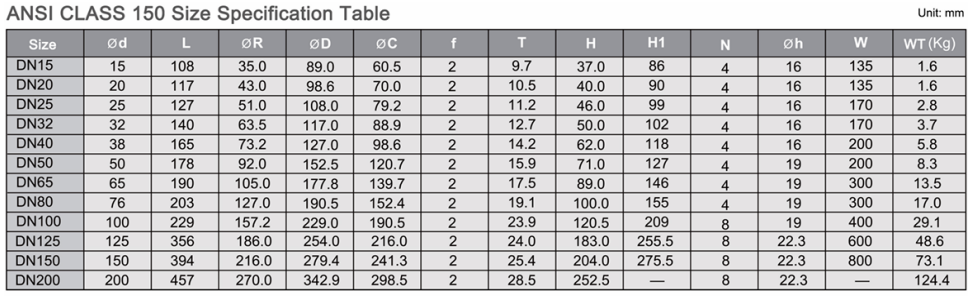

Dimensions

Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.

Factory Showcase

With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.

Factory Equipment

FAQs

Who we are?

Fuchen Intelligent Equipment (Hangzhou) Co., Ltd is a trusted provider of high-quality valves and freeze-dryers. With a commitment to excellence, we cater to diverse industries, offering a comprehensive range of products that meet the highest industry standards.
Are you trading company or factory?

We are factory with trading company.
Why should we choose your company over others?

1. Our team of experts carefully evaluates and tests each product to guarantee its quality, functionality, and longevity.
2. With years of experience in the valves and freeze dryer industry, our team possesses in-depth knowledge and expertise. We understand the unique challenges and requirements of various sectors, and we leverage our industry insights to provide tailored solutions.
3.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
4.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
Do you provide samples? Is it free?

Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Can you provide customized services？

We can customize different colors, LOGO and so on according to customer's requirements.
What’s the MOQ for each item?

If we have enough stock for the items,we can accept the quantity as customer’s request,if not,different items have different MOQ.
Do you test all your goods before delivery?

Yes,we have test equipment and team,and we test all products before shipment.
