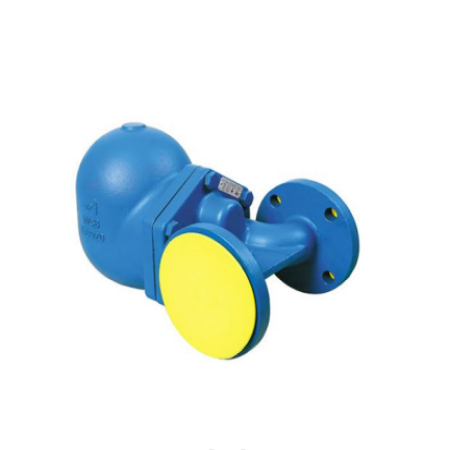

FT44HS-V Flanged Steam Trap Double-Hemispherical Seal for Horizontal Mount Steam Pipeline & Recovery

Home » Products » Steam Valves » Floating Ball Type Drain Valve » FT44HS-V Flanged Steam Trap Double-Hemispherical Seal for Horizontal Mount Steam Pipeline & Recovery

FT44HS-V Flanged Steam Trap Double-Hemispherical Seal for Horizontal Mount Steam Pipeline & Recovery

FT44HS-V Flanged Steam Trap Double-Hemispherical Seal for Horizontal Mount Steam Pipeline & Recovery

The FT44HS-V Flanged Float Steam Trap is a robust, medium-to-large capacity condensate drainage device tailored for industrial steam heating and condensate recovery systems. It employs a float-driven lever mechanism to automatically adjust the drain valve opening, ensuring rapid, timely, and continuous discharge of saturated condensate—even under fluctuating steam pressure—while preventing steam leakage and eliminating water accumulation in heating equipment,it is ideal for large-scale condensate removal in steam mains, process heating equipment, and recovery systems, offering stable performance and maximum heating efficiency.

Quantity:
Size:	DN50 DN65 DN80 DN100 DN125 DN150
Material:	Carbon Steel SS304 WCB
Pressure:	PN16 PN25 PN40
Availability:





Inquire Add to Basket

Model:
FT44HS-V

Product Description

Technical Parameters

Company Description

Description

1.This valve provides rapid, timely, and continuous discharge of saturated condensate, ensuring no water accumulation within the heating equipment and achieving maximum heating efficiency.

2.The valve core and seat sealing surfaces are made of cobalt-chromium-tungsten alloy, which is wear-resistant, corrosion-resistant, and durable.

3.A float-driven lever automatically adjusts the opening of the drain valve seat, ensuring continuous operation and stable performance despite fluctuations in steam pressure.

4.The X-series element automatically discharges non-condensable cold and hot gases, eliminating vapor lock and providing excellent non-condensable gas removal performance.

5.The valve seat is always below the condensate level, forming a water seal and preventing fresh steam leakage during operation.

6.Continuous condensate discharge with smooth water flow is particularly effective in applications requiring large-scale condensate removal and recovery systems.

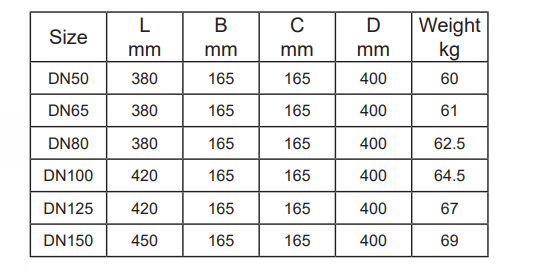

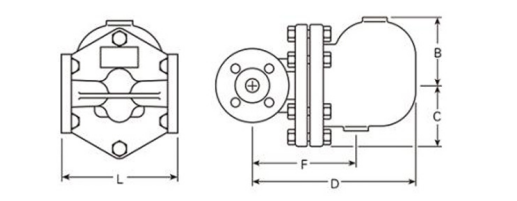

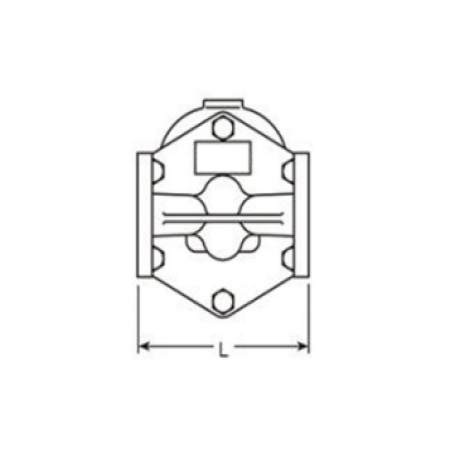

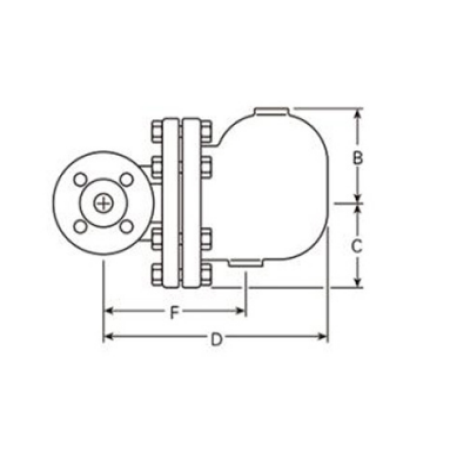

Dimensions

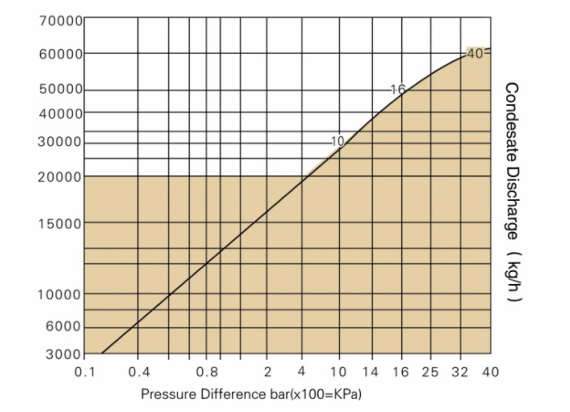

Displacement diagram
