MS/MSS series
Product Features

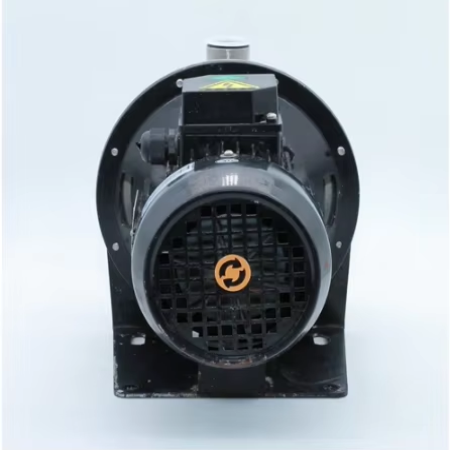

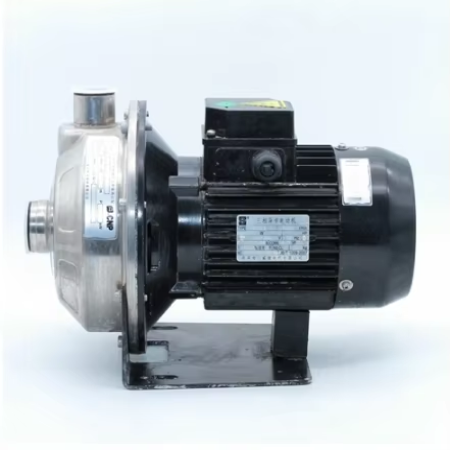

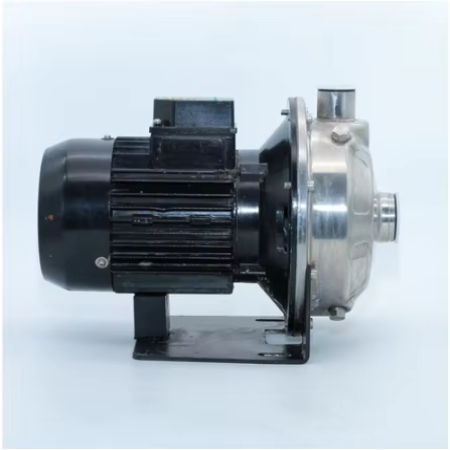

MS, MSS non-self-priming stainless steel horizontal single-stage centrifugal pump, the main parts are made of stainless steel plate stamping structure, equipped with extended shaft motor, axial inlet and radial outlet. Application areas: water supply and boosting, agricultural irrigation, water treatment, water circulation Material: stainless steel, fluoroplastic
Features At A Glance
Application areas:
Industrial facilities, water supply systems, boiler feed water and condensation systems, cooling and air conditioning systems, water treatment, fire protection systems
Performance and advantages:
Compact structure, low noise, resistant to lightly corrosive liquids, beautiful appearance
Technical parameters:
Flow rate: 1.2m3/h~27m3/h
Lift: 11m~40m
Power: 0.37kW~2.2kW
Liquid temperature: -10℃~+85℃
Frequency: 50Hz/60Hz

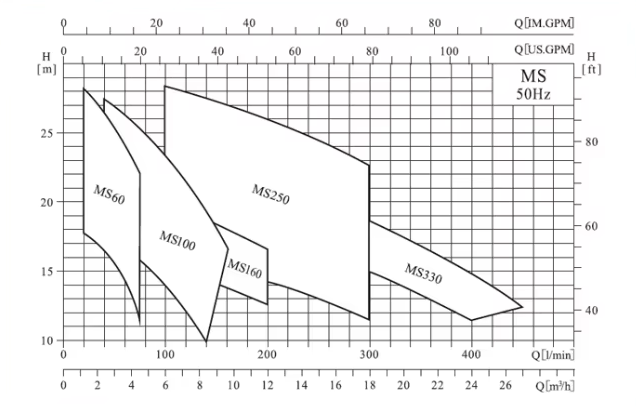

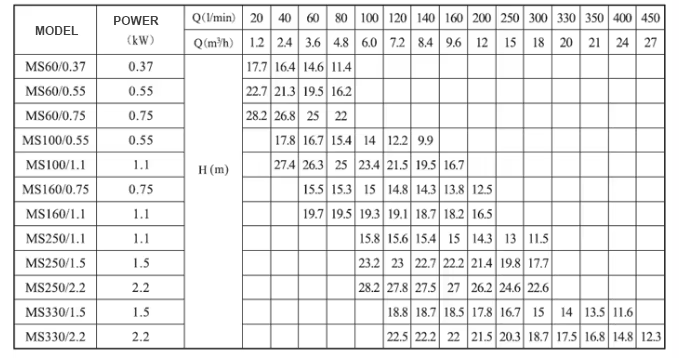

Performance Graph

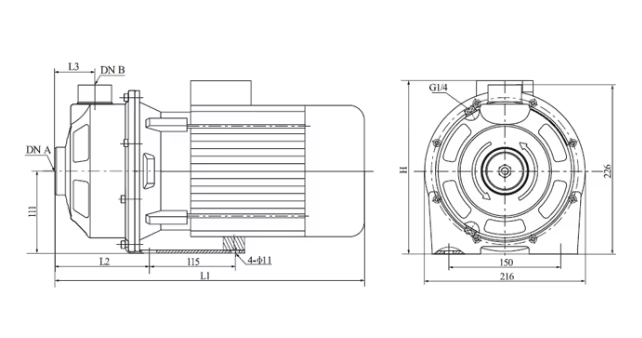

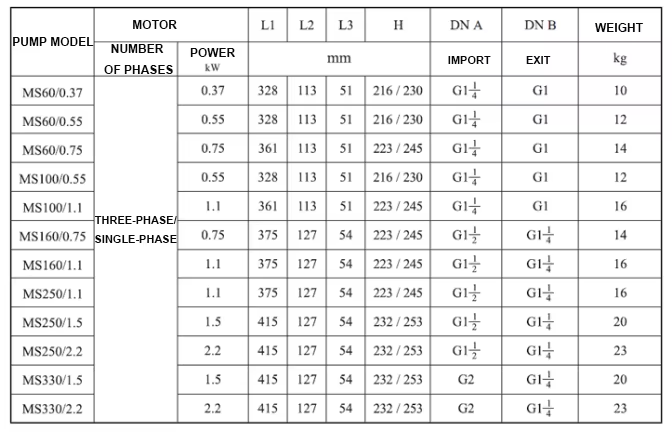

Dimensions
