A freeze dryer (also known as a lyophilizer) is a type of equipment that removes moisture from materials through low-temperature freezing and vacuum sublimation drying. Unlike traditional hot-air drying, freeze drying is carried out at low temperatures, which helps preserve the structure, active ingredients, and appearance of the material to the greatest extent. It is widely used in food processing, biopharmaceuticals, chemical materials, and high-end laboratory research.
This article provides a systematic explanation of the working principle of freeze dryers, including the physical basis, system structure, process stages, and key control factors.
The core principle of freeze drying is sublimation of water, which refers to the process where water transitions directly from solid (ice) to gas (vapor) without passing through the liquid phase under low-pressure conditions.
Under normal atmospheric pressure, ice melts into water and then evaporates into vapor in a step-by-step heating process. However, when the pressure is reduced below the triple point of water (approximately 0.611 kPa), ice can sublimate directly into vapor.
In a freeze dryer, the chamber pressure is reduced by a vacuum system while the material is first frozen at low temperature. Then, a small amount of heat is applied to allow ice to sublimate directly into vapor. This process removes moisture without passing through the liquid phase.
As a result, structural collapse or material migration caused by surface tension is avoided. This is one of the most important advantages of freeze drying compared to conventional drying methods.
A freeze dryer is not a single unit but a complex system composed of multiple subsystems working together, mainly including the refrigeration system, vacuum system, heating system, and control system.
The refrigeration system is responsible for rapidly cooling the material below its freezing point to ensure that all water content is fully solidified. At the same time, the cold trap collects the water vapor generated during sublimation.
In practical operation, the system typically needs to reach temperatures between -40°C and -80°C or even lower to maintain stable ice crystal structures. The freezing rate is also critical, as rapid freezing forms smaller ice crystals, which helps preserve the internal structure of the material.
The vacuum system is the core driving force of freeze drying. It reduces the chamber pressure to a low level, usually between 10 Pa and 100 Pa.
A low-pressure environment reduces the boiling point of water, allowing ice to sublimate at relatively low temperatures. It also minimizes air convection, improving heat transfer efficiency.
The stability of the vacuum system directly affects drying performance. Pressure fluctuations may lead to unstable sublimation rates and inconsistent final moisture content.

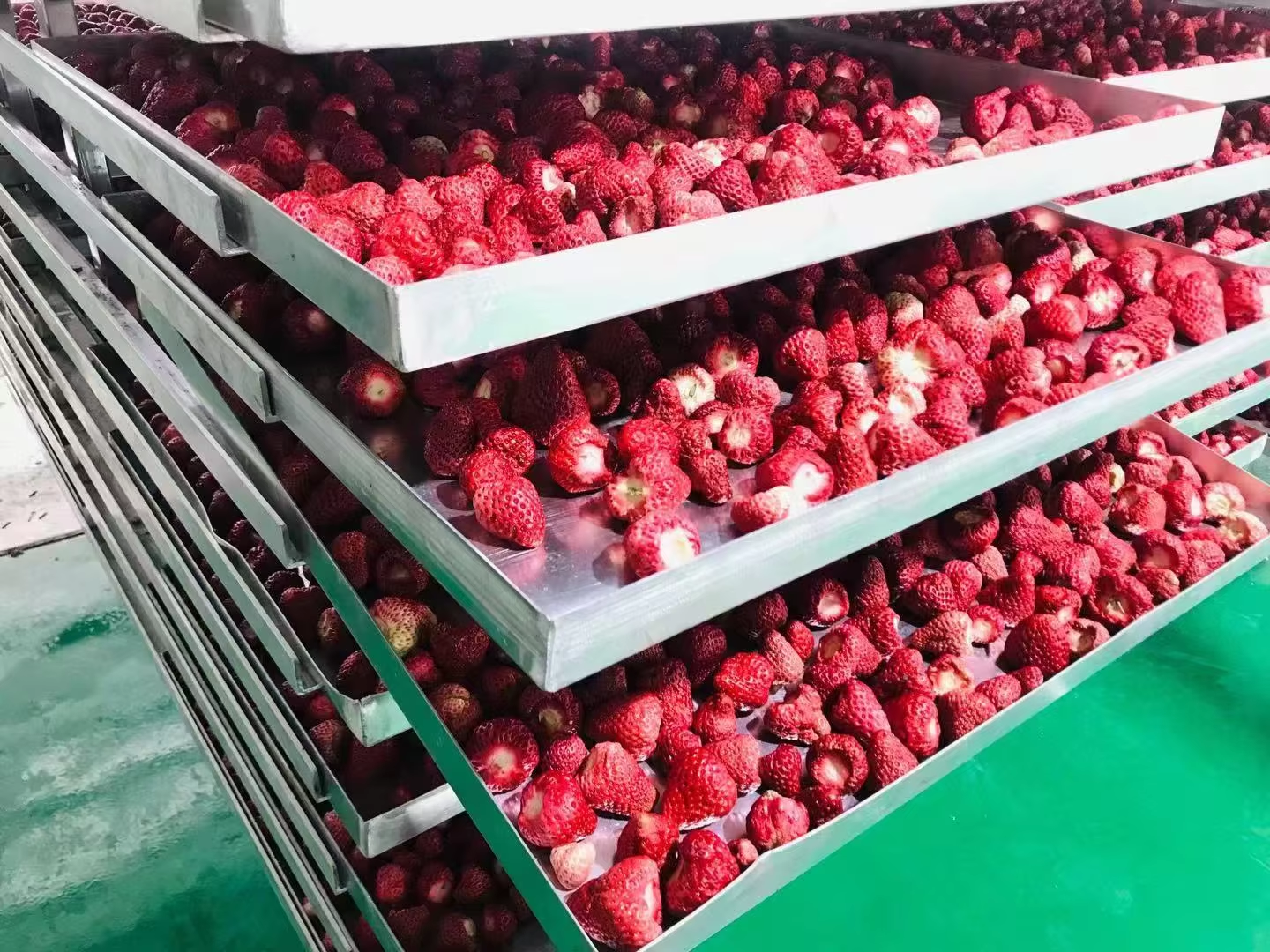

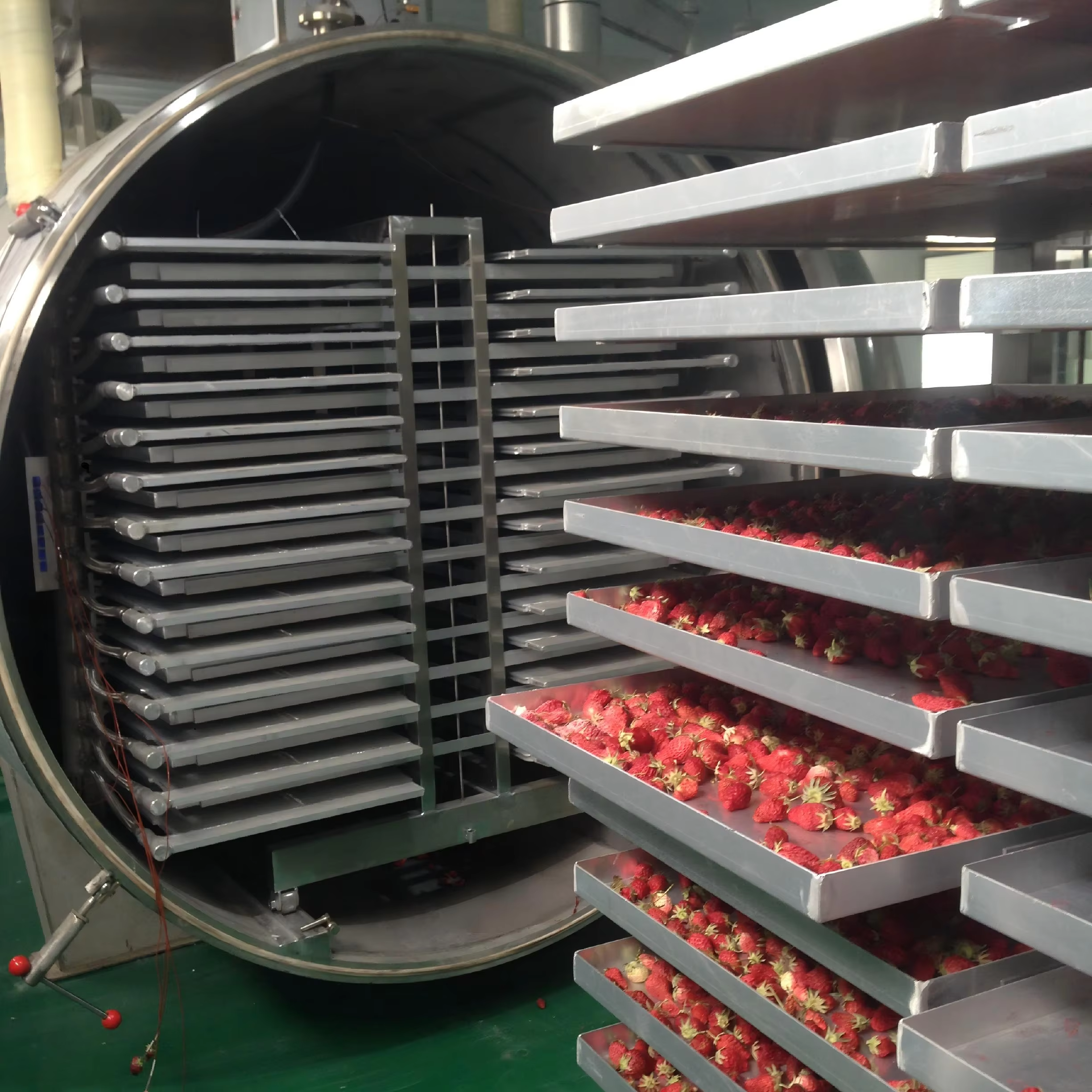

Although freeze drying occurs at low temperatures, a controlled amount of heat is still required to drive the sublimation process. This heat is typically provided through shelf heating.
The heating temperature must be carefully controlled below the product’s collapse temperature to avoid melting or structural damage. Excessive heating may cause partial thawing, while insufficient heating reduces drying efficiency.
Therefore, precise temperature control is essential for maintaining both product quality and process efficiency.
Modern freeze dryers are equipped with PLC or intelligent control systems that coordinate the refrigeration, vacuum, and heating subsystems.
The control system is responsible for:
Monitoring temperature and pressure changes
Adjusting heating power and vacuum levels
Recording drying curves (sublimation profiles)
Preventing overheating or structural collapse
Through automated control, standardized production can be achieved, ensuring consistency and repeatability.
The freeze drying process is generally divided into three main stages: pre-freezing, primary drying, and secondary drying. Each stage serves a different physical purpose.
Pre-freezing is the foundation of the entire process. The goal is to freeze all free water and bound water inside the material into a solid state.
The freezing rate is extremely important. Rapid freezing produces small ice crystals, which helps preserve cellular or structural integrity. Slow freezing, on the other hand, may form larger ice crystals that can damage the structure.
After this stage, the material becomes fully solid, preparing it for sublimation.
This is the most critical stage of freeze drying, accounting for about 70%–80% of the total process time.
Under vacuum conditions, a small amount of heat is applied to allow ice to sublimate directly into vapor. The sublimation interface gradually moves from the surface into the interior, forming a porous structure.
Key control points include:
Temperature must remain below the product’s collapse temperature
Stable vacuum conditions must be maintained
Heat input must balance sublimation rate
Improper control may cause structural collapse or partial melting, affecting product quality.
After primary drying, a small amount of bound water still remains in the material. This moisture is removed by increasing the temperature to promote desorption.
Unlike sublimation, this stage relies on removing molecularly bound water. The temperature is gradually increased but must remain within a safe range to avoid degradation.
The final moisture content can be reduced to 1%–5% or even lower.
Freeze drying performance depends not only on the equipment but also on process parameters.
Different materials have different eutectic points and glass transition temperatures, which directly affect drying parameters. For example, protein-based materials are more temperature-sensitive, while plant extracts may undergo structural changes more easily.
The freezing rate determines ice crystal size and thus affects the final pore structure. Rapid freezing is typically used for high-value biological products, while slower freezing may be suitable for industrial materials.
A stable vacuum environment is essential for continuous sublimation. Large pressure fluctuations may result in uneven drying and inconsistent product quality.
Accurate temperature control is critical. Overheating may cause partial melting or degradation, while insufficient heating reduces efficiency and prolongs processing time.
Compared with traditional drying methods, freeze drying offers significant advantages:
Maximum preservation of active ingredients
Retention of original structure and appearance
Excellent rehydration performance
No thermal degradation or oxidation
Suitable for high-value products
Therefore, it is widely used in vaccines, antibiotics, probiotics, instant food products, and high-end botanical extracts.
The working principle of a freeze dryer is essentially a combined process of low-temperature freezing, vacuum sublimation, and precise thermal control for dehydration. Through the coordinated operation of refrigeration, vacuum, heating, and intelligent control systems, moisture is efficiently removed while preserving the structure and activity of the material.
With the rapid development of the biopharmaceutical and high-end food industries, freeze drying technology is evolving toward higher automation, improved energy efficiency, and more precise process control, making its future applications highly promising.
