In industrial piping systems, globe valves and gate valves are two of the most commonly used shut-off valves. Although both are designed for on-off control of fluid flow, their internal structures and flow control mechanisms differ significantly, resulting in distinct application scenarios in engineering practice.
In valve selection, overlooking these structural differences may lead to increased pressure loss, poor sealing performance, difficult operation, and even reduced system efficiency. Therefore, a deep understanding of their differences is essential for improving system reliability and cost-effectiveness.

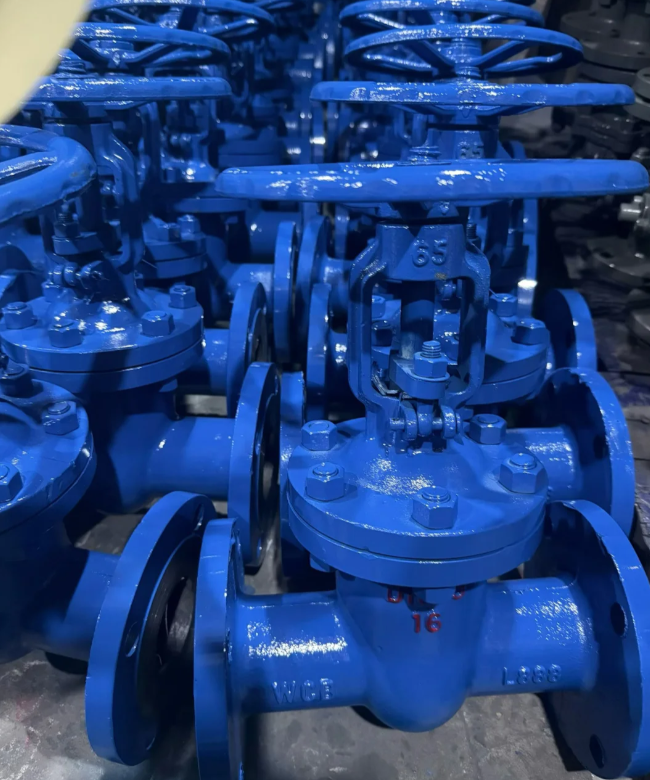

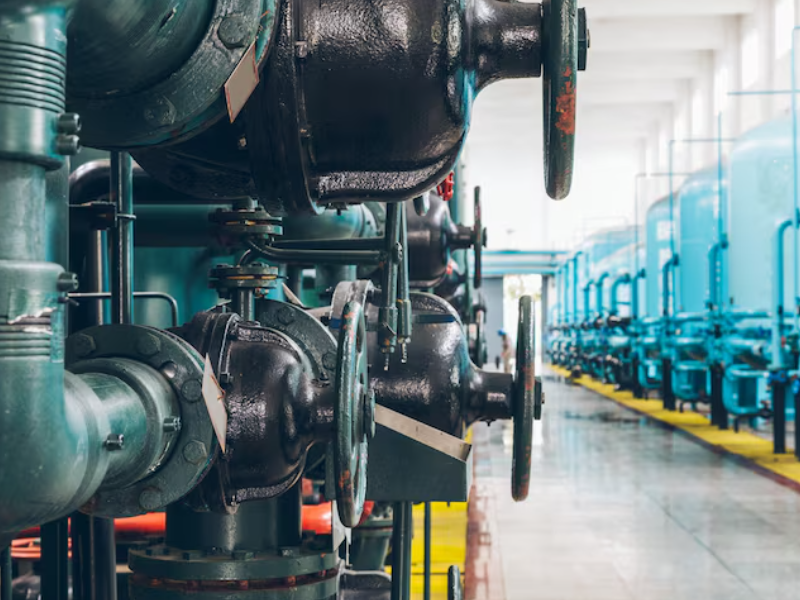

The globe valve consists of a body, disc, stem, and seat. Its internal flow path is typically S-shaped or Z-shaped. When fluid passes through the valve, it must change direction and flow around the disc and seat gap.
This structure allows the globe valve not only to fully shut off flow but also to regulate flow rate. The disc moves axially toward the seat, gradually compressing it to achieve sealing. This results in strong sealing performance.
However, due to multiple flow direction changes, the internal resistance is relatively high, which is one of its main structural characteristics.

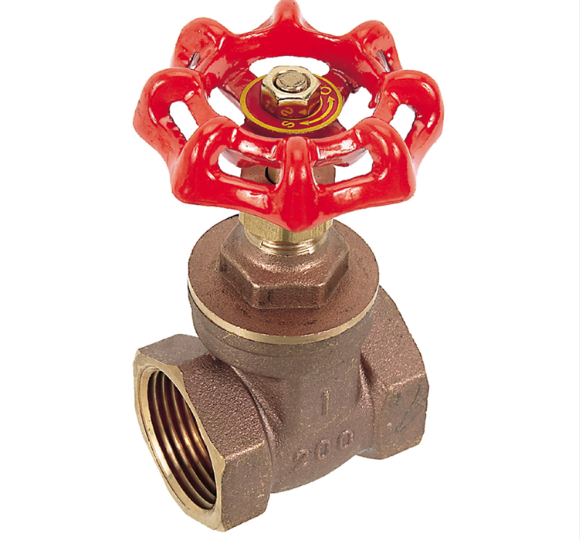

The gate valve has a relatively simple structure, consisting of a body, gate, and stem. The gate moves perpendicular to the fluid direction. When fully raised, the flow passage is almost completely unobstructed; when lowered, the flow is fully blocked.
Because the internal flow path is essentially straight, gate valves exhibit very low flow resistance in the fully open position, making them ideal for high-flow, low-resistance transport systems.
However, gate valves are not suitable for throttling. When operated in a partially open position, the gate is exposed to fluid erosion, which may damage the sealing surfaces.
The sealing of a globe valve depends on line or surface contact between the disc and seat. During closing, the stem applies continuous downward force, increasing sealing pressure.
Advantages include:
High sealing pressure suitable for high-pressure conditions
Gradual closing process improves sealing reliability
Good tolerance to small solid particles in the medium
Disadvantages include:
High operating torque required
Seat wear increases over long-term use
Not suitable for large-diameter, high-frequency operation
Gate valves achieve sealing through tight contact between the gate and seat, either by parallel alignment or wedge-shaped compression. When fully closed, both sealing surfaces tightly contact each other, preventing fluid flow.
Advantages include:
Extremely low pressure drop when fully open
Suitable for large-diameter pipelines
Low energy loss during operation
Limitations include:
Not suitable for flow regulation
Sensitive to debris and particles, which may cause jamming
Sealing surfaces are prone to erosion over time
Because of its tortuous internal flow path, fluid must change direction multiple times when passing through a globe valve, resulting in turbulence and higher pressure loss.
While this increases energy consumption, it also provides excellent flow control capability, making globe valves suitable for applications requiring precise regulation, such as steam systems and chemical process control lines.
In the fully open position, fluid flows almost straight through the valve body, resulting in minimal pressure drop. This makes gate valves ideal for long-distance transmission systems such as oil pipelines and municipal water networks.
However, in partially open conditions, unstable flow patterns may lead to vibration and erosion.
Globe valves are designed for frequent operation and flow regulation. Their relatively short stroke and precise control capability make them suitable for systems requiring fine adjustments.
They are commonly used in boiler feedwater systems and process control pipelines where flow or pressure regulation is necessary.
Gate valves are generally used for fully open or fully closed conditions and are not recommended for throttling or frequent operation. Their opening and closing process is slower but more stable.
They are widely used as isolation valves in fire protection systems and main pipelines.
Globe valves have a relatively compact body but require longer stem travel, resulting in greater overall height. Vertical installation space must be considered during system design.
Gate valves typically have a longer face-to-face dimension but lower height, especially in non-rising stem designs. Their straight-through flow design makes them suitable for horizontal pipeline layouts.
They are particularly advantageous in large-scale pipeline networks.
Globe valves are commonly used in systems requiring regulation and tight sealing, such as:
Steam transmission and control systems
Chemical processing pipelines
Cooling water regulation systems
High-pressure small-diameter pipelines
In these applications, flow control accuracy and sealing reliability are more important than pressure drop.
Gate valves are suitable for high-flow, low-resistance systems, such as:
Oil and natural gas transmission pipelines
Urban water supply and drainage systems
Fire protection main pipelines
Large-diameter industrial circulating water systems
These systems prioritize reliable shut-off and energy-efficient transport.
In practical engineering design, the selection between globe valves and gate valves should follow these principles:
If flow regulation is required → choose globe valves
If low flow resistance is critical → choose gate valves
If the medium contains particles or is prone to scaling → avoid globe valves when possible
If the system involves large-diameter long-distance transport → gate valves are preferred
In addition, pressure rating, temperature conditions, and maintenance requirements must also be considered comprehensively.
Although globe valves and gate valves both belong to the shut-off valve category, they differ fundamentally in structure, flow control mechanism, pressure loss characteristics, and application scenarios.
Globe valves are characterized by precise control and strong sealing performance, while gate valves emphasize low resistance and high-flow transmission efficiency. In engineering practice, selecting the appropriate valve type not only improves system efficiency but also significantly reduces energy consumption and maintenance costs.
Therefore, valve selection should always be based on operating conditions and engineering requirements rather than interchangeable use.
