A steam safety valve is an essential protective device in steam systems. It automatically releases excess steam when system pressure exceeds a safe range, preventing damage or explosions in boilers, pipelines, and associated equipment. A properly selected, installed, and maintained safety valve is crucial for ensuring the safe operation of the steam system. This article provides a detailed explanation of the definition, working principle, types, selection, installation, and maintenance of steam safety valves.
A steam safety valve is an automatically operating valve that opens when the system pressure exceeds a preset value, releasing excess steam to a safe area or the atmosphere to reduce pressure. Once the pressure drops below the set value, the valve closes automatically, restoring a sealed state and maintaining system pressure within a safe range. Compared with other pressure control devices, a safety valve has rapid response and automatic reset features, making it indispensable in high-pressure steam systems.
Steam safety valves serve three primary functions:
Protect equipment: Prevent boilers and steam pipelines from being damaged by overpressure, avoiding the risk of explosions.
Protect personnel: High-pressure steam is extremely dangerous, and safety valves help prevent injuries caused by overpressure incidents.
Maintain system stability: During load fluctuations or process abnormalities, the safety valve can quickly release pressure, keeping the system within a controllable range and ensuring stable production processes.
The core components of a safety valve are the valve disc (or poppet) and the spring (or lever mechanism). The valve disc remains closed under the force of the spring. When the system pressure exceeds the preset value, the steam pressure overcomes the spring force, causing the valve disc to open and release steam. As pressure decreases to a safe level, the spring closes the valve, achieving automatic sealing. Different types of safety valves vary in actuation mechanisms and response speed, which should be selected according to system requirements.
Safety valves react extremely quickly and can release large volumes of steam in a short period, effectively preventing sudden overpressure. They also automatically adjust the discharge rate based on the extent of pressure excess, ensuring both system safety and minimal steam wastage.

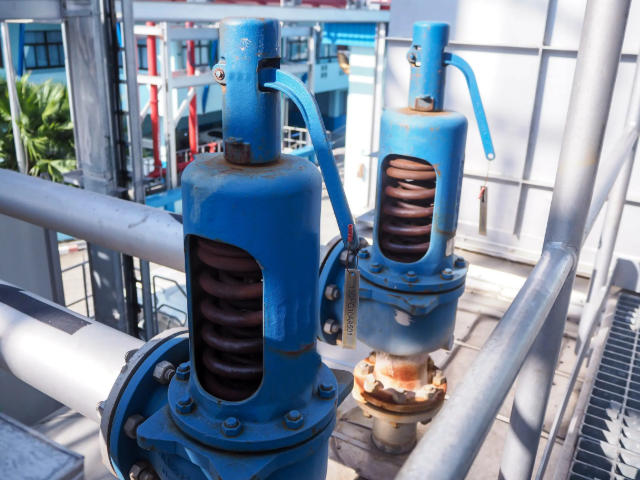

Spring-loaded valves are the most common type. A spring holds the valve disc closed, and the opening pressure can be adjusted by tightening or loosening the spring adjustment screw. They are simple, cost-effective, and easy to maintain, making them suitable for medium- and low-pressure steam systems. The main advantages include fast response and convenient operation; however, in high-temperature, high-pressure, or large-diameter applications, spring fatigue can occur, so regular inspection and adjustment are necessary.
Lever-operated valves are designed for high-pressure, large-diameter boilers or steam pipelines. The lever mechanism amplifies the force on the valve disc, allowing it to open smoothly under high pressure. They offer precise adjustment of opening pressure and fast response, but the structure is more complex and costly. Lever-operated valves are commonly used in industrial boilers and power plants.
Direct-acting valves rely solely on steam pressure acting on the valve disc, without a lever or spring amplification. They are compact and respond quickly, suitable for small pressure vessels or low-capacity steam systems. Although simple, direct-acting valves have limited discharge capacity and are mainly used in low-pressure, small-scale applications.
These valves are used in systems with low or differential pressures, such as steam branches or hot water circuits. They are highly sensitive to pressure changes and open quickly when the pressure slightly exceeds the set point, ensuring stable system operation. Low-pressure valves require precise flow control and are ideal for laboratory or small-scale industrial systems.
 |  |  |
The set pressure of the safety valve should be slightly above the normal operating pressure but below the maximum allowable pressure of the equipment. In high-temperature and high-pressure conditions, the valve body, valve disc, spring, and sealing components must be made of materials that withstand high temperature to prevent malfunction or leakage.
The safety valve’s discharge capacity must match the instantaneous steam generation rate of the boiler or system. If the capacity is insufficient, the system may overpressure; if excessive, steam is wasted. Calculating the system’s maximum instantaneous steam load ensures proper valve sizing.
Common materials include carbon steel, stainless steel, and alloy steel. For corrosive steam or impurities in the system, corrosion-resistant materials or special alloys should be used. Material selection affects both service life and reliability under abnormal operating conditions.
Small-diameter systems or pressure vessels usually use threaded connections for easy installation. Large-diameter boilers and pipelines typically use flanged connections to ensure stability and facilitate maintenance. Connection type should match the system’s piping design to guarantee reliable steam discharge under overpressure.
Safety valves should be installed at the highest point of the boiler or steam system or directly at the pressure source outlet. This placement ensures that discharged steam does not interfere with surrounding equipment or personnel. Valves should avoid installation near elbows, other valves, or locations with restricted flow, as these can reduce responsiveness.
Discharge piping must be unobstructed, with minimal bends and short lengths to reduce back pressure that could affect valve operation. Protective measures around the discharge outlet prevent high-temperature steam from causing injury or equipment damage.
Quarterly or semiannual tests are recommended to check valve opening and closing, spring condition, and sealing performance. Regular inspection is particularly important for long-term or high-temperature operation to extend service life and ensure reliable action in critical moments.
Operators must not manually fix the valve disc or deliberately exceed pressure limits. Warning signs or protective barriers should be installed near discharge outlets to prevent harm from released steam.
Caused by worn valve seats, aging seals, or blockage by impurities. Solutions include cleaning the valve disc and seat, replacing worn seals, and implementing regular maintenance to prevent recurrence.
Possible reasons include spring fatigue, blocked discharge piping, or improper installation. Solutions involve inspecting and replacing fatigued components, clearing the discharge line, and adjusting installation alignment.
Often due to high back pressure at the discharge outlet or incorrect set pressure. Solutions include reducing back pressure in the discharge piping and adjusting the valve’s set pressure to match system requirements.
Steam containing impurities or corrosive substances can wear the valve disc, seat, and body. Solutions include using corrosion-resistant materials, performing regular maintenance, replacing worn components, and maintaining a clean steam system.
Steam safety valves are the most critical protective devices in steam systems. Their selection, installation, and maintenance directly affect equipment safety and personnel protection. Proper selection, scientific installation, regular maintenance, and safe operation are essential to ensure long-term, stable, efficient, and safe operation of the steam system.
