Ball valves are widely used in industrial, commercial, and residential piping systems due to their reliable shut-off performance, simple operation, and long service life. They control the flow of gases or liquids by rotating a spherical ball with a bore. Choosing the correct type of ball valve is critical for ensuring system efficiency, safety, and durability. This article provides a detailed overview of ball valve types and practical selection guidelines.

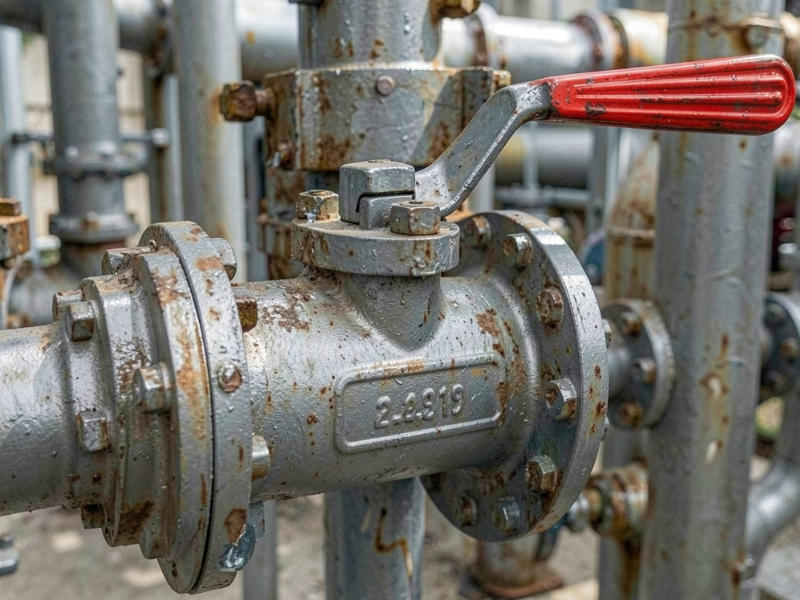

A ball valve is a quarter-turn valve that uses a spherical ball with a hole (bore) through its center. When the valve handle or actuator rotates the ball 90 degrees, the bore aligns with the pipeline to allow flow (open) or is perpendicular to stop flow (closed). The tight seal between the ball and the valve seat ensures minimal leakage.
 |  |
Quick on/off operation with 90° rotation
Minimal pressure drop when fully open
Reliable sealing for both liquids and gases
Durable, low-maintenance design suitable for high-pressure and high-temperature applications
In a floating ball valve, the ball is supported by the valve seats and is free to float slightly in the pipeline. When the valve is closed, line pressure pushes the ball against the downstream seat, enhancing the seal.
Advantages:
Simple structure, low cost
Good sealing performance for small and medium diameters
Limitations:
Not suitable for very high-pressure systems, as excessive pressure can make operation difficult
A trunnion-mounted ball valve uses additional mechanical support at the top and bottom of the ball. The trunnion absorbs pressure, reducing stress on the valve seats.
Advantages:
Suitable for large diameters and high-pressure applications
Low operating torque, easier to operate under high pressure
Limitations:
More complex structure and higher cost
Requires precise installation and maintenance
Full-bore ball valves have a bore diameter equal to the pipeline diameter, resulting in minimal flow restriction.
Advantages:
Minimal pressure drop, ideal for pigging operations in pipelines
Suitable for slurry or viscous fluid applications
Limitations:
Larger body size and higher cost compared to reduced-bore valves
In reduced-bore valves, the bore is slightly smaller than the pipeline diameter.
Advantages:
Smaller, lighter, and less expensive than full-bore valves
Suitable for most general flow control applications
Limitations:
Slight pressure drop and limited suitability for pigging
Three-way ball valves have three ports and can be configured in L-shaped or T-shaped bores to redirect flow.
Applications:
Mixing, diverting, or sampling applications
Systems requiring flow path switching without multiple valves
Considerations:
Flow direction and port configuration must match system design
Soft-seated: Uses PTFE or other polymer seats for tight sealing and low operating torque. Suitable for general-purpose, low-to-medium temperature and pressure systems.
Metal-seated: Uses metal-to-metal sealing for high temperature, abrasive fluids, or severe service conditions. Requires higher operating torque but offers durability.
Clean water or gases: floating soft-seated valves are usually sufficient
Slurries or viscous fluids: full-bore or metal-seated valves prevent clogging and wear
Corrosive or abrasive fluids: select corrosion-resistant materials like stainless steel or special alloys
Low to medium pressure: floating ball valves with polymer seats are efficient
High pressure or large-diameter pipelines: trunnion-mounted valves reduce operating torque and seat wear
High-temperature fluids: consider metal-seated designs and appropriate body materials
Small to medium diameters (up to DN200): floating ball valves are cost-effective
Large diameters (DN200+): trunnion-mounted or full-bore valves are preferred for easier operation and reduced seat stress
On/off control: standard ball valves suffice
Flow diversion, mixing, or sampling: choose three-way or multi-port valves
Frequent operation: ensure low operating torque and wear-resistant materials
Body: carbon steel, stainless steel, brass, or alloy depending on fluid compatibility
Ball: stainless steel, chrome-plated, or corrosion-resistant alloy
Seats: PTFE, PEEK, or metal depending on pressure, temperature, and abrasiveness
Install according to manufacturer’s markings. Three-way and L/T port valves require correct alignment to achieve desired flow paths.
For manual operation, ensure enough space for handle rotation. For actuated valves, select actuators rated for torque, pressure, and temperature conditions.
Install valves where inspection, maintenance, and replacement can be performed easily. Avoid tight spaces or locations difficult to access.
Do not force valve operation beyond design limits, especially in metal-seated or large-diameter valves. Excessive torque can damage the ball, seat, or stem.
Caused by wear, debris, or misalignment. Solutions: clean or replace seats, inspect for foreign particles, and ensure correct installation.
Common in high-pressure or metal-seated valves. Solutions: lubricate stem, check for debris, or adjust actuator torque.
Occurs with corrosive fluids or high-velocity flow. Solutions: select corrosion-resistant materials, use full-bore valves for slurry, and reduce velocity where possible.
Can lead to poor performance in check or three-way valves. Always follow manufacturer flow markings and piping design.
Ball valves are versatile, reliable, and essential components in modern piping systems. Correct selection depends on fluid type, pressure, temperature, pipeline size, and intended function. Proper installation, operation, and maintenance ensure optimal performance, safety, and long-term durability.
