In industrial piping systems, valves play a critical role in controlling fluid transmission, regulating pressure, and ensuring system safety. Among them, globe valves, control valves, and safety valves are three of the most widely used types, each with distinct functions and characteristics. In practice, these valves are often confused with one another. This article provides a systematic and professional comparison from the perspectives of structure, working principles, functions, and applications to help users make more informed decisions.
A globe valve is a type of valve in which the disc moves linearly along the centerline of the seat to open or close the flow path. Its primary function is to start or stop the flow of fluid within a pipeline.
Globe valves are known for their excellent sealing performance, making them suitable for applications requiring tight shutoff. Their relatively simple structure also makes maintenance easier. They are widely used in systems handling water, steam, and oil. However, due to their higher flow resistance, they are not ideal for applications requiring minimal pressure loss.

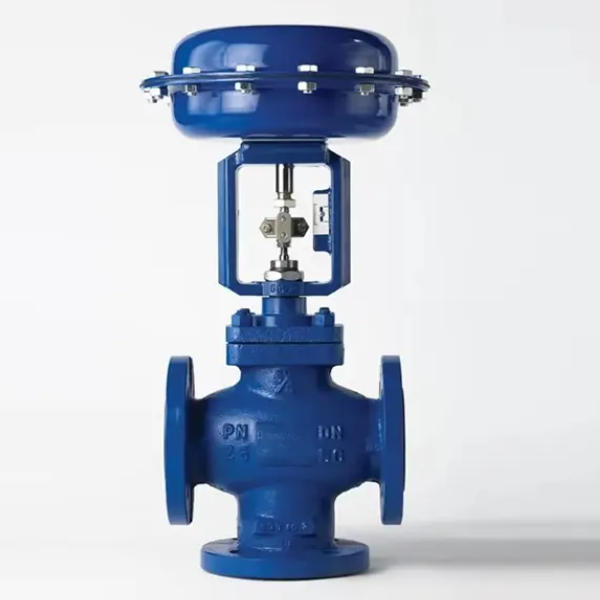

A control valve is an automated valve designed to precisely regulate flow rate, pressure, temperature, or other process variables. It typically operates in conjunction with control systems such as PLC or DCS, adjusting its opening based on feedback signals.
The key feature of a control valve is its ability to provide continuous modulation between fully open and fully closed positions. Its structure is more complex and may include types such as single-seat, double-seat, and cage valves. Control valves are widely used in industries like petrochemical, power generation, and metallurgy.
A safety valve is an automatic pressure-relief device used to prevent system pressure from exceeding a preset limit. When the pressure reaches the set value, the valve opens automatically to release excess pressure and closes once normal conditions are restored.
Safety valves are critical safety components that must operate reliably and respond quickly. Common types include spring-loaded safety valves and pilot-operated safety valves. They are widely used in boilers, pressure vessels, and high-pressure pipeline systems.
Globe valves operate by rotating a handwheel or actuator to move the valve stem, which in turn raises or lowers the disc. When the disc presses tightly against the seat, the flow is completely shut off; when lifted, fluid can pass through.
This forced sealing mechanism ensures reliable shutoff performance. However, the flow path is typically tortuous, resulting in higher pressure loss.
Control valves receive signals from controllers and use actuators (pneumatic, electric, etc.) to move the valve plug, thereby adjusting the flow area and regulating process variables continuously.
They are designed with specific flow characteristics, such as linear or equal-percentage, to ensure stable and predictable control performance across different operating conditions. This dynamic regulation capability distinguishes them from globe valves.
Safety valves operate based on a force balance principle. When system pressure exceeds the setpoint, the fluid pressure overcomes the spring force, causing the valve to open and release pressure. Once the pressure drops back to a safe level, the spring reseats the valve.
This process is entirely automatic and does not require external control, ensuring high reliability in emergency situations.
Globe valves are primarily used to fully open or completely shut off fluid flow. Although partial opening is possible, they are not designed for precise flow regulation.
They are commonly used in systems where tight shutoff and clear isolation are required.
Control valves are designed to regulate how much fluid passes through the system. Their purpose is to maintain stable operating conditions by adjusting process parameters in real time.
For example, in chemical processing, control valves ensure accurate feed rates, directly affecting reaction efficiency and product quality.
Safety valves are dedicated to protecting systems from overpressure. They act as the final safeguard in case of abnormal pressure buildup.
They are not used for routine control and are rarely operated manually, as their function is strictly for emergency protection.
Globe valves have a relatively simple structure consisting of a valve body, disc, stem, and sealing surfaces. The sealing surfaces are typically made of metal or soft materials, emphasizing durability and tightness.
However, their internal flow path is not streamlined, leading to higher resistance.
Control valves have more complex designs, incorporating actuators, positioners, and other control components in addition to the valve body and trim.
Their design focuses on flow characteristics, stability, and resistance to issues such as vibration and cavitation, making them suitable for demanding operating conditions.
Safety valves are designed with a focus on sensitivity and reliability. Key components include springs, discs, and guiding mechanisms.
They must ensure accurate opening pressure and stable reseating performance while complying with standards such as ASME or GB to guarantee safe operation under extreme conditions.
Globe valves are widely used in systems that require reliable sealing and clear on/off control, such as water supply systems, steam pipelines, fuel transport systems, and general industrial fluid pipelines. In these scenarios, the valve is primarily used to achieve complete isolation or full flow, which is essential for system control and maintenance.
In addition, due to their excellent sealing performance, globe valves are often used in applications with strict leakage requirements, such as high-temperature steam systems or pipelines carrying flammable media. In environments with moderate operating frequency, globe valves provide stable and dependable performance.
Control valves are primarily used in highly automated industrial systems, including petrochemical plants, power generation facilities, pharmaceutical production lines, and food processing operations. In these environments, precise and continuous regulation of flow, pressure, or temperature is essential for maintaining process stability and product consistency.
For example, in boiler feedwater systems, control valves automatically adjust water flow according to load changes. In chemical processes, they regulate raw material input to control reaction rates and final product quality. Control valves are often integrated with sensors and controllers to form closed-loop systems, enabling remote and unattended operation.
Safety valves are used in critical equipment and systems where there is a risk of overpressure, such as boilers, pressure vessels, compressed air systems, liquefied gas storage tanks, and high-pressure pipelines. In these applications, excessive pressure can lead to equipment damage or even catastrophic accidents, making safety valves mandatory protective devices.
They are typically installed at key locations, such as the top of pressure vessels or high points in the system, to ensure rapid pressure relief when necessary. Their design, installation, and operation must comply with strict safety standards and regulations.
If simple on/off control is required, a globe valve should be selected. For precise parameter regulation, a control valve is the appropriate choice. For overpressure protection, a safety valve is mandatory.
These valve types are not interchangeable, and incorrect selection may lead to system instability or safety risks.
When selecting valves, factors such as fluid properties (corrosiveness, temperature, pressure) and flow requirements must be considered. For example, high-temperature and high-pressure environments require heat-resistant materials, while corrosive media demand special alloys or lined structures.
Globe valves require periodic inspection of sealing surfaces; control valves need calibration of control accuracy and actuator performance; safety valves must be regularly tested for set pressure in accordance with standards.
Proper maintenance significantly extends service life and ensures safe and efficient operation.
In practical engineering, only through proper selection, correct usage, and regular maintenance can these valves perform effectively, ensuring safe, efficient, and stable system operation.
