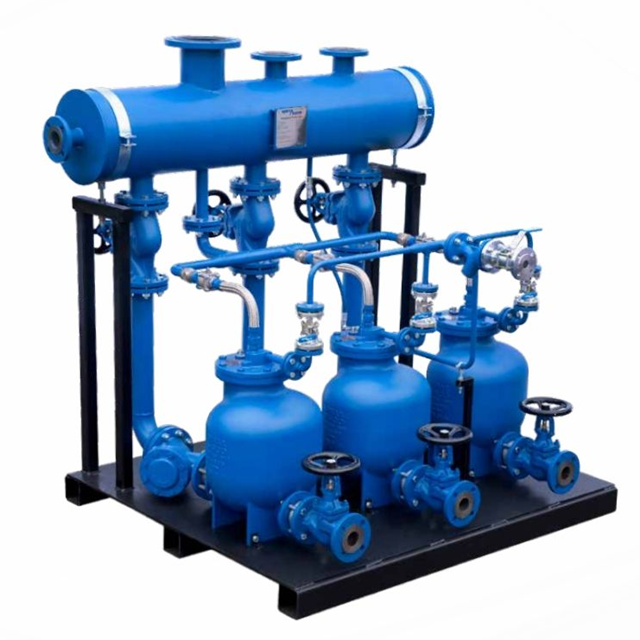

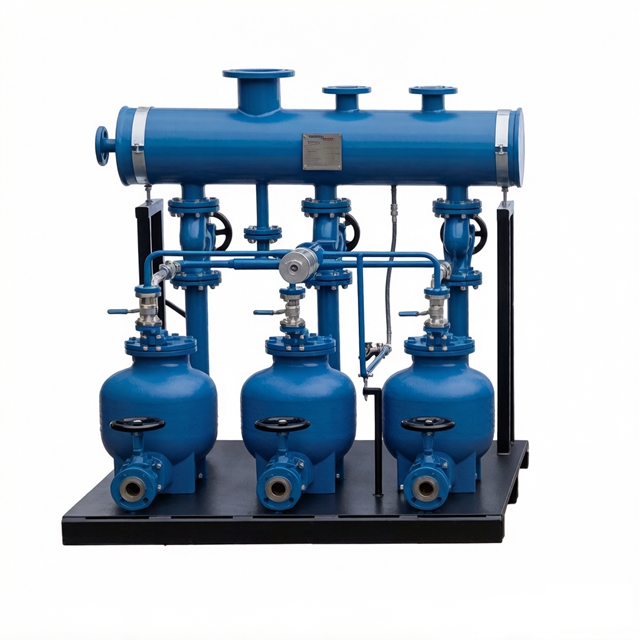

Double Triple Pump Condensate Recovery Unit PT-3500 Series For Steam Systems

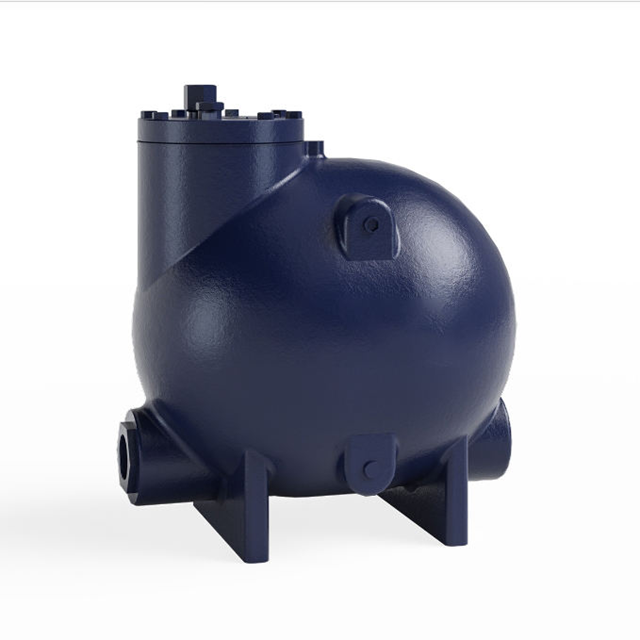

PT-3500 Series Low Profile Pump Traps – High-Temperature, Non-Electric Condensate Transfer
The PT-3500 Series Low Profile Pump Traps provide a low-maintenance, non-electric solution for moving condensate or other liquids from low points, low-pressure zones, or vacuum spaces to higher elevations or pressure areas. These units are engineered to handle condensate return temperatures well above the 200°F (93°C) limit of conventional electric pumps, eliminating common issues such as leaking seals and cavitation.
With their compact, low-profile design, PT-3500 pump traps ensure reliable performance in tight installations while delivering energy-efficient condensate recovery for steam systems, process heating, and industrial applications

Quantity:
Material:	Cast steel
Size:	DN50-DN75
connection:	Flanged
Availability:





Inquire Add to Basket

Model:
PT-3500
Brand:
Steam

Product Description

Technical Parameters

Company Description

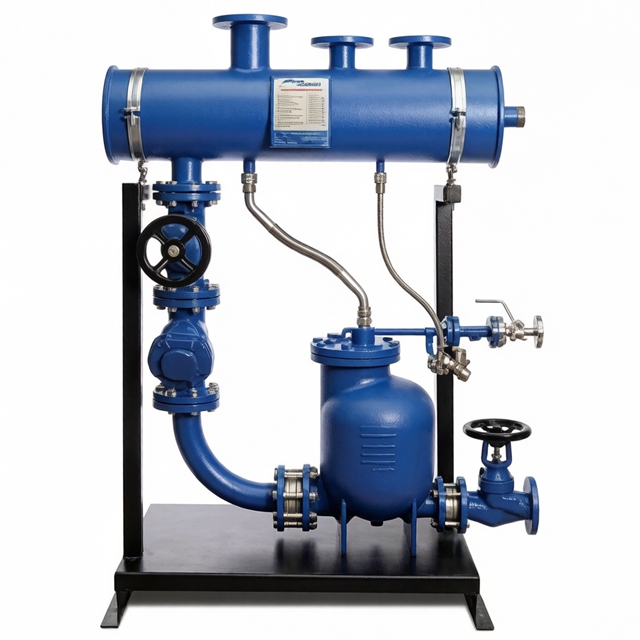

condensate recovery pump unit

1.Low-Maintenance & Non-Electric – Operates without electricity, reducing upkeep and operational costs.

2.Versatile Liquid Transfer – Moves condensate or other liquids from low points, low-pressure areas, or vacuum spaces to higher elevations or pressure zones.

3.High-Temperature Capability – Handles condensate return temperatures well above 200°F (93°C), beyond the limits of standard electric pumps.

4.Seal Leak Prevention – Eliminates the risk of leaking shaft seals common in electric pump designs.

5.Cavitation-Free Operation – Prevents cavitation problems, ensuring smooth and reliable performance.

6.Compact Low-Profile Design – Fits easily into tight installation spaces while maintaining full functionality.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

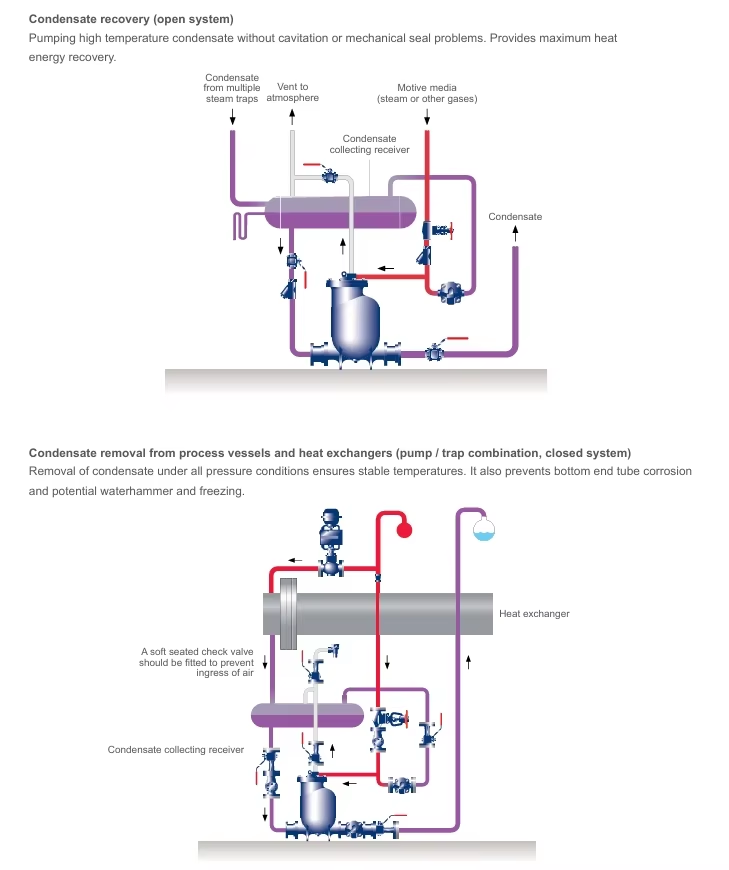

Condensate Recovery Pump System Configuration Diagram

condensate recovery pump

condensate recovery pump unit

PRODUCT SPECIFICATIONS

Model	PT-3508	PT-3512
Connection Type	Screwed	Screwed
Maximum Allowable Pressure	150 psig (10 barg)	150 psig (10 barg)
Maximum Allowable Temperature	450°F (232°C)	450°F (232°C)
Body Material	ASTM A48 Class 30 Cast Iron	ASTM A48 Class 30 Cast Iron
Mechanism Material	Stainless Steel with Inconel X-750 Spring	Stainless Steel with Inconel X-750 Spring
Maximum Operating Pressure	125 psig (8-1/2 barg)	125 psig (8-1/2 barg)
Maximum Capacity	9,900 lb/hr (4,491 kg/hr)	14,400 lb/hr (6,532 kg/hr)
Inlet Connection Size	2″ (50 mm)	3″ (75 mm)
Outlet Connection Size	2″ (50 mm)	2″ (50 mm)
