Double Duty 12 Steam Trap Pump Unit Versatile Condensate Draining System

The Double Duty 12 steam trap and pump combination delivers a unique, reliable method for removing condensate from heat exchangers and coils across a wide range of industrial applications. Built as an ASME code-stamped carbon steel vessel, it combines a pump mechanism directly inside a steam trap, offering unmatched versatility. This integrated design ensures efficient condensate drainage under all operating conditions, from low pressure to vacuum environments.

Quantity:
Material:	Carbon steel
Size:	DN80*DN80
connection:	Flanged
Availability:





Inquire Add to Basket

Model:
Double Duty 12
Brand:
Steam

Product Description

Technical Parameters

Company Description

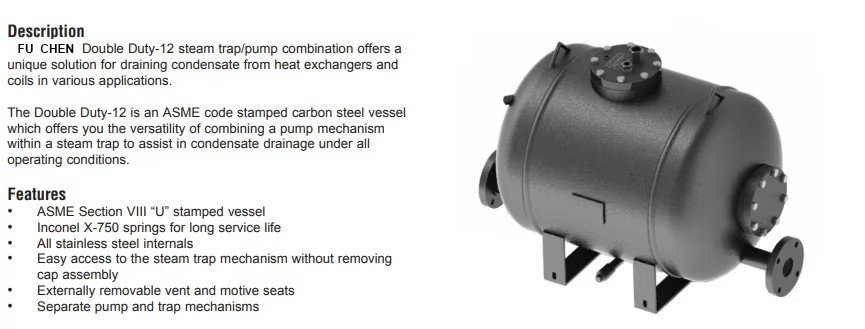

DOUBLE DUTY 12

1. Manufactured to meet stringent ASME pressure vessel standards for safety and reliability.

2.High-performance alloy springs deliver exceptional durability and extended service life, even in high-temperature applications.

3.Corrosion-resistant construction ensures long-term performance and minimizes maintenance.

4.Servicing can be performed without removing the cap assembly, simplifying inspection and upkeep.

5.Allows quick replacement or maintenance of critical internal components without disassembly of the main vessel.

6.Separate functional design enhances operational flexibility and improves troubleshooting efficiency.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

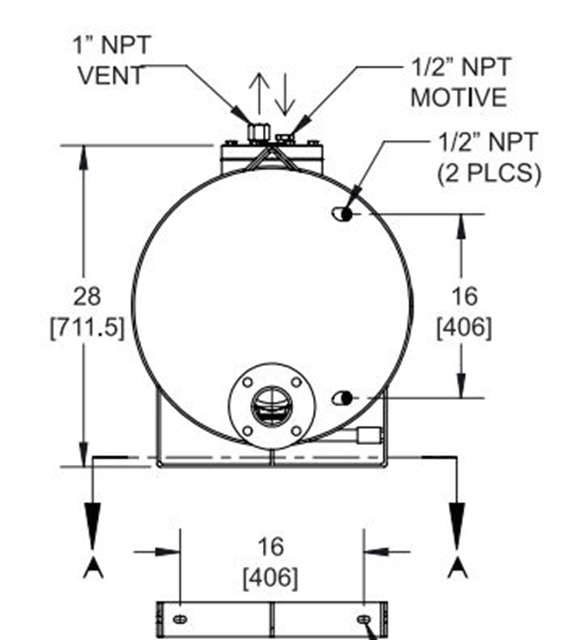

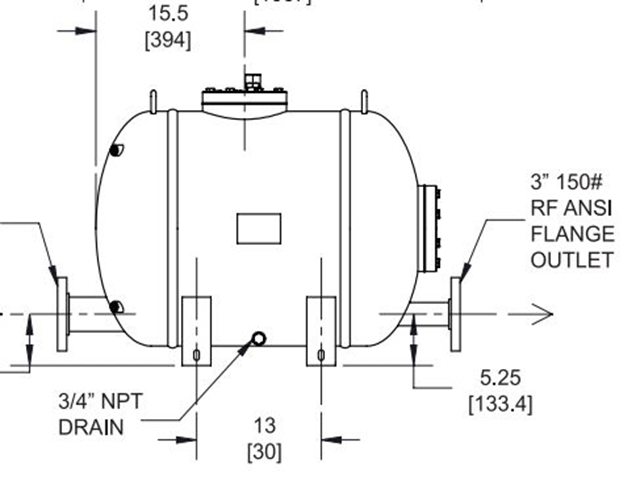

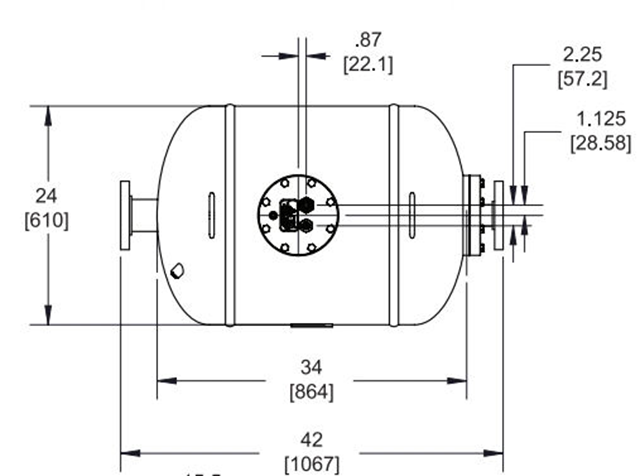

Condensate Recovery Pump System Configuration Diagram

condensate recovery pump

DOUBLE DUTY 12

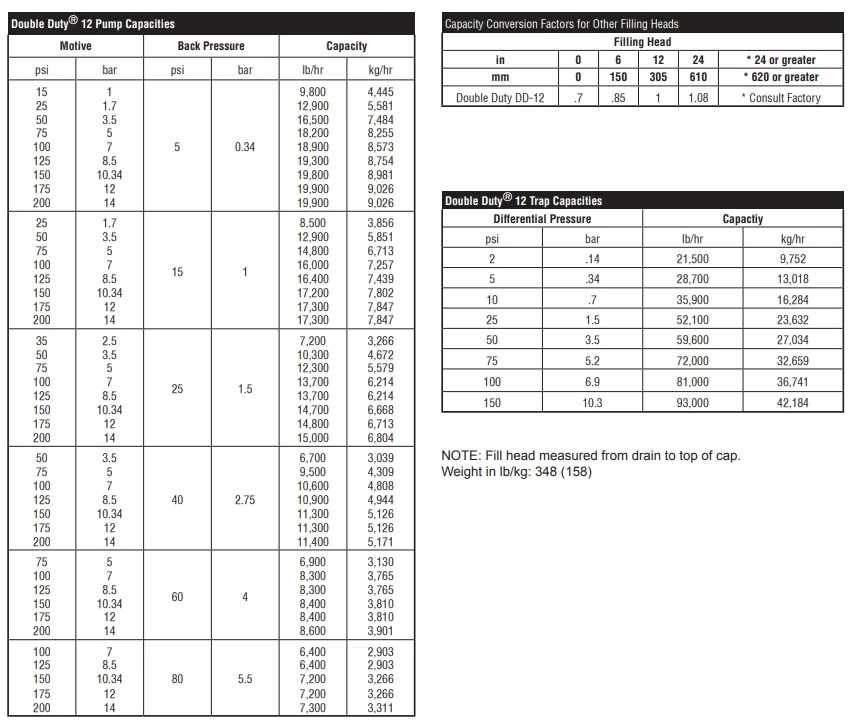

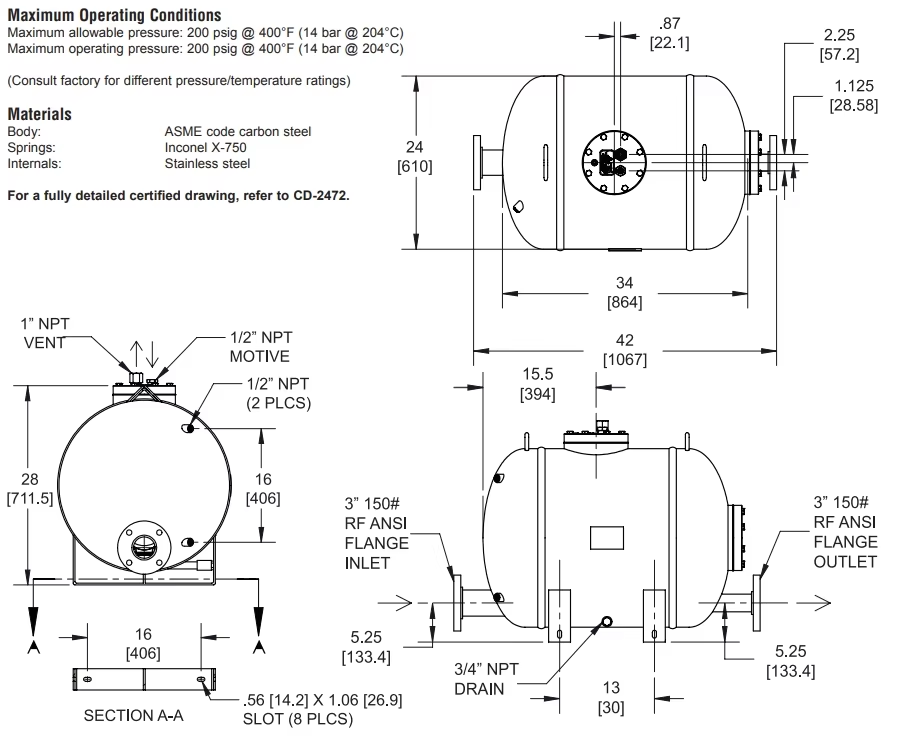

PRODUCT SPECIFICATIONS

Model	DD-12
Connection Type	150# ANSI Flanged
Maximum Allowable Pressure	200 psig (14 barg)
Maximum Allowable Temperature	400°F (204°C)
Body Material	Carbon Steel
Mechanism Material	Stainless Steel with Inconel X-750 Spring
Maximum Operating Pressure	200 psig (14 barg)
Maximum Capacity	19,900 lb/hr (Pumping 9026 kg/h – Trapping42,184 kg/h)
Inlet Connection Size	3″ (80 mm)
Outlet Connection Size	3″ (80 mm)
