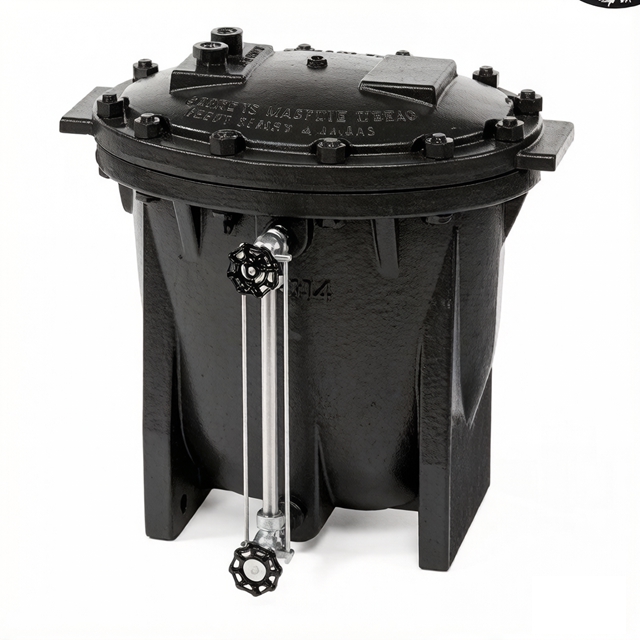

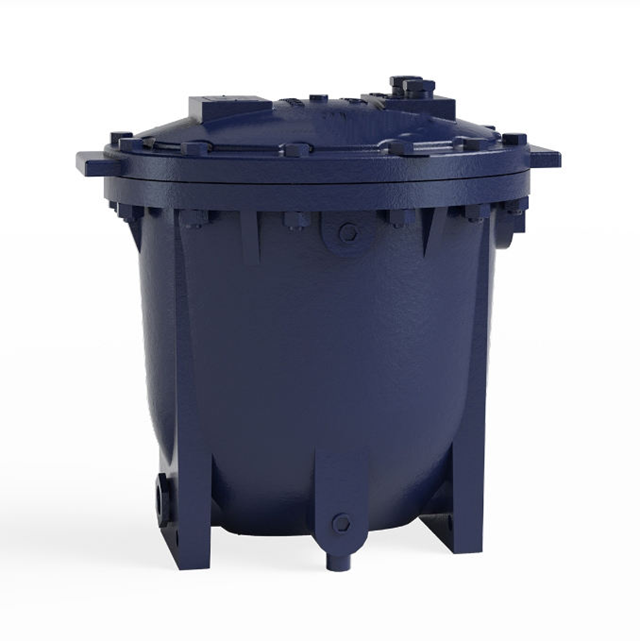

Industrial Low Profile Cast Iron Pump Trap Steam & Water Pump Control

The Low Profile Pump Traps offer a low-maintenance, non-electric solution for transferring condensate or other liquids from low points, low-pressure zones, or vacuum spaces to higher elevations or pressure areas. These units are engineered to handle condensate return temperatures well above the 200°F (93°C) limit of conventional electric condensate pumps, while eliminating common issues such as leaking seals and cavitation.
With their compact, low-profile design, PT-200 pump traps ensure reliable performance in tight installations, making them ideal for steam heating systems, process equipment, and industrial applications where high temperature and non-electric operation are required.

Quantity:
Material:	Cast iron

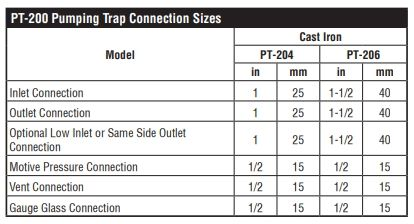

Size:	DN25-DN40
connection:	Screwed
Availability:





Inquire Add to Basket

Model:
PT200
Brand:
Steam

Product Description

Technical Parameters

Company Description

pump[ trap

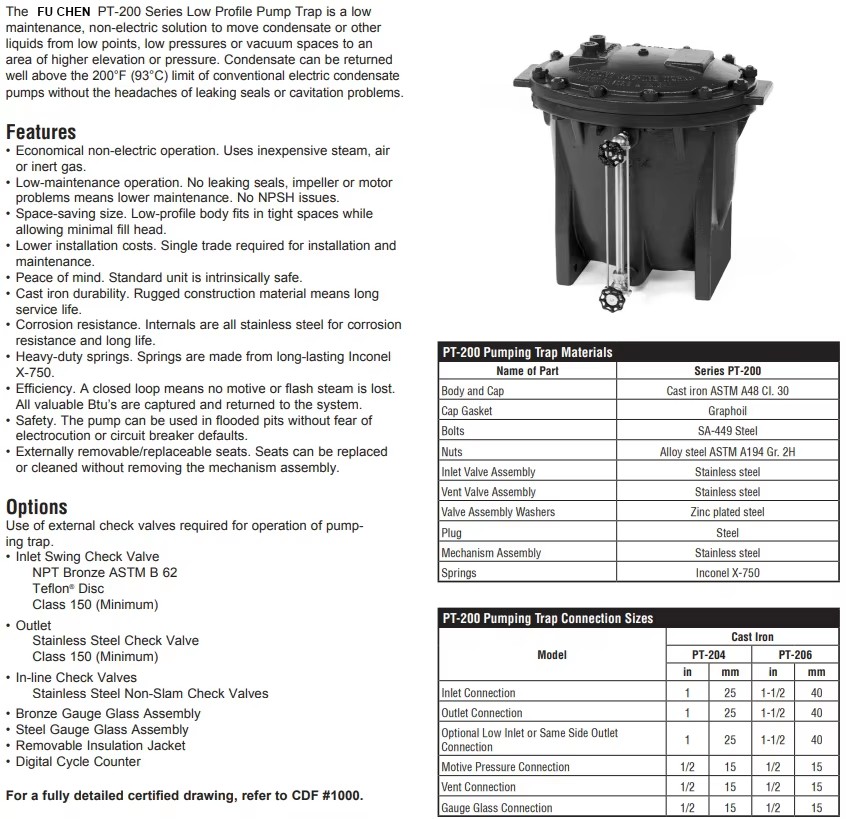

1. Powered by low-cost steam, compressed air, or inert gas for affordable and reliable performance.

2. No leaking seals, impellers, or motors; eliminates common failure points and removes NPSH concerns.

3.Compact, low-profile body fits into tight spaces while requiring only minimal liquid head.

4.Installation and servicing require only a single trade, cutting labor expenses.

5.Standard units are intrinsically safe, providing peace of mind in hazardous environments.

6. Rugged body material ensures a long service life even in demanding conditions.

7. All internal components are made of stainless steel to resist corrosion and extend operational life.

8. High-performance alloy springs deliver lasting durability and reliability.

9.Closed-loop design prevents loss of motive or flash steam; captures and returns valuable BTUs to your system.

10. Can operate in flooded pits without risk of electrocution or circuit breaker failure.

11. External seats can be removed or replaced without disassembling the entire mechanism.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Condensate Recovery Pump System Configuration Diagram

condensate recovery pump

pump[ trap

pump trap

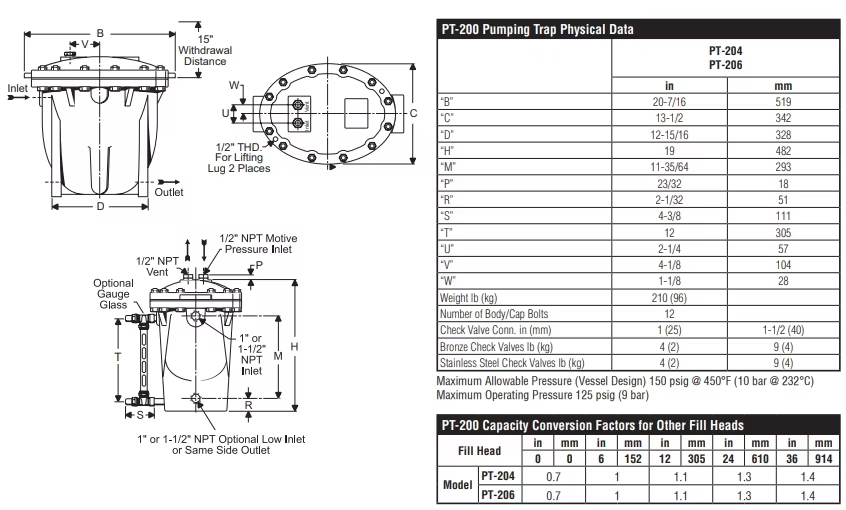

PRODUCT SPECIFICATIONS

Model	PT-204	PT-206
Connection Type	Screwed	Screwed
Maximum Allowable Pressure	150 psig (10 barg)	150 psig (10 barg)
Maximum Allowable Temperature	450°F (232°C)	450°F (232°C)

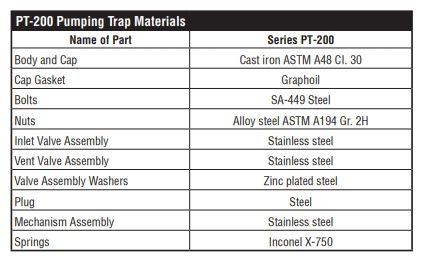

Body Material	ASTM A48 Class 30 Cast Iron	ASTM A48 Class 30 Cast Iron
Mechanism Material	Stainless Steel with Inconel X-750 Spring	Stainless Steel with Inconel X-750 Spring
Maximum Operating Pressure	125 psig (8.5 barg)	125 psig (8.5 barg)

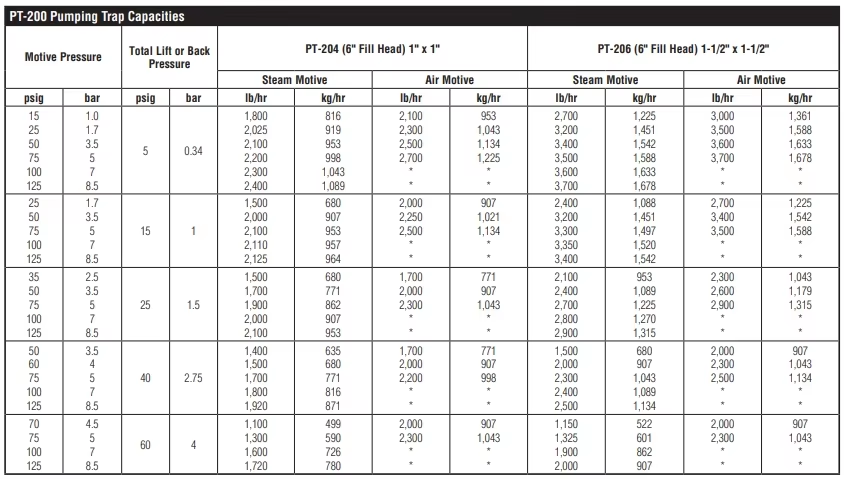

Capacity Range	2,400 lb/hr (1,089 kg/hr)	3,700 lb/hr (1,678 kg/hr)
