Forged Steel Fixed Pivot Snap Action Drain Trap – Superior Strength & Corrosion Resistance

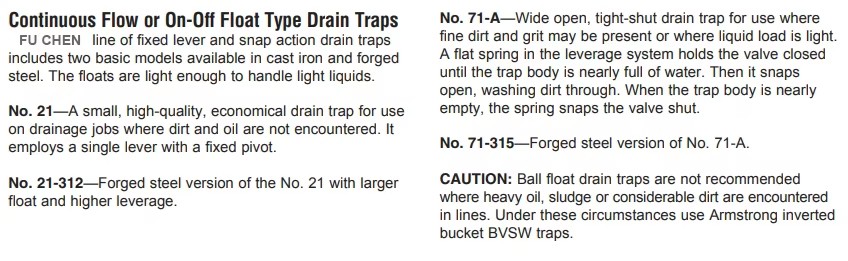

The Fuchen line of fixed lever drain traps offers both continuous flow and on-off float designs, available in two basic models constructed from either cast iron or forged steel. These traps feature lightweight floats, enabling efficient handling of light liquids while maintaining reliable operation.

Quantity:
Material:	Cast Iron forged steel
Size:	DN15 DN20 DN25
connection:	Screwed Flanged Socketweld
Availability:





Inquire Add to Basket

Model:
MODEL 21 & 21-312
Brand:
Steam

Product Description

Technical Parameters

Company Description

forged steel drain valve

1.Dual Operating Modes

Available in both continuous flow and on-off float designs to match different condensate control requirements.

2.Two Basic Models

Offers a choice of two core models, making selection simple for various system needs.

3.Material Options for Durability

Constructed in cast iron for general industrial use, or forged steel for higher pressure and more demanding applications.

4.Lightweight Float Design

Floats are engineered to be light, allowing the trap to effectively handle light liquids without excess weight or sluggish response.

5.Reliable Fixed Lever Mechanism

The fixed lever system provides stable and consistent actuation, reducing wear and maintenance.

6.Versatile Application

Suitable for systems where light liquid condensate must be removed efficiently, such as compressed air, low-pressure steam, and process lines.

7.Simple Maintenance

Straightforward design makes disassembly and cleaning quick, minimizing downtime.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Drain valve Application Configuration Diagram

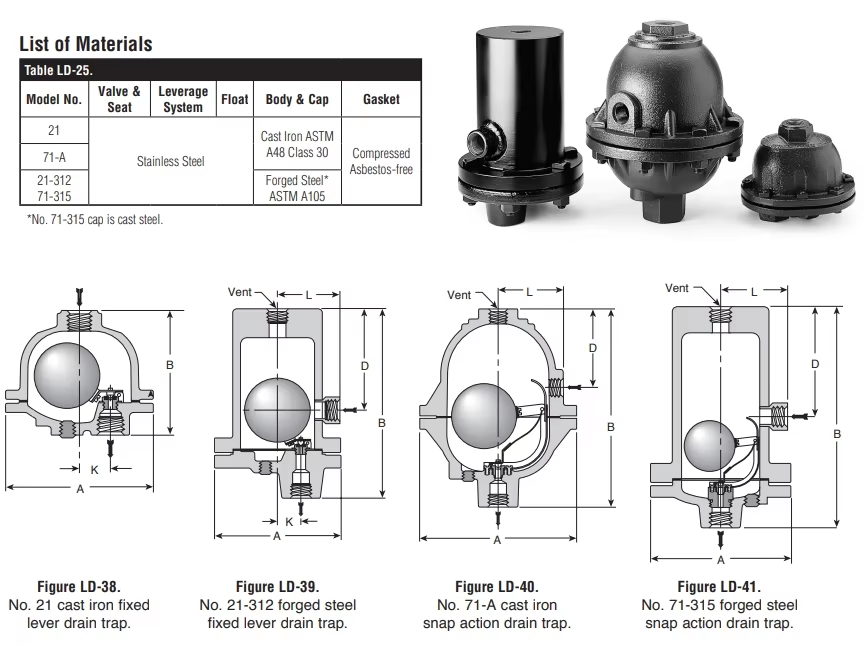

drain valve conveyance drawing

forged steel drain valve

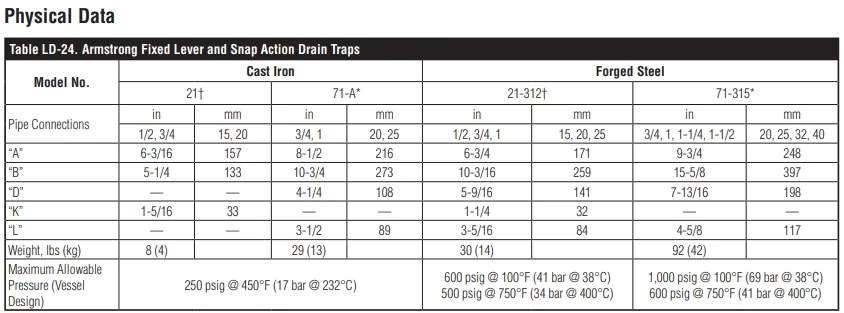

PRODUCT SPECIFICATIONS

Model	21	21-312 & 21-312V
Maximum Capacity	2,700 lb/hr (1,224 kg/hr)	3,900 lb/hr (1,69 kg/hr)
Maximum Allowable Pressure	250 psig @ 450°F (17 bar @ 232°C)	600 psig @ 750°F (41 bar @ 400°C)
Maximum Operating Pressure	250 psig (17 barg)	600 psig (41 bar)
Body Material	ASTM A48 Class 30 Cast Iron	ASTM A105 Forged Steel
Connection Type	Screwed	Screwed Socketweld Flanged
Connection Sizes	1/2″ (15 mm) 3/4″ (20 mm)	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm)
