Manual Self Clear Transparent Free-Floating Lever Drain Trap – Transparent Design for High-Temp Steam & Water

Manual Self Clear Transparent Free-Floating Lever Drain Trap – Transparent Design for High-Temp Steam & Water

The 1-LDC features a free-floating mechanism that operates without electricity. It automatically discharges only when liquid is present, preventing unnecessary air loss—unlike timed systems that open regardless of whether liquid is present. In a compressed air system, moisture can lead to significant issues. By removing water automatically and reliably, the 1-LDC helps improve overall system efficiency.

Quantity:
Material:	Nylon Cap Polysulfone Body
Size:	DN15 DN20
connection:	Screwed
Availability:





Inquire Add to Basket

Model:
1-LDC
Brand:
Steam

Product Description

Technical Parameters

Company Description

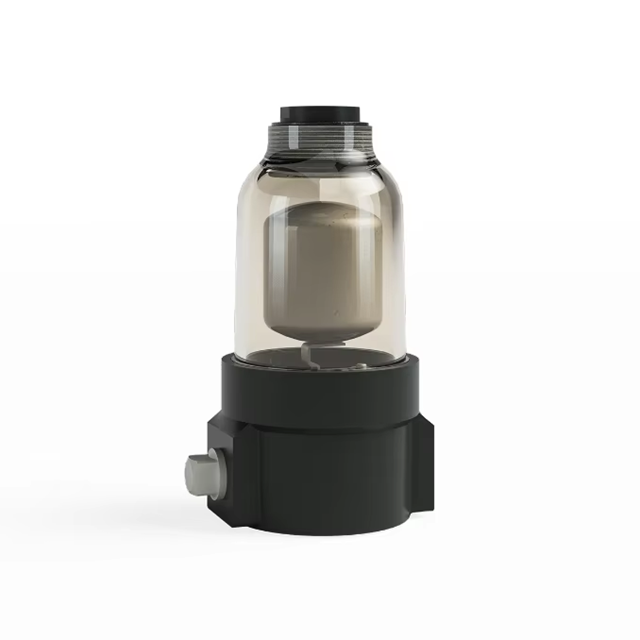

1-LDC

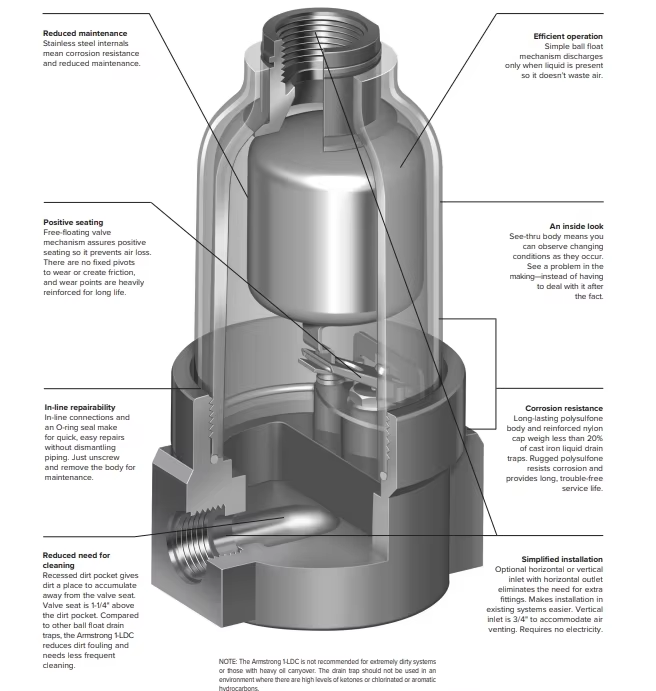

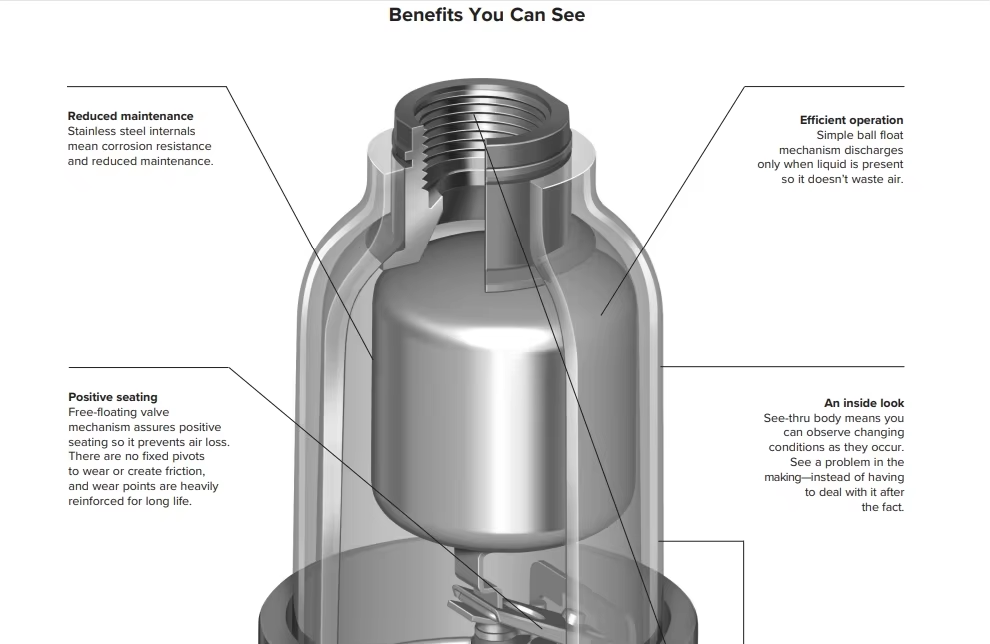

1.Electricity-Free Operation: Equipped with a free-floating mechanism that functions entirely without electric power.

2.Automatic Liquid Discharge: Opens only when liquid is detected, ensuring discharge occurs precisely when needed.

3.Zero Air Loss: Unlike timer-based drains that release air unnecessarily, the 1-LDC prevents compressed air waste.

4.Moisture Problem Solution: Effectively removes condensate from compressed air systems, reducing risk of corrosion, equipment damage, and operational inefficiencies.

5.Reliable & Efficient: Delivers consistent, automatic moisture removal, helping to maintain optimal system performance and energy efficiency.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

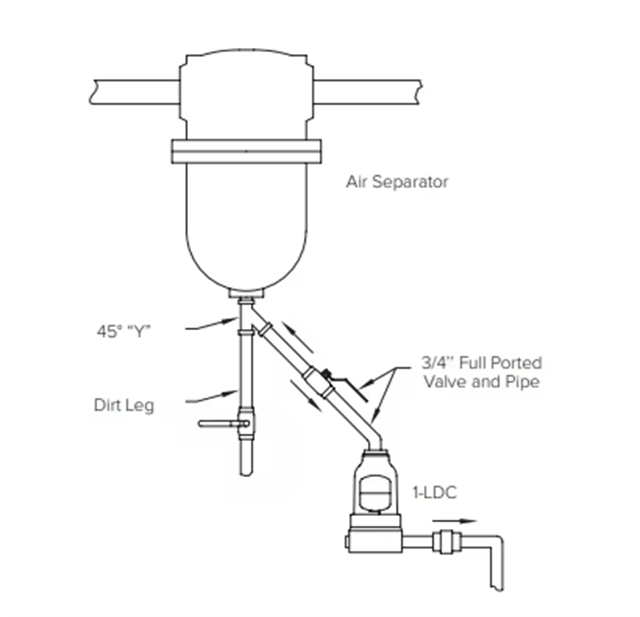

Drain valve Application Configuration Diagram

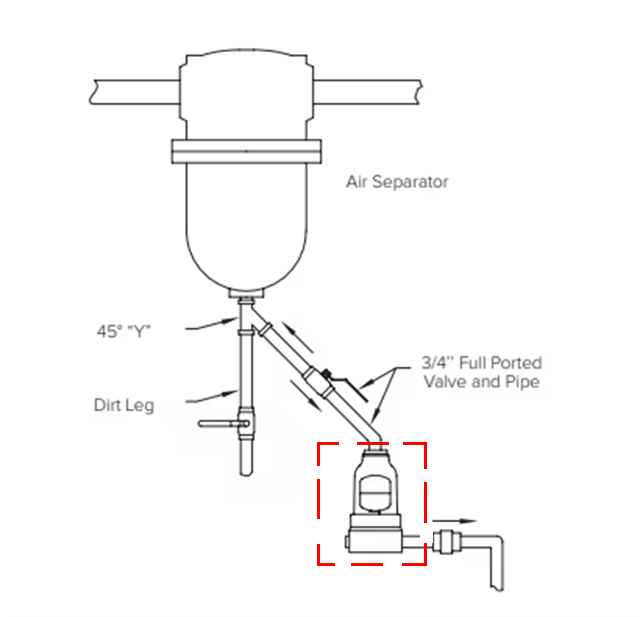

drain valve conveyance drawing

drain valve

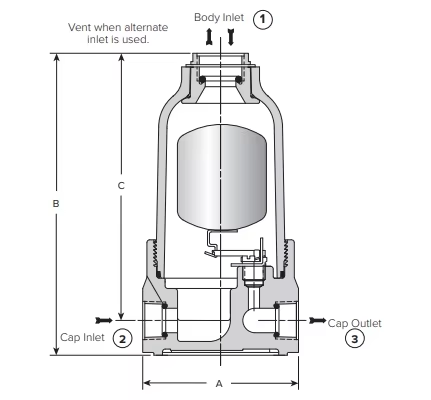

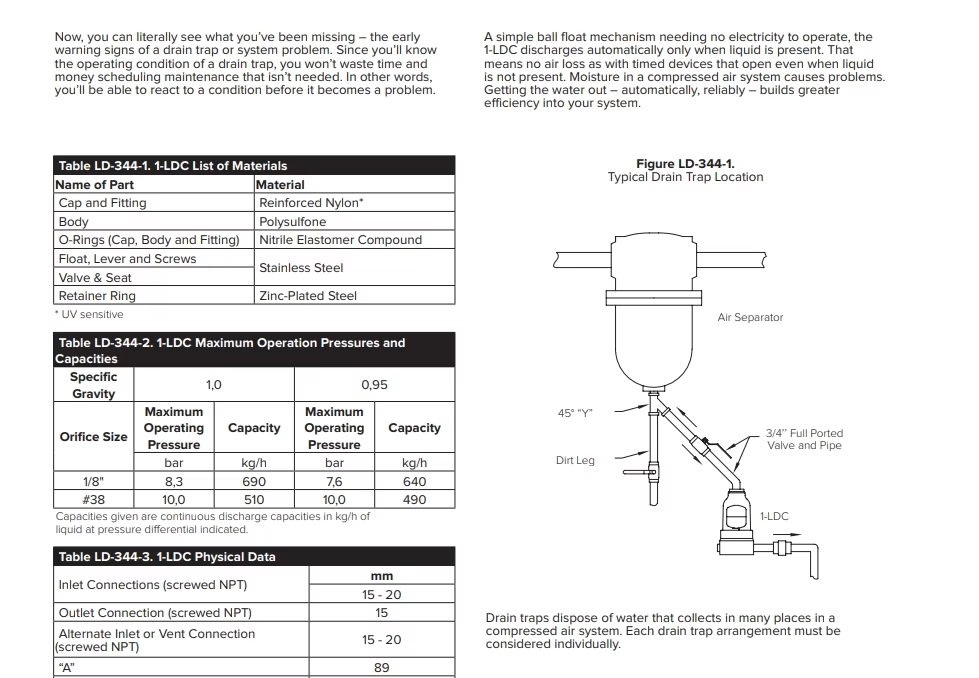

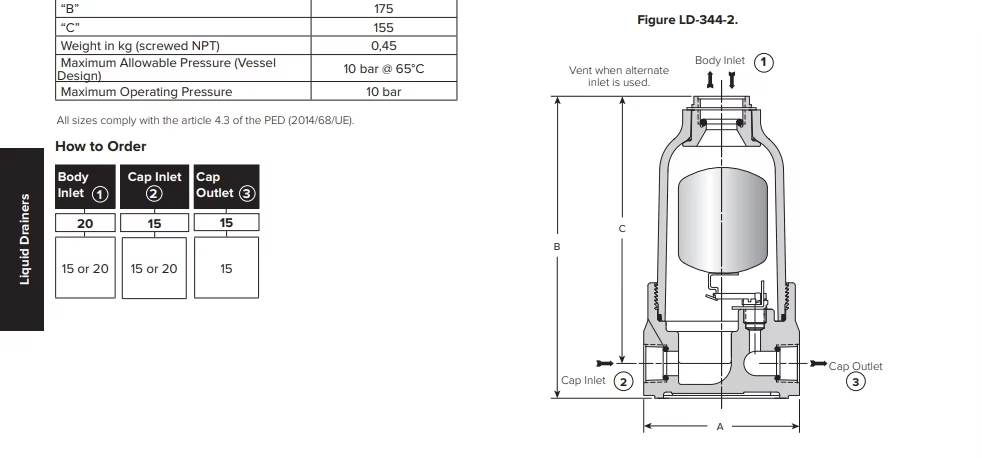

PRODUCT SPECIFICATIONS

Model	1-LDC
Capacity	1,500 lb/hr (690 kg/h)
Maximum Allowable Pressure	150 psig @ 150°F (10 barg @ 65°C)
Maximum Operating Pressure	150 psig (10 barg)
Body Material	Nylon Cap Polysulfone Body
Connection Type	Screwed
Connection Sizes	1/2″ (15 mm) 3/4″ (20 mm)
