Inverted Bucket Steam Drain Trap – High Pressure, Energy Saving, Reliable Condensate Handling

Fu Chen BVSW Series Inverted Bucket Drain Traps are specifically engineered for applications where heavy oil and solid contaminants are present. Featuring an enlarged bucket vent with an integrated scrub wire, the BVSW design ensures unrestricted flow through the vent while allowing effective condensate discharge via the orifice located at the top of the trap. Available connection options include threaded, flanged, PN40, and PN100 configurations, making it versatile for various industrial piping systems.

Quantity:
Material:	Cast Iron
Size:	DN15 DN20 DN25
connection:	Screwed Flanged
Availability:





Inquire Add to Basket

Model:
BVSW
Brand:
Steam

Product Description

Technical Parameters

Company Description

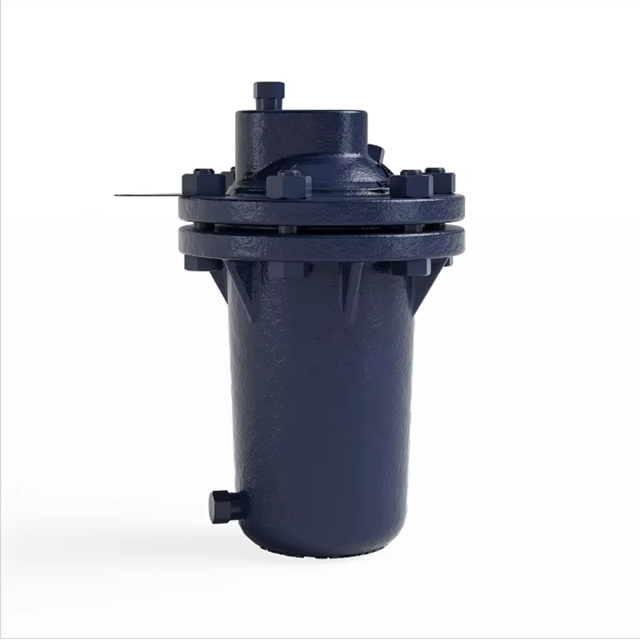

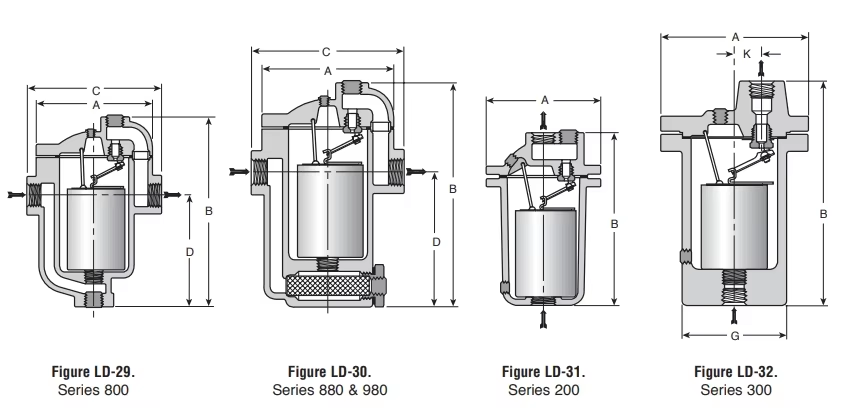

inverted bucket drain valve

1.Heavy Contaminant Resistance

Engineered for environments with heavy oil, sludge, and solid particles, ensuring stable performance under harsh conditions.

2.Enlarged Bucket Vent with Scrub Wire

The unique vent design, combined with a built-in scrub wire, maintains free flow through the vent and prevents clogging, even in dirty systems.

3.Efficient Discharge via Top Orifice

Condensate is discharged through a dedicated orifice at the top of the trap, improving drainage efficiency and reducing backflow risk.

4.Multiple Connection Options

Available in threaded, flanged, PN40, and PN100 connections to suit different piping standards and installation requirements.

5.Robust Construction for Longevity

Built with durable materials to withstand high pressure, temperature, and corrosive elements, ensuring a long service life.

6.Reliable Operation Without Electricity

Operates on a mechanical free-floating mechanism, requiring no external power source, which reduces energy costs and increases reliability.

7.Suitable for Oily & Dirty Steam Systems

Ideal for industries such as petrochemical, marine, and heavy manufacturing where oil and debris are common in condensate.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

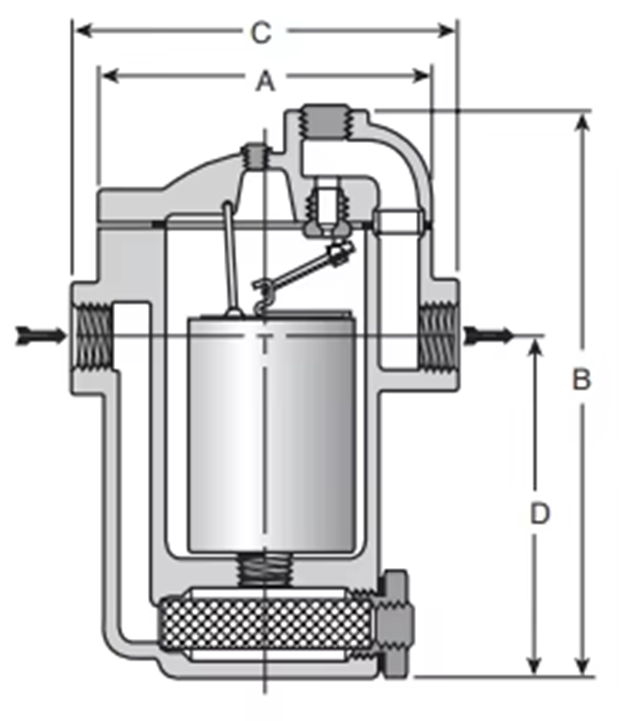

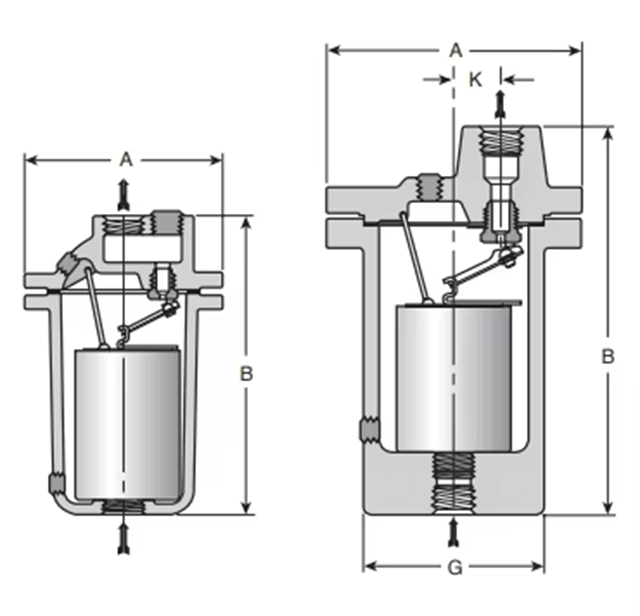

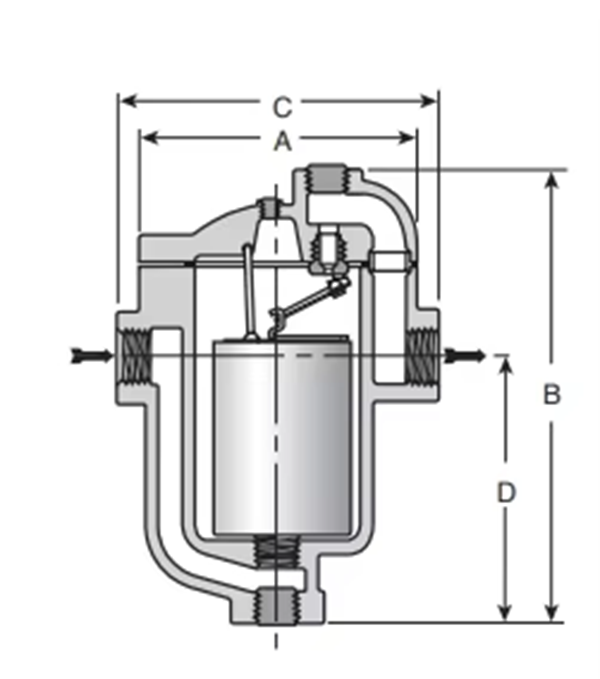

Drain valve Application Configuration Diagram

drain valve conveyance drawing

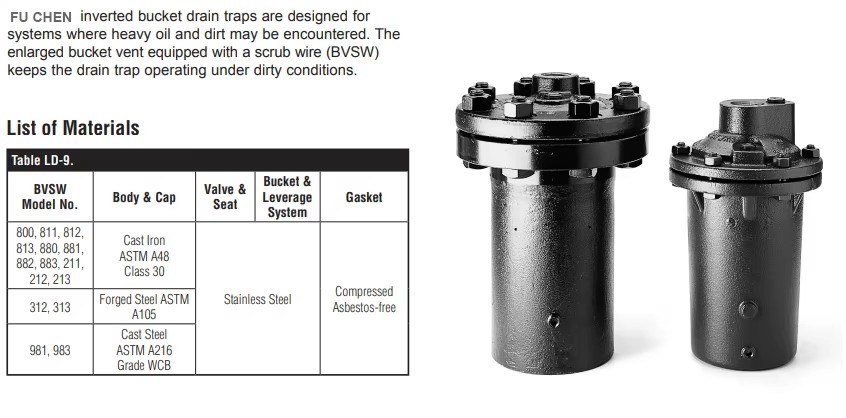

inverted bucket drain valve

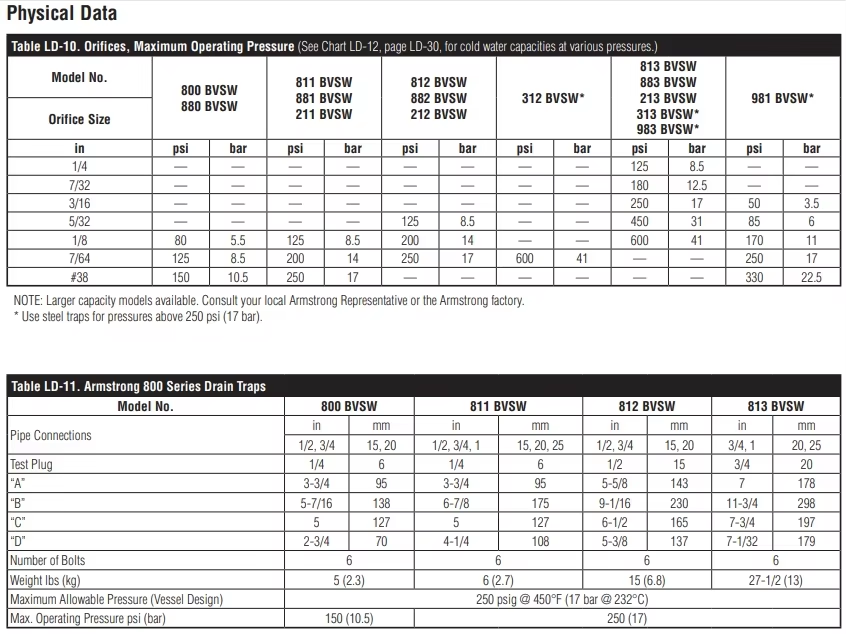

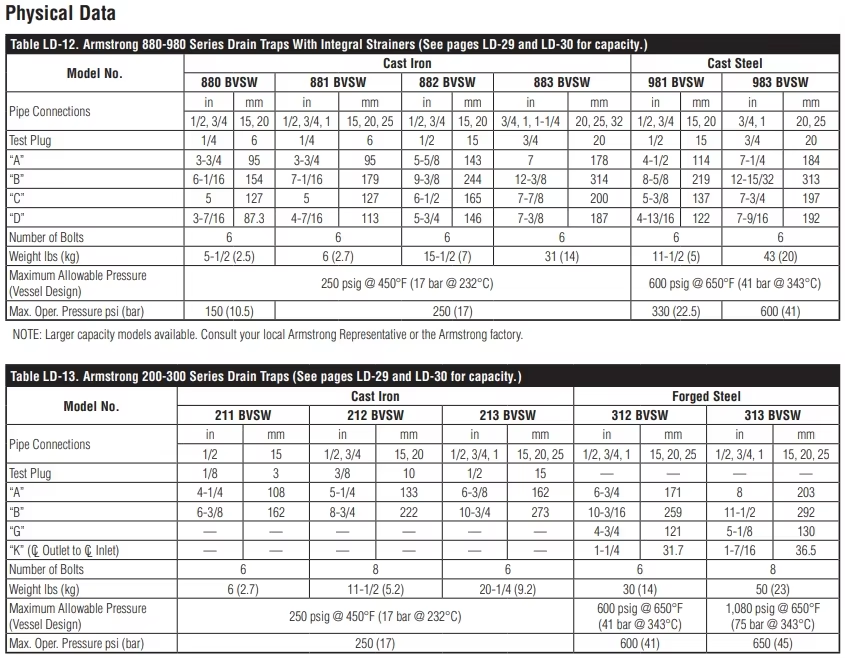

PRODUCT SPECIFICATIONS

Model	211 BVSW	212 BVSW	213 BVSW
Maximum Capacity	7,000 lb/hr (3,175 kg/hr)	7,000 lb/hr (3,175 kg/hr)	7,000 lb/hr (3,175 kg/hr)
Maximum Allowable Pressure	250 psig @ 450°F (17 bar @ 232°C)	250 psig @ 450°F (17 bar @ 232°C)	250 psig @ 450°F (17 bar @ 232°C)
Body Material	ASTM A48 Class 30 Cast Iron	ASTM A48 Class 30 Cast Iron	ASTM A48 Class 30 Cast Iron
Connection Type	Screwed Flanged PN40 or PN100	Screwed Flanged PN40 or PN100	Screwed Flanged PN40 or PN100
Connection Sizes	1/2″ (15 mm)	1/2″ (15 mm) 3/4″ (20 mm)	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm)
