Heat exchangers are key equipment in industrial thermal systems and are widely used in petrochemical, power generation, metallurgy, pharmaceutical, food processing, and HVAC industries. Among various types, plate heat exchangers and shell-and-tube heat exchangers are the two most commonly used configurations.
Although both are designed to transfer heat between different media, they differ significantly in structure, heat transfer efficiency, applicable operating conditions, and maintenance requirements. Selecting the correct type has a direct impact on system efficiency, investment cost, and operational stability.

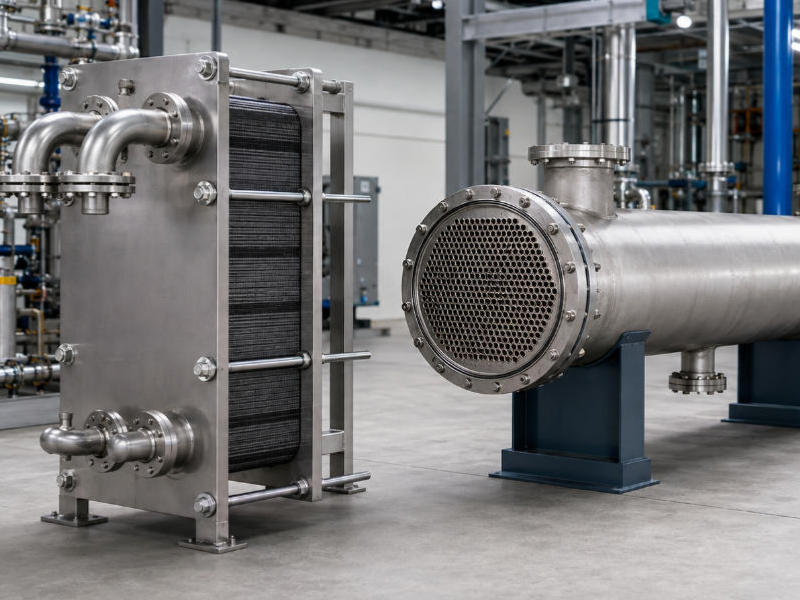

A plate heat exchanger consists of multiple thin metal plates stacked together. The plates form narrow channels where hot and cold fluids flow in adjacent paths, enabling efficient heat transfer.
A shell-and-tube heat exchanger consists of a bundle of tubes enclosed in a shell. One fluid flows inside the tubes, while the other flows outside the tubes within the shell, allowing heat exchange through the tube walls.
The fundamental difference lies in the heat transfer mechanism: plate heat exchangers rely on enhanced surface contact, while shell-and-tube heat exchangers rely on indirect tube-wall heat transfer.
Plate heat exchangers are composed of corrugated metal plates stacked to form multiple channels. Gaskets or welded seals separate the flow paths between plates.
This structure provides a very large heat transfer surface area within a compact volume, significantly improving thermal efficiency. The equipment is compact and occupies minimal installation space.
Shell-and-tube heat exchangers consist of numerous tubes fixed into tube sheets, all enclosed within a cylindrical shell. Baffles are installed inside the shell to improve fluid turbulence and heat transfer efficiency.
This structure is mechanically robust and suitable for high-pressure and high-temperature applications, but its volumetric heat transfer efficiency is lower compared to plate heat exchangers.
Plate heat exchangers offer significantly higher heat transfer coefficients due to strong turbulence and narrow flow channels.
The heat transfer process can be expressed as:
Q=UAΔT
Because of higher U-values, plate heat exchangers deliver superior thermal performance compared to shell-and-tube designs.
Plate heat exchangers typically have higher pressure drops due to narrow flow channels, while shell-and-tube heat exchangers provide lower resistance and are more suitable for high-flow applications.
Shell-and-tube heat exchangers are better suited for high-pressure and high-temperature conditions due to their robust mechanical structure. Plate heat exchangers are generally used in low-to-medium pressure systems.
Item | Plate Heat Exchanger | Shell-and-Tube Heat Exchanger |
Structure | Stacked corrugated plates | Tube bundle + shell |
Heat Transfer Efficiency | High | Medium |
Footprint | Compact | Large |
Pressure Drop | Higher | Lower |
Pressure Resistance | Medium to low | High |
Maintenance | Easy disassembly and cleaning | More complex cleaning |
Initial Cost | Lower | Higher |
Service Life | Affected by gasket aging | Long service life |
Plate heat exchangers are ideal for applications requiring high efficiency and limited space, such as HVAC systems, food processing cooling, pharmaceutical processes, and general industrial water-to-water heat exchange systems.
They are also suitable for systems requiring frequent cleaning or maintenance due to their easy disassembly design.
Shell-and-tube heat exchangers are widely used in high-temperature, high-pressure, or fouling-prone environments such as petrochemical refining, steam systems, chemical processing, and large power plant condensers.
They offer strong structural stability and are suitable for continuous long-term operation under harsh conditions.
Plate heat exchangers are designed for easy disassembly, allowing quick cleaning of plates and replacement of gaskets. This significantly improves maintenance efficiency.
However, sealing gaskets may degrade over time under high temperature, requiring periodic inspection and replacement.
Shell-and-tube heat exchangers are more complex to clean, often requiring tube bundle removal or chemical cleaning methods.
However, due to fewer sealing components, they generally offer a longer service life and are suitable for continuous operation systems.
From an energy efficiency perspective, plate heat exchangers have higher heat transfer coefficients, allowing smaller equipment size and lower energy consumption for the same heat duty.
From an investment perspective, plate heat exchangers typically have lower initial costs, but may require parallel units in large-scale systems. Shell-and-tube heat exchangers require higher initial investment but offer better long-term operational stability.
For high-pressure and high-temperature applications, shell-and-tube heat exchangers are preferred due to their strong structural integrity. Plate heat exchangers are more suitable for low to medium pressure systems.
For fluids containing particulates or prone to scaling, shell-and-tube heat exchangers are more suitable because of their larger flow channels and easier cleaning capability. Plate heat exchangers are better suited for clean fluids such as treated water or process liquids.
In space-limited environments, plate heat exchangers are preferred due to their compact design. Shell-and-tube heat exchangers require more installation space and are better suited for large fixed industrial systems.
For systems requiring frequent cleaning and maintenance, plate heat exchangers offer clear advantages due to their easy disassembly.
For long-term continuous operation with minimal downtime, shell-and-tube heat exchangers provide better reliability and durability.
Plate heat exchangers and shell-and-tube heat exchangers each have their own strengths and limitations. There is no absolute superiority between the two; the key lies in proper application matching.
Plate heat exchangers are characterized by high efficiency and compact structure, making them ideal for medium and low-pressure systems with high thermal performance requirements. Shell-and-tube heat exchangers are known for durability and high-pressure resistance, making them suitable for harsh industrial environments.
In practical engineering applications, selection should be based on heat transfer efficiency, pressure conditions, fluid characteristics, maintenance costs, and system lifespan to achieve an optimal balance between performance and economy.
