In modern urban energy systems, natural gas has become one of the most important energy sources for residential, commercial, and industrial fuel needs. Within the entire urban gas transmission and distribution system, natural gas valves play crucial roles in flow control, pressure regulation, system isolation, and safety shut-off, making them core equipment for ensuring safe gas operation.
Due to the flammability, explosiveness, and high diffusivity of natural gas, urban gas systems place extremely high demands on the sealing performance, reliability, and corrosion resistance of valves. Therefore, a scientific understanding of the structural characteristics and application scenarios of different types of natural gas valves is of great significance for engineering design and operation and maintenance.
In urban gas pipeline networks, valves are not merely simple switching components, but rather "control nodes" for system operation. Its main functions include:
regulating gas flow and maintaining stable pressure in different areas;
isolating pipeline sections during maintenance to ensure construction safety;
quickly cutting off the gas supply under abnormal operating conditions to prevent the accident from escalating;
cooperating with the pressure regulating system to achieve tiered gas supply control.
From an overall structural perspective, urban gas systems typically consist of high-pressure gas transmission trunk lines, regional distribution networks, and end users. Valves are integrated across all levels and are the infrastructure for achieving zoned control and safety interlocking.
In engineering applications, natural gas valves, based on their structural form and control method, mainly include ball valves, gate valves, stop valves, pressure regulating valves, and safety shut-off valves, each type performing different functions within the system.
Ball valves are one of the most widely used valve types in urban gas systems. Internally, they achieve opening and closing control through a ball with a through-hole that rotates 90°.
In trunk pipelines and branch networks, ball valves are typically used at critical locations requiring rapid gas supply cut-off, such as pipeline segmentation points, pressure regulating station inlets, and accident isolation points. Its greatest engineering advantage lies in its fast opening and closing speed, high sealing performance, and low operating torque, meeting the safety requirements of gas systems for rapid response.
In practical engineering, gas ball valves mostly adopt a fully welded or flanged connection structure and are equipped with anti-static and fireproof designs to address safety risks in the natural gas operating environment.
Gate valves control the flow of media by raising and lowering a gate. Their biggest advantage is a straight flow path and minimal flow resistance, making them ideal for long-distance gas pipelines.
In urban trunk gas transmission systems, gate valves are commonly used in scenarios requiring low pressure loss, such as high-pressure gas trunk lines or large regional distribution nodes. However, a significant limitation of gate valves is their unsuitability for frequent flow regulation, as erosion can easily occur in the partially open state, leading to accelerated wear of the sealing surface.
Furthermore, gate valves have a relatively slow opening and closing speed, thus they are gradually being replaced by ball valves in emergency shut-off applications, but they still have some application value in stable trunk pipeline networks.
Gate valves regulate flow through the contact between the valve disc and seat, offering good throttling capabilities and making them suitable for branch systems requiring precise flow control.
In city gas systems, gate valves are typically used at the front end of pressure regulating equipment or at local branch control points for fine-tuning flow. However, due to their internal baffle structure, they experience significant flow resistance, making them unsuitable for high-flow-rate main pipelines.
From an engineering perspective, gate valves are more of a "regulating valve" than a "main control or shut-off valve."
Pressure regulating valves are a crucial type of control valve in city gas systems. Their core function is to stably regulate the higher-pressure natural gas upstream to the required downstream operating pressure.
In city gate stations and regional pressure regulating stations, pressure regulating valves typically work in conjunction with pressure sensing devices, automatically adjusting their opening by monitoring downstream pressure changes in real time to achieve stable output.
In actual operation, the control accuracy of pressure regulating valves directly affects the gas safety and equipment stability of residential and industrial users. Therefore, they usually need to be used in conjunction with high-precision actuators and stable control systems.
Safety shut-off valves are mainly used for emergency protection under abnormal operating conditions. When the system experiences overpressure, leakage, or control abnormalities, this valve can automatically or remotely trigger closure to isolate the gas source.

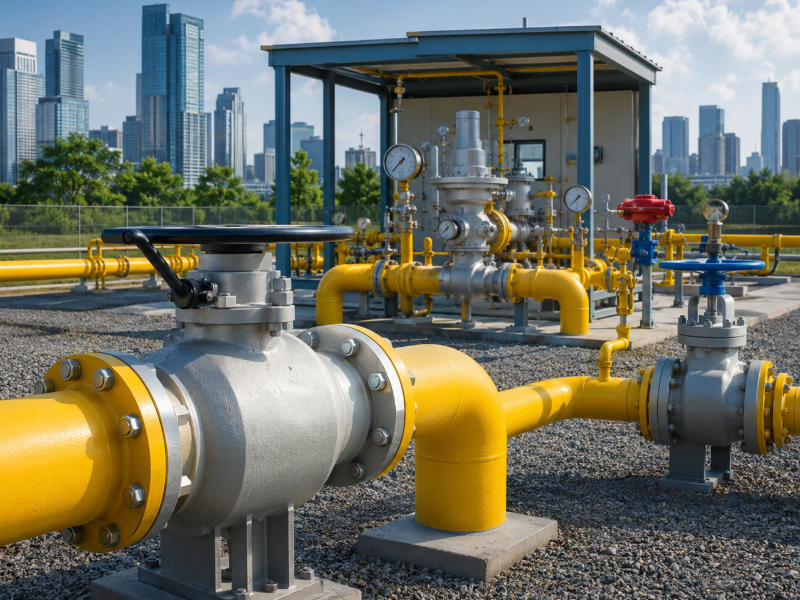

In urban gas systems, safety shut-off valves are usually installed in conjunction with the pressure regulating system and are core safety equipment at gate stations, pressure regulating stations, and important user nodes.
Their design focuses on rapid response capability and high-reliability sealing performance, ensuring effective gas flow cut-off even in extreme conditions to prevent the accident from escalating.
In actual engineering, different types of valves are arranged in different levels of the pipeline network according to their functions, forming a complete control system.
In urban gas gate stations, pressure regulating valves and safety shut-off valves are typically used in combination to achieve both pressure regulation and safety protection functions. In the main pipeline network, ball valves and gate valves are responsible for sectional control and network isolation. In regional pressure regulating stations, pressure regulating valves are the core component, achieving step-by-step pressure reduction and stable output. In residential and commercial terminal systems, small ball valves are mainly used for daily on/off control and emergency shut-off.
This layered arrangement forms a complete control chain for the entire urban gas system: "high-pressure transmission—regional pressure regulation—terminal use."
In actual engineering design, valve selection cannot be based on a single parameter but requires comprehensive consideration of multiple factors.
Firstly, the pressure rating is crucial. High-pressure systems typically require the use of all-welded ball valves or high-performance pressure regulating valves with higher structural strength. Secondly, the characteristics of the medium are important. Natural gas may contain sulfides, moisture, etc., so stainless steel or corrosion-resistant alloys are usually selected for valve materials to improve service life.
Furthermore, safety level is also a critical factor. Key nodes must be equipped with automatic shut-off and interlocking protection functions to meet urban gas safety regulations. Simultaneously, valve selection should be based on operating frequency. For example, ball valves are more suitable for systems with frequent opening and closing, while gate valves can be used in low-frequency operating systems to reduce costs.
In the operation of urban gas systems, valve performance depends not only on the product itself but also on system design and operation and maintenance.
Firstly, the distribution density of valves in the pipeline network should be rationally planned to ensure that key nodes have reliable shut-off and regulation capabilities. Secondly, strict airtightness testing must be conducted during the installation phase to avoid early leakage risks due to construction problems.
Furthermore, it is recommended to introduce intelligent monitoring systems at important gate stations and pressure regulating stations to monitor valve opening, pressure changes, and abnormal states in real time, thereby improving the overall safety level and response efficiency of the system.
Natural gas valves in urban gas systems undertake key functions such as flow control, safety shut-off, and pressure regulation. Their main types include ball valves, gate valves, globe valves, pressure regulating valves, and safety shut-off valves.
In practical engineering applications, scientific selection based on pipeline structure, pressure level, and safety requirements is necessary, along with a comprehensive monitoring and maintenance system, to ensure the long-term stable and safe operation of urban gas systems.
As urban gas systems develop towards intelligence and precision, natural gas valves are also gradually upgrading towards higher reliability, automatic control, and remote monitoring, further enhancing their role in modern urban energy systems.
