Common Industrial Steam System Problems And Troubleshooting Methods

An industrial steam system consists of a boiler, steam distribution pipes, pressure-reducing equipment, control valves, heat users, steam traps, and a condensate return system. A fault in any one of these areas may result in low pressure, slow heating, steam leakage, water hammer, unstable production, or excessive energy consumption.

Steam system troubleshooting should not focus only on the equipment where the problem becomes visible. A more reliable method is to inspect the complete process of steam generation, distribution, pressure control, heat transfer, condensate discharge, and condensate recovery.

1. Insufficient or Unstable Steam Pressure

Low steam pressure may be caused by inadequate boiler output, excessive pressure loss, sudden load changes, leakage, or malfunctioning control equipment.

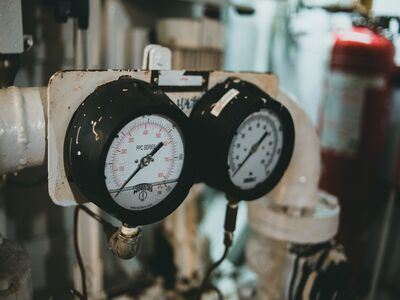

The first step should be to verify the accuracy of the instruments. If a pressure gauge provides an incorrect reading, subsequent troubleshooting may be misleading.

After confirming instrument accuracy, measure the pressure at the boiler outlet, main distribution line, pressure-reducing station, and equipment inlet. These measurements can help identify the section in which the abnormal pressure loss occurs.

2. Slow Heating of Steam-Using Equipment

Slow heating in heat exchangers, jacketed vessels, dryers, or steam coils is not always caused by low supply pressure. Air accumulation, condensate backup, fouled heat-transfer surfaces, and incorrect control-valve selection can all reduce heating performance.

Air is especially important. A pressure gauge measures the total pressure of the steam-air mixture, but the steam saturation temperature is determined by the partial pressure of the steam. Therefore, the gauge may indicate an apparently normal pressure while the actual steam temperature remains below the expected value.

A practical inspection sequence is:

• Measure the steam pressure and temperature at the equipment inlet.

• Compare the readings with the expected saturated steam condition.

• Check whether automatic air vents are operating correctly.

• Inspect high points where air may become trapped.

• Check whether the steam trap is blocked or undersized.

• Measure condensate return pressure and equipment outlet pressure.

• Inspect heat-transfer surfaces for scale, fouling, or product deposits.

• Verify the control-valve size, opening position, and operating range.

If the equipment drains properly at high load but floods at low load, the problem may be caused by heat-exchanger stall.

When a temperature control valve closes partially, the pressure inside the steam space decreases. If it falls below the pressure in the condensate return line, the steam trap no longer has sufficient differential pressure to discharge condensate.

Installing a larger steam trap will not necessarily solve this problem. Possible solutions include reducing return-line backpressure, providing gravity drainage, or using a mechanical pump trap.

3. Water Hammer in Steam Pipes

Water hammer may produce repetitive metallic knocking, violent vibration, or a sudden impact inside the piping. It can occur when a high-velocity condensate slug strikes an elbow, valve, or other obstruction. It can also occur when steam rapidly condenses in cooler condensate, causing an abrupt volume reduction and pressure disturbance.

Water hammer should never be treated as a normal operating condition. Severe incidents can damage pipes, valve bodies, flanges, gaskets, supports, and process equipment.

Common causes include:

• Incorrect pipeline slope;

• Condensate collecting at low points;

• Insufficient drain pockets;

• Blocked, isolated, or undersized steam traps;

• Opening a main steam valve too quickly;

• Supplying steam rapidly to a cold pipeline;

• Poor pipe support or alignment;

• Steam and cold condensate mixing in a return line;

• Undersized condensate return pipes;

• Excessive condensate backpressure.

Troubleshooting should begin by inspecting low points, elbows, valve inlets, pipe reductions, and long horizontal sections. Operators should also check whether the water hammer occurs during startup, at a specific production load, or after a control valve changes position.

During cold startup, drainage and warm-up arrangements should be opened as required. Steam should then be introduced gradually so that the pipe can heat evenly and condensate can be removed safely.

No steam trap, valve, or pipe fitting should be dismantled until the relevant section has been isolated, depressurized, drained, and cooled.

4. Steam Trap Failure

Steam trap faults generally fall into two categories: failure closed and failure open.

A trap that fails closed prevents condensate from leaving the equipment. A trap that fails open allows live steam to enter the condensate return system.

Outlet temperature alone is not enough to determine whether a steam trap is leaking. Hot condensate may partially re-evaporate into flash steam when it enters a lower-pressure return line, producing a high temperature and visible vapor even when the trap is operating correctly.

A more reliable diagnosis combines temperature measurement, ultrasonic signals, pressure differential, discharge patterns, and trap operating principles.

5. Steam Leakage and Excessive Energy Consumption

Steam leaks commonly occur at:

• Valve-stem packing;

• Flange connections;

• Threaded joints;

• Bypass valves;

• Damaged gaskets;

• Failed steam traps;

• Corroded pipes;

• Expansion joints.

Even a relatively small steam leak can lead to significant long-term losses of heat, treated boiler water, and chemical additives. It may also increase boiler fuel consumption and place additional load on the makeup-water and water-treatment systems.

Inspection methods include visual observation, acoustic detection, ultrasonic testing, and infrared thermography. However, high-pressure steam leaks are not always visible. Under certain conditions, the escaping jet may be difficult to see.

Personnel should never use their hands or body to locate a suspected steam leak. Repair work should begin only after the affected section has been isolated, depressurized, drained, and cooled according to the facility’s safety procedures.

6. Unstable Pressure Downstream of a Pressure-Reducing Valve

A pressure-reducing valve may produce an outlet pressure that is too high, too low, or continuously fluctuating.

Possible causes include:

• An oversized pressure-reducing valve;

• Operation below the valve’s controllable flow range;

• Dirt trapped between the valve plug and seat;

• Erosion caused by wet steam;

• A blocked or incorrectly installed pressure-sensing line;

• Excessive fluctuations in upstream pressure;

• Incorrect pressure setting;

• A leaking bypass valve;

• Abnormal downstream demand;

• Poor installation arrangement.

Measurements should be taken simultaneously for upstream pressure, downstream pressure, and steam flow. If the outlet pressure fluctuates mainly at low loads, the valve may be oversized or operating outside its effective control range.

Wet steam can accelerate erosion of the valve trim. For this reason, a correctly selected steam-water separator and steam trap station may be installed upstream of a pressure-reducing valve.

7. Poor Condensate Recovery

A condensate return system may experience excessive venting, noise, backpressure, low recovery volume, or repeated water hammer.

High-pressure condensate passing through a steam trap enters a lower-pressure return system. Because of the pressure reduction, some of the hot condensate immediately re-evaporates and becomes flash steam.

The return pipe must therefore carry both liquid condensate and flash steam. Sizing the line according to liquid flow alone can result in an undersized pipe.

An undersized return line may cause:

• High flow velocity;

• Increased return-line pressure;

• Excessive noise;

• Water hammer;

• Reduced steam trap capacity;

• Condensate backup into heat exchangers;

• Unstable operation of several connected machines.

If multiple items of equipment begin flooding at the same time, the individual steam traps may not be the root cause. The shared condensate return main may be restricted, undersized, or exposed to excessive backpressure.

Troubleshooting should include:

• Measuring the return-line pressure.

• Checking pipe size and elevation.

• Inspecting check valves and isolation valves.

• Confirming the destination of flash steam.

• Checking the condensate receiver vent.

• Comparing the available trap differential pressure with the design requirement.

• Determining whether a pumped return system is necessary.

8. Wet Steam at Process Equipment

Wet steam at the point of use may result from poor boiler operation, distribution-pipe condensation, insufficient drainage, or excessive steam velocity.

Possible signs include:

• Unstable process temperature;

• Erosion of control-valve components;

• Incorrect steam flow measurement;

• Water hammer near the equipment;

• Reduced heating capacity;

• Product-quality variation;

• Unusual moisture discharge during startup.

The inspection should cover the complete steam path. Check the boiler water level and water chemistry, main-line insulation, pipeline slope, drain pockets, steam traps, separator performance, and steam velocity.

A steam separator can remove suspended droplets, but it cannot compensate for severely undersized piping, major boiler-water carryover, or a blocked condensate system.

9. A Systematic Steam System Troubleshooting Procedure

A structured troubleshooting procedure can reduce unnecessary component replacement and shorten production downtime.

Clearly define the fault, affected equipment, and time of occurrence.

Confirm the accuracy of pressure, temperature, and flow instruments.

Begin at the boiler outlet and inspect the system in the steam-flow direction.

Measure pressure and temperature at several points.

Check valve positions, strainers, and visible leakage.

Inspect steam separators and steam traps.

Compare equipment inlet pressure with condensate outlet pressure.

Check the condensate return main for excessive backpressure.

Review recent operating changes, maintenance work, and load variations.

Record readings before and after corrective action.

Identify the root cause and update the inspection plan.

Troubleshooting should be based on measured data instead of relying only on noise, visible vapor, or surface temperature. A fault that appears at one machine may originate in a shared steam main or condensate return pipe.

10. Preventive Maintenance Recommendations

A preventive maintenance program should include:

Conclusion

Low pressure, slow heating, water hammer, failed steam traps, pressure-control instability, and poor condensate recovery are often connected rather than isolated problems.

Effective troubleshooting should follow the entire steam and condensate flow path, using reliable pressure, temperature, flow, and ultrasonic measurements. Replacing a single valve or steam trap without identifying the underlying cause may provide only temporary improvement.

By combining correct system design, proper operating procedures, routine inspection, and data-based fault diagnosis, industrial facilities can improve steam reliability, reduce energy consumption, extend equipment life, and maintain safer production conditions.
