FT14HC-III Threaded Float Steam Trap | PN16 for Industrial Steam Heating Equipment Condensate Drainage

FT14HC-III Threaded Float Steam Trap | PN16 for Industrial Steam Heating Equipment Condensate Drainage

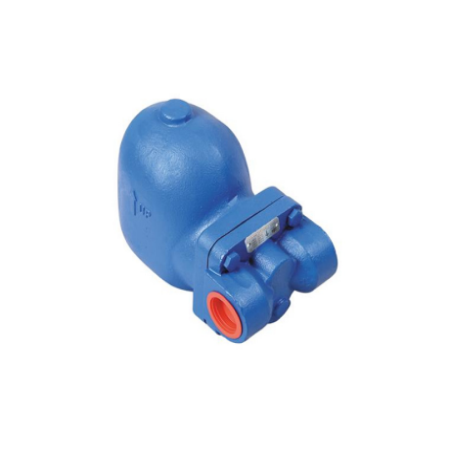

The FT14HC-III threaded float steam trap is a reliable condensate drainage device designed for industrial steam systems.Featuring a hemispherical ball seal and lever-controlled float mechanism, it continuously discharges saturated condensate without steam leakage, maintaining a water seal to prevent air locking. The X-series air vent efficiently removes non-condensable gases, ensuring stable operation under fluctuating steam pressure. Available in DN20–DN32 BSP threaded connections (customizable to BSPT/NPT standards), it is ideal for heating equipment, condensate recovery systems, and steam pipelines to maximize heating efficiency.

Quantity:
Size:	DN20 DN25 DN32
Material:	Carbon Steel SS304 WCB Ductile Iron
Availability:





Inquire Add to Basket

Model:
FT14HC

Product Description

Technical Parameters

Company Description

Description

1.This valve provides rapid, timely, and continuous discharge of saturated condensate, ensuring no water accumulation within theheating equipment and achieving maximum heating efficiency.

2.The valve core and seat sealing surfaces are made of cobalt-chromium-tungsten alloy, which is wear-resistant, corrosion-resistant, and durable.

3.The seal utilizes a semi-spherical structure, which has been carefully matched and polished for excellent sealing performance.

4.The semi-spherical seal eliminates concentrated wear during operation and provides a long service life.

5.A float-driven lever automatically adjusts the opening of the drain valve seat, ensuring continuous operation and stable performance despite fluctuations in steam pressure. hot gases, eliminating vapor lock and providing excellent non-condensable gas removal performance.

6.The X-series element automatically drains non-condensablecold and hot gases, eliminating vapor lock and providingexcellent non-condensable gas removal performance.

7.The drain valve seat is always below the condensate level forming a water seal and preventing fresh steam leakage during operation.

8.Continuous condensate discharge with a smooth flow isparticularly effective in condensate recovery systems.

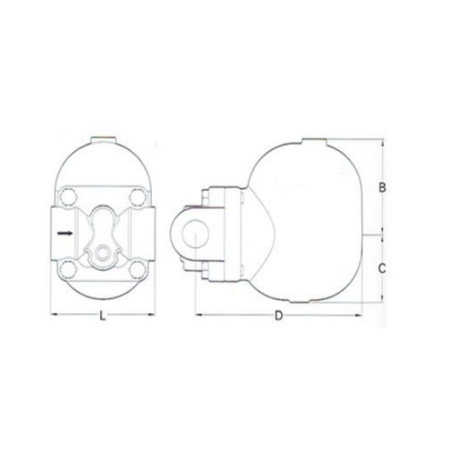

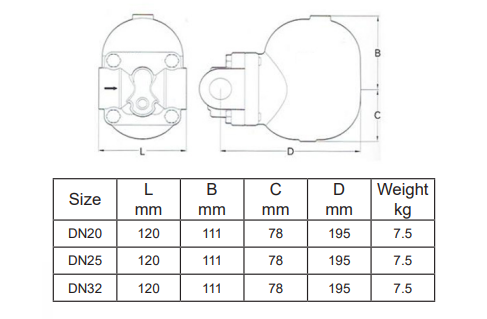

Dimensions

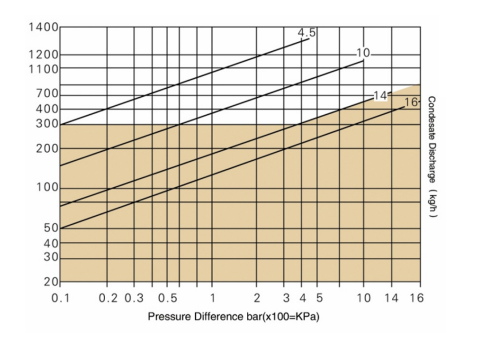

Displacement diagram
