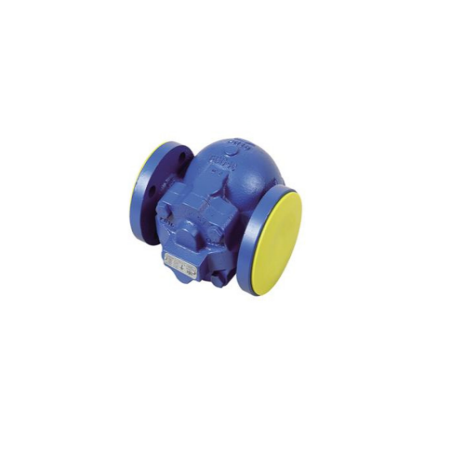

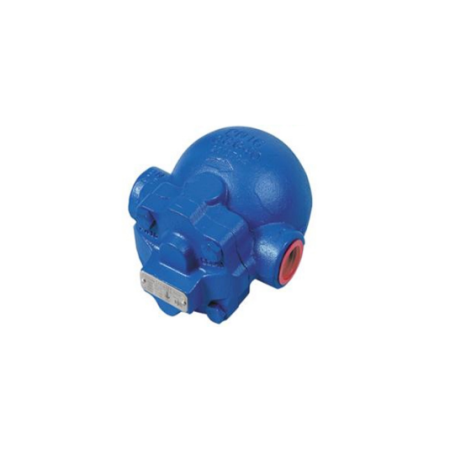

FT14 Series Float Steam Trap Anti-Steam Leakage for Boiler & Heating Unit Condensate Removal

Home » Products » Steam Valves » Floating Ball Type Drain Valve » FT14 Series Float Steam Trap Anti-Steam Leakage for Boiler & Heating Unit Condensate Removal

FT14 Series Float Steam Trap Anti-Steam Leakage for Boiler & Heating Unit Condensate Removal

FT14 Series Float Steam Trap Anti-Steam Leakage for Boiler & Heating Unit Condensate Removal

The FT14 series float steam trap is a high-performance condensate drainage device designed for industrial steam systems.it offers exceptional wear resistance and corrosion durability, with a maximum operating pressure of PN16 and temperature of 232°C.Featuring a hemispherical ball seal and lever-controlled float mechanism, it continuously discharges saturated condensate without steam leakage, maintaining a water seal to prevent air locking.it is ideal for heating equipment, condensate recovery systems, and steam pipelines to maximize heating efficiency.

Quantity:
Size:	DN15 DN20 DN25
Material:	Carbon Steel SS304 WCB Ductile Iron
connection:	Flange Screwed
Availability:





Inquire Add to Basket

Model:
FT14 series

Product Description

Technical Parameters

Company Description

Description

1.This valve provides rapid, timely, and continuous discharge of saturated condensate, ensuring no water accumulation within theheating equipment and achieving maximum heating efficiency.

2.The valve core and seat sealing surfaces are made of cobalt-chromium-tungsten alloy, which is wear-resistant, corrosion-resistant, and durable.

3.The seal utilizes a semi-spherical structure, which has been carefully matched and polished for excellent sealing performance.

4.The semi-spherical seal eliminates concentrated wear during operation and provides a long service life.

5.A float-driven lever automatically adjusts the opening of the drain valve seat, ensuring continuous operation and stable performance despite fluctuations in steam pressure. hot gases, eliminating vapor lock and providing excellent non-condensable gas removal performance.

6.The X-series element automatically drains non-condensablecold and hot gases, eliminating vapor lock and providingexcellent non-condensable gas removal performance.

7.The drain valve seat is always below the condensate level forming a water seal and preventing fresh steam leakage during operation.

8.Continuous condensate discharge with a smooth flow isparticularly effective in condensate recovery systems.

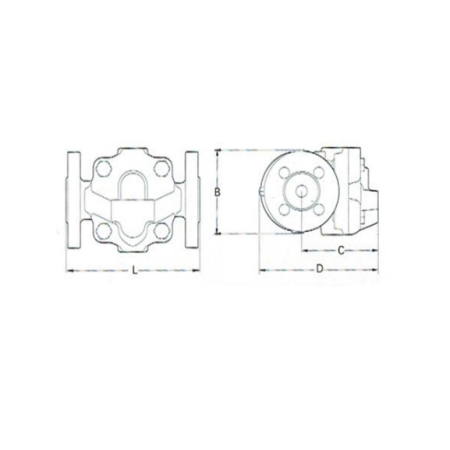

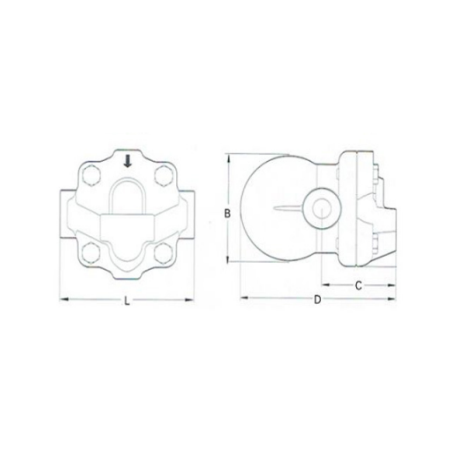

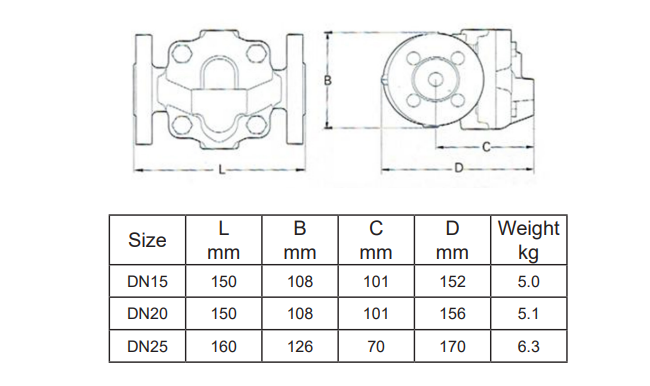

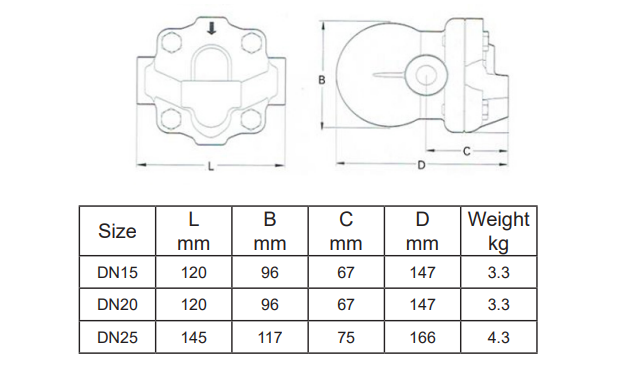

Dimensions

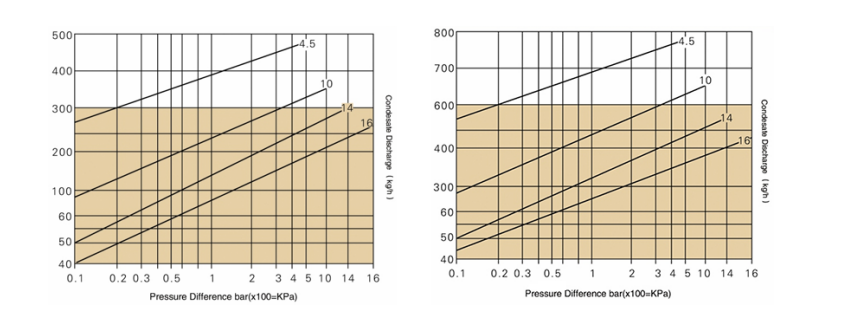

Displacement diagram
