Author: Site Editor Publish Time: 2026-06-09 Origin: Site
In modern industrial piping systems, industrial valves are essential devices used to control fluid direction, pressure, flow rate, and distribution. They are widely applied in industries such as petrochemicals, power generation, metallurgy, water treatment, pharmaceuticals, and food processing. Industrial valves are critical components that ensure safe and stable system operation.
Proper valve selection directly affects system energy efficiency, control accuracy, and service life. Therefore, understanding valve types and scientific selection principles is essential for engineering design and procurement.
The core function of industrial valves is to control and protect fluid systems. Their main roles include:
Opening and closing fluid passages
Regulating flow and pressure for stable processes
Preventing backflow to protect equipment
Distributing or switching fluid flow paths
In industrial applications, valves are not just simple “on/off” devices, but key actuators in automated control systems.
Industrial valves come in various forms depending on structure, operating principle, and control method. Different valves vary significantly in flow control capability, sealing performance, pressure adaptability, and service life, so selection must be based on actual operating conditions.
A globe valve controls flow by moving a disc vertically along the valve seat axis. It offers good throttling performance and is suitable for processes requiring precise flow regulation, such as steam systems and chemical reactions.
However, due to its S-shaped flow path, it has relatively high flow resistance and energy loss. It is not suitable for large-flow or long-distance transmission systems. In frequent throttling conditions, internal components may wear faster.
A gate valve operates by lifting or lowering a gate to achieve full open or full close. Its main advantage is extremely low flow resistance, making it ideal for oil, gas, and large pipeline systems.
However, it is not suitable for frequent throttling operations. When operated in a partially open state, vibration and erosion may damage sealing surfaces. It is mainly used for isolation rather than precise control.
A ball valve controls flow by rotating a perforated ball. It features compact structure, fast operation, and excellent sealing performance, making it widely used in oil, gas, and high-pressure systems.
Although highly reliable, it is not ideal for throttling. Long-term operation in partially open positions may cause wear on the ball and seat, so it is better suited for quick shut-off applications.
A butterfly valve regulates flow by rotating a disc. It has a simple structure, low weight, and low cost, making it ideal for large-diameter pipelines such as water supply and HVAC systems.
However, sealing performance is relatively moderate, and it is not suitable for high-pressure or high-sealing applications. Flow instability may also occur at low opening positions.

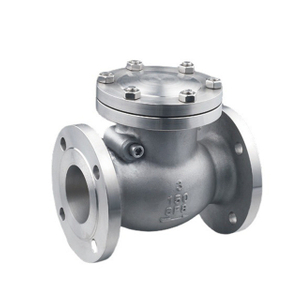

A check valve prevents backflow by automatically opening or closing based on fluid pressure. It is commonly used at pump outlets to protect equipment systems.
Different types include swing, lift, and wafer check valves. Incorrect installation or improper flow conditions may lead to water hammer or delayed closing.
A control valve is a key component in automation systems. It precisely regulates flow, pressure, or temperature based on control signals (such as 4–20 mA).
Unlike standard valves, control valves require not only on/off functionality but also stable flow characteristics and fast dynamic response. Positioners are often required to improve accuracy and stability.
Valve Type | Main Function | Control Ability | Sealing Performance | Pressure Range | Typical Applications |
Globe Valve | Throttling + On/Off | High | Good | Medium-High | Chemical, steam systems |
Gate Valve | On/Off | Low | Excellent | High | Oil pipelines |
Ball Valve | Quick shut-off | Medium | Excellent | Medium-High | Gas, petrochemical |
Butterfly Valve | Large flow control | Medium | Moderate | Low-Medium | Water systems |
Check Valve | Prevent backflow | None | Good | Full range | Pump systems |
Control Valve | Automatic control | Very High | Good | Medium-High | Process automation systems |
The first step is to clearly define fluid type, temperature, pressure, flow rate, and corrosion characteristics. These parameters determine valve structure and material selection. Incorrect analysis may lead to reduced lifespan or unstable operation.
Different valves serve different purposes. For example, globe valves are suitable for throttling, gate valves for isolation, and control valves for automatic regulation. Selection must match actual process needs rather than cost or habit.
Whether the fluid contains particles, is corrosive, or has high viscosity greatly affects valve performance. For example, particle-laden fluids require erosion-resistant designs, while corrosive media require stainless steel or alloy materials.
Different valves have different pressure and temperature limits. High-pressure systems typically require robust gate or ball valves, while high-temperature applications require materials with strong thermal stability.
Valves can be manual, electric, pneumatic, or hydraulic. In automated systems, pneumatic or electric actuators are commonly used for remote and precise control.
Common materials include:
Carbon Steel: Suitable for general water and steam systems
Stainless Steel (304/316): Suitable for corrosive and food-grade applications
Alloy Steel: Suitable for high-temperature and high-pressure conditions
Plastics (PVC/PTFE): Suitable for low-pressure corrosive fluids
Material selection must consider cost, fluid properties, and operating environment.
Incorrect valve selection is a major cause of system inefficiency, equipment failure, and even safety risks. Many issues are not caused by valve quality but by improper selection.
Many projects prioritize initial cost over process compatibility. Using carbon steel valves in corrosive or high-temperature environments may reduce upfront cost but often leads to leakage, corrosion, or failure, increasing long-term maintenance costs.
Oversized valves reduce control sensitivity and cause instability at low openings. Undersized valves may lead to insufficient flow and excessive pressure drop. Accurate sizing should be based on Cv calculation rather than experience alone.
Different fluids behave differently. Particle-containing media cause erosion, high-viscosity fluids slow valve response, and corrosive fluids accelerate material degradation. Ignoring these factors can cause early failure even if sizing is correct
For control valves, flow characteristics (linear, equal percentage, etc.) significantly affect system stability. Incorrect selection may lead to oscillation or poor regulation performance.
Valve performance is affected by installation position, pipeline layout, and environmental conditions. Improper installation may cause cavitation, water hammer, or actuator instability.
Some valves offer high performance but are difficult to maintain. In contrast, standardized valves may offer lower performance but better maintainability and lower lifecycle cost, which is crucial for long-term operation.
Industrial valves are critical components in piping systems, and their selection directly affects system efficiency and safety. By scientifically analyzing operating conditions and selecting appropriate valve types and materials, system reliability and operational efficiency can be significantly improved.
With the development of automation and smart manufacturing, industrial valves are evolving toward higher intelligence, precision, and durability, playing an increasingly important role in modern industrial control systems.
