Stainless Steel Thermostatic Air Exhaust Steam Vent Valve

Home » Products » Steam Valves » Exhaust Valve » Stainless Steel Thermostatic Air Exhaust Steam Vent Valve

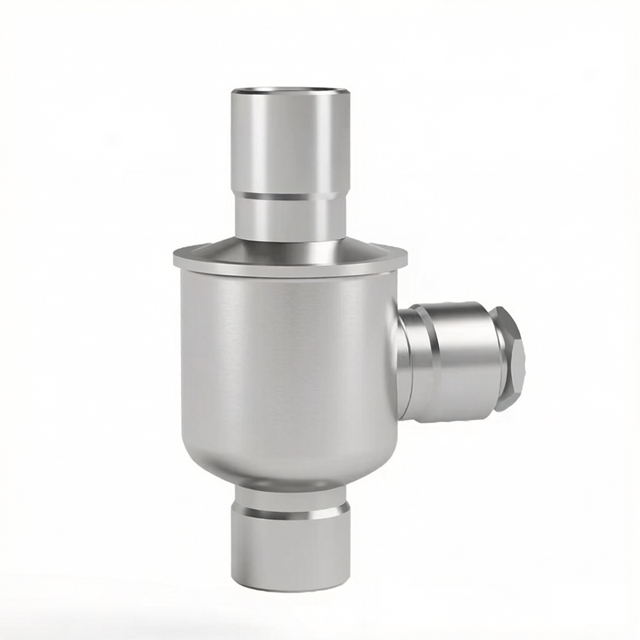

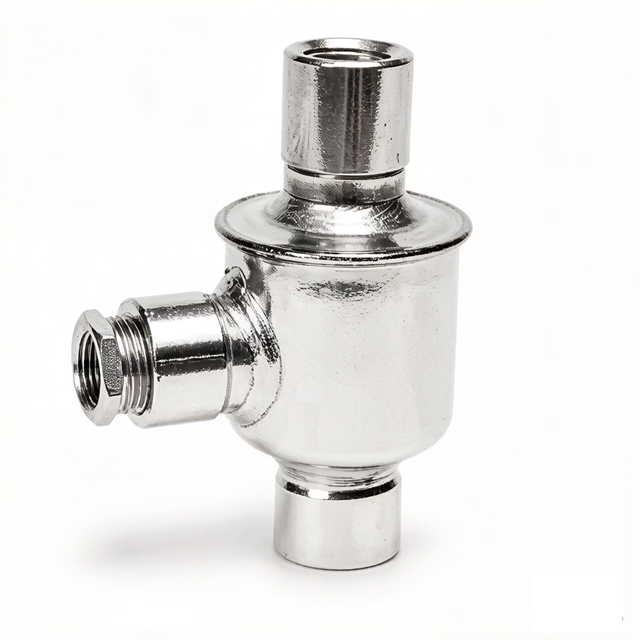

Stainless Steel Thermostatic Air Exhaust Steam Vent Valve

Fuchen TAVB integrates a thermostatic air vent and a vacuum breaker in a single, compact unit, making it the ideal solution for steam-filled vessels with modulating control systems. During normal operation, the TAVB automatically expels air and non-condensable gases from key process equipment—such as shell-and-tube heat exchangers, jacketed kettles, and steam coils—helping to maintain heat transfer efficiency and system stability.
When steam control valves modulate to reduce pressure, a vacuum can form inside the vessel. The TAVB instantly activates to break this vacuum, preventing possible equipment damage, process interruptions, and energy losses. This reliable, dual-action performance ensures smoother operation, longer equipment life, and enhanced safety in a wide range of industrial steam applications.

Quantity:
Material:	Stainless steel
Size:	DN15 DN20
connection:	NPT
Availability:





Inquire Add to Basket

Model:
TAVB
Brand:
Steam

Product Description

Technical Parameters

Company Description

air vent

1. Combines a thermostatic air vent and a vacuum breaker in one compact unit, reducing installation space and cost.

2. Specifically engineered for steam-filled vessels with modulating control valves, ensuring stable operation under variable pressure conditions.

3. Continuously removes air and other non-condensable gases from equipment such as shell-and-tube heat exchangers, jacketed kettles, and steam coils, maintaining high heat transfer efficiency.

4. Instantly breaks the vacuum formed during steam pressure reduction, preventing equipment strain, deformation, and process disruption.

5.Improves system performance, reduces energy losses, and extends the service life of steam system components.

6. Suitable for a wide range of industrial applications, from food and pharma to chemical and HVAC systems.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Air Vent Application Configuration Diagram

air vent

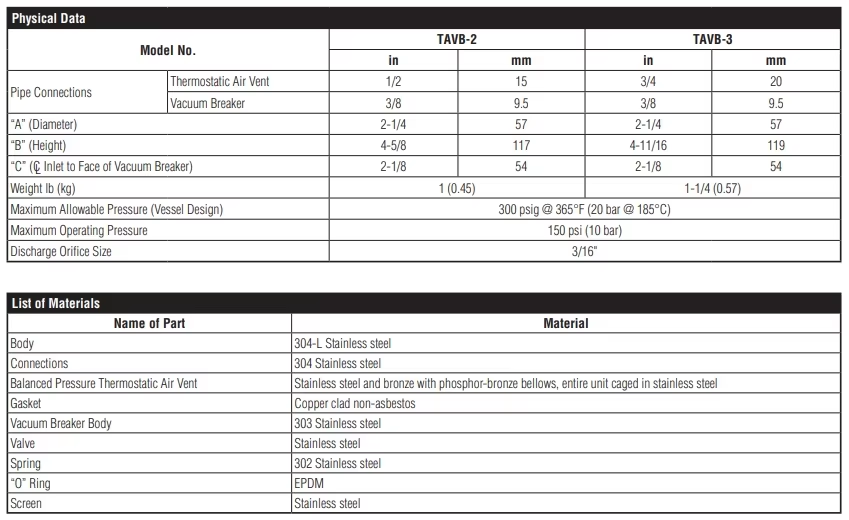

PRODUCT SPECIFICATIONS

Model	TAVB-2	TAVB-3
Body Material	304L Stainless Steel	304L Stainless Steel
Maximum Allowable Pressure	300 psig @ 365˚F (20 bar @ 185˚C)	300 psig @ 365˚F (20 bar @ 185˚C)
Maximum Operating Pressure	150 psig (10 bar)	150 psig (10 bar)
Connection Sizes	3/8″ (12 mm) 1/2″ (15 mm)	3/8″ (12 mm) 3/4″ (20 mm)
