Forged Steel Free Floating Lever Air Vent for Gas Systems with Manual Power

The 30 Series air/gas vents are manufactured from forged steel and incorporate the same proven free-floating lever mechanism used in Fuchen steam traps. Designed for applications requiring high air and gas venting capacity, these vents can handle pressures up to 1,000 psi (69 bar).
Available with threaded, socket weld, or flanged connections, the 30 Series offers versatile installation options to suit a wide range of industrial piping systems. This robust design ensures reliable performance, long service life, and efficient removal of air and non-condensable gases from steam and gas lines.

Quantity:
Material:	Forged steel
Size:	DN15-DN50
connection:	threaded socket welding flanged
Availability:





Inquire Add to Basket

Brand:
Steam

Product Description

Technical Parameters

Company Description

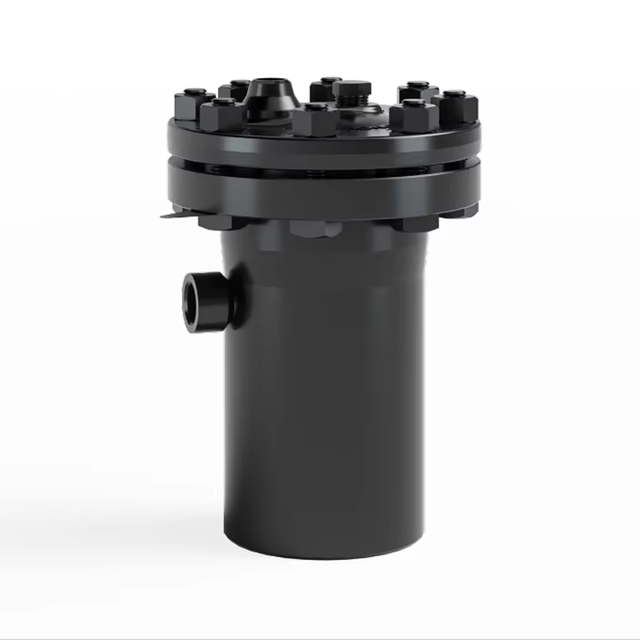

air vent

1. Manufactured from high-strength forged steel for superior durability and resistance to pressure and corrosion.

2. Utilizes the same reliable lever technology found in Fuchen steam traps, ensuring consistent and effective air/gas venting.

3. Engineered for applications that require rapid and efficient removal of large volumes of air and non-condensable gases.

4. Rated for operation up to 1,000 psi (69 bar), suitable for demanding industrial environments.

5. Available with threaded, socket weld, or flanged connections to fit various piping configurations and installation requirements.

6.Ideal for steam systems, gas lines, and process equipment where air accumulation can impair performance.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

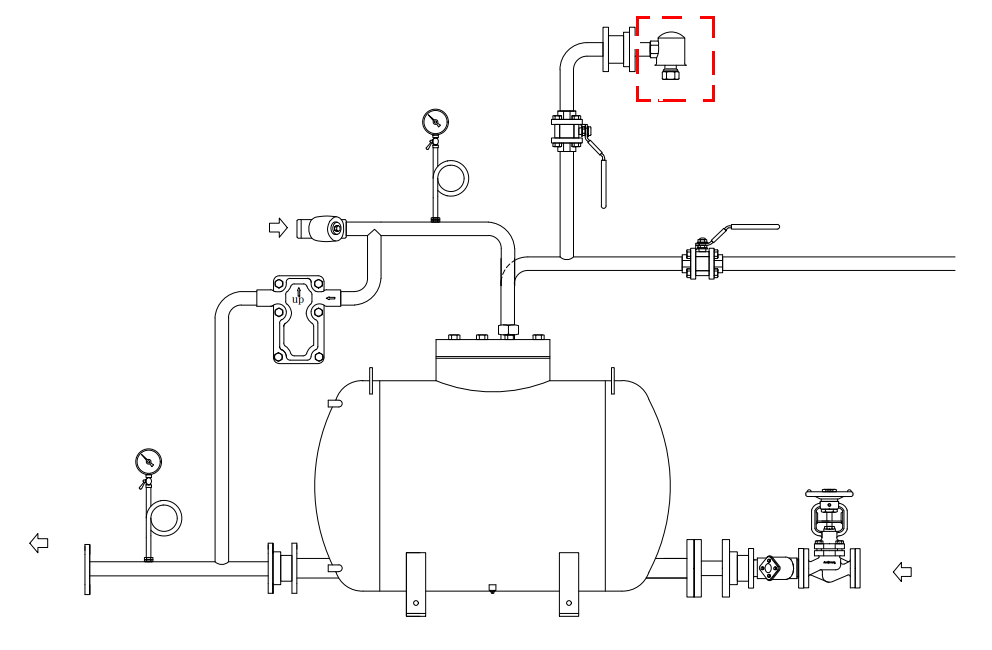

Air Vent Application Configuration Diagram

air vent

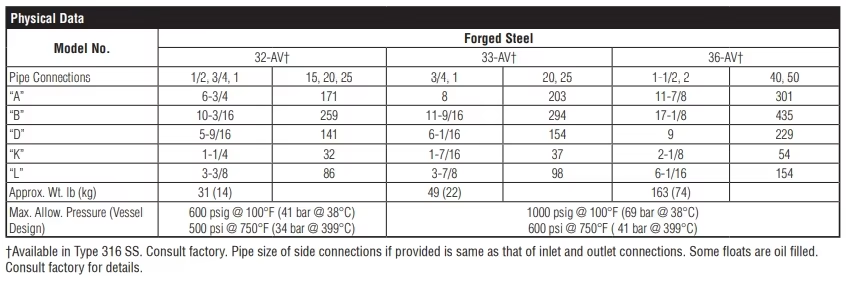

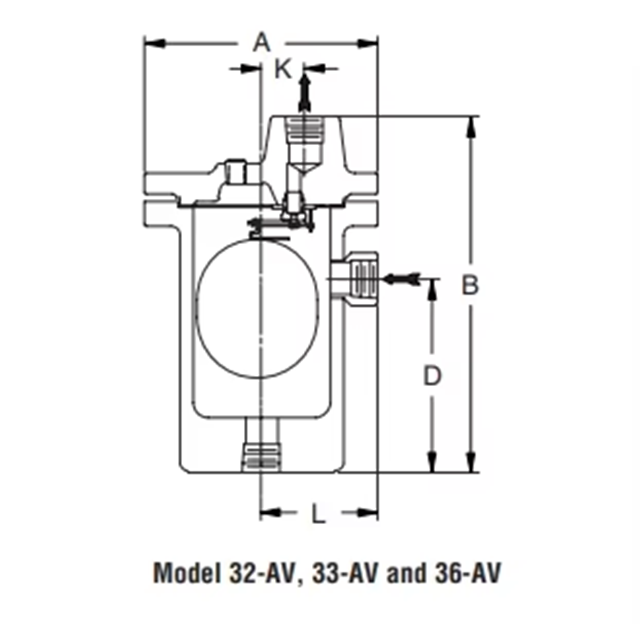

PRODUCT SPECIFICATIONS

Model	32-AV	33-AV	36-AV
Body Material	ASTM A105 Forged Steel	ASTM A105 Forged Steel	ASTM A105 Forged Steel
Maximum Allowable Pressure	600 psig @ 100°F (41 bar @ 38°C) 500 psi @ 750°F (34 bar @ 399°C)	1000 psig @ 100°F (69 bar @ 38°C) 600 psi @ 750°F (41 bar @ 399°C)	1000 psig @ 100°F (69 bar @ 38°C) 600 psi @ 750°F (41 bar @ 399°C)
Maximum Operating Pressure	600 psig (41 bar)	900 psig (62 bar)	1,000 psig (69 bar)
Connection Sizes	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm)	3/4″ (20 mm) 1″ (25 mm)	1-1/2″ (40 mm) 2″ (50 mm)
