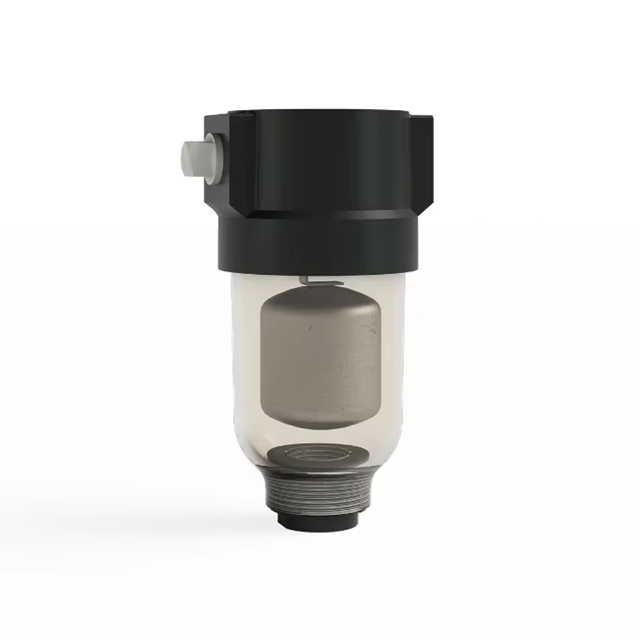

Manual Air Gas Vent Valve 1-AVC with Transparent Housing And Ball Float

Home » Products » Steam Valves » Exhaust Valve » Manual Air Gas Vent Valve 1-AVC with Transparent Housing And Ball Float

Manual Air Gas Vent Valve 1-AVC with Transparent Housing And Ball Float

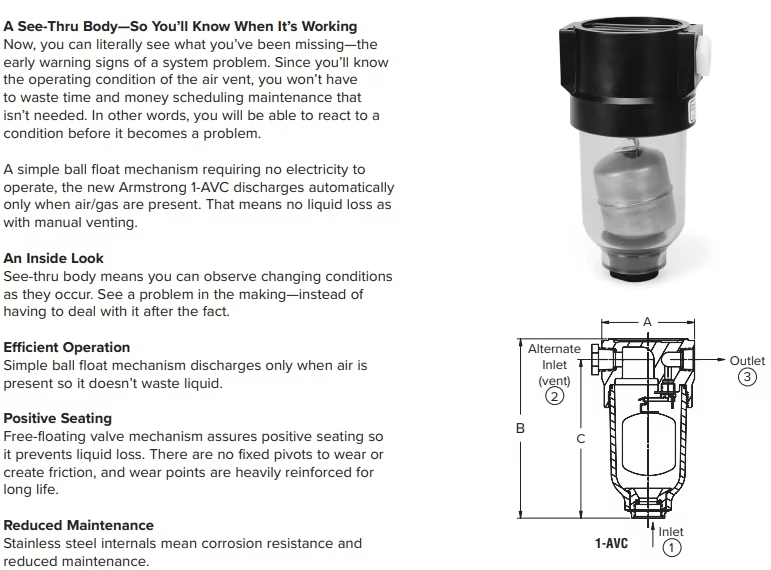

1-AVC uses a simple ball-float mechanism that requires no electricity to function. It automatically discharges air and gas only when they are present, ensuring continuous and efficient venting without wasting liquid. Unlike manual venting methods, the 1-AVC prevents fluid loss, making it a reliable, cost-effective solution for maintaining system performance and safety.

Quantity:
Material:	Nylon Cap Polysulfone Body
Size:	DN15 DN20
connection:	threaded
Availability:





Inquire Add to Basket

Model:
1-AVC
Brand:
Steam

Product Description

Technical Parameters

Company Description

1-AVC

1. Operates using a straightforward mechanical ball-float system, eliminating the need for external power or complex electronics.

2.Functions entirely through fluid dynamics, making it ideal for areas without power access or in explosion-proof environments.

3.Opens only when air or non-condensable gases are detected, ensuring efficient and timely venting.

4.Prevents valuable process fluid from escaping during venting, unlike traditional manual methods.

5.With fewer moving parts and no electrical components, the 1-AVC offers long service life and minimal upkeep.

6.Reduces operational and maintenance costs by combining automatic operation with zero product loss.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

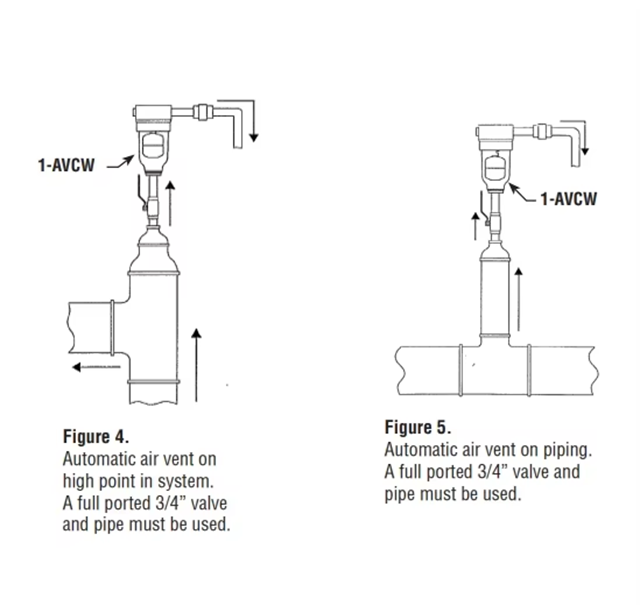

Air Vent Application Configuration Diagram

air vent

1-AVC

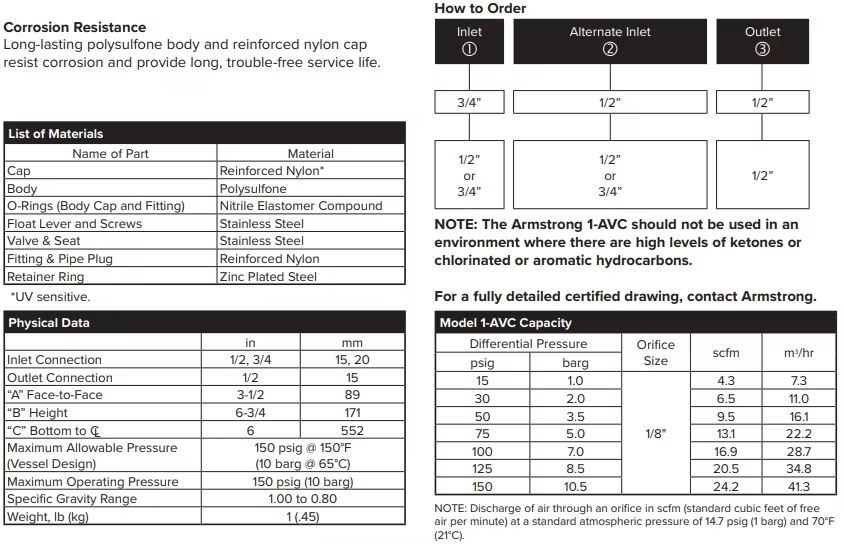

PRODUCT SPECIFICATIONS

Model	1-AVC
Body Material	Nylon Cap Polysulfone Body
Maximum Allowable Pressure	150 psig @ 150°F (10 barg @ 65°C)
Maximum Operating Pressure	150 psig (10 barg)
Connection Sizes	1/2″ (15 mm) 3/4″ (20 mm)
