In modern industrial systems, steam networks are widely used in chemical processing, food production, pharmaceuticals, textiles, power generation, and energy management. As an efficient heat transfer medium, steam plays a critical role in heating, sterilization, drying, and chemical reactions. However, traditional steam systems often suffer from significant energy waste, high thermal losses, and inefficient emissions management. As a result, energy-saving and environmental optimization of steam systems has become a key direction in industrial upgrading.
This article provides a professional analysis of steam system optimization from the perspectives of system structure, energy consumption sources, energy-saving technologies, and environmental protection strategies.
In most industrial facilities, energy consumption in steam systems is mainly concentrated in three areas: boiler combustion, distribution losses, and end-use discharge. Due to suboptimal design and operation, overall energy efficiency is often relatively low.
At the boiler stage, although combustion efficiency can be relatively high, heat losses still occur through flue gas, blowdown, and incomplete combustion. As a result, a significant portion of thermal energy is not effectively converted into usable steam.
During steam transmission, inadequate pipe insulation or poor pipeline layout leads to continuous heat loss. In addition, long-distance distribution may cause pressure drops, requiring additional energy compensation at the end-use side.
At the equipment usage stage, condensate is often discharged directly without recovery, resulting in substantial losses of both sensible and latent heat. These combined inefficiencies significantly reduce the overall system performance.
To achieve effective steam system optimization, improvements must be made across the entire chain—from heat generation to transmission, utilization, and recovery—rather than relying on isolated improvements.
As the core energy source of the steam system, boiler performance directly determines overall efficiency. By optimizing combustion control systems, the air-fuel ratio can be precisely adjusted to reduce incomplete combustion losses.
In addition, the integration of variable frequency drives and intelligent control systems allows boilers to dynamically adjust output according to load demand, avoiding inefficient low-load operation. Furthermore, waste heat recovery devices such as economizers or air preheaters can significantly improve thermal efficiency.
Heat loss during steam transmission is a major source of energy waste. High-quality thermal insulation materials and multi-layer insulation structures can significantly reduce heat dissipation from pipelines.
At the same time, proper pressure management is equally important. Excessively high system pressure increases both energy consumption and leakage risk. Through zone-based steam distribution and pressure-level control, energy can be supplied on demand, reducing overall consumption.
Condensate recovery is one of the most critical aspects of steam system efficiency improvement. In conventional systems, large volumes of high-temperature condensate are discharged directly, wasting both heat and water resources.

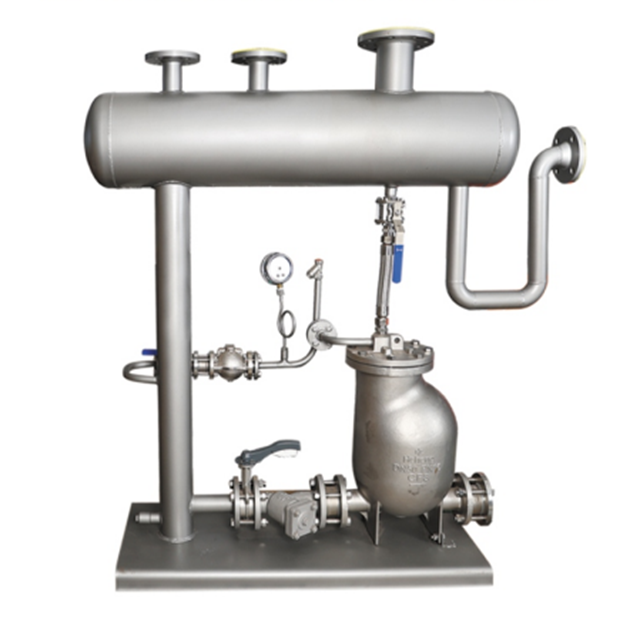

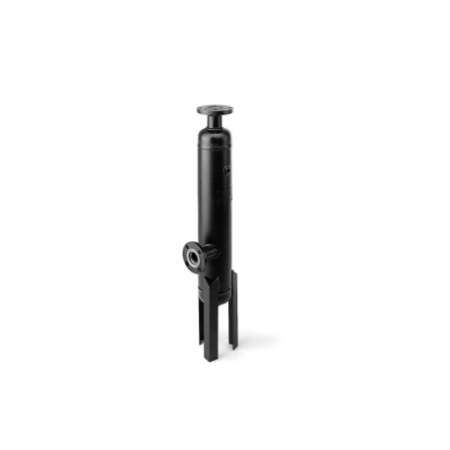

By implementing a condensate recovery system, hot condensate can be returned to the boiler or used for preheating processes, significantly improving energy efficiency. In addition, during pressure reduction, flash steam is generated. A flash recovery tank can be used to separate and recover this energy, enabling secondary utilization. The recovered low-pressure steam can be used for heating, cleaning, or low-temperature processes, greatly improving system efficiency.

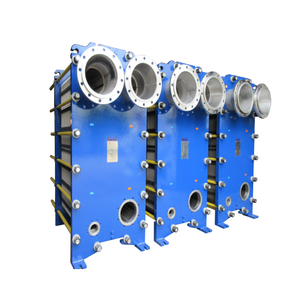

In many industrial processes, different temperature levels of heat are often mixed, leading to inefficient use of high-grade energy. By optimizing heat exchanger systems and implementing cascaded heat utilization, energy efficiency can be significantly improved.
For example, high-temperature steam is used for primary heating processes, while medium- and low-grade waste heat is reused for preheating raw materials or auxiliary operations. This graded energy utilization approach reduces unnecessary consumption of high-pressure steam.
Under global carbon reduction targets, steam systems must not only improve energy efficiency but also reduce emissions and enhance environmental sustainability.
By optimizing combustion systems, complete fuel combustion can be achieved, effectively reducing emissions of CO, NOx, and other pollutants. The use of low-NOx burners and staged combustion technologies further reduces nitrogen oxide formation.
In addition, replacing traditional coal-fired boilers with cleaner energy sources such as natural gas or biomass energy is an important direction for reducing carbon emissions.
Traditional open discharge methods waste water resources and may cause environmental pollution. A closed-loop condensate recovery system enables full water recycling and reduces industrial wastewater discharge.
Through filtration and oxygen removal treatments, the quality of recovered water can be further improved, ensuring safe and stable boiler operation.
During steam system operation, large amounts of waste heat are lost through exhaust, blowdown, and cooling processes. Waste heat recovery devices such as heat exchangers, heat pumps, and flash recovery systems can reclaim this low-grade energy.
For example, flash steam can be reused in auxiliary heating systems or integrated into other industrial processes, enabling energy circulation and reuse.
With the advancement of industrial automation, intelligent control systems play an increasingly important role in steam energy optimization.
By installing sensors and data acquisition systems, key parameters such as pressure, temperature, and flow rate can be monitored in real time. PLC or DCS systems can then dynamically adjust operating conditions to ensure stable and efficient operation.
In addition, through data analytics and energy consumption modeling, high-energy-consuming points within the system can be identified, enabling targeted optimization and continuous energy savings.
Steam system energy-saving and environmental optimization cannot be achieved through a single technology or device. It requires a systematic engineering approach covering design, operation, and management.
Key optimization directions include:
Improving boiler thermal efficiency
Reducing pipeline transmission losses
Enhancing condensate recovery and flash energy utilization
Implementing cascaded heat utilization
Introducing intelligent control systems
Reducing carbon and pollutant emissions
Through these multi-dimensional strategies, overall steam system efficiency can be significantly improved while reducing operating costs and environmental impact.
Against the backdrop of rising energy costs and increasingly strict environmental regulations, steam system optimization has become an inevitable trend in industrial development. Through systematic technical upgrades and intelligent management, industries can achieve higher energy efficiency, lower emissions, and more sustainable production.
In the future, with continued advancements in energy-saving technologies and smart control systems, steam systems will evolve toward higher efficiency, lower emissions, and greater intelligence, becoming a core component of industrial energy management.
