Industrial valves are core components in fluid control systems and are widely used in industries such as petrochemicals, power generation, metallurgy, pharmaceuticals, water treatment, and natural gas transmission. Their primary functions include isolation, regulation, diversion, and backflow prevention of process media.
Since valves often operate under high temperature, high pressure, corrosive, or flammable and explosive conditions, their design, manufacturing, and testing must strictly comply with international standards and technical specifications to ensure system safety, reliability, and long-term stable operation.
This article provides a systematic explanation of the key technical specifications and international standards required for industrial valves.
The need for standardized valve design is not merely a regulatory requirement but is driven by engineering safety and global industrial compatibility.
First, as pressure-bearing components, valve failure can lead to leakage, explosion, or system shutdown. Therefore, standardized design ensures a minimum safety threshold.
Second, global engineering projects often involve equipment integration from multiple countries. Without unified standards, issues such as incompatible dimensions, inconsistent pressure ratings, and maintenance difficulties can arise.
In addition, standardization improves interchangeability and procurement efficiency, allowing components to be replaced or maintained quickly across different projects.
ASME B16.34 is one of the most important standards for valve pressure-temperature design and is widely used in oil, gas, and international EPC projects.
It uses a Class rating system such as Class 150, 300, 600, 900, 1500, etc., with corresponding pressure adjustments based on temperature.
The core design philosophy is based on material strength and wall thickness calculations, ensuring that valves maintain sufficient safety margins under extreme operating conditions. This makes it suitable for high-pressure and high-temperature environments.
DIN EN 1092 and EN 12516 are key European standards for industrial valves.
Unlike the American system, the European standard uses metric units and PN (Nominal Pressure) ratings such as PN10, PN16, and PN40.
This system emphasizes structural uniformity and engineering consistency, enabling high interchangeability between manufacturers. It is widely used in chemical processing, water treatment, and general industrial systems.
JIS B2071 and B2081 standards are widely used in Japan and parts of Asia.
Pressure ratings are typically expressed in K-values such as 5K, 10K, and 20K. The design philosophy focuses on lightweight and cost efficiency, making it suitable for medium and low-pressure applications.
API (American Petroleum Institute) standards are the most important specifications for the oil and gas industry.
Standards such as API 600 (steel gate valves), API 602 (forged steel valves), and API 608 (ball valves) define detailed requirements for valve structure, wall thickness, sealing performance, and pressure resistance.
The key feature of API standards is their emphasis on reliability under extreme conditions, especially high pressure, high temperature, and corrosive media environments.
Valve body thickness is typically calculated according to ASME B16.34 or API standards to ensure that the valve will not deform or rupture under maximum allowable working pressure (MAWP).
In addition, structural design must consider thermal stress, mechanical stress, and fatigue life, especially in systems with frequent operation cycles or pressure fluctuations.
Industrial valve materials are commonly governed by ASTM standards, such as:
ASTM A216 (carbon steel castings)
ASTM A351 (stainless steel castings)
ASTM A182 (forged materials)
These standards strictly define chemical composition, mechanical properties, heat treatment conditions, and impact toughness requirements.
In chemical and offshore applications, valves often require corrosion-resistant materials such as duplex stainless steel, Hastelloy, or Monel alloys.
These materials must meet additional requirements such as PREN (Pitting Resistance Equivalent Number) to ensure long-term performance in chloride-rich or acidic environments.
Valve sealing materials typically include PTFE, graphite, rubber, or metal seals and must comply with standards such as API 622 or ISO 15848 for fugitive emission control.
These standards are especially important in environmentally sensitive applications where leakage control is critical.
Before delivery, valves must undergo pressure testing, including shell tests and seat leakage tests.
The shell test verifies the structural strength of the valve body, while the seat test ensures sealing performance.
Water or air is typically used as the test medium to confirm that no leakage or structural failure occurs under working conditions.
ISO 15848 and API 624 focus on fugitive emissions control, especially in volatile organic compound (VOC) applications.
These standards define strict leakage limits during long-term cycling conditions and are essential for environmentally regulated industries.
In the oil and gas industry, valves must meet fire-safe requirements.
Fire testing ensures that valves can maintain sealing integrity under fire conditions, preventing hazardous media leakage and secondary accidents.

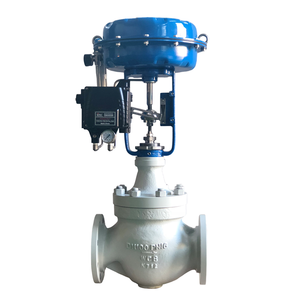

Industrial valves also include actuation systems such as manual, electric, pneumatic, and hydraulic operators.
This standard defines the interface dimensions between valves and actuators, enabling interchangeability between different manufacturers and improving system compatibility.
Electric actuators must comply with IEC electrical standards and typically require IP65 or higher protection ratings to withstand dust, moisture, and harsh industrial environments.
In real engineering projects, valves rarely comply with only one standard. Instead, multiple standards are used together.
For example:
Oil & gas projects: API + ASME + ASTM + NACE
Chemical industry: DIN + EN + ISO
Water treatment systems: JIS + ISO + GB
This combination ensures compliance in structure, material, and performance simultaneously.
The technical specifications and international standards required for industrial valves form a multi-layered system covering design, materials, manufacturing, testing, and application.
From ASME/ANSI, DIN, and JIS pressure standards to API design requirements, ASTM material specifications, and ISO performance testing systems, each standard plays a critical role in ensuring valve safety and reliability.
In modern industrial systems, only valves that strictly comply with international standards can guarantee long-term stable operation while meeting global requirements for safety, interchangeability, and quality consistency.
