A condensate recovery pump system is an essential energy-saving device in industrial steam systems. It is widely used in petrochemical plants, power generation, pharmaceuticals, food processing, and district heating systems. Its primary function is to collect high-temperature condensate generated from steam-using equipment (such as heat exchangers, steam jackets, and dryers), pressurize it, and return it to the boiler system for reuse, enabling efficient water and heat recycling.

1. Basic Working Logic of a Condensate Recovery System

The fundamental operating logic of a condensate recovery system can be summarized as: collection → storage → pressurization → transportation → reuse.

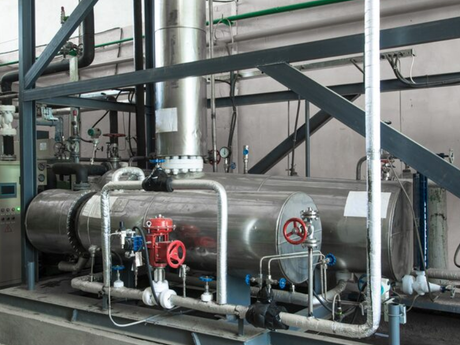

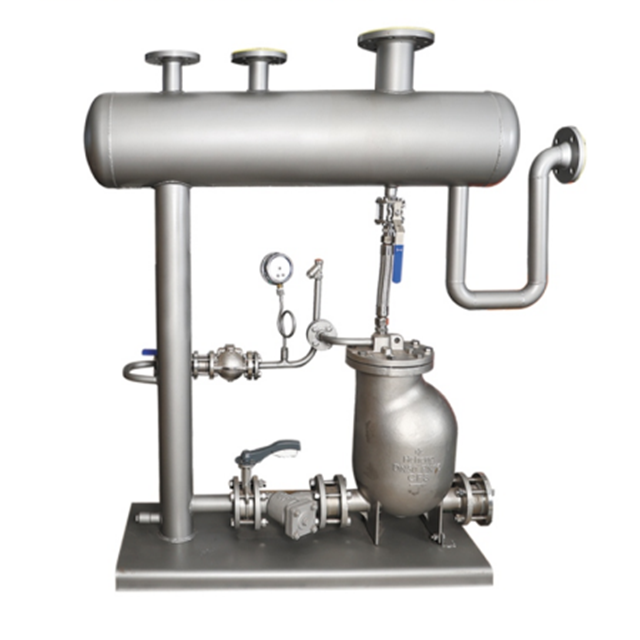

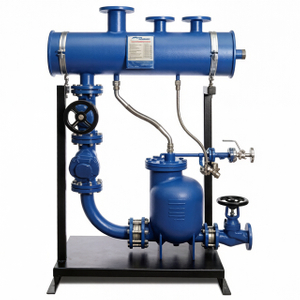

Condensate Recovery Pump System

During steam system operation, steam releases latent heat and condenses into high-temperature water. Although this condensate has already released energy, it still retains significant thermal value and relatively high water quality. Discharging it directly results in energy waste.

The system collects this hot liquid, stores it in a dedicated tank, and then uses a pump or pressure-driven device to transport it back to the boiler or deaerator system for reuse.

Because condensate is often close to saturation temperature and system pressure fluctuates significantly, the system requires carefully designed equipment to ensure stable operation.

1.1 Condensate Collection Principle

Steam-using equipment releases latent heat, producing condensate that flows into the recovery pipeline by gravity or pressure difference. During this stage, heat loss must be minimized because higher condensate temperature increases recovery efficiency. Pipeline design should also avoid long residence time to prevent secondary flashing.

1.2 System Operation Logic

The system integrates collection, buffering, pressurization, and reuse into a continuous cycle. Each stage must operate in coordination to ensure stable condensate recovery and avoid energy loss or system interruption.

2. Main Components of a Condensate Recovery Pump System

A complete condensate recovery pump system consists of several key components working together to ensure stable and efficient operation.

2.1 Condensate Receiver Tank (Flash Tank / Collection Tank)

The receiver tank is the first receiving unit of the system. It collects condensate from various steam-consuming equipment. Since condensate is typically at high temperature, partial flashing occurs when pressure drops inside the tank, producing secondary steam. The tank must effectively separate vapor and liquid phases to prevent gas entrainment and reduce cavitation risks.

Additionally, the tank acts as a buffer, stabilizing flow conditions before the liquid enters the pump system.

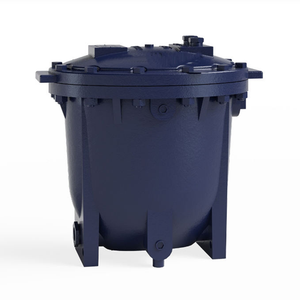

2.2 Condensate Recovery Pump

The recovery pump is the core equipment of the system. It pressurizes low-pressure or atmospheric condensate and sends it back to the boiler or water supply system. Because condensate is near saturation temperature (often above 100°C), the pump must have strong anti-cavitation capability.

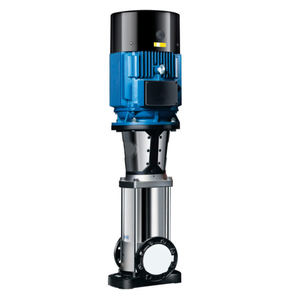

Common pump types include multistage centrifugal pumps, vortex pumps, and specially designed high-temperature sealed pumps. Pump stability directly determines system reliability.

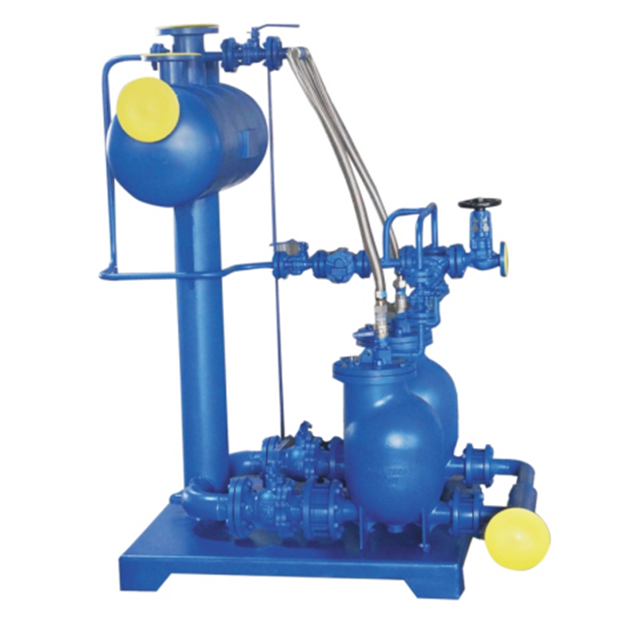

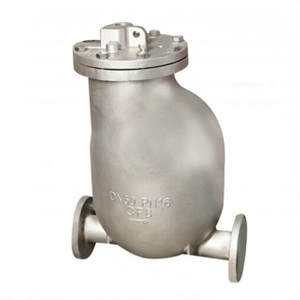

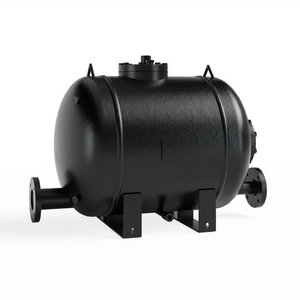

Compact Mechanical Condensate Recovery Multi Pump Unit Space Saving Industrial Use

2.3 Control System (Automatic Level and Operation Control)

The control system monitors the liquid level in the receiver tank and automatically starts or stops the pump based on level changes. When the liquid level reaches the upper limit, the pump starts to discharge condensate. When the level drops to the lower limit, the pump stops to prevent dry running.

Modern systems typically use PLC-based control combined with level sensors, temperature sensors, and pressure transmitters to ensure automation and safety.

2.4 Piping System and Check Valves

The piping system is responsible for transporting condensate under high-temperature conditions. Its design must consider thermal stress, pressure variations, and cavitation risks. Check valves prevent backflow from high-pressure boiler systems, protecting both the pump and the receiver tank.

3. Detailed Working Process of the Condensate Recovery Pump System

The operation of a condensate recovery system can be divided into four continuous stages, each corresponding to different physical conditions.

3.1 Condensate Collection Stage

Steam-using equipment releases latent heat, producing condensate that flows into the recovery pipeline. Heat loss must be minimized, and pipeline design should avoid long residence time to prevent secondary flashing.

3.2 Flashing and Separation Stage

When high-temperature condensate enters the receiver tank, pressure drops cause partial flashing. The generated flash steam can be reused for low-pressure systems or preheating processes, while the remaining liquid settles at the bottom.

Efficient vapor-liquid separation is critical to avoid gas entering the pump and causing cavitation or vibration.

3.3 Pressurization and Delivery Stage

Once the liquid level reaches the set threshold, the control system activates the pump to pressurize and transfer condensate. The pump must overcome static pressure differences and pipeline friction losses.

Because condensate is close to saturation temperature, any pressure drop may cause re-evaporation. Therefore, pumps must meet high NPSH requirements to avoid cavitation.

3.4 Reuse and Recycling Stage

The pressurized condensate is returned to the boiler feedwater system or deaerator. This process reduces fresh water consumption and recovers thermal energy, improving boiler efficiency. In well-designed systems, recovery rates can reach 70%–90%.

4. Key Factors Affecting System Efficiency

Several engineering factors influence the performance of a condensate recovery pump system.

4.1 Temperature and Cavitation Control

Condensate is close to boiling point, making cavitation a major risk. Proper inlet pressure maintenance, optimized piping layout, and correct pump selection are essential for stable operation.

4.2 Receiver Tank Level Stability

Large fluctuations in liquid level may cause frequent pump cycling, reducing equipment lifespan. Stable level control strategies are necessary to ensure efficient operation.

4.3 Proper Pump Selection

Different operating conditions require different pump types. High-temperature systems typically use multistage centrifugal or sealed pumps, while low-pressure systems may use standard centrifugal pumps.

4.4 Piping System Optimization

Excessive pipeline length or too many bends increase resistance and cavitation risk. Optimized layout improves efficiency and reduces operational instability.

5. Energy-Saving Advantages of Condensate Recovery Systems

Condensate recovery systems provide significant industrial benefits:

  • Reduces boiler make-up water consumption

  • Lowers fuel usage

  • Improves thermal efficiency

  • Reduces wastewater discharge

  • Enhances overall system stability

In large industrial plants, recovery rates can reach 70%–90%, leading to substantial cost savings and energy efficiency improvements.

6. Conclusion

A condensate recovery pump system is a key component in industrial steam systems for energy recycling. Its core mechanism is a continuous process of collection, separation, pressurization, and reuse, enabling efficient recovery of high-temperature condensate.

Through optimized tank design, proper pump selection, stable control systems, and improved piping layouts, system efficiency and safety can be significantly enhanced.

With the increasing global focus on energy conservation, condensate recovery technology will continue to play an important role in sustainable industrial development and energy management systems.
