Why Condensate Recovery Matters in Industrial Steam Systems

In an industrial steam system, condensate is more than a by-product of heating. After steam transfers its thermal energy to process equipment, it becomes hot condensate that still contains useful sensible heat. Discharging this condensate directly means losing both thermal energy and treated water.

For factories operating boilers, heat exchangers, dryers, sterilizers, heating tanks, or other steam-consuming equipment, recovering condensate can therefore improve overall system efficiency.

However, an effective condensate recovery pump system requires more than simply adding a pump to a return pipe. Pump capacity, condensate temperature, return pressure, pipeline layout, elevation, flash steam, and water quality all influence system performance.

For B2B buyers, the key question is not simply which pump has the highest flow rate. The better question is whether the selected system can collect, transfer, and return condensate reliably under actual operating conditions.

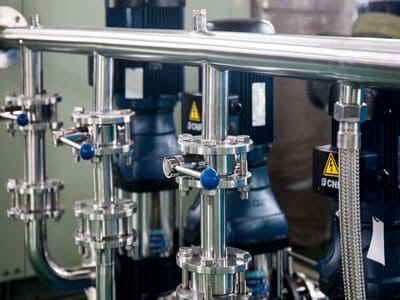

What Is a Condensate Recovery Pump System?

A condensate recovery system collects condensed steam from downstream equipment and transfers it back toward the boiler feedwater system, deaerator, condensate tank, or another designated point.

A typical system may include:

Steam-consuming equipment → Condensate outlet → Collection tank → Condensate recovery pump → Return pipeline → Boiler/feedwater system

Depending on the application, the system may also include steam traps, check valves, isolation valves, level controls, pressure instruments, temperature sensors, and other components.

The main purpose is to recover energy that would otherwise be lost.

A properly matched system can help reduce fresh-water demand, decrease boiler fuel requirements, and improve the overall efficiency of a steam network.

How to Select the Right Condensate Recovery Pump

Pump selection should begin with actual operating data rather than the nominal capacity of the steam equipment.

The first parameter is flow rate. The pump must be capable of handling the maximum expected condensate production while avoiding excessive oversizing. If the pump is too small, condensate may accumulate and interfere with downstream equipment. If it is significantly oversized, cycling and control problems may occur.

The second major parameter is pump head. Head must account for vertical elevation, pipeline resistance, fittings, valves, and the pressure at the receiving point.

A simplified calculation is:

Required Head ≈ Static Head + Pipeline Pressure Loss + Receiving Pressure Requirement

For example, if a return point is 8 meters above the collection tank and the pipeline and fittings create an equivalent loss of 12 meters, the pump already needs to overcome approximately 20 meters of hydraulic head before additional operating margins are considered.

The actual engineering calculation should also account for fluid properties and operating conditions.

Key Parameters Buyers Should Confirm

Condensate recovery is more demanding than ordinary water transfer because the fluid can have a high temperature and may contain flash steam.

Before selecting a pump, buyers should provide the supplier with several basic parameters.

These parameters are particularly important for OEMs, engineering contractors, distributors, and industrial users purchasing equipment for different steam applications.

A supplier that asks for these operating conditions before recommending a model is generally better positioned to provide an application-specific solution.

How Condensate Temperature Affects Pump Selection

Temperature is one of the most important differences between condensate recovery and conventional water pumping.

Hot condensate can approach the saturation temperature corresponding to the system pressure. If pressure drops suddenly, part of the condensate may flash into steam.

This can create problems for pumps because vapor formation at the pump inlet can reduce stable hydraulic performance and contribute to cavitation.

Therefore, buyers should not select a pump solely according to flow and head. The supplier should also evaluate:

Temperature + inlet pressure + available NPSH + flash steam potential

The collection tank and suction pipeline should be designed to provide suitable inlet conditions. In some systems, reducing unnecessary pressure loss on the suction side is particularly important.

For high-temperature applications, the pump's wetted materials, seals, bearings, and other components should also be compatible with the specified operating environment.

Installation Guide: Building a Reliable Return Pipeline

Even a properly selected pump can perform poorly if installation conditions are unsuitable.

The first consideration is the suction side. The suction pipeline should normally be designed to minimize unnecessary pressure losses. Excessive elbows, restrictive valves, undersized piping, and complicated routing can reduce the pressure available at the pump inlet.

The second consideration is the discharge side. The return pipeline must be appropriately sized for the required flow and pressure. Check valves can help prevent reverse flow when the pump stops.

The third consideration is pipeline insulation. Since condensate still contains useful heat, excessive heat loss during transportation reduces the value of recovery.

A practical installation strategy includes:

1. Keep suction piping short and appropriately sized.

2. Minimize unnecessary fittings and pressure losses.

3. Install suitable isolation and check valves.

4. Provide adequate support for hot pipelines.

5. Insulate hot condensate lines where appropriate.

6. Leave sufficient access for inspection and maintenance.

Installation details should always follow the pump manufacturer's technical requirements and the specific process design.

Common Installation Problems and Their Effects

Many condensate recovery problems are caused by system configuration rather than pump manufacturing quality.

For example, an undersized suction line can increase pressure loss and make the pump more vulnerable to unstable operation. Poorly positioned valves can restrict flow. An incorrectly designed collection tank can also cause excessive turbulence or unfavorable inlet conditions.

For B2B projects, these factors should be reviewed before equipment delivery whenever possible. Early engineering coordination can prevent expensive modifications after installation.

How Condensate Recovery Improves Steam-System Efficiency

The economic value of condensate recovery comes from several factors working together.

First, hot condensate requires less additional energy to return to boiler-feed conditions than cold make-up water. Second, recovering condensate reduces the quantity of treated make-up water required. Third, returning condensate can reduce the thermal load placed on the boiler system.

Consider a simplified example.

Suppose a factory recovers 5,000 kg of condensate per hour and operates for 4,000 hours per year. The annual recovered condensate volume would be approximately:

5,000 × 4,000 = 20,000,000 kg

That equals approximately 20,000 tonnes of condensate per year.

The actual economic benefit depends on condensate temperature, boiler efficiency, fuel price, water-treatment cost, return ratio, and operating conditions. Nevertheless, the calculation demonstrates why condensate recovery can become significant in continuous industrial operations.

Why an Integrated Steam-System Supplier Matters

For industrial buyers, purchasing a condensate recovery pump independently may not always produce the best result. The pump interacts with steam traps, valves, tanks, pipelines, instruments, and the boiler feedwater system.

Fuchen Intelligent Equipment (Hangzhou) Co., Ltd. is a manufacturer and distributor for multiple brands in China. Located in Hangzhou, Zhejiang, the company specializes in steam system energy-saving solutions, system optimization, and the manufacturing, sales, and technical services of high-quality steam valves.

This system-oriented experience is relevant when selecting a condensate recovery pump system, because the objective is not simply to move water from point A to point B. The objective is to create a reliable return process that supports steam efficiency and stable operation.

For overseas distributors, OEMs, EPC contractors, and industrial users, supplier evaluation should therefore include product quality, technical support, customization capability, delivery reliability, and knowledge of steam-system applications.

Select the Pump Around the System Requirements

A reliable condensate recovery system starts with accurate operating data.

Flow rate, pump head, condensate temperature, inlet pressure, elevation, pipeline resistance, receiving pressure, and condensate quality should all be evaluated before selecting equipment.

Installation is equally important. Correct suction-pipe sizing, appropriate pipeline routing, check valves, insulation, tank configuration, and maintenance access can significantly influence long-term performance.

For B2B buyers, the best approach is therefore to evaluate:

Pump performance + thermal conditions + pipeline design + control strategy + system integration

rather than comparing pump prices alone.

A properly engineered condensate recovery pump system can help industrial steam users recover valuable heat and water while improving overall system efficiency. With professional steam-system optimization and technical support, Fuchen can provide condensate recovery solutions based on specific operating requirements, helping OEMs, distributors, engineering companies, and industrial users build more reliable and energy-efficient steam systems.
